🔧 Product Description

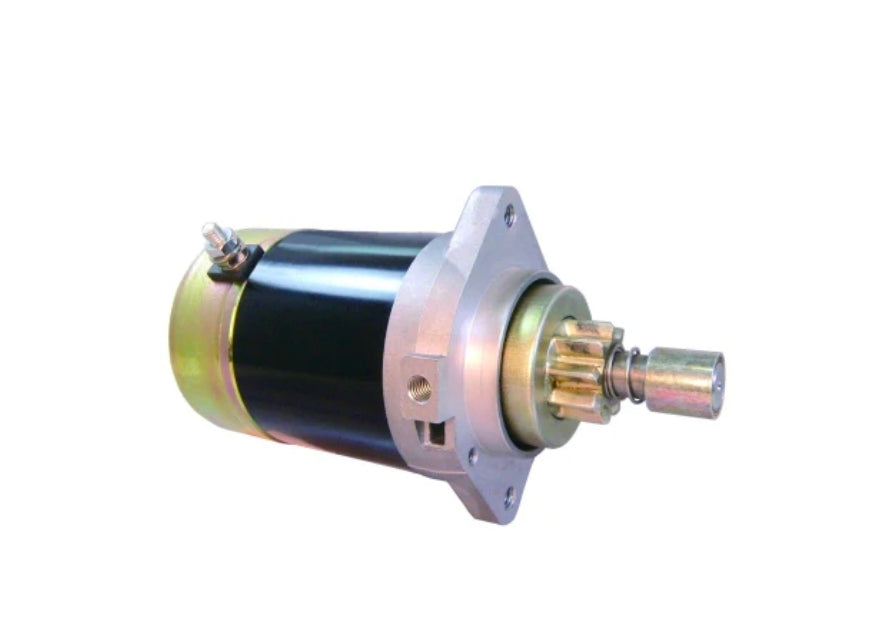

Aftermarket replacement Tohatsu/Nissan Large Two-Stroke/TLDI Starter Motor - Replaces Part Number: 353-76010-4M

New aftermarket Hitachi-pattern direct-drive starter replacing Tohatsu 353-76010-4M for large carburetted and TLDI outboards.

⚙️ Key Features

• 12-volt electrical system

• Approximately 1.0kW rated output

• Counter-clockwise rotation viewed from the drive end

• 9-tooth pinion

• Direct-drive marine construction

• Complete new starter motor with integrated solenoid

• Marine or engine-grade corrosion-resistant construction

• Direct replacement only after voltage, rotation, tooth count and mounting pattern are confirmed

🧰 Kit / Assembly Contents

• 1 × Complete starter motor assembly - P/N 353-76010-4M

• 1 × Integrated starter solenoid and shift mechanism

• 1 × Installed pinion gear and overrunning clutch/Bendix assembly

• 1 × Installed armature, field-magnet/winding, brush holder and drive housing

• Mounting bolts, electrical cables and external relays are transferred or renewed separately unless supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 353-76010-4M → Cross-references 353-76010-4, 353-76010-300 and earlier 353-76010 variants

OEM / Related Numbers:

• 353-76010-04

• 353-76010-1A0

• 353-76010-300

• 353-76010-4

• 353-76010-4M

• 3A3760100

• Hitachi S114-415

• S114-415A

• S114-571

• S114-571A

• S114-667

Aftermarket / Verified Equivalents:

• Sierra: 18-6418

• ARCO: 3410

• API Marine: MOT5009N / PH130-0048

• WAI: 18323N

🚤 Compatibility

Commonly used on:

• Tohatsu/Nissan large two-stroke and TLDI outboard starting systems

Typically suits:

• Engine / Generator models:

• M45A2, M50C, M60A/B/C and M70A/A2/B

• M90A, M115A, M120A and M140A

• MD70B, MD90B, MD115A, MD120A2 and MD140A2 TLDI applications

• HP / Output Range: 45HP - 140HP

• Year Range: Approximately 1992 - 2014; model dependent

• Starter Identification: Confirm 9 teeth, counter-clockwise rotation and the original 353-series number.

🔌 Function

The starter motor converts battery electrical energy into high-torque mechanical rotation to crank the engine. When the start circuit energises the solenoid, the pinion moves into the flywheel ring gear and the motor turns the crankshaft until the engine starts. The overrunning clutch then protects the starter as engine speed rises.

Common signs of failure / incorrect starter fitment:

• No-crank condition even though the battery and start-control circuit test correctly

• Solenoid clicks but the starter motor does not rotate

• Starter turns slowly, draws excessive current or overheats the battery cables

• Pinion spins without engaging the flywheel ring gear

• Grinding, clashing or repeated pinion kick-out during cranking

• Intermittent cranking caused by worn brushes, solenoid contacts or heat soak

• Corrosion, water intrusion, burnt windings or excessive shaft/bearing play

📦 Condition

• New aftermarket replacement starter motor

• Brand new

• Supplied in original or equivalent packaging
