35370-ZZ5-D02 Aftermarket Honda Power Trim Switch Assembly DF8-DF250 | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement Honda Side-Mount Remote Power Trim Switch - Replaces Part Number: 35370-ZZ5-D02

New aftermarket switch assembly replacing Honda 35370-ZZ5-D02. It is installed in the side-mount remote-control box and provides the corresponding operator command.

⚙️ Key Features

• Direct replacement for Honda 35370-ZZ5-D02

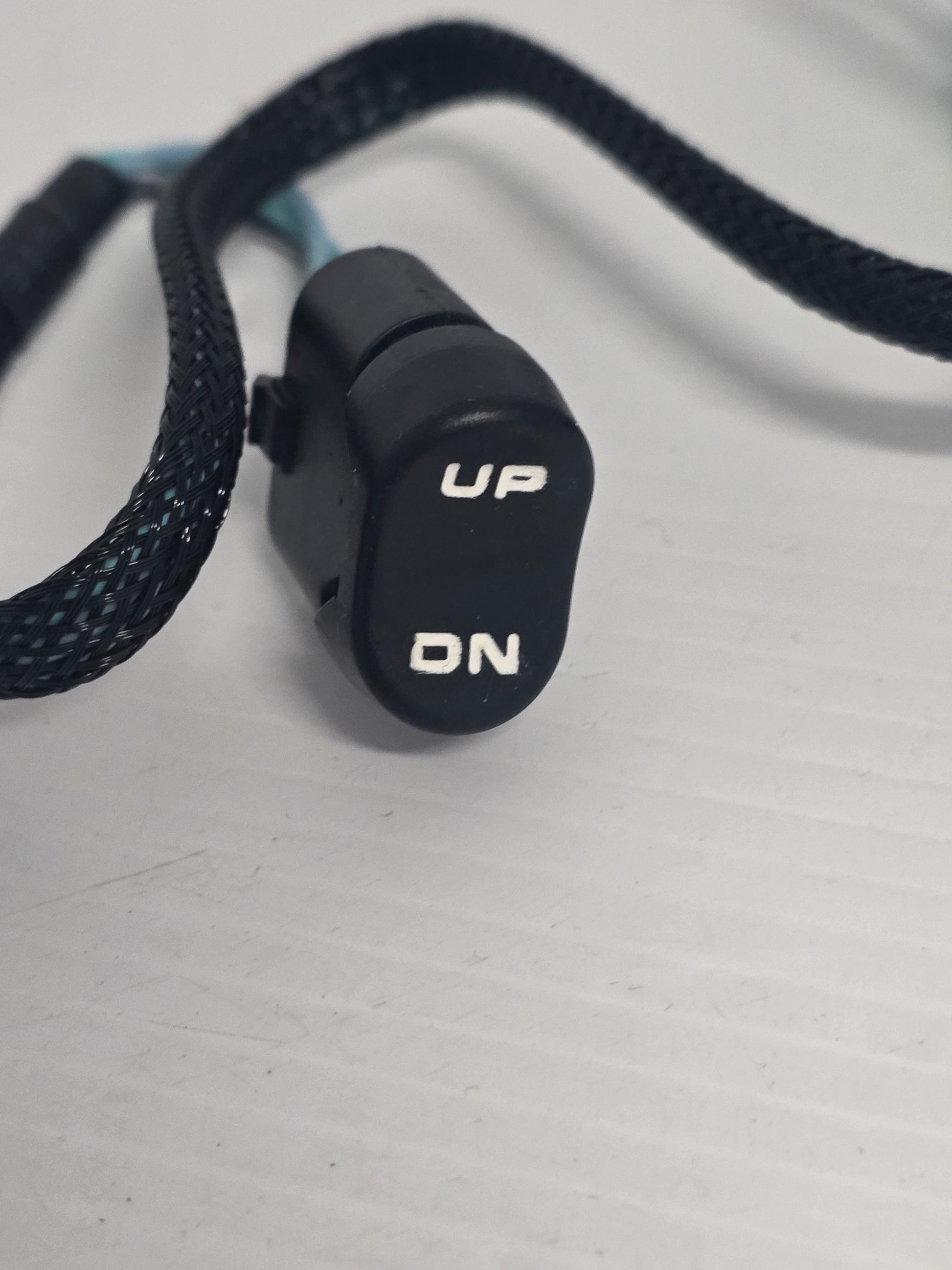

• Momentary UP/DOWN trim switch

• Fits the Honda side-mount remote-control handle

• Sealed marine wiring and switch body

• Compare connector and lead length before ordering

🧰 Kit / Assembly Contents

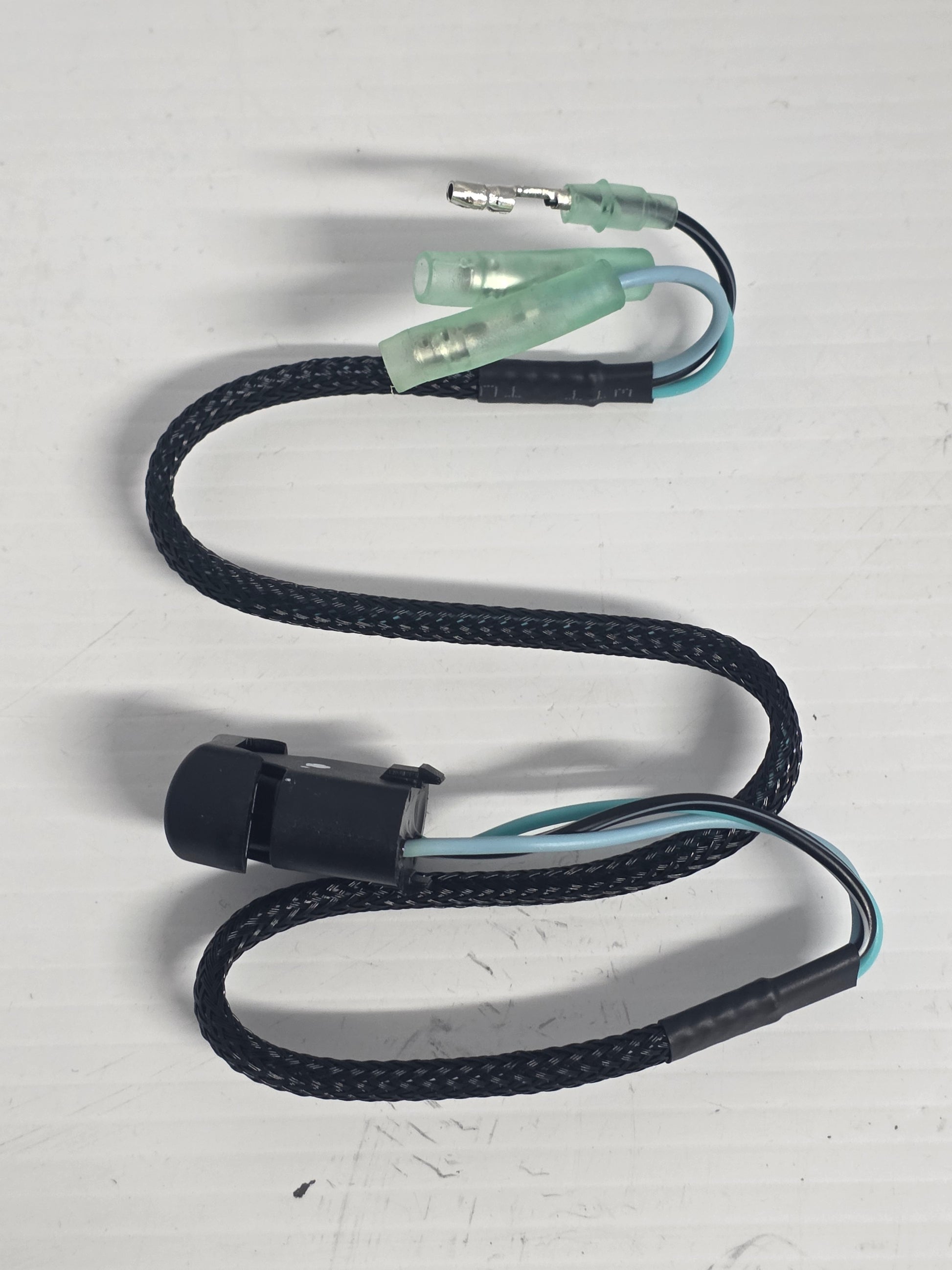

• 1 × Complete switch assembly - P/N 35370-ZZ5-D02

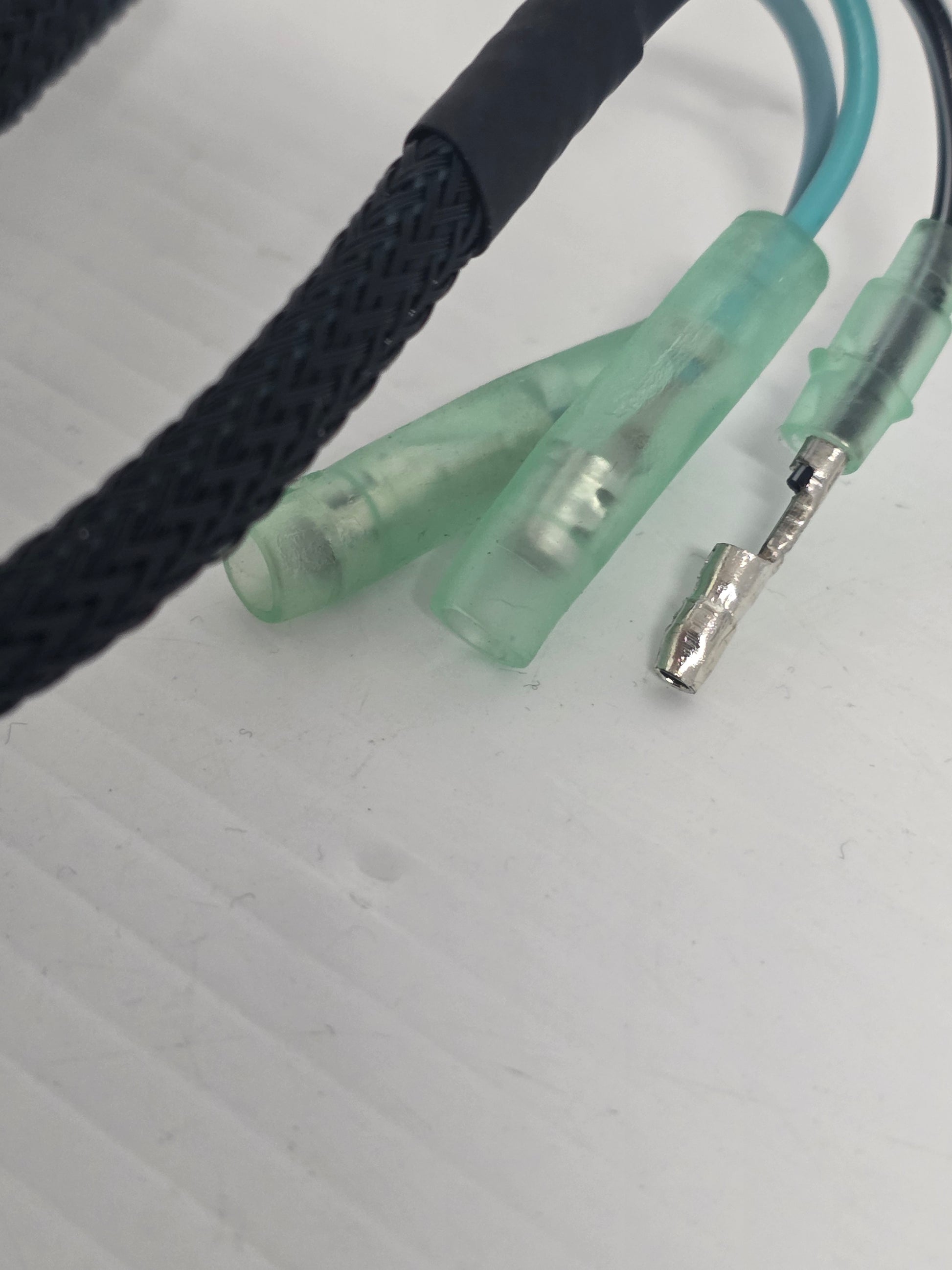

• 1 × Integrated wiring lead and connector

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 35370-ZZ5-D02 (Honda OEM switch reference)

OEM / Related Numbers:

• 35370ZZ5D02

Aftermarket / Verified Equivalents:

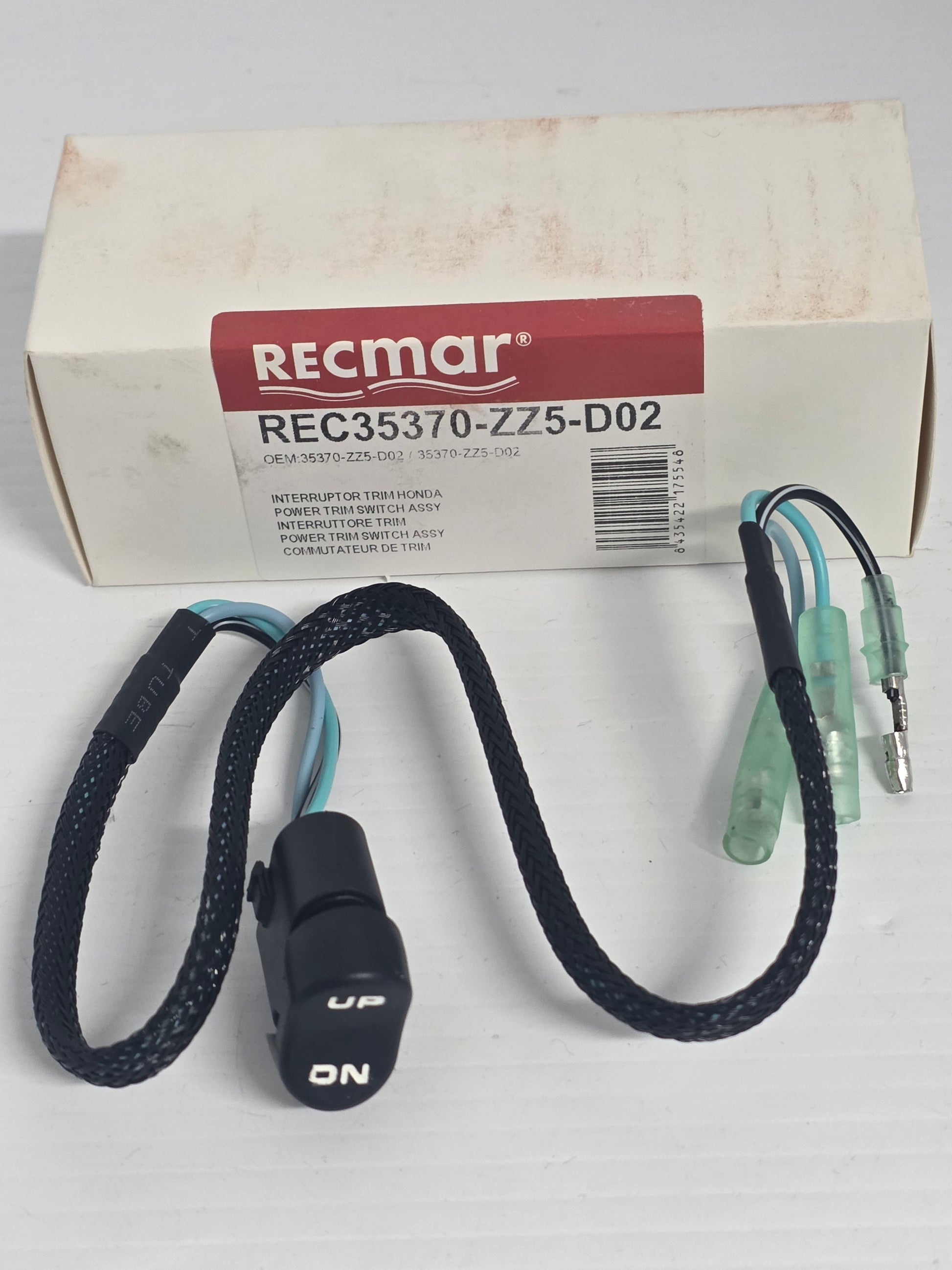

• Recmar: REC35370-ZZ5-D02

• Aftermarket Honda switch matched to 35370-ZZ5-D02

🚤 Compatibility

Commonly used on:

• Honda side-mount remote-control box

Typically suits:

• Engine / Drive models:

• Honda side-mount remote-control boxes 24800-ZZ5-A02/A22

• BF8 through BF250 remote-control installations using this switch

• HP / Drive Range: 8HP - 250HP

• System Type: Honda outboard remote-control electrical system

• Year Range: Model- and control-box dependent

• Serial / Component Identification: The supplied DF model wording was corrected to Honda BF model families where applicable.

🔌 Function

The switch provides momentary electrical control for the designated trim, tilt or trolling function and sends the operator command through the engine or remote-control wiring harness.

Common signs of failure / service requirement:

• UP or DOWN function does not respond

• Switch operates intermittently

• Water intrusion or corrosion at terminals

• Button sticks or has excessive movement

• Wiring tests correctly but the switch remains open

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
