35745-ZZ3-743 Honda Shift Limit Assy | Genuine Used Part

35745-ZZ3-743 Honda Shift Limit Assy | Genuine Used Part

$38.00 AUD
$38.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

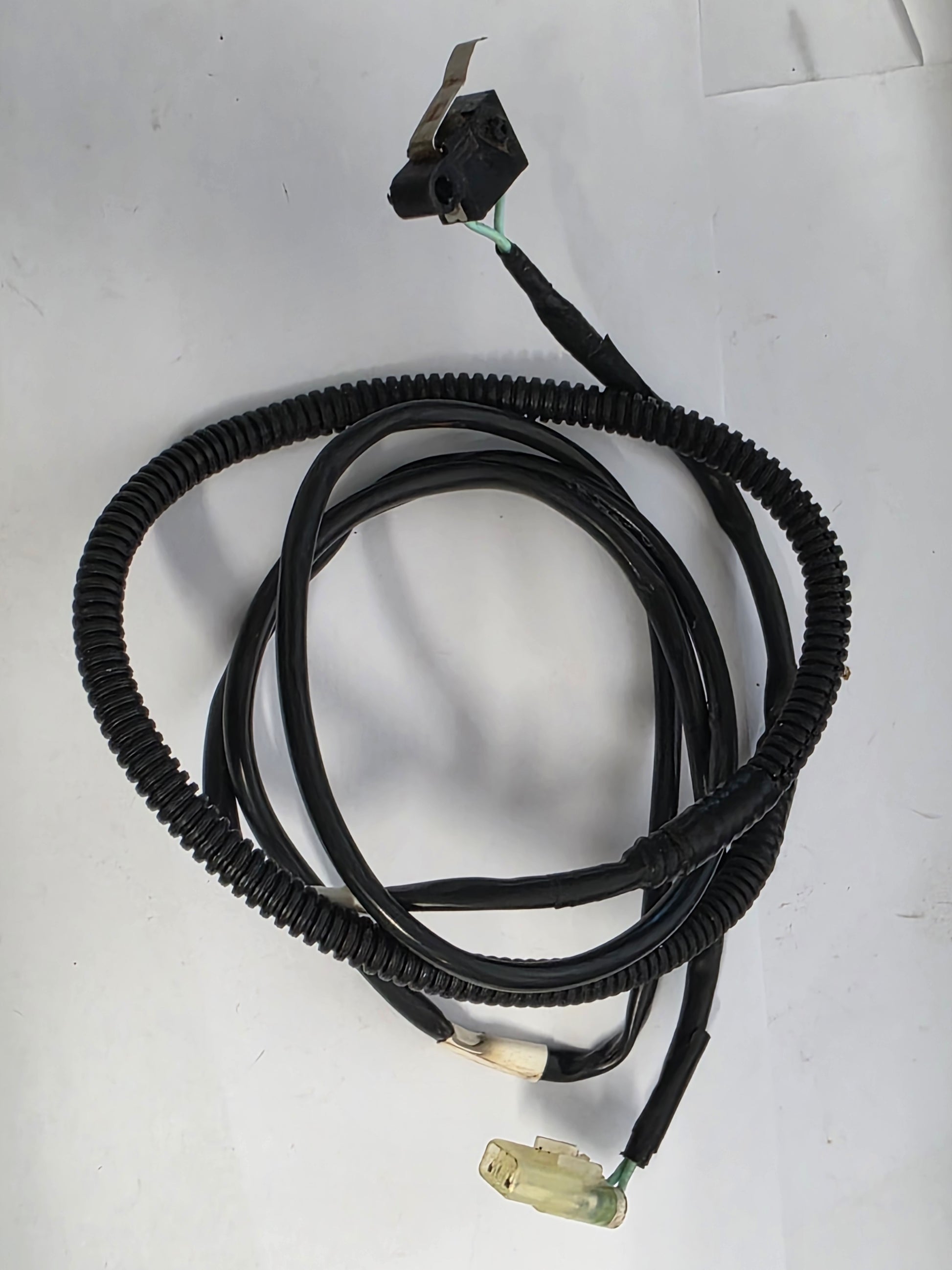

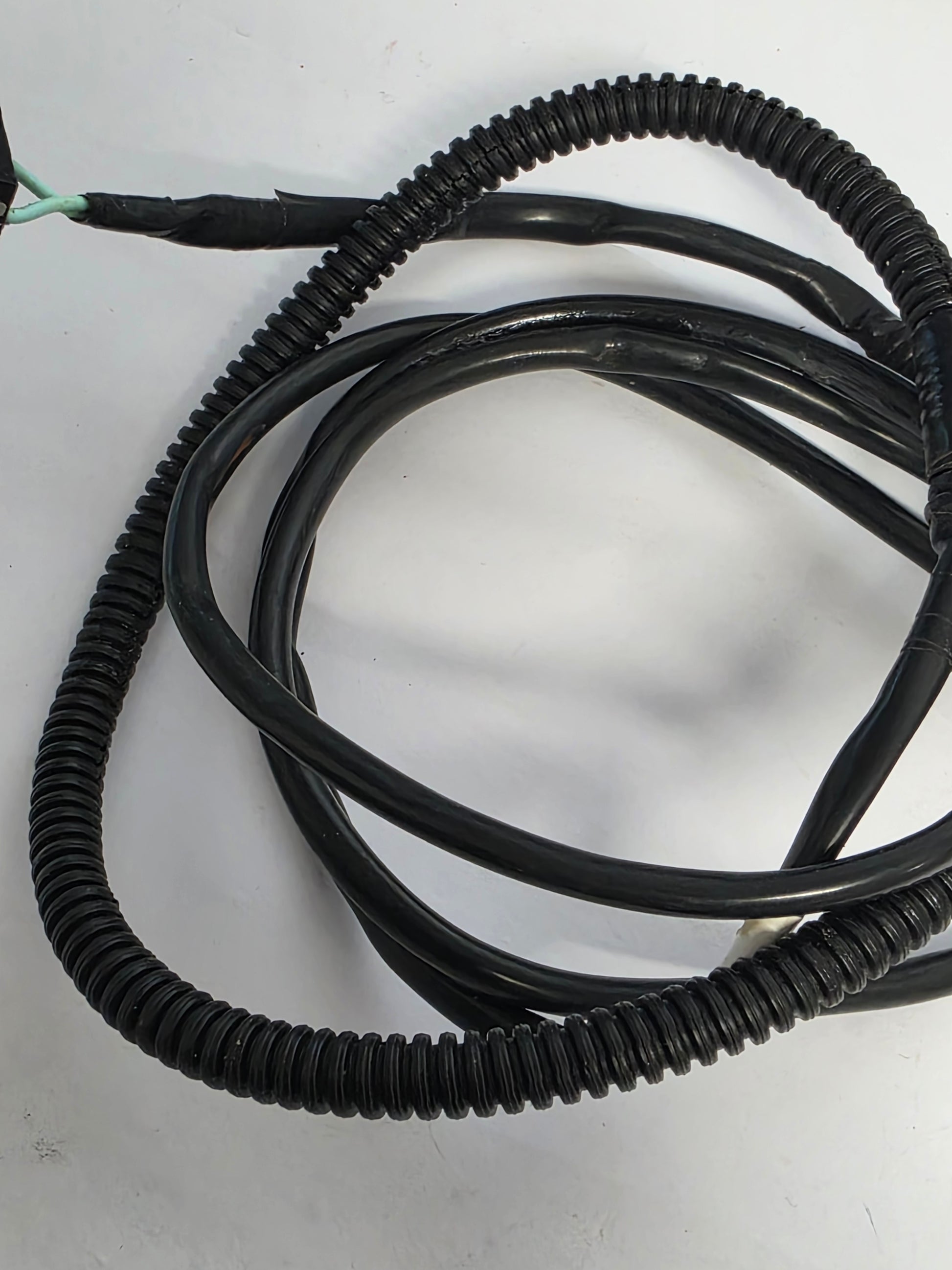

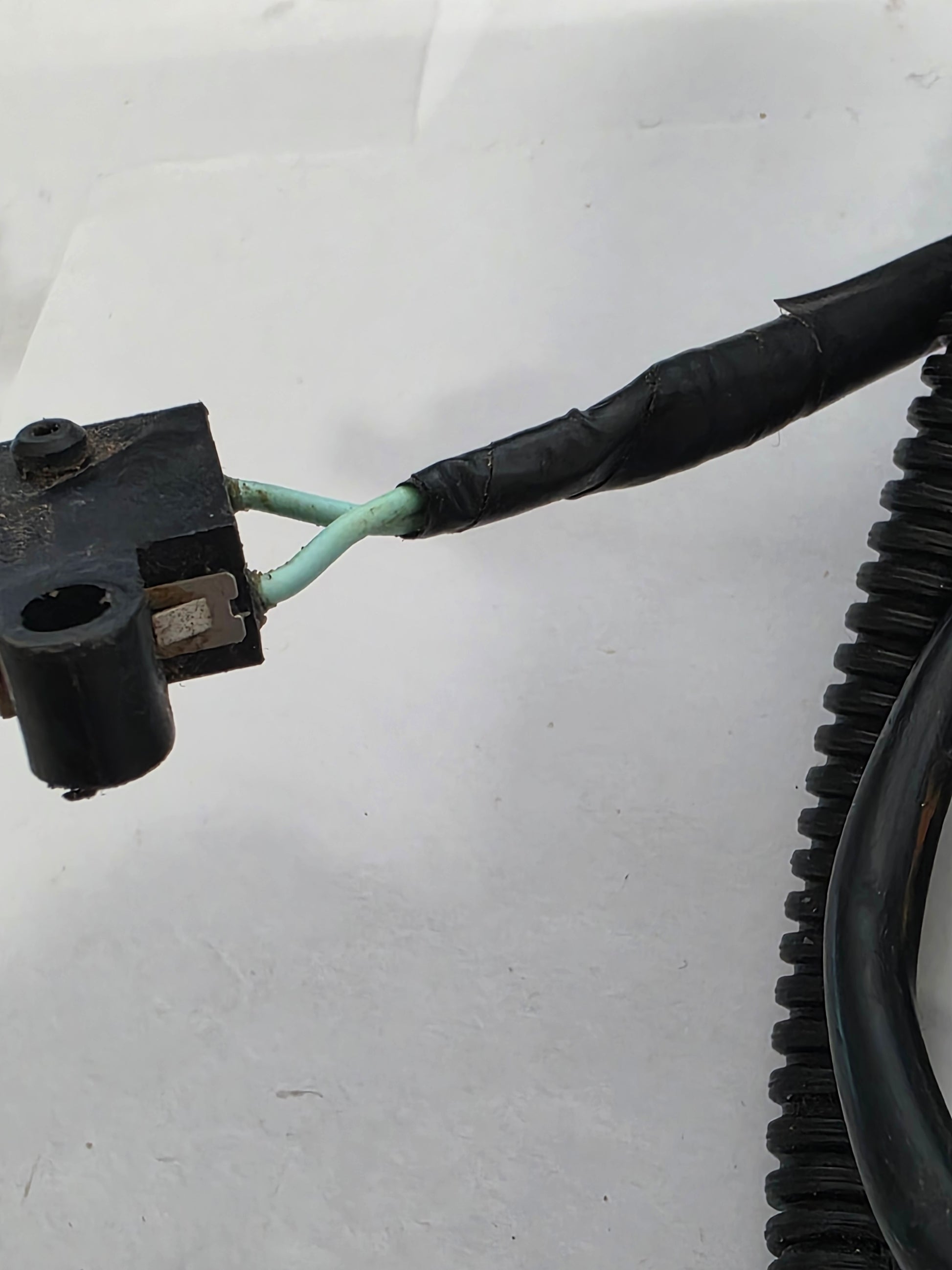

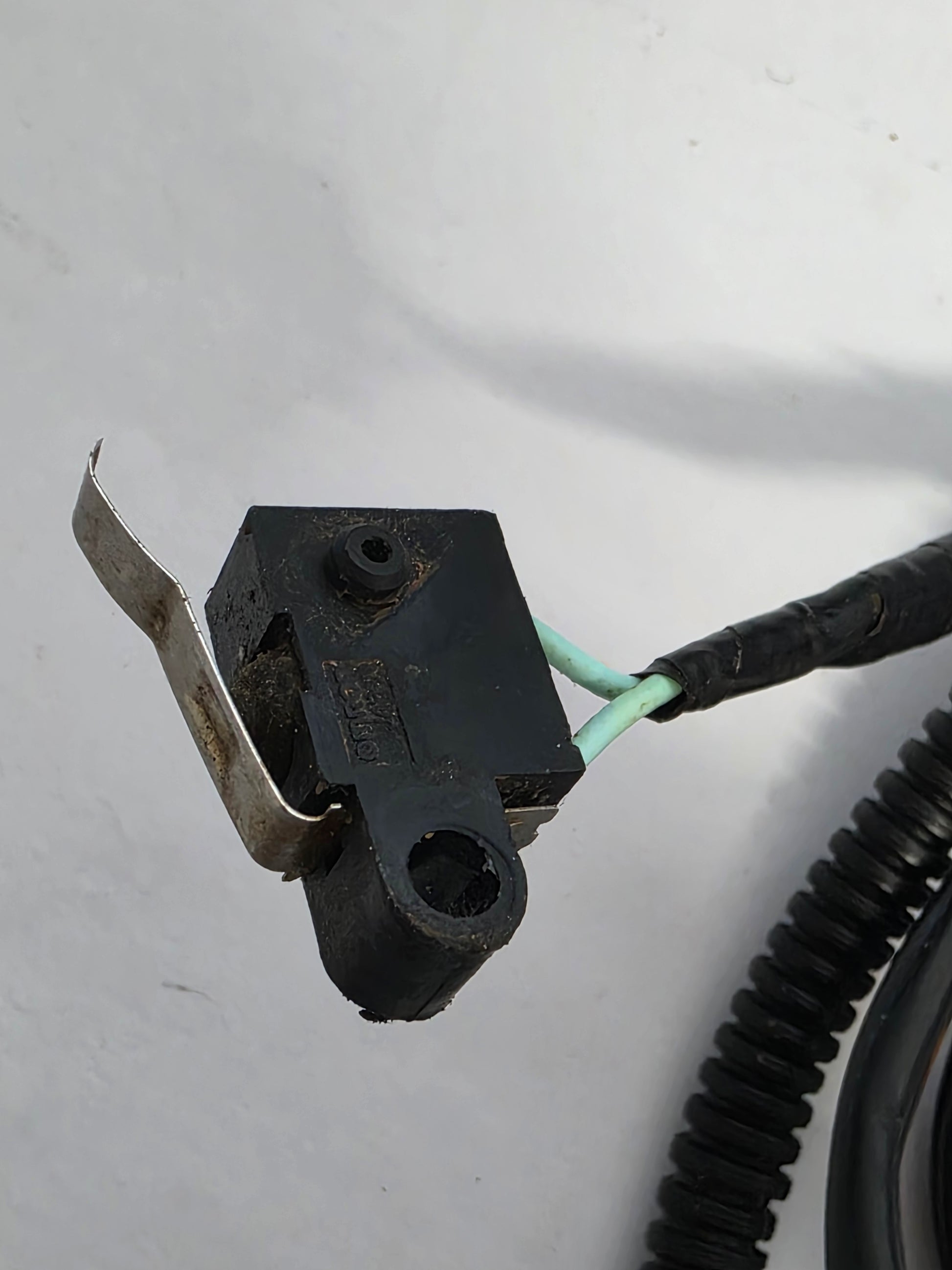

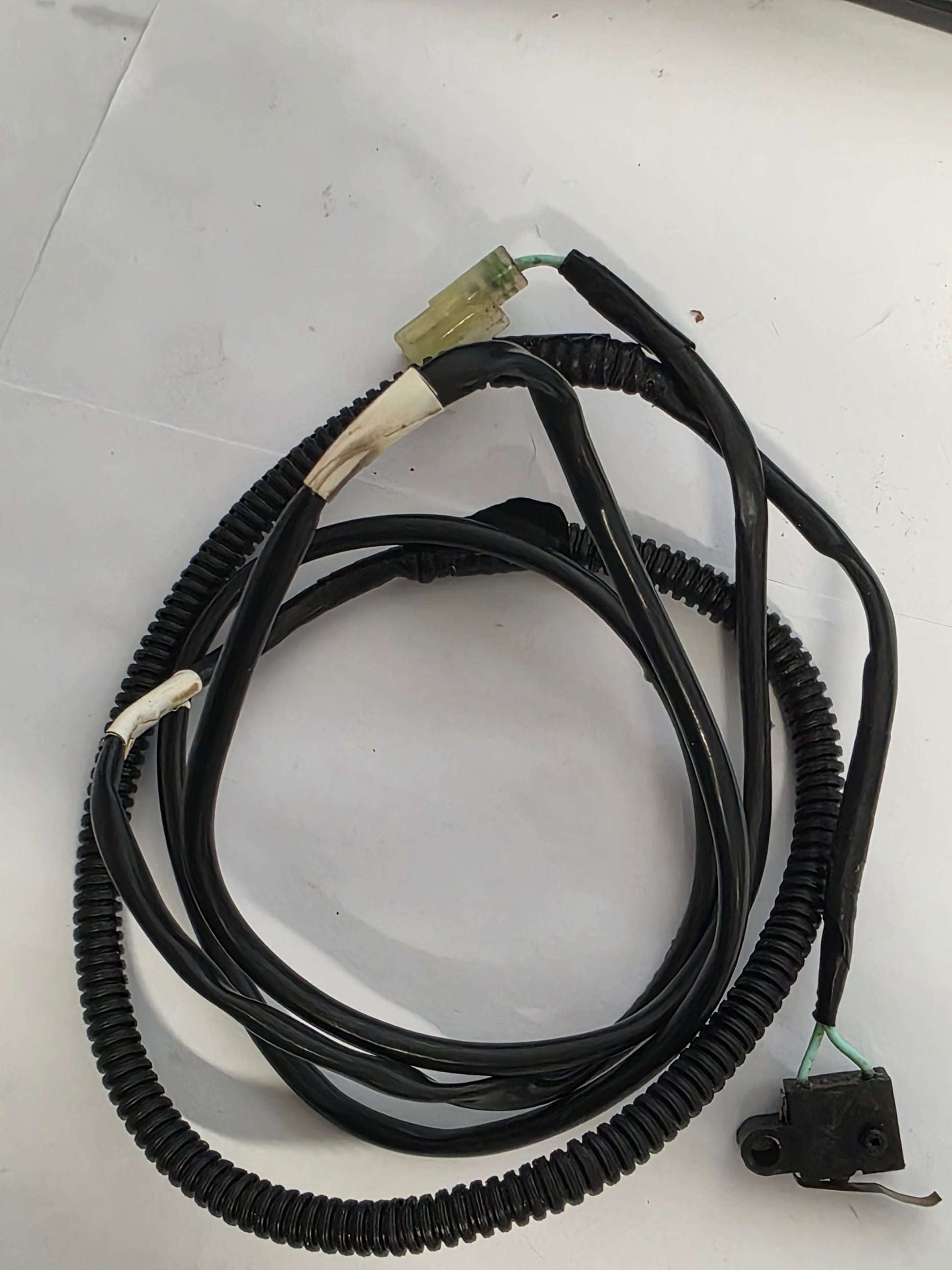

Genuine Honda Tilt Limit Switch Assembly - Part Number: 35745-ZZ3-743

A genuine Honda tilt limit switch assembly used on the stern bracket / swivel case assembly of selected large-horsepower Honda four-stroke outboards. This switch helps limit upward tilt travel so the outboard does not over-travel into the cowling, transom area or steering hardware.

⚙️ Key Features

  • Genuine Honda tilt limit switch assembly
  • Correct OEM part number 35745-ZZ3-743
  • Used on large Honda BF four-stroke outboards
  • Stern bracket / swivel case mounted switch
  • Must be matched by exact Honda model code, VIN range and bracket layout

🚤 Compatibility

Commonly used on

  • Honda BF200D / BF225D / BF250D stern bracket and swivel case assemblies
  • Honda BF200AK3, BF225AK3, BF250A large four-stroke models

Typically suits

  • Honda BF200D
  • Honda BF225D LRA / URA - VIN BBPJ-1000001 and up
  • Honda BF225D 2007 and later
  • Honda BF250A
  • Honda BF250D
  • HP Range: 200HP / 225HP / 250HP
  • Engine Type: Honda large four-stroke outboard with power tilt and trim
  • Year Range: 2007 and later on confirmed BF225D applications; model/VIN controlled on BF200/BF250 applications
  • Serial Note: Confirm engine VIN, stern bracket diagram and tilt-limit switch connector before installation.

🔌 Function

The tilt limit switch tells the trim and tilt circuit when the engine has reached the allowed upper tilt position, preventing over-travel and protecting the cowling, steering components and transom area.

⚠️ Common Signs of Failure

  • Engine tilts higher than intended
  • Tilt limit does not stop upward travel
  • Power trim works in one direction only or cuts out intermittently
  • Trim/tilt relay clicks but travel is inconsistent
  • Damaged switch body or broken mounting point

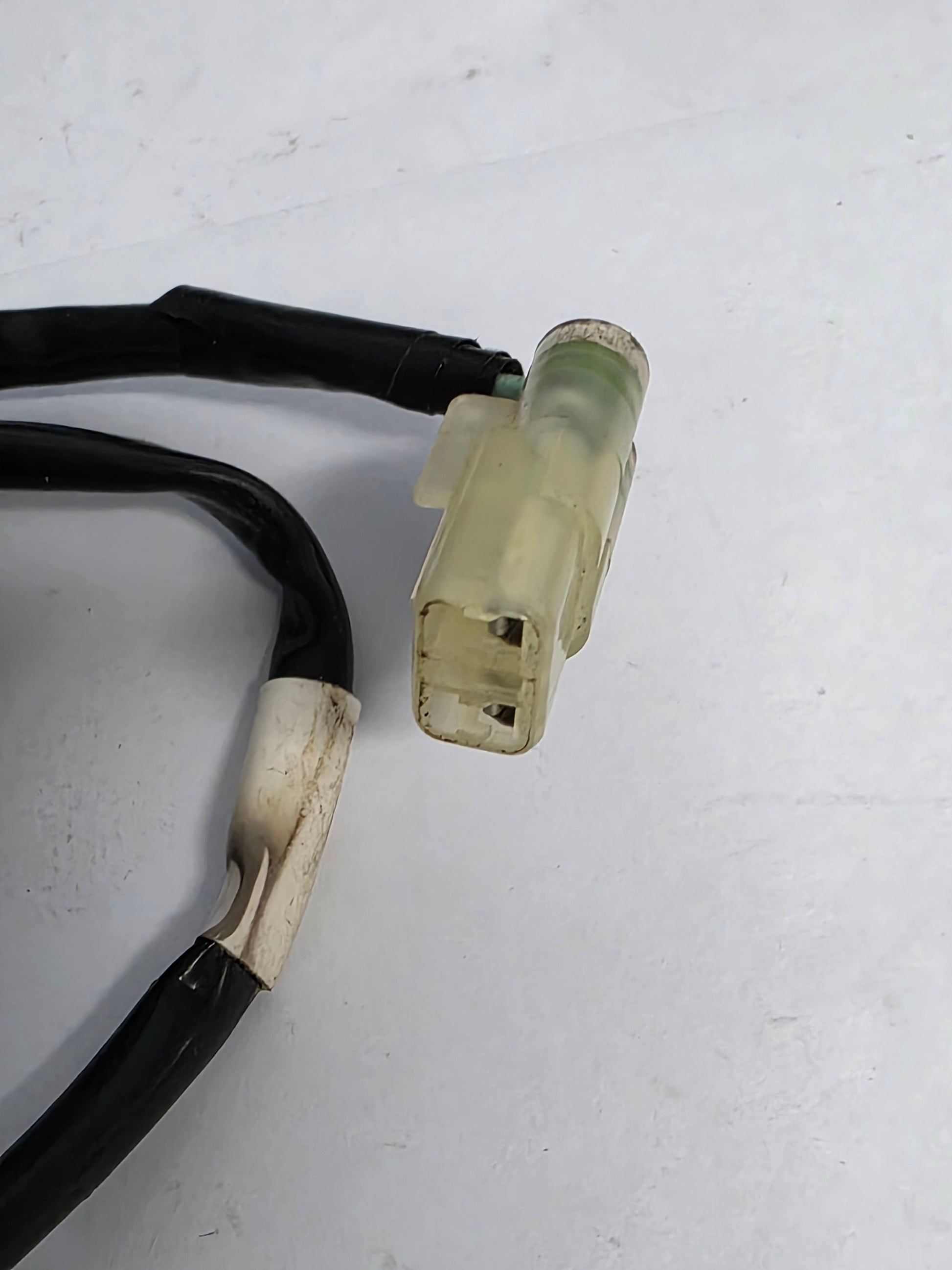

  • Corroded connector terminals
  • Fault changes when the switch harness is moved

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 35745-ZZ3-743 current Honda tilt limit switch reference

OEM / Related Numbers

  • 35745-ZZ3-743
  • 35745ZZ3743
  • Switch assy., tilt limit
  • Tilt limit switch assembly

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
