3580393 3580095 3580395 Volvo Penta Fuel Filter Housing Stay and Tube | Genuine Used Part

🔧 Product Description

Genuine Volvo Penta MD-Series Fuel Filter, Mounting Stay and Feed Tube Assembly - Part Numbers: 3580393, 3580095 and 3580395

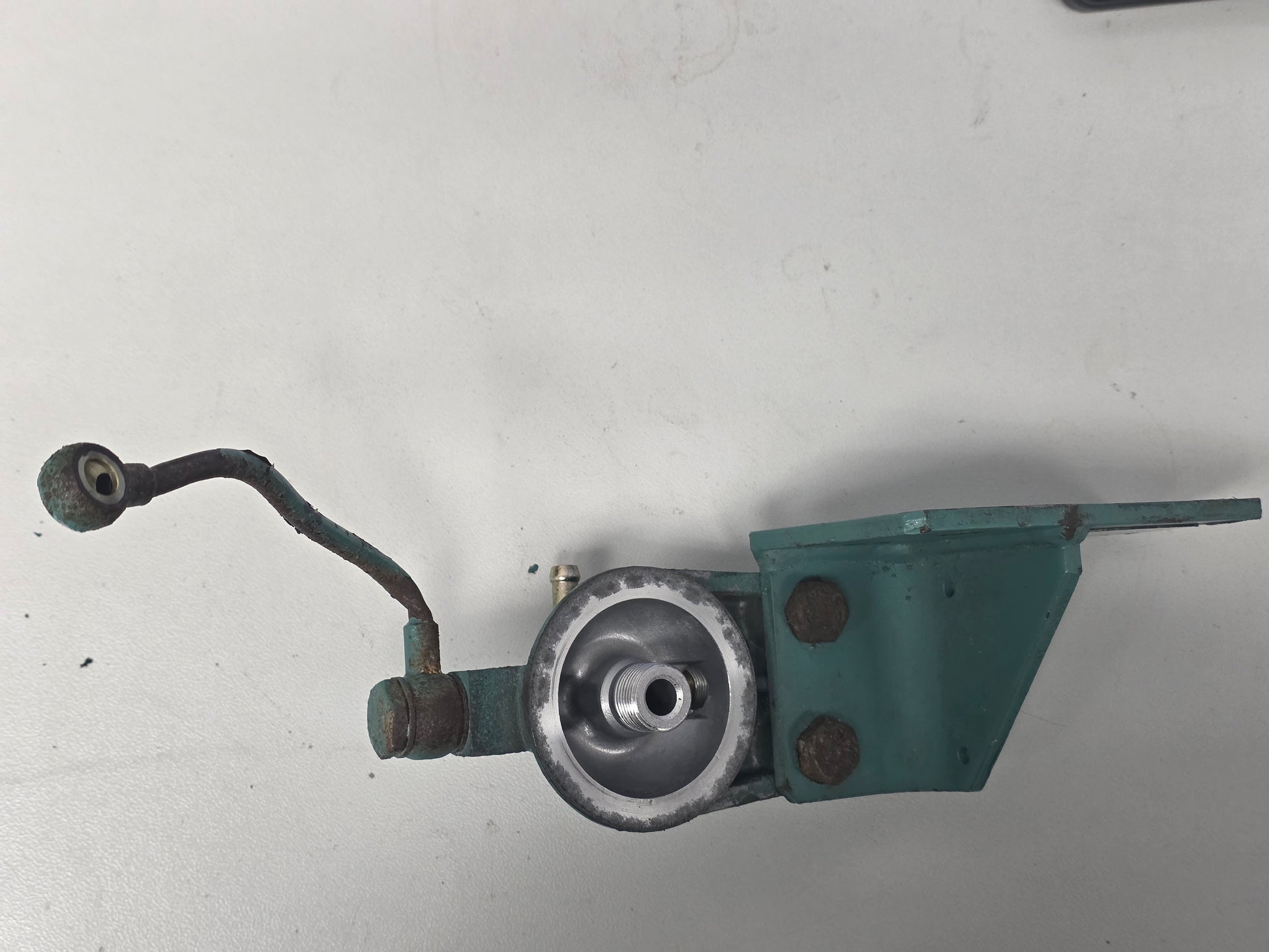

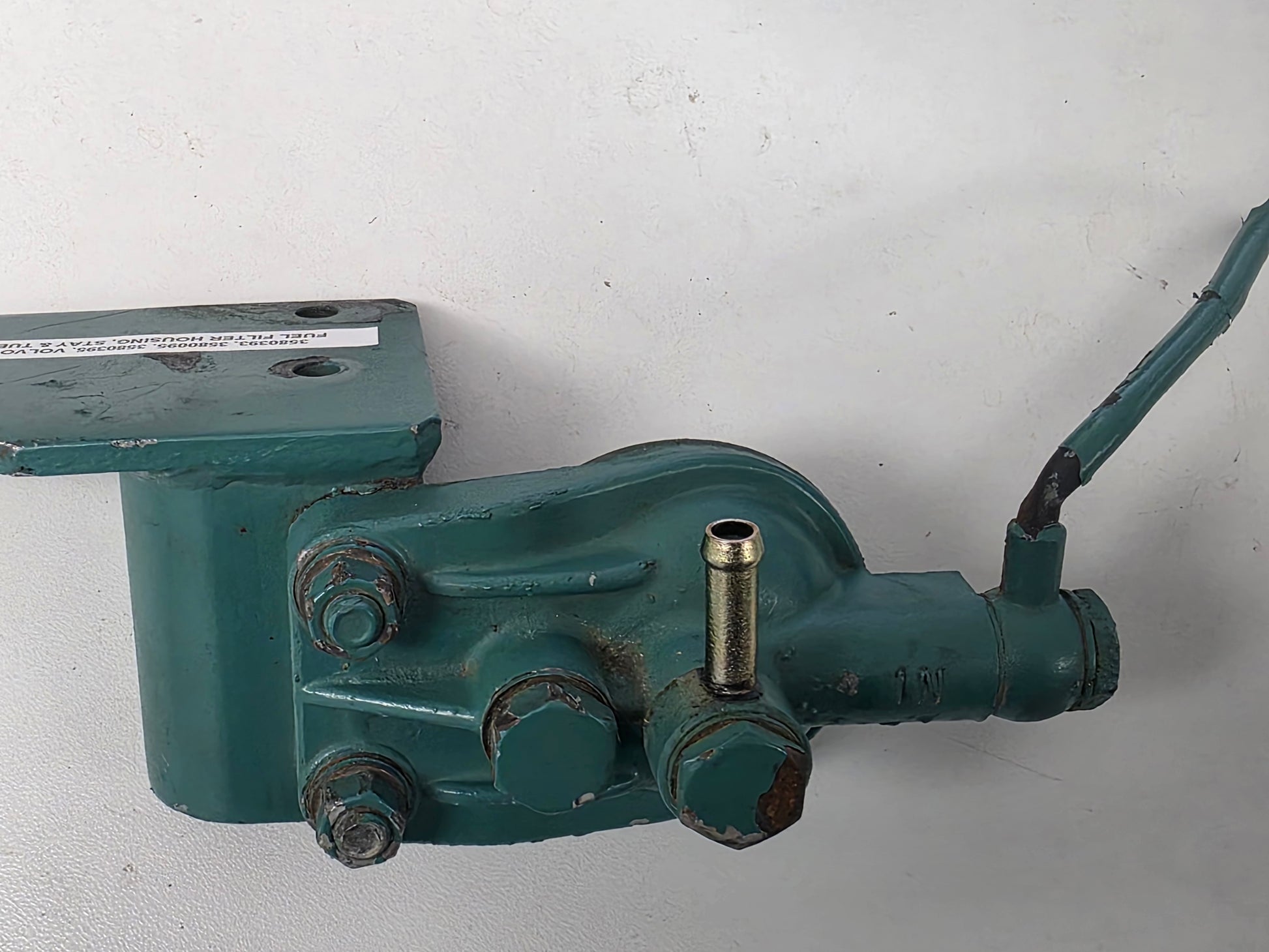

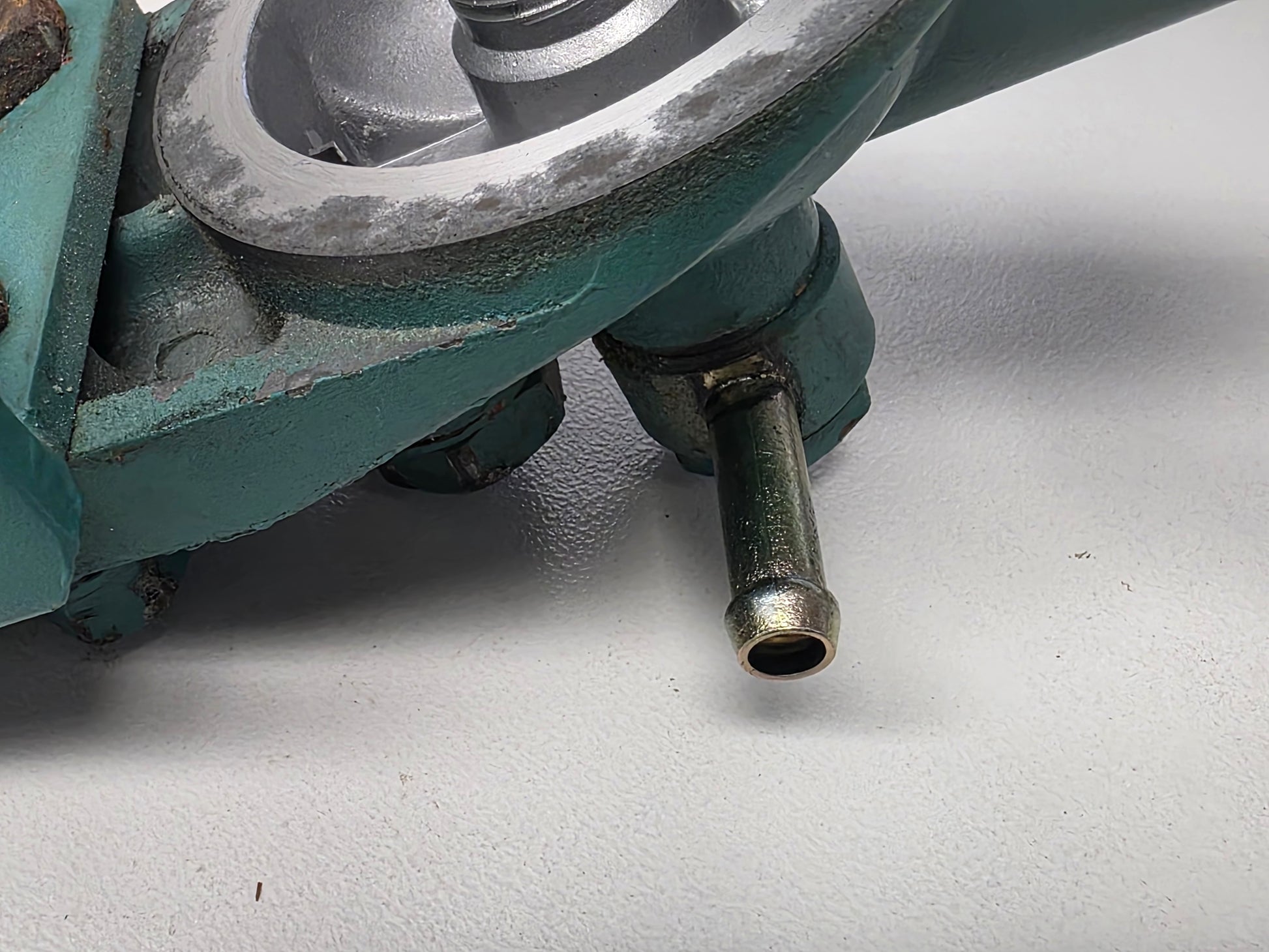

A genuine used Volvo Penta fuel-filter assembly consisting of filter housing or filter reference 3580095, mounting stay 3580393 and connecting fuel tube 3580395.

The components form part of the low-pressure fuel circuit used on selected MD2010, MD2020, MD2030 and MD2040 engines. The stay supports the filter, while the tube connects the feed-pump and filter circuit.

⚙️ Key Features

• Genuine Volvo Penta fuel-filter assembly components

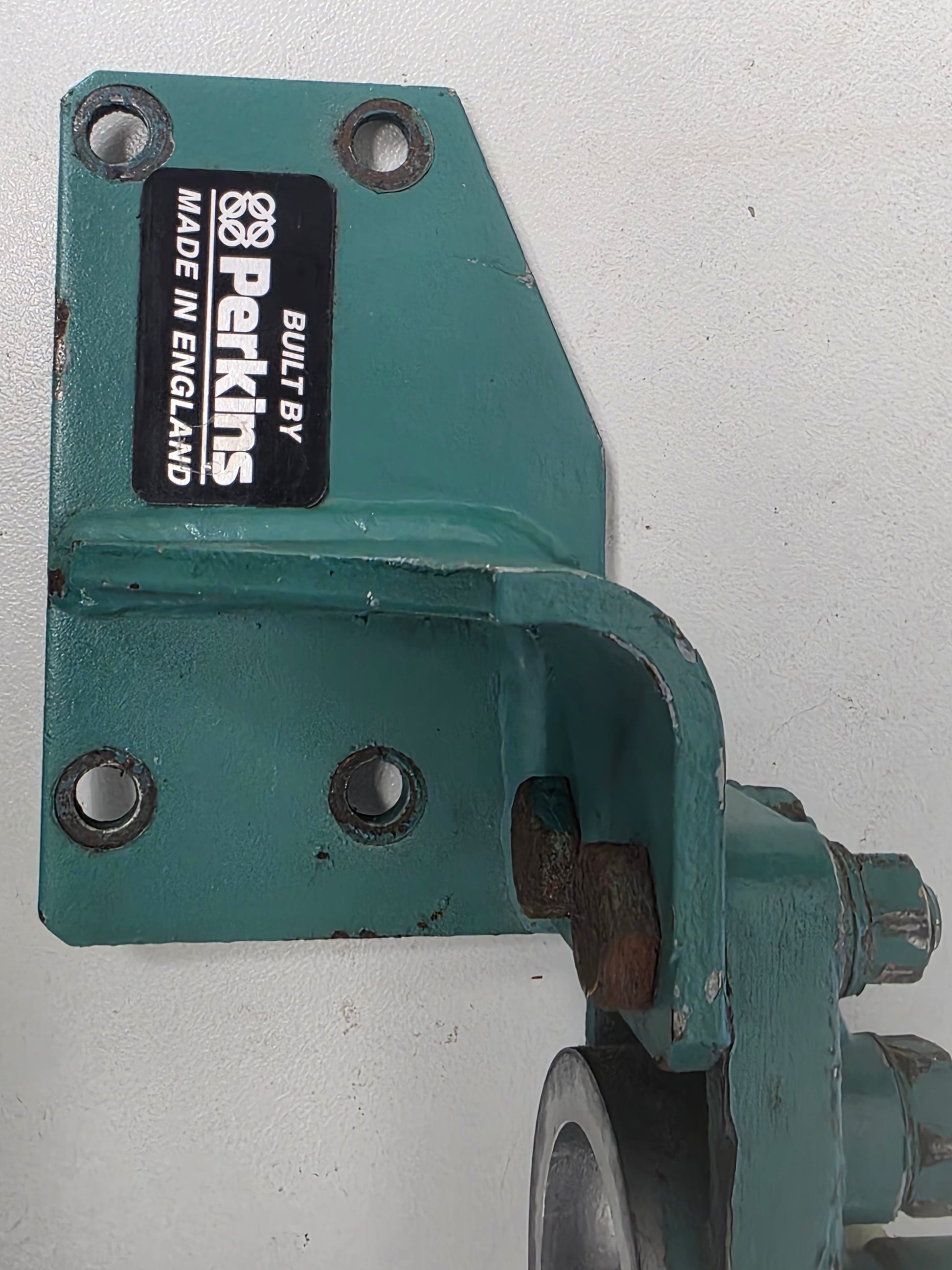

• Includes stay 3580393

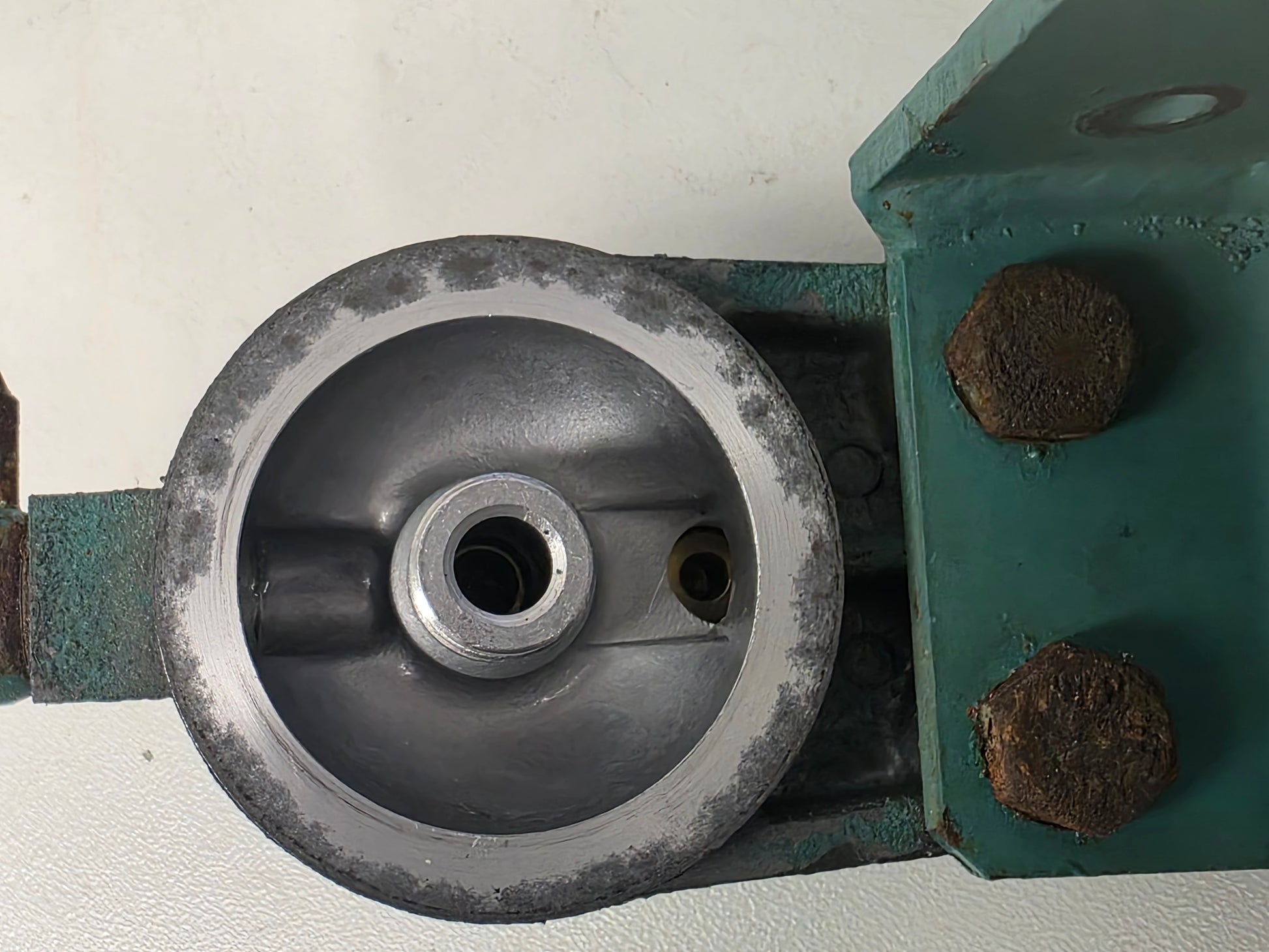

• Includes fuel filter / housing reference 3580095

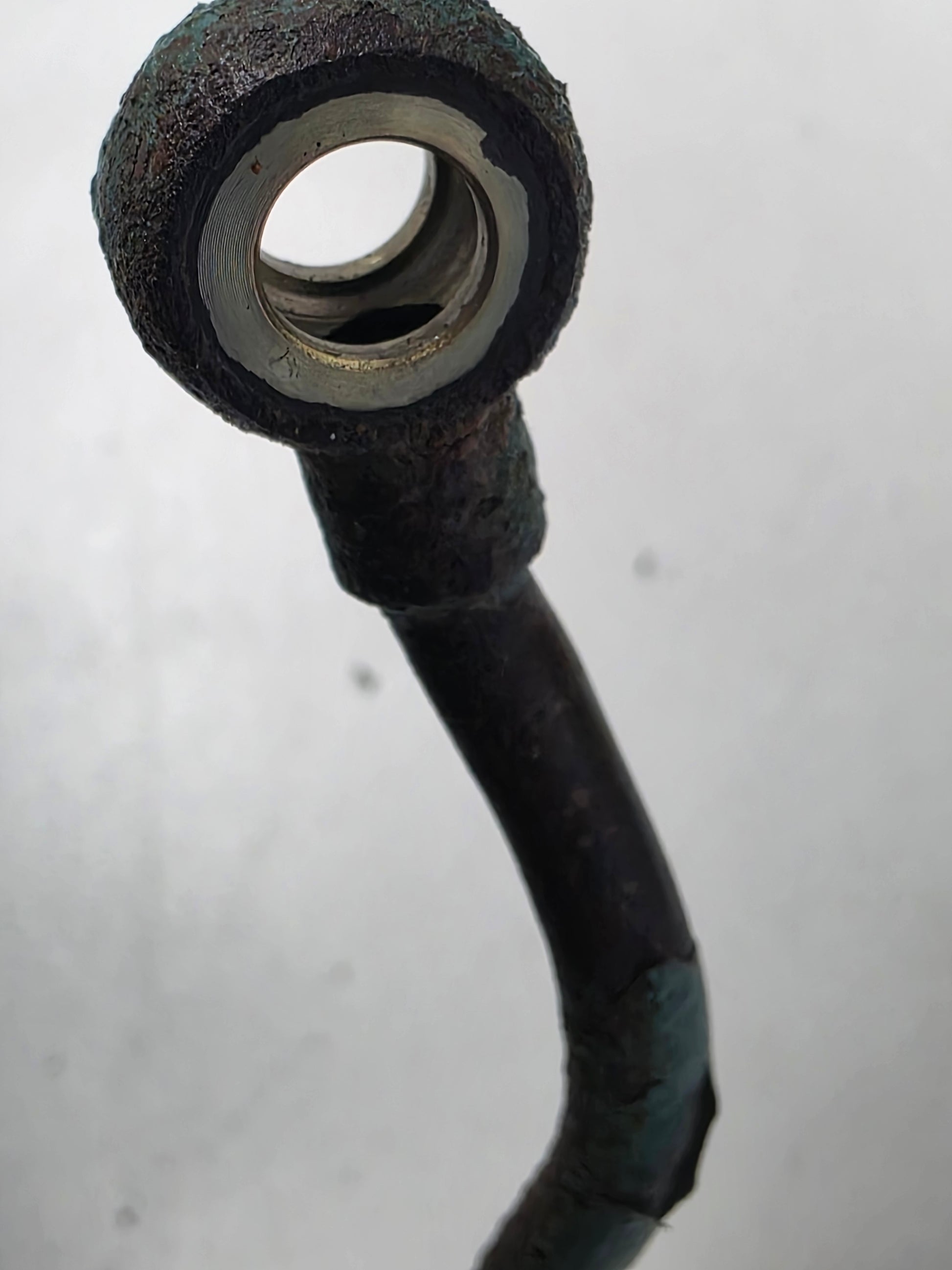

• Includes connecting tube 3580395

• Suits compact Volvo Penta MD-series diesels

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 861477 later spin-on filter reference associated with the same system

• 3580095 earlier fuel-filter reference

• 3580393 current mounting-stay reference

• 3580395 current connecting-tube reference

OEM / Related Numbers:

• 3580393 - fuel-filter stay

• 3580095 - fuel filter / filter housing

• 3580395 - connecting tube

• Fuel filter: 861477

• Feed pump: 3580100

• Feed-pump gasket: 3580111

• Banjo nipple: 3580107

• Strainer: 3582507

• Filter gasket: 969011

• Filter nipple: 837322

• Mounting screw: 3580104

Aftermarket / Verified Equivalents:

• Sierra: 18-7858-1 replacement spin-on filter for Volvo 861477 applications

• Baldwin: BF825 replacement filter

• Fleetguard: FF5046 replacement filter

• Donaldson: P550587 replacement filter

• MANN-FILTER: WK 712/2 replacement filter

• No verified aftermarket equivalent for stay 3580393 or tube 3580395

🚤 Compatibility

Commonly used on:

• Volvo Penta compact MD-series diesel fuel systems

• Sailboat auxiliary and small inboard engines

• Engines using feed pump 3580100 and filter 3580095 / 861477

Typically suits:

• Engine models:

• Volvo Penta MD2010C

• Volvo Penta MD2010D

• Volvo Penta MD2020C

• Volvo Penta MD2020D

• Volvo Penta MD2030C

• Volvo Penta MD2030D

• Volvo Penta MD2040C

• Volvo Penta MD2040D

• Related earlier MD-series installations using the same stay and filter arrangement

• HP Range: Approximately 9HP - 40HP

• Engine Type: Two-, three- and four-cylinder naturally aspirated marine diesel

• Year Range: Approximately late 1990s - mid-2000s

🔌 Function

The filter removes water and contamination from the diesel supply. The mounting stay supports the filter assembly, while the tube carries fuel between the feed pump and filter.

Common signs of failure:

• Diesel leaks around the filter or pipe fittings

• Engine loses power under load

• Difficult starting after sitting

• Filter bracket is cracked or corroded

• Fuel tube is kinked or damaged

• Air bubbles enter the fuel system

• Filter becomes repeatedly blocked

• Engine stops after a short period of operation

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
