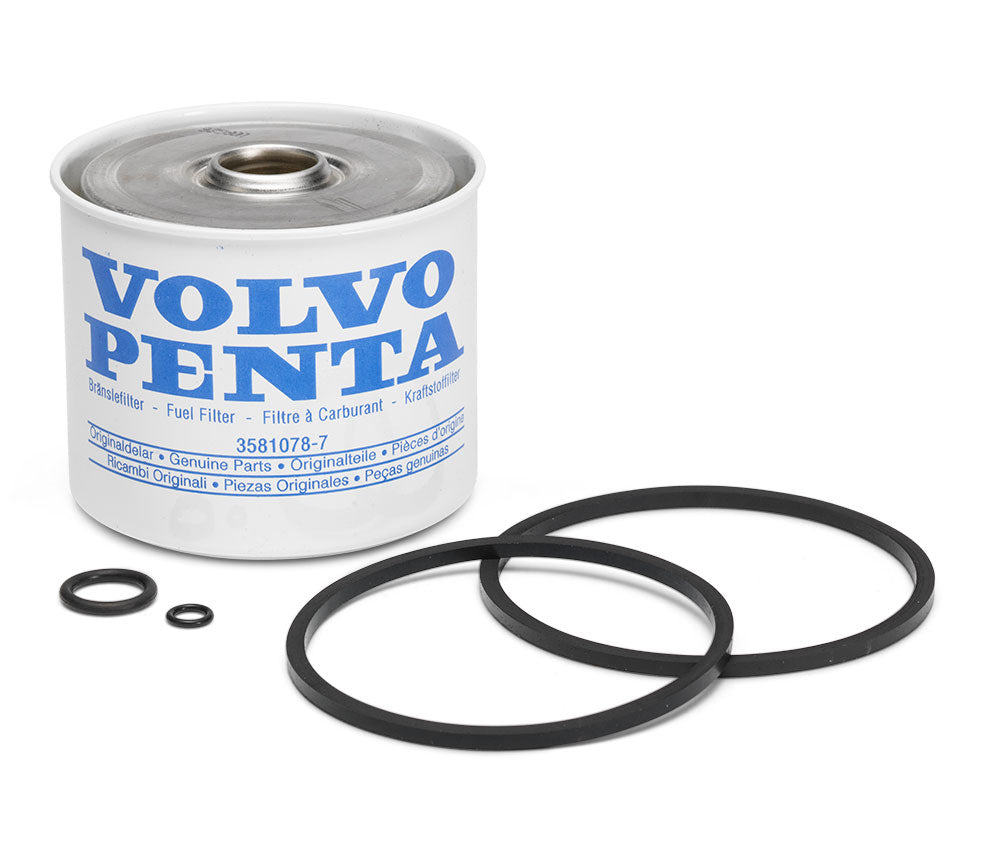

3581078 Filter Insert | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta filter element for the fuel filter and water separator housings 877767 and 877766, from the Fuel System group, weighing 0.202 kg and listed for 96 applications across D, TMD, MS, TAMD and MD series engines. It consolidates earlier references 858202 and 858201. Housing 877766, the small-engine separator it serves, is listed in this same run.

🚤 Compatibility

• Engine Family: D, TMD, MS, TAMD, MD
• HP Range: 13-190 HP

Full model list at the end of this description.

⚙️ Key Features

• Element for housings 877767 and 877766
• Housing 877766 is the small diesel engine separator listed in this run
• 0.202 kg
• Consolidates 858202 and 858201
• 96 applications across five series
• Fits: Fuel filter/water separator housings 877767 and 877766
• Also supersedes Volvo part numbers 236628 and 858306

🔌 Function

Filters contamination out of the fuel passing through the housing it sits in.

⚠️ Common Signs of Failure

• Power loss under sustained load
• Fuel starvation showing as hunting
• Hard starting
• Rising restriction on the suction side
• Visible dirt or water on the removed element

🛠️ Service Notes

• Confirm which housing is fitted - this element suits 877767 and 877766, and the larger separators take a different element family
• With 96 applications this is a stock item worth keeping on the shelf
• Renew the sealing rings supplied with the element and prime the system after fitting

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3581078 → Supersedes 858202

OEM / Related Numbers

• 858201 earlier number superseded by this part

Other-Brand OEM Numbers

• Baldwin: BF825
• Bosch: 1 457 434 201
• Donaldson: P556245
• Fleetguard: FF167
• Hengst: E75K D42
• Mahle/Knecht: KX 23D
• MANN-FILTER: P 917 x
• Wix: 33166

Aftermarket / Verified Equivalents

• UFI: 24.360.01
• Filtron: PM819

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 2003, 2003R, 2003R SOLAS, 120S-B, 2003TB, 2003TB SOLAS, 120SC, 2001AG, 2001B, 2001BG, 2001D, 2003D, 2003T, 2003TR, 2002AG, 2002B, 2002BG, 2002D, 2003B, 2003B SOLAS, 2003 SOLAS, 2001, 2002, 2001R
• Volvo Penta D3-110I-B, D3-110I-C, D3-130I-C, D3-130A-A, D3-160A-A, D3-130A-B, D3-160A-B, D3-130A-C, D3-160A-C, D3-190A-B, D3-190A-C, D3-190I-A, D3-110I-A, D3-130I-A, D3-160I-A, D3-160I-C, D3-190I-B, D3-190I-C, D3-130I-B, D3-160I-B
• Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta D1-30, D1-30B, D1-30F, D1-13, D1-13B, D1-13F, D1-20, D1-20B, D1-20F
• Volvo Penta MD2010, MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020, MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
• Volvo Penta MD22A, MD22L, MD22P
• Volvo Penta MS2B-A, MS2B, MS2V
• Volvo Penta TMD22A, TMD22B, TMD22P-C
• Volvo Penta D2002AG
• Volvo Penta D2003AG
• Volvo Penta TAMD22P-B
