🔧 Product Description

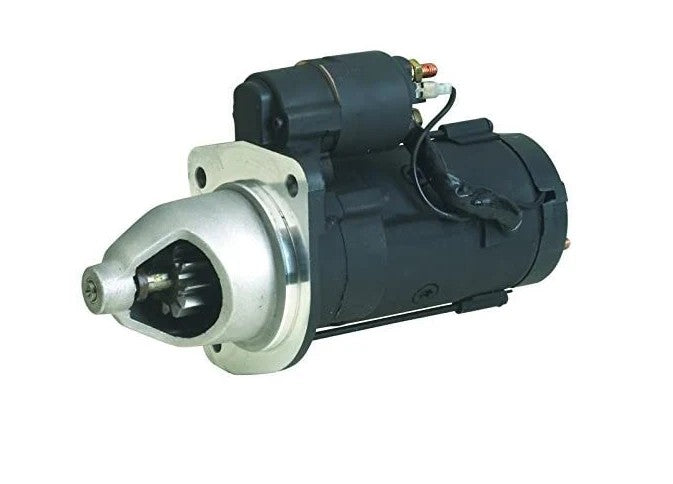

Aftermarket replacement Volvo Penta 30-44 & KAD/KAMD300 Starter Motor - Replaces Part Number: 3581774

New aftermarket heavy-duty starter replacing Volvo Penta 3581774 for classic six-cylinder diesel engine families. It is a 12-volt, approximately 3.0-3.1kW clockwise three-bolt starter with an 11-tooth pinion.

⚙️ Key Features

• 12-volt electrical system

• Approximately 3.0-3.1kW output

• Clockwise rotation viewed from the drive end

• 11-tooth pinion

• Three-bolt heavy-duty gear-reduction construction

• Complete new starter motor with integrated solenoid

• Marine or engine-grade corrosion-resistant construction

• Direct replacement only after voltage, rotation, tooth count and mounting pattern are confirmed

🧰 Kit / Assembly Contents

• 1 × Complete starter motor assembly - P/N 3581774

• 1 × Integrated starter solenoid and shift mechanism

• 1 × Installed pinion gear and overrunning clutch/Bendix assembly

• 1 × Installed armature, field-magnet/winding, brush holder and drive housing

• Mounting bolts, electrical cables and external relays are transferred or renewed separately unless supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 3581774 → Supersedes/cross-references 3803118, 3803386, 829252, 829527 and 859252

OEM / Related Numbers:

• 3581774

• 3803118

• 3803386

• 829252

• 829527

• 859252

• 859252X

• Valeo D9R116

• Valeo D9R144

• Valeo D11E167T

Aftermarket / Verified Equivalents:

• Recmar: REC3581774

• Aftermarket Valeo D9R/D11E family

🚤 Compatibility

Commonly used on:

• Volvo Penta classic six-cylinder marine diesel starting systems

Typically suits:

• Engine / Generator models:

• AD/AQAD/MD/TAMD/TMD 30 and 31 families

• TAMD/TMD 40 and 41

• TAMD42

• KAD/KAMD42, 43 and 44

• KAD/KAMD300 and related applications using 3581774

• HP / Output Range: Engine-rating dependent

• Year Range: Engine model and serial dependent

• Starter Identification: Confirm 12V, 11 teeth and three-bolt mounting.

🔌 Function

The starter motor converts battery electrical energy into high-torque mechanical rotation to crank the engine. When the start circuit energises the solenoid, the pinion moves into the flywheel ring gear and the motor turns the crankshaft until the engine starts. The overrunning clutch then protects the starter as engine speed rises.

Common signs of failure / incorrect starter fitment:

• No-crank condition even though the battery and start-control circuit test correctly

• Solenoid clicks but the starter motor does not rotate

• Starter turns slowly, draws excessive current or overheats the battery cables

• Pinion spins without engaging the flywheel ring gear

• Grinding, clashing or repeated pinion kick-out during cranking

• Intermittent cranking caused by worn brushes, solenoid contacts or heat soak

• Corrosion, water intrusion, burnt windings or excessive shaft/bearing play

📦 Condition

• New aftermarket replacement starter motor

• Brand new

• Supplied in original or equivalent packaging
