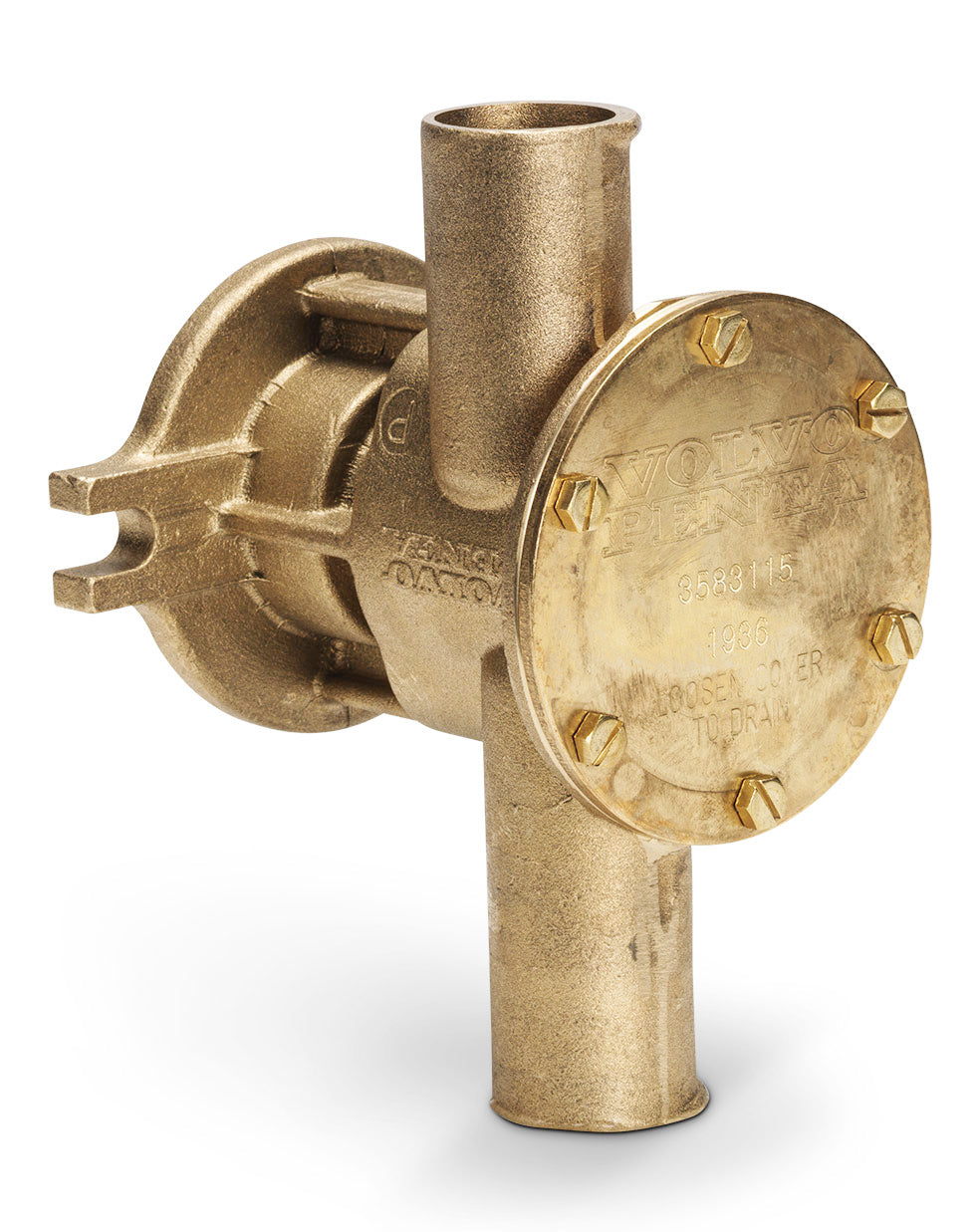

3583115 Seawater Pump | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta seawater pump for engines from serial number 2204141573 onwards, from the Cooling System group. It weighs 1.964 kg, is listed for 35 applications across TAMD, AD, D, TMD, KAD and KAMD series engines, and supersedes part number 3581558.

🚤 Compatibility

• Engine Family: TAMD, AD, D, TMD, KAD, KAMD
• Serial Range: SN2204141573-

Full model list at the end of this description.

⚙️ Key Features

• For engines from serial number 2204141573 onwards
• 1.964 kg
• Supersedes 3581558
• 35 applications across six engine series

🔌 Function

Draws raw water through the cooling circuit to carry the engine's heat overboard.

⚠️ Common Signs of Failure

• Reduced or no water at the exhaust outlet
• Impeller vanes torn, worn or missing
• Weeping at the pump seal or cover
• Overheating under load
• Shaft play or bearing rumble

🛠️ Service Notes

• The serial number breakpoint matters — this covers builds from 2204141573 onwards
• Three seawater pumps in this range sit within 60 grams of each other, so weight is no guide; order by part number
• Check the strainer and hoses before condemning the pump

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3583115 → Supersedes 3581558 → Supersedes 860827

OEM / Related Numbers

• 3581558 earlier number superseded by this part
• 860629 earlier number superseded by this part
• 860827 earlier number superseded by this part

Other-Brand OEM Numbers

• Johnson Pump: 10-24394-01
• Johnson Pump: 10-24524-01

Aftermarket / Verified Equivalents

• JMP Marine: JPR-V1000
• Ancor: AN 3361
• Recmar: REC3583115
• Sierra: 18-31604
• Orbitrade: ORB15115

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta AD41B, AD41L-A, AD41P-A, AD41A, AD41BJ
• Volvo Penta TAMD31L-A, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S
• Volvo Penta TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta AD31L-A, AD31P-A
• Volvo Penta D41B, D41L-A
• Volvo Penta KAD43P-B, KAD43P-A
• Volvo Penta KAD32P
• Volvo Penta KAD42P-A
• Volvo Penta KAMD42P-A
• Volvo Penta TAMD42WJ-A
• Volvo Penta TMD31L-A
• Volvo Penta TMD41L-A
