3583341 Volvo Penta Strainer | Genuine Used Part

🔧 Product Description

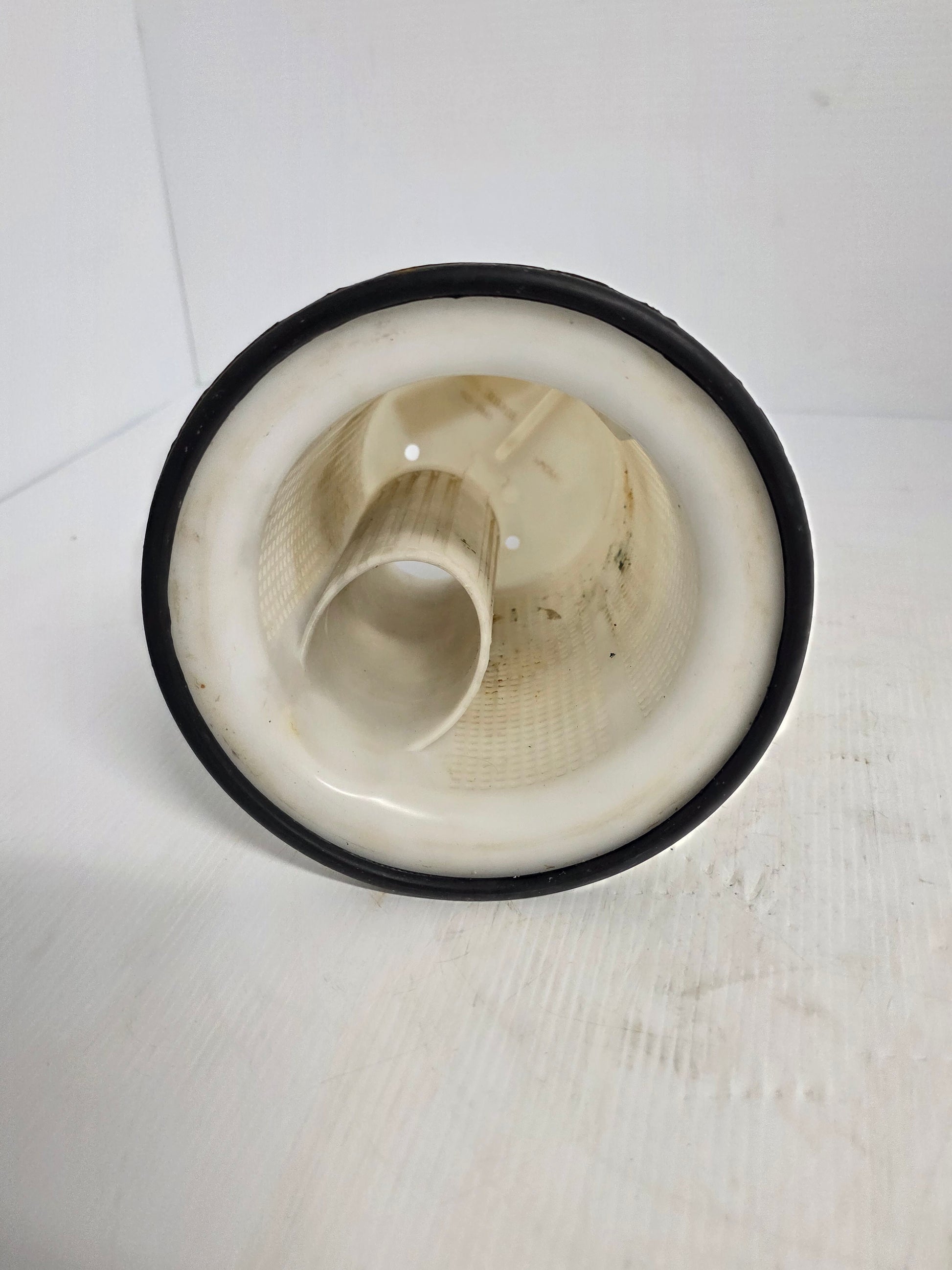

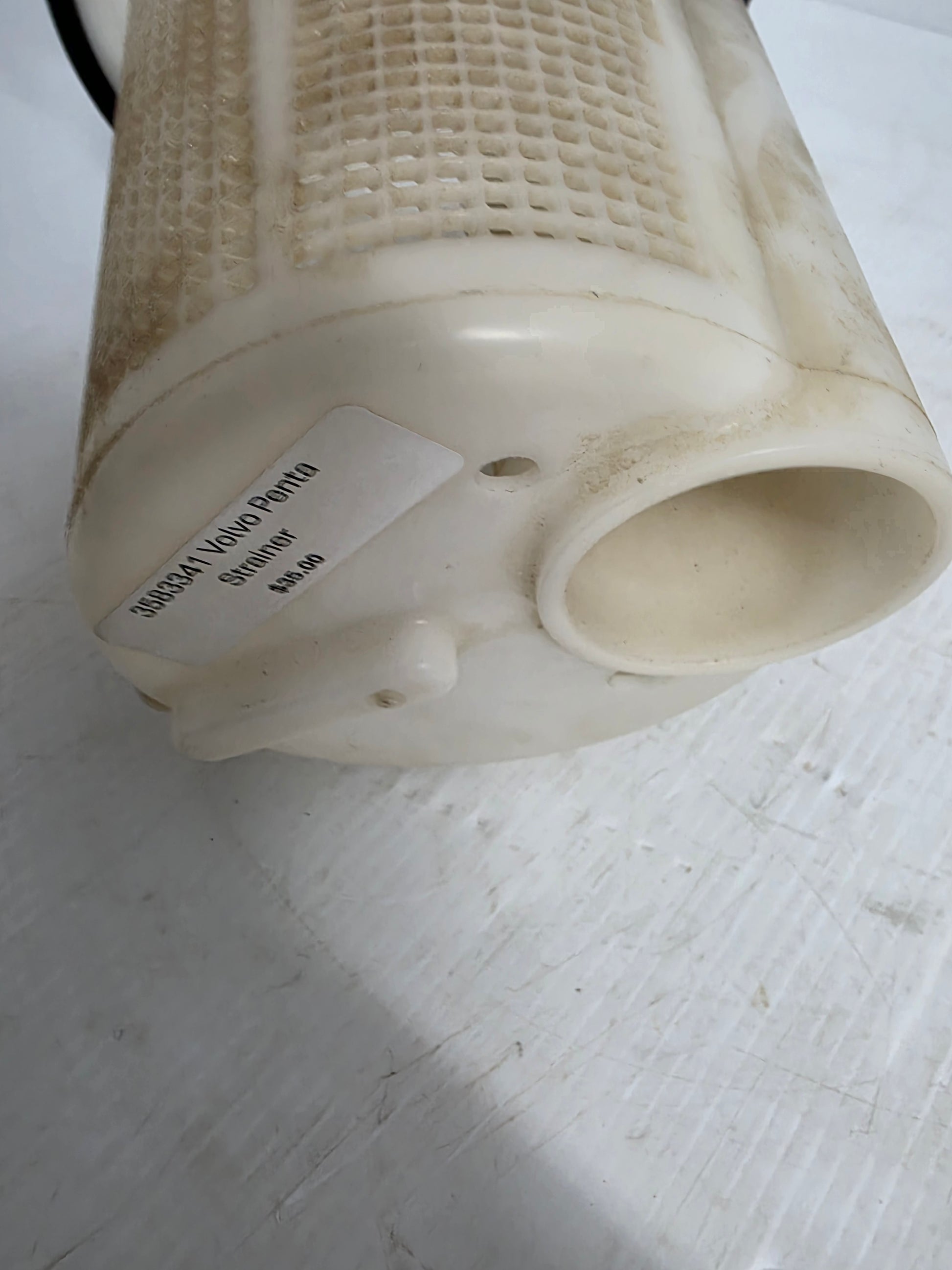

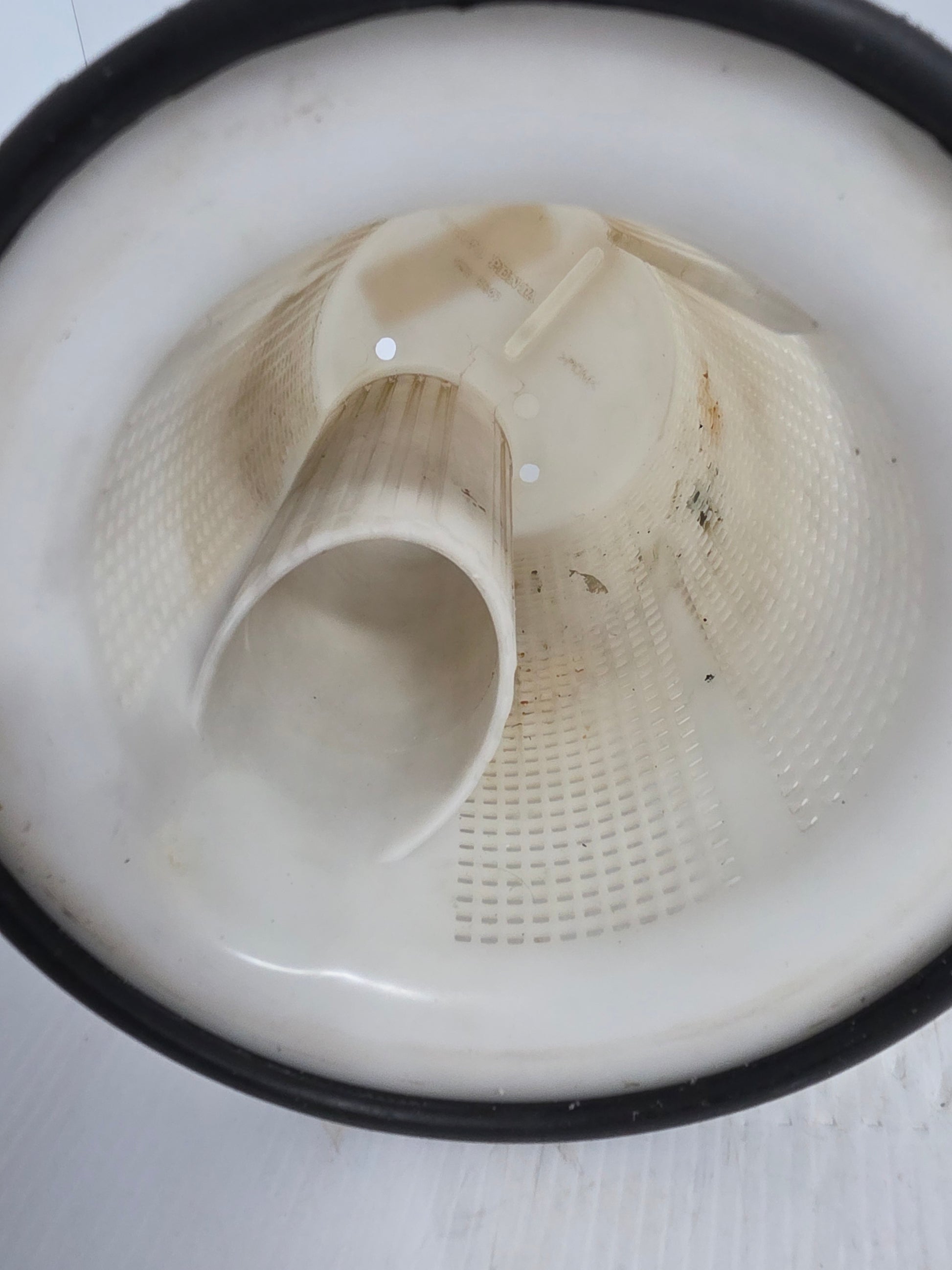

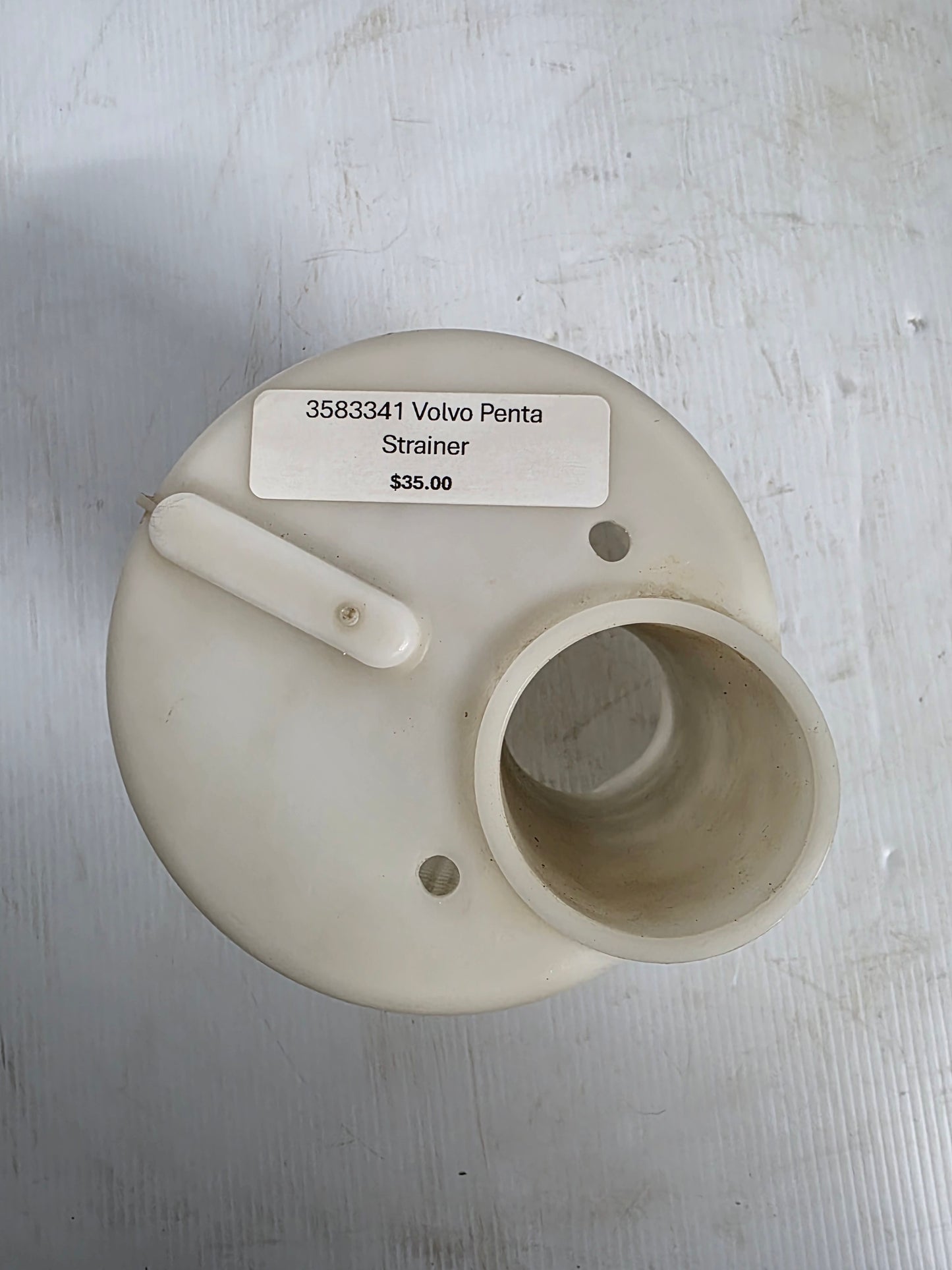

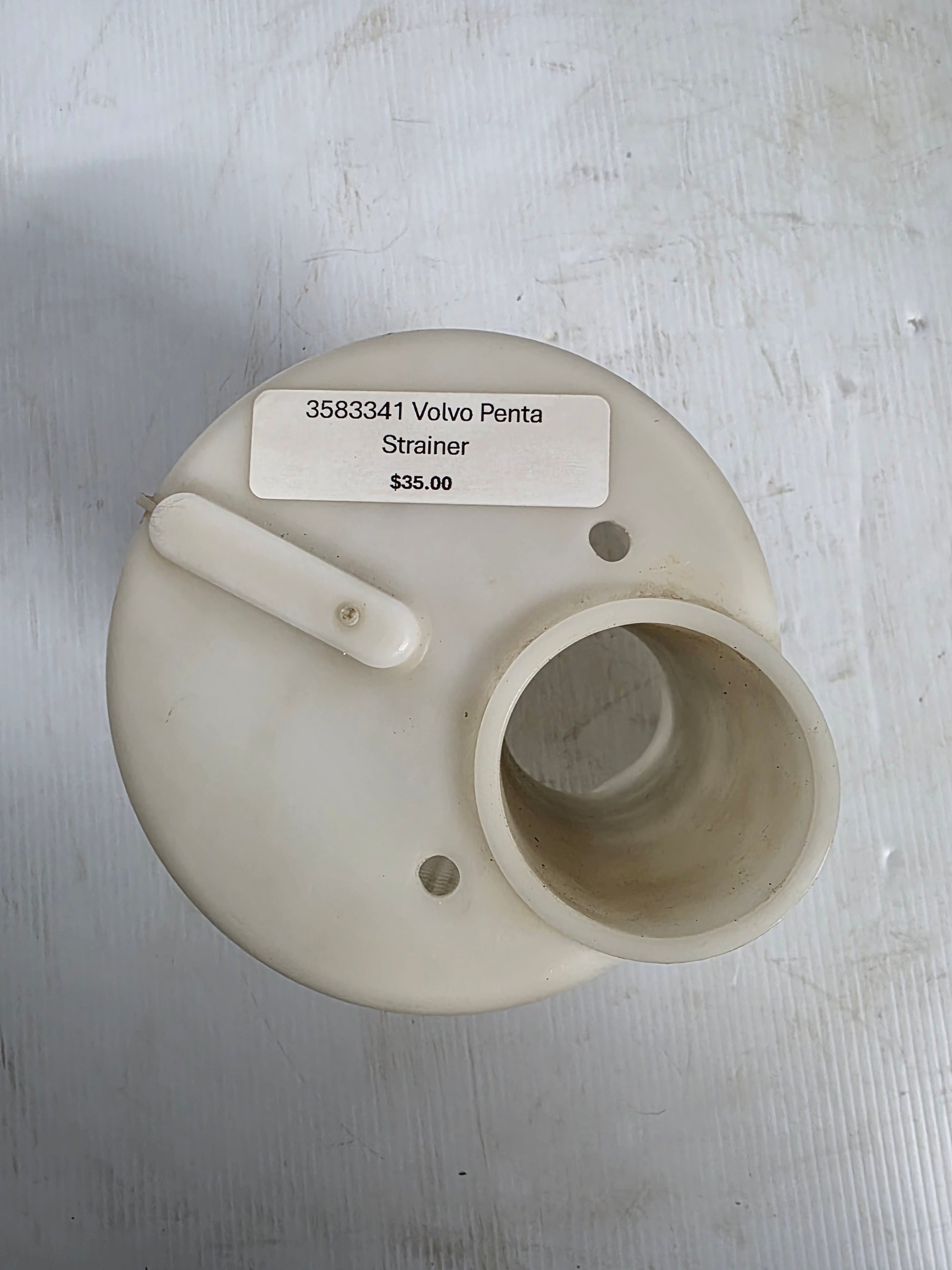

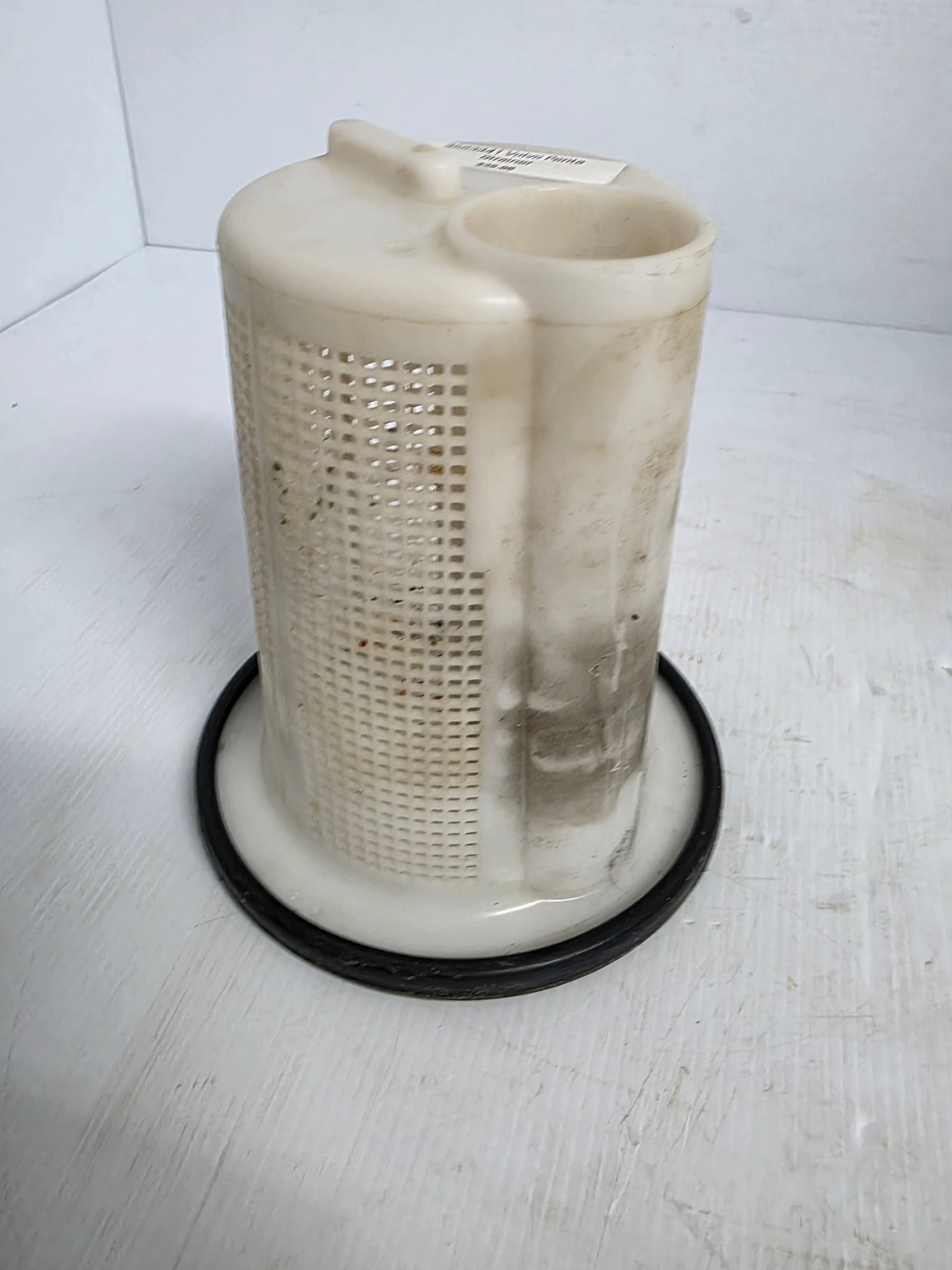

Genuine Volvo Penta Sea Water Filter Strainer Basket - Part Number: 3583341

A genuine used Volvo Penta removable strainer basket fitted inside the engine-mounted seawater filter assembly on selected D4, D6 and IPS installations.

The perforated basket traps weed, shell fragments and other debris before raw water reaches the seawater pump, heat exchanger, oil coolers and exhaust-cooling circuit. It is removed for inspection and cleaning through the filter cover.

⚙️ Key Features

• Genuine Volvo Penta seawater-filter strainer basket
• Correct part number 3583341
• Installs inside filter assembly 3889148 and earlier filter housings
• Protects the seawater pump and heat exchangers from debris
• Reusable basket can be cleaned and inspected during routine servicing

🚤 Compatibility

Commonly used on

• Volvo Penta engine-mounted seawater filters for sterndrive and IPS installations
• D4 and D6 raw-water cooling systems using filter assembly 3889148, 3582986 or 3809070

Typically suits

• Engine models:
• Volvo Penta D4-180I-C
• Volvo Penta D4-210A-A and D4-210A-B
• Volvo Penta D4-225A-B, D4-225A-C and D4-225A-D
• Volvo Penta D4-225I-B and D4-225I-C
• Volvo Penta D4-260A-A, D4-260A-B, D4-260A-C and D4-260A-D
• Volvo Penta D4-260D-B, D4-260D-C and D4-260D-D
• Volvo Penta D4-260I-A, D4-260I-B and D4-260I-C
• Volvo Penta D4-300A-A, D4-300A-C and D4-300A-D
• Volvo Penta D4-300D-A, D4-300D-C and D4-300D-D
• Volvo Penta D4-300I-A and D4-300I-C
• Volvo Penta D6-280A-A, D6-280A-B and D6-280A-C
• Volvo Penta D6-310A-A, D6-310A-B, D6-310A-C and D6-310A-D
• Volvo Penta D6-310D-A, D6-310D-B, D6-310D-C and D6-310D-D
• Volvo Penta D6-310I-A, D6-310I-B and D6-310I-C
• Volvo Penta D6-330A-B, D6-330A-C and D6-330A-D
• Volvo Penta D6-330D-B and D6-330D-C
• Volvo Penta D6-350A-A and D6-350A-B
• Volvo Penta D6-370A-A, D6-370A-B and D6-370A-C
• Volvo Penta D6-370D-A and D6-370D-B
• Volvo Penta D6-370I-A, D6-370I-B and D6-370I-C
• Volvo Penta D6-435D-A and D6-435D-C
• Volvo Penta D6-435I-A and D6-435I-C
• Volvo Penta 8.1IPSCE-JF installations using the same seawater-filter assembly
• HP Range: Approximately 180HP - 435HP diesel, plus selected 8.1L IPS petrol installations
• Engine Type: Volvo Penta D4 / D6 marine diesel and selected IPS petrol engine
• Year Range: Approximately 2004 - 2012, dependent on filter assembly and engine suffix

🔌 Function

The strainer catches solid contamination in the incoming seawater before it can damage the impeller or restrict the heat exchanger and cooler cores.

⚠️ Common Signs of Failure

• Basket split, distorted or perforated by corrosion
• Debris bypasses the basket and reaches the pump
• Reduced seawater flow from a heavily blocked strainer
• Basket will not seat correctly against the pressure plate
• Persistent overheating caused by weed, shell or sediment blockage

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3583341 current original Volvo Penta strainer reference

OEM / Related Numbers

• 3583341
• VOP3583341
• 3889148 - Sea water filter assembly
• 3582986 - Earlier sea water filter assembly
• 3809070 - Earlier sea water filter assembly
• 3583340 - Sealing ring
• 3583339 - Pressure plate
• 3889146 - Filter cover
• 21400685 - Replacement cover kit

Aftermarket / Verified Equivalents

• Keypart: Replacement Strainer 3583341
• Direct-replacement strainer basket referencing Volvo Penta 3583341

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
