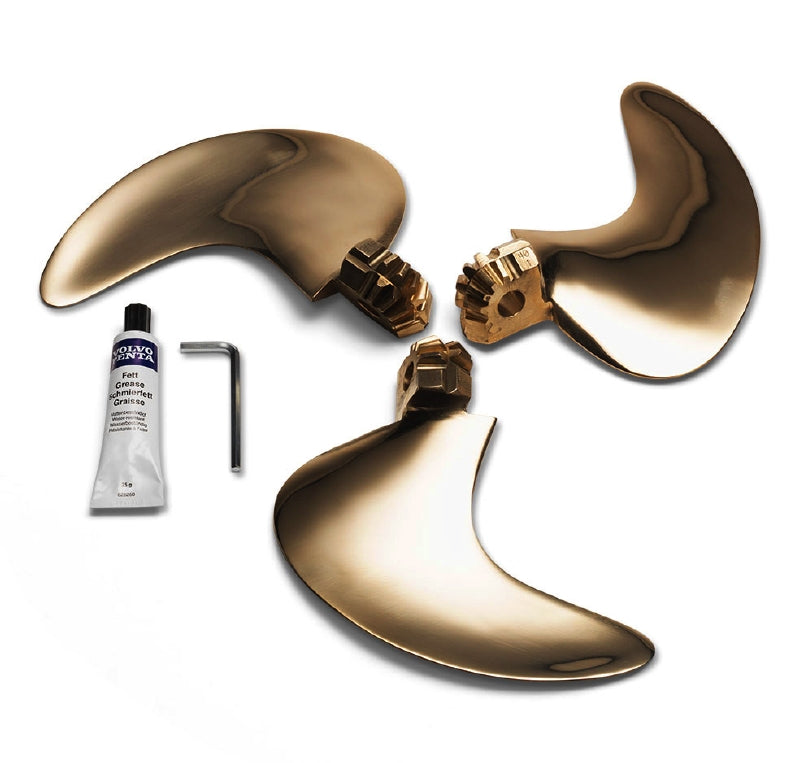

3583393 Propeller Blade Kit | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta blade kit for the 3-blade folding propeller for 20-60 hp. Designed for engines from 20 up to 60 hp. At 8 knots a 3-blade fixed propeller produces more than six times the drag of a 3-blade folding propeller. Available in multiple sizes and pitches for both S-drives and shafts, in 19 x 16 in. Volvo Penta folding propellers give minimal drag while sailing combined with the high thrust of a fixed propeller while motoring, even in reverse. The patented design, with protruding blade tips, opens the blades instantly as the propeller starts to turn, and the swept high-skew blade design keeps running smooth and quiet with minimal vibration. Reduced drag under sail increases speed by up to 1.5 knots compared with a fixed propeller.

🚤 Compatibility

• Engine Family: D, HS, MS, ZF, MD
• HP Range: 13-75 HP

Full model list at the end of this description.

⚙️ Key Features

• 19 x 16 inch, left hand
• For S-drive and shaft
• Nibral nickel-bronze-aluminium alloy
• Includes hex key, propeller grease and fitting instruction
• 6.670 kg
• Supersedes 3581260
• 50 applications across five series
• 3-blade
• Folding propeller for shaft or saildrive installations
• 19 x 16 in diameter x pitch.
• Listed for S-drive and shaft installations.
• Powerful thrust even in reverse thanks to patented blade geometry.
• Smooth, low-noise operation with minimal vibrations.
• Safe opening with quick response in both forward and reverse.
• Rubber bushing and galvanic isolation (hubs for S-drives).
• Made of extremely strong and durable nibral (nickel-bronze-aluminium) alloy.
• Material: nibral
• Fits: Volvo Penta S-drives and shafts
• Type: 19 x 16

🔌 Function

Supplies the folding blades that convert engine power into thrust, swinging open as the propeller turns and folding closed to cut drag under sail.

⚠️ Common Signs of Failure

• Blades not opening or folding cleanly
• Edges chipped or bent from a grounding
• Blade pivots worn or seized
• Vibration under way from a damaged blade
• Line or netting cut into the pivot area

🛠️ Service Notes

• The largest left hand kit in this range at 19 x 16 - check tip clearance to the hull before going up in diameter
• 3583423 is the 19 x 16 kit listed for shaft installations
• Confirm the boat reaches rated engine speed on trial; a propeller this size can overload a small engine
• For a complete propeller, order one blade kit and one hub kit.
• Propeller size has to be calculated to match engine and gear ratio - contact your Volvo Penta dealer.
• Blade kit includes blades, hex key for the locking screw, lubricant grease and installation instruction.
• Volvo Penta water-resistant multi-purpose premium grease is highly recommended for greasing propeller shafts, folding propellers and all other propeller components.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3583393 → Supersedes 3581260

OEM / Related Numbers

• 3581260 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 130SR-C, 130S, 130S-C, 130S-B, 130SR, 130SR-A, 130SR-B, 150S, 150S-B, 150SR, 150SR-B, 130S-D, 130SR-D, 150S-D, 150SR-D, 150S-C, 150SR-C
• Volvo Penta D2-40F, D2-55F, D2-50F, D2-75F, D2-60F
• Volvo Penta MS10A-A, MS10A-B, MS10L-A, MS10L-B
• Volvo Penta MS15L-A, MS15A-A, MS15A-B, MS15L-B
• Volvo Penta D1-30F, D1-13F, D1-20F
• Volvo Penta MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040B, MD2040-C, MD2040-D
• Volvo Penta MS25L, MS25A-A, MS25A
• Volvo Penta HS25A
• Volvo Penta ZF25
