3583419 Propeller Blade Kit | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta blade kit for the 3-blade folding propeller for 20-60 hp. Designed for engines from 20 up to 60 hp. At 8 knots a 3-blade fixed propeller produces more than six times the drag of a 3-blade folding propeller. Available in multiple sizes and pitches for both S-drives and shafts, in 18 x 13 in. Volvo Penta folding propellers give minimal drag while sailing combined with the high thrust of a fixed propeller while motoring, even in reverse. The patented design, with protruding blade tips, opens the blades instantly as the propeller starts to turn, and the swept high-skew blade design keeps running smooth and quiet with minimal vibration. Reduced drag under sail increases speed by up to 1.5 knots compared with a fixed propeller.

🚤 Compatibility

• Engine Family: D, HS, MS, ZF, MD
• HP Range: 13-75 HP

Full model list at the end of this description.

⚙️ Key Features

• 18 x 13 inch, right hand
• For shaft installations
• Three-blade folding propeller range for 20 to 60 hp

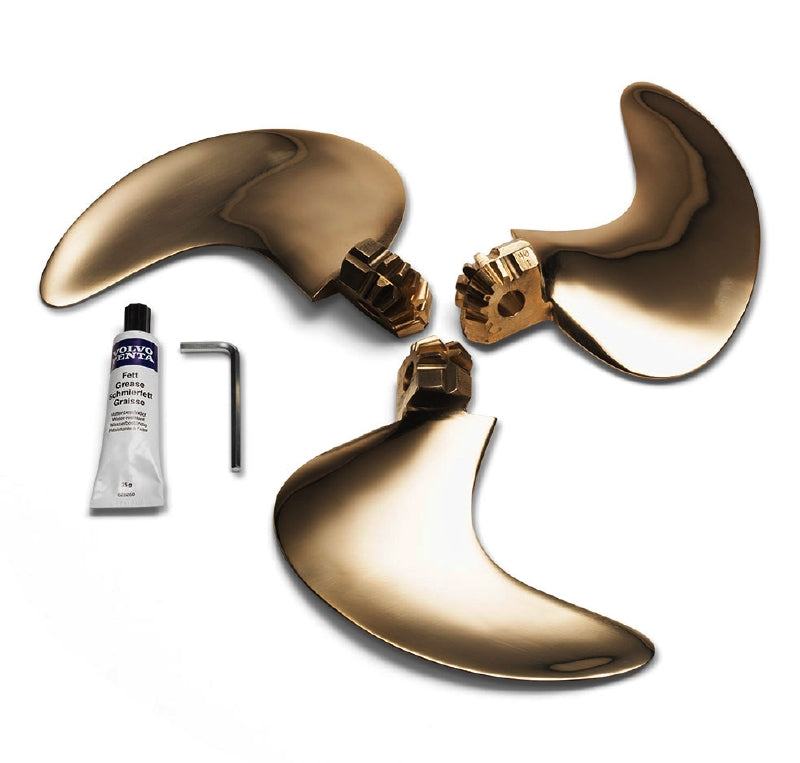

• Kit contains blades, hex key for the locking screw, propeller grease and instructions
• 6.028 kg
• Supersedes 3581815
• NiBral nickel-bronze-aluminium alloy, corrosion resistant
• 18 x 13 in diameter x pitch.
• Listed for shaft installations.
• Powerful thrust even in reverse thanks to patented blade geometry.
• Smooth, low-noise operation with minimal vibrations.
• Safe opening with quick response in both forward and reverse.
• Rubber bushing and galvanic isolation (hubs for S-drives).
• Made of extremely strong and durable nibral (nickel-bronze-aluminium) alloy.
• Material: nibral
• Fits: Shaft installations
• Type: 18 x 13

🔌 Function

Provides the three folding blades: water pressure on the protruding blade tips throws them open as soon as the propeller turns and centrifugal force completes the swing, so the propeller drives hard ahead and astern and then folds flat against the hub under sail.

⚠️ Common Signs of Failure

• Blades not folding or opening cleanly
• Edges chipped or bent from a grounding
• Blade pivots worn or seized
• Vibration under way from a damaged blade
• Fishing line cut into the pivot area

🛠️ Service Notes

• A complete propeller is one blade kit plus one hub kit - the hub kits are 3858955 for S-drives, 3583428 pre-drilled, 3583424 for a 25 mm shaft, 3583425 for a 30 mm shaft, 3583426 for a 1 inch shaft and 3583427 for a 1 1/4 inch shaft
• Size has to be calculated against the engine and gear ratio rather than guessed, and your Volvo Penta dealer can run that calculation
• 3583390 is the same 18 x 13 size in the other hand - confirm the shaft rotation before ordering
• For a complete propeller, order one blade kit and one hub kit.
• Propeller size has to be calculated to match engine and gear ratio - contact your Volvo Penta dealer.
• Blade kit includes blades, hex key for the locking screw, lubricant grease and installation instruction.
• Volvo Penta water-resistant multi-purpose premium grease is highly recommended for greasing propeller shafts, folding propellers and all other propeller components.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3583419 → Supersedes 3581815

OEM / Related Numbers

• 3581815 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 130SR-C, 130S, 130S-C, 130S-B, 130SR, 130SR-A, 130SR-B, 150S, 150S-B, 150SR, 150SR-B, 150S-C, 150SR-C
• Volvo Penta D2-40F, D2-55F, D2-50F, D2-75F, D2-60F
• Volvo Penta MS10A-A, MS10A-B, MS10L-A, MS10L-B
• Volvo Penta MS15L-A, MS15A-A, MS15A-B, MS15L-B
• Volvo Penta D1-30F, D1-13F, D1-20F
• Volvo Penta MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040B, MD2040-C, MD2040-D
• Volvo Penta MS25L, MS25A-A, MS25A
• Volvo Penta HS25A
• Volvo Penta ZF25
