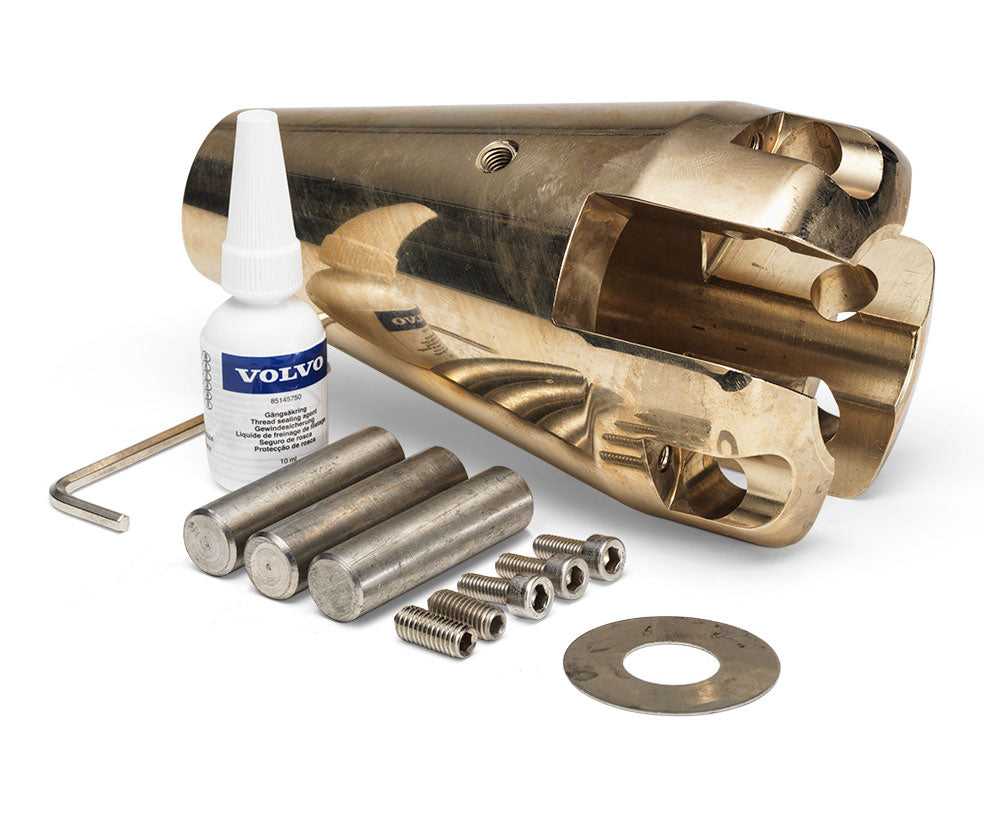

3583425 Hub Kit | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta hub kit for the 3-blade folding propeller for 20-60 hp. Hub kit, metric standard shaft (1:10 taper), 30 mm shaft (key 8 mm). For a complete propeller, order one blade kit and one hub kit.

🚤 Compatibility

• Engine Family: D, HS, MS, ZF, MD
• HP Range: 13-75 HP

Full model list at the end of this description.

⚙️ Key Features

• 30 mm metric shaft, 1:10 taper, 8 mm key
• For three-blade folding propellers, 20-60 hp
• Includes zinc anodes, locking fluid and installation hardware
• Nut and key not included
• 3.815 kg
• Supersedes 3581263
• 46 applications across five series
• 30mm (Volvo assembly listing)
• Hub kit, metric standard shaft (1:10 taper), 30 mm shaft (key 8 mm).
• Hub kit includes anodes, locking fluid and installation hardware.
• Nut and key are not included in the hub kit.
• For the 3-blade folding propeller.
• Fits: Shaft installations

🔌 Function

Provides the hub that mounts the folding blades to the propeller shaft.

⚠️ Common Signs of Failure

• Blades slack or not folding cleanly
• Hub bore or keyway worn
• Corrosion between hub and shaft
• Vibration under way from a poorly seated taper
• Hub working loose on the shaft

🛠️ Service Notes

• Shaft diameter, taper and key size must all match - this is the 30 mm metric shaft with a 1:10 taper
• Hub kit 3583424 is the 25 mm metric version; hub kits 3583426 and 3583427 are the SAE imperial versions with a 1:16 taper
• The nut and key are not in the kit, so order them separately against the shaft size
• For a complete propeller, order one blade kit and one hub kit.
• Propeller size has to be calculated to match engine and gear ratio - contact your Volvo Penta dealer.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3583425 → Supersedes 3581263

OEM / Related Numbers

• 3581263 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 130SR-C, 130S, 130S-C, 130S-B, 130SR, 130SR-A, 130SR-B, 150S, 150S-B, 150SR, 150SR-B, 150S-C, 150SR-C
• Volvo Penta D2-40F, D2-55F, D2-50F, D2-75F, D2-60F
• Volvo Penta MS10A-A, MS10A-B, MS10L-A, MS10L-B
• Volvo Penta MS15L-A, MS15A-A, MS15A-B, MS15L-B
• Volvo Penta D1-30F, D1-13F, D1-20F
• Volvo Penta MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040B, MD2040-C, MD2040-D
• Volvo Penta MS25L, MS25A-A, MS25A
• Volvo Penta HS25A
• Volvo Penta ZF25
