3583922 Propeller Blade Kit | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta blade kit for the 4-blade folding propeller for 55-120 hp. Designed for engines from 55 up to 120 hp. Available in multiple sizes and pitches for both S-drives and shafts, in 22 x 16 in. Volvo Penta folding propellers give minimal drag while sailing combined with the high thrust of a fixed propeller while motoring, even in reverse. The patented design, with protruding blade tips, opens the blades instantly as the propeller starts to turn, and the swept high-skew blade design keeps running smooth and quiet with minimal vibration. Reduced drag under sail increases speed by up to 1.5 knots compared with a fixed propeller.

🚤 Compatibility

• Engine Family: D, HS, MS
• HP Range: 13-480 HP

Full model list at the end of this description.

⚙️ Key Features

• 22 x 16 diameter and pitch
• Right hand
• For the four-blade folding propeller, 55-120 hp
• Nibral nickel-bronze-aluminium alloy
• 13.068 kg
• Blades only - hub kit ordered separately
• Listed for shaft installations
• Powerful thrust even in reverse thanks to patented blade geometry.
• Smooth, low-noise operation with minimal vibrations.
• Safe opening with quick response in both forward and reverse.
• Rubber bushing and galvanic isolation (hubs for S-drives).
• Made of extremely strong and durable nibral (nickel-bronze-aluminium) alloy.
• Material: nibral
• Fits: Shaft installations
• Type: 22 x 16

🔌 Function

Supplies the folding blades that grip in drive and fold back to cut drag under sail.

⚠️ Common Signs of Failure

• Blades slow to open when gear is engaged
• Edges chipped or bent after touching bottom
• Pivot shafts and bushings worn or seized
• Vibration under way from a damaged blade
• Weed or line wound into the pivots

🛠️ Service Notes

• Left-hand equivalent is 3583921, which is the one listed for S-drive installations
• The right-hand 22 inch kits are 3583922 at 16 inch pitch, 3583924 at 18 and 3583926 at 20 - their weights are within 400 grams of each other, so order by pitch
• One blade kit plus one hub kit makes a complete propeller
• For a complete propeller, order one blade kit and one hub kit.
• Propeller size has to be calculated to match engine and gear ratio - contact your Volvo Penta dealer.

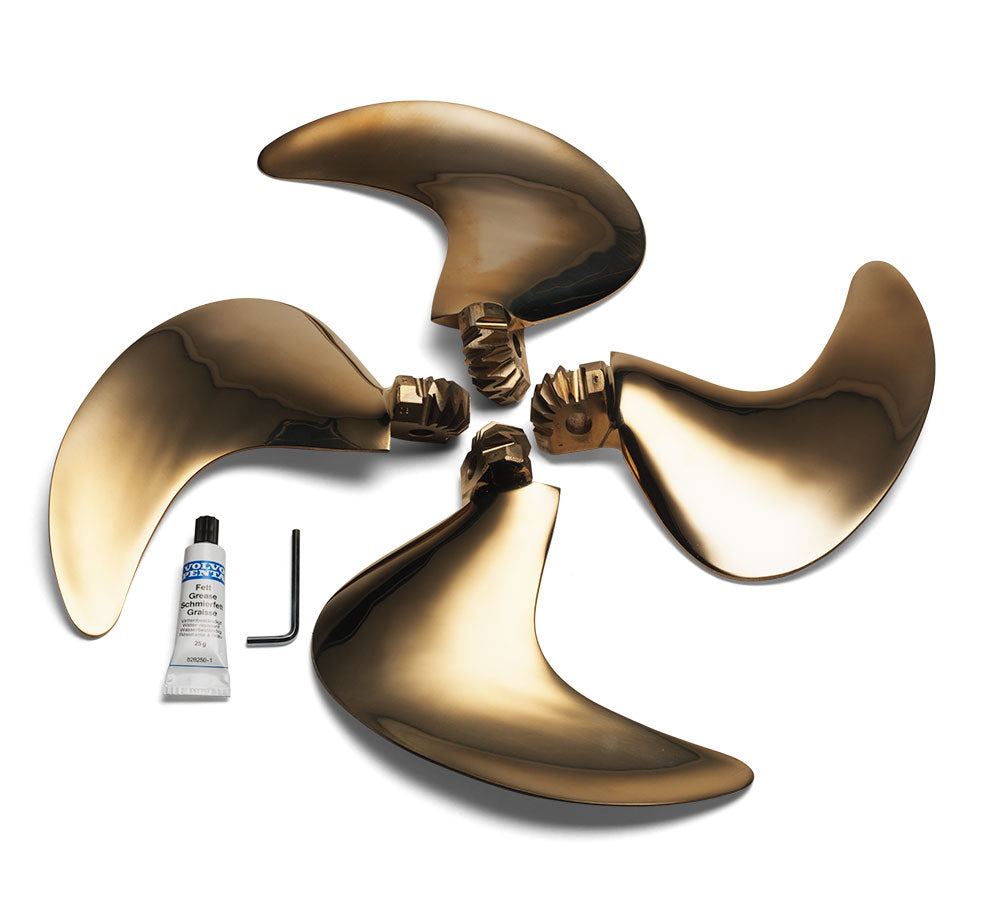

• Blade kit includes blades, hex key for the locking screw, lubricant grease and installation instruction.
• Volvo Penta water-resistant multi-purpose premium grease is highly recommended for greasing propeller shafts, folding propellers and all other propeller components.

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-280I-D, D6-310I-D, D6-280I-E, D6-310I-E, D6-300I-F, D6-330I-C, D6-370I-C, D6-330I-D, D6-280I-C, D6-310I-C, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-435I-C, D6-435I-D, D6-435I-E, D6-435I-F, D6-370I-D, D6-330I-E, D6-370I-E
• Volvo Penta D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-145I-G, D4-175 VG
• Volvo Penta D3-110I-C, D3-130I-C, D3-220I-G, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-160I-C, D3-190I-C, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H
• Volvo Penta 130SR-C, 130S, 130S-C, 130S-B, 130SR, 130SR-A, 130SR-B, 150S, 150S-B, 150SR, 150SR-B, 150S-C, 150SR-C
• Volvo Penta HS63AE, HS63VE, HS63IVE, HS63AE-A, HS63IVE-D, HS63AE-D, HS63AE-C
• Volvo Penta D2-40F, D2-55F, D2-50F, D2-75F, D2-60F
• Volvo Penta HS45A, HS45AE, HS45A-B, HS45AE-B, HS45AE-C
• Volvo Penta HS25A, HS25A-B, HS25, HS25AE-A
• Volvo Penta HS80VE, HS80AE, HS80AE-B, HS80IVE-B
• Volvo Penta MS10A-A, MS10A-B, MS10L-A, MS10L-B
• Volvo Penta MS15L-A, MS15A-A, MS15A-B, MS15L-B
• Volvo Penta D1-30F, D1-13F, D1-20F
• Volvo Penta HS85AE, HS85IVE, HS85IVE-A
• Volvo Penta HS68A-A, HS68IV-A
• Volvo Penta MS25A-A
