3584031 Propeller Blade Kit | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta blade kit for the 3-blade folding propeller for 20-60 hp. Designed for engines from 20 up to 60 hp. At 8 knots a 3-blade fixed propeller produces more than six times the drag of a 3-blade folding propeller. Available in multiple sizes and pitches for both S-drives and shafts, in 18 x 16 in. Volvo Penta folding propellers give minimal drag while sailing combined with the high thrust of a fixed propeller while motoring, even in reverse. The patented design, with protruding blade tips, opens the blades instantly as the propeller starts to turn, and the swept high-skew blade design keeps running smooth and quiet with minimal vibration. Reduced drag under sail increases speed by up to 1.5 knots compared with a fixed propeller.

🚤 Compatibility

• Engine Family: D, HS, MS, ZF, MD
• HP Range: 13-75 HP

Full model list at the end of this description.

⚙️ Key Features

• 18 x 16 diameter and pitch
• Left hand
• For S-drive and shaft installations, 20-60 hp
• Nibral nickel-bronze-aluminium alloy
• Includes hex key, propeller grease and fitting instruction
• 6.074 kg
• 3-blade
• Folding propeller for shaft or saildrive installations
• Listed for S-drive and shaft installations.
• Powerful thrust even in reverse thanks to patented blade geometry.
• Smooth, low-noise operation with minimal vibrations.
• Safe opening with quick response in both forward and reverse.
• Rubber bushing and galvanic isolation (hubs for S-drives).
• Made of extremely strong and durable nibral (nickel-bronze-aluminium) alloy.
• Material: nibral
• Fits: Volvo Penta S-drives and shafts
• Type: 18 x 16

🔌 Function

Provides the matched set of folding blades that swing out under power and fold closed when the drive stops.

⚠️ Common Signs of Failure

• Blades slow to open when gear is engaged
• Edges chipped or bent after touching bottom
• Pivot pins and bushings worn or seized
• Vibration under way from a damaged blade
• Line or weed wound into the pivots

🛠️ Service Notes

• Hand and the 18 x 16 diameter and pitch decide the order - a right-hand kit of the same size looks identical on the shelf, and 3583422 is the 18 x 16 kit listed for shafts
• Replace blades as a set so the propeller stays in balance, and check the pivot pins and bushings while the blades are off
• Order one hub kit alongside this blade kit to make up a complete propeller
• For a complete propeller, order one blade kit and one hub kit.
• Propeller size has to be calculated to match engine and gear ratio - contact your Volvo Penta dealer.

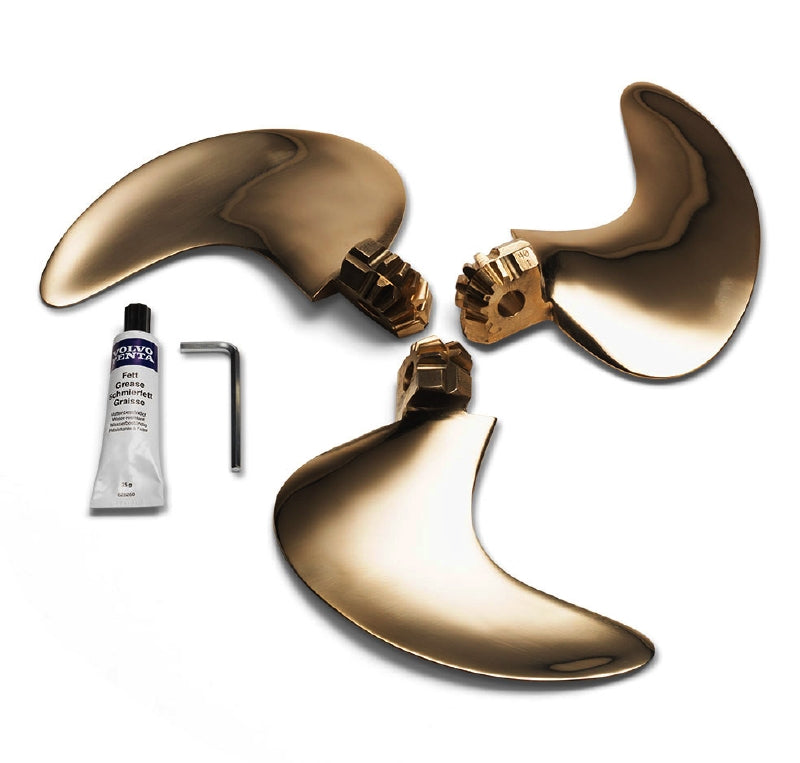

• Blade kit includes blades, hex key for the locking screw, lubricant grease and installation instruction.
• Volvo Penta water-resistant multi-purpose premium grease is highly recommended for greasing propeller shafts, folding propellers and all other propeller components.

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 130SR-C, 130S, 130S-C, 130S-B, 130SR, 130SR-A, 130SR-B, 150S, 150S-B, 150SR, 150SR-B, 130S-D, 130SR-D, 150S-D, 150SR-D, 150S-C, 150SR-C
• Volvo Penta D2-40F, D2-55F, D2-50F, D2-75F, D2-60F
• Volvo Penta MS10A-A, MS10A-B, MS10L-A, MS10L-B
• Volvo Penta MS15L-A, MS15A-A, MS15A-B, MS15L-B
• Volvo Penta D1-30F, D1-13F, D1-20F
• Volvo Penta MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040B, MD2040-C, MD2040-D
• Volvo Penta MS25L, MS25A-A, MS25A
• Volvo Penta HS25A
• Volvo Penta ZF25
