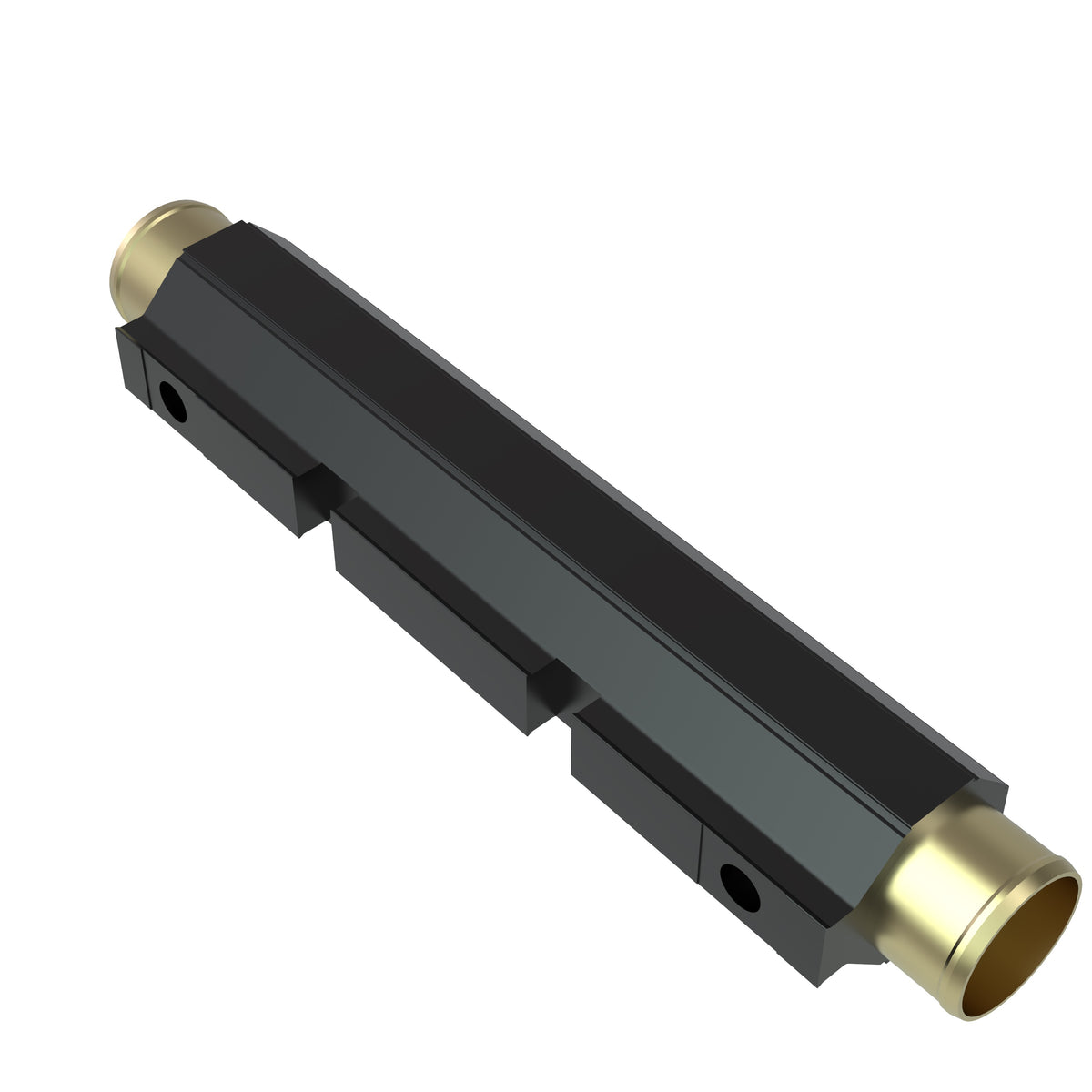

3584435 Oil Cooler | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta oil cooler from the Miscellaneous and Power Transmission group, weighing 2.524 kg and listed for 59 applications across the D and HS series. It measures approximately 410 mm overall. It is the larger of the two coolers here - 3584434 weighs 1.889 kg and covers 35 applications.

🚤 Compatibility

• Engine Family: D, HS
• HP Range: 145-435 HP

Full model list at the end of this description.

⚙️ Key Features

• 2.524 kg - the larger of the two coolers here
• Approximately 410 mm overall length
• 59 applications across the D and HS series
• Oil cooler 3584434 is the 1.889 kg alternative

🔌 Function

Passes oil through a water-cooled circuit to hold its temperature down.

⚠️ Common Signs of Failure

• Oil temperature higher than normal under load
• Oil in the coolant or water in the oil
• Seepage or staining at the end caps
• Furring, scale or salt blocking the passages
• Corrosion pitting on the outer body

🛠️ Service Notes

• Weight and fitment separate the two coolers cleanly - 2.524 kg over 59 applications here, 1.889 kg over 35 for 3584434
• Brackets 3584438, 3584440 and 3584475 mount coolers in this range, so check which one your installation uses
• Flush the oil circuit after a cooler failure; debris left behind will take the new one out

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300I-F, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310I-C, D6-340I-G, D6-380I-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-435I-C, D6-435I-D, D6-435I-E, D6-435I-F, D6-330I-E, D6-370I-E
• Volvo Penta D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-145I-G
• Volvo Penta HS63AE, HS63IVE, HS63AE-A
• Volvo Penta HS80AE
