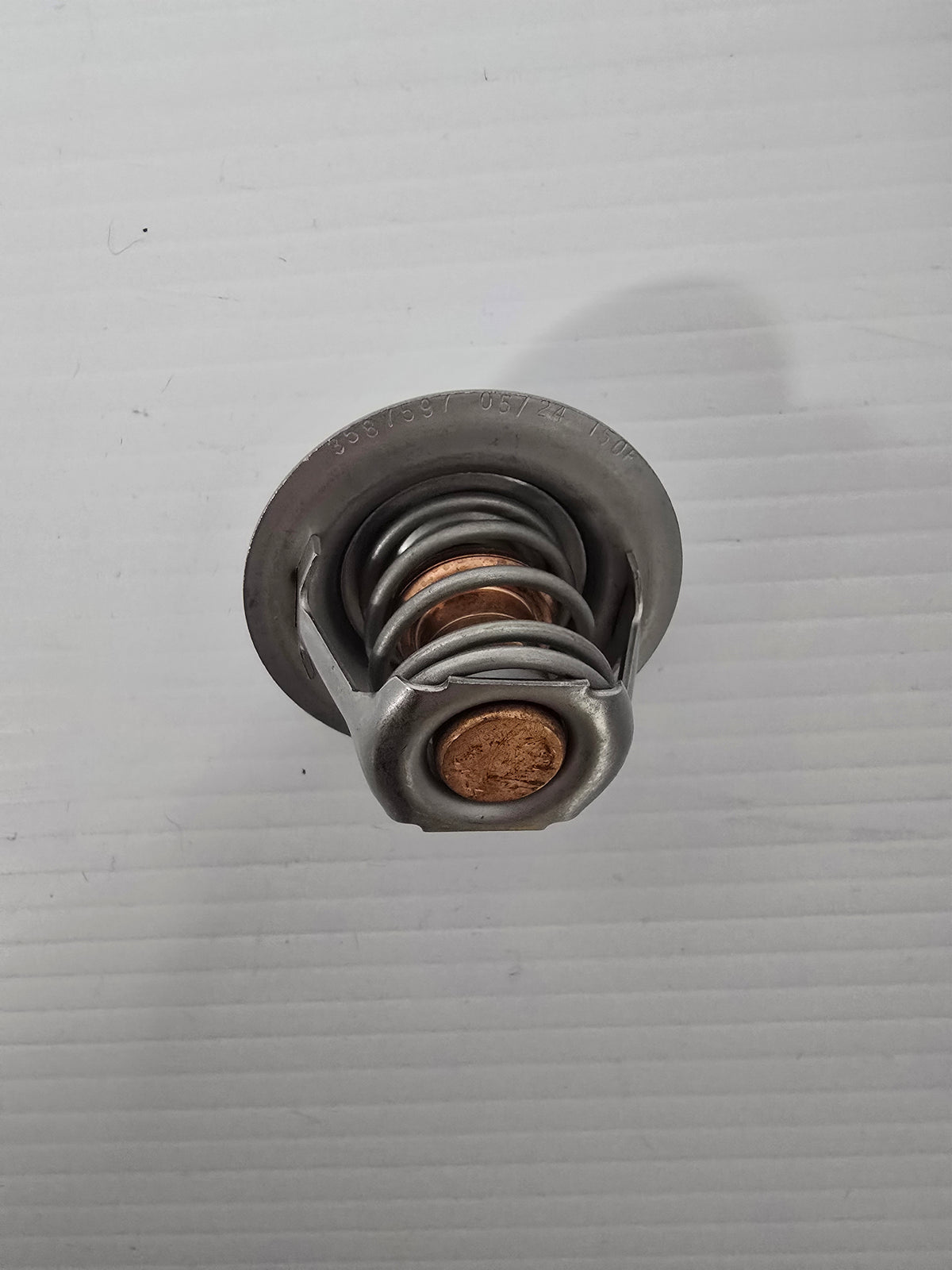

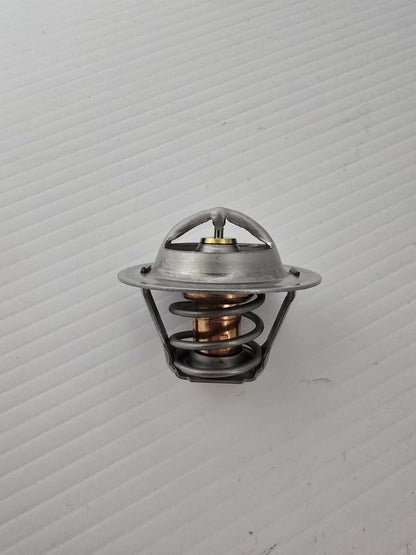

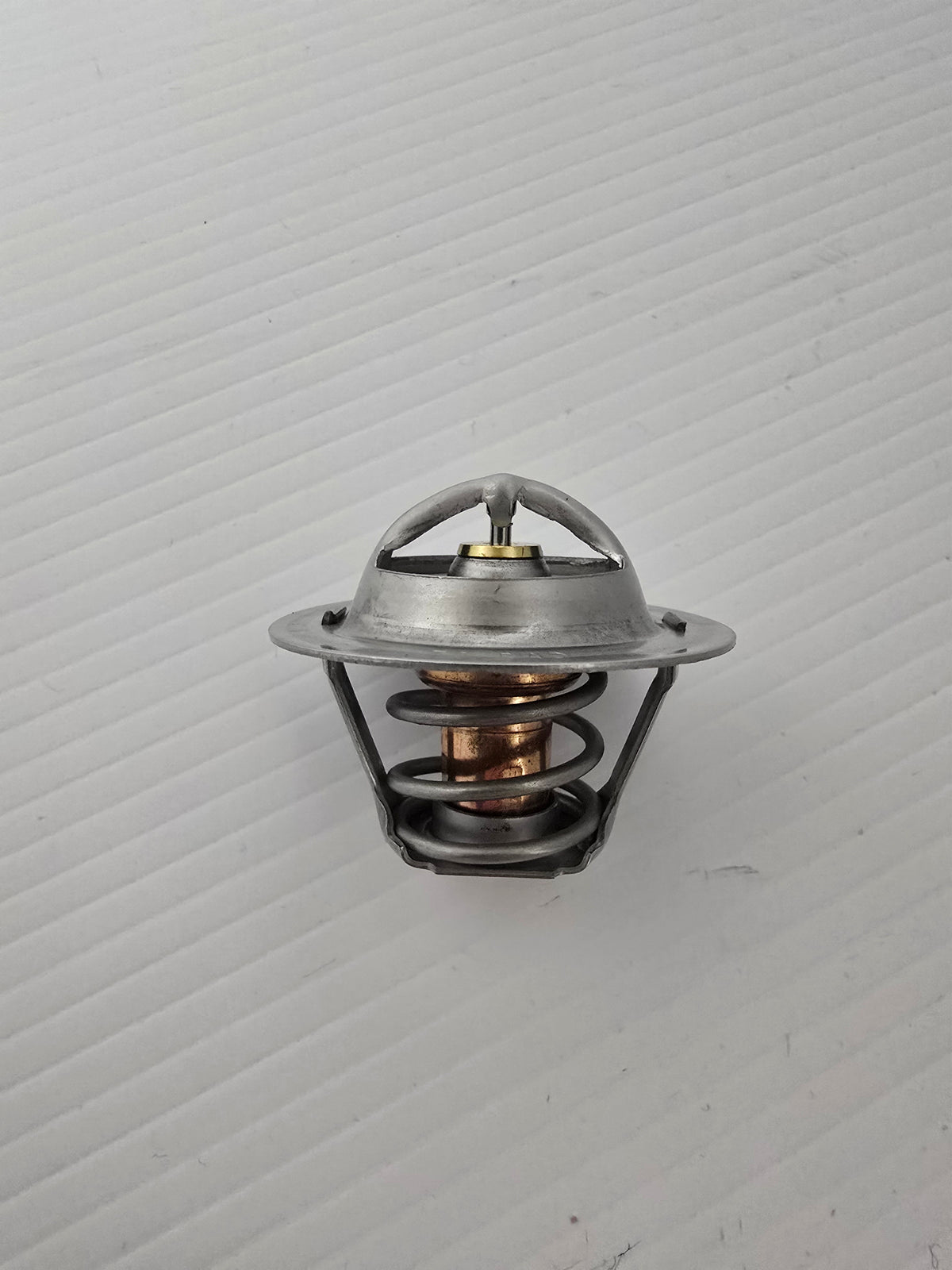

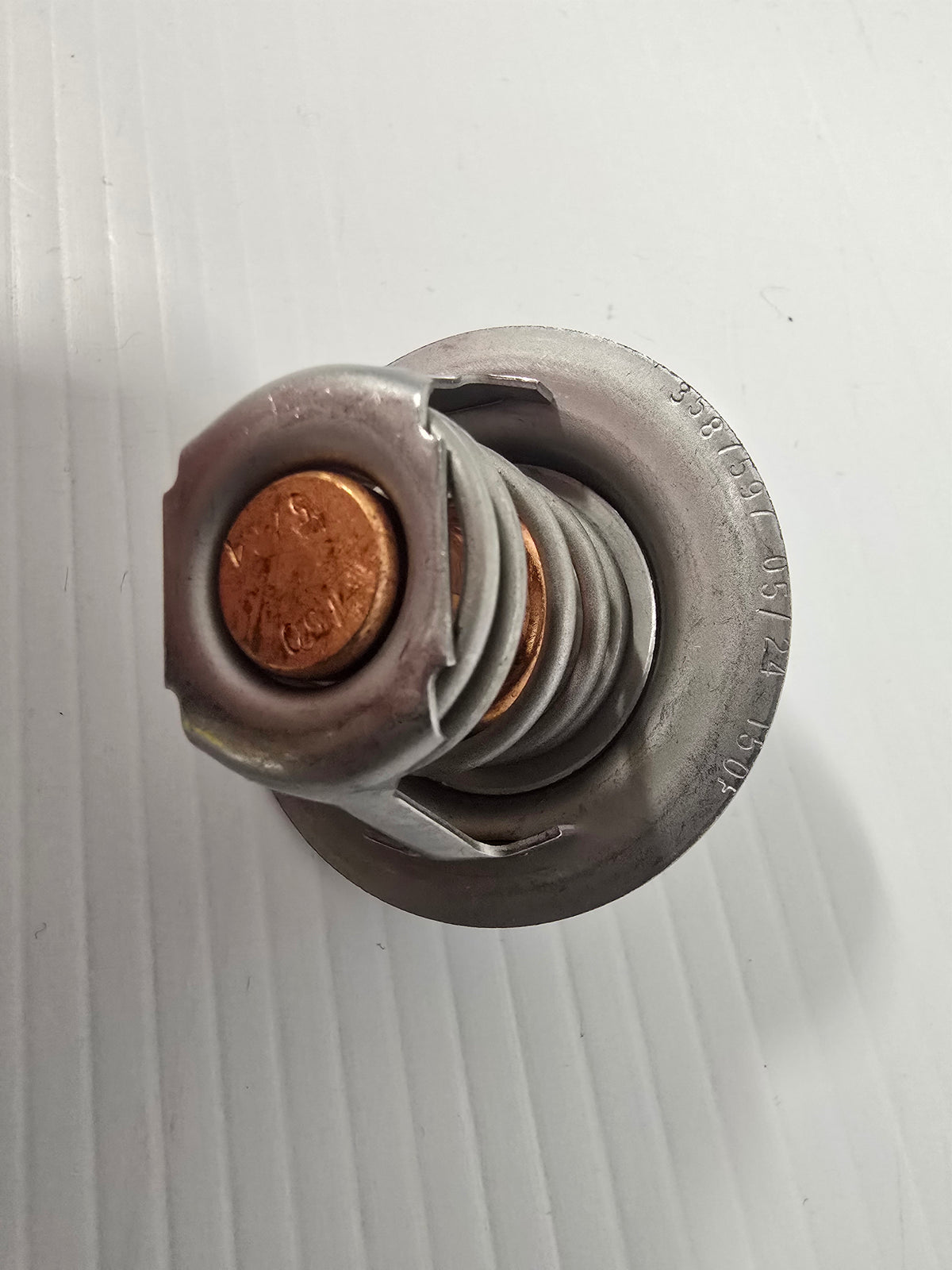

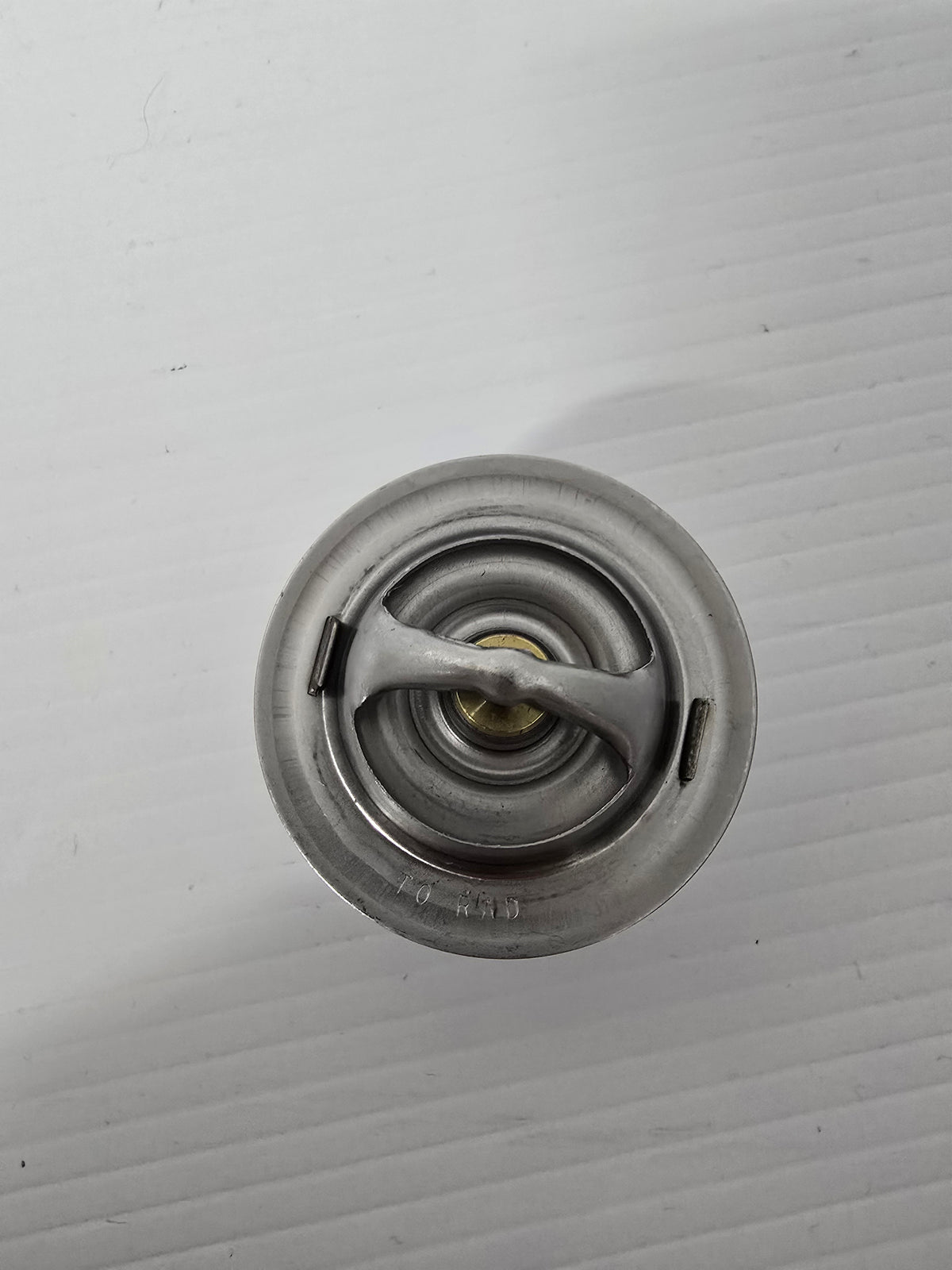

3587597 Thermostat | Genuine Volvo Penta Part

🔧 Product Description

Thermostat for seawater cooled engines, weighing 0.034 kg and listed for 234 V-series applications. In the maintenance parts schedule it is the raw water thermostat for the 4.3GL-J, GXi-J and OSi-J, the 4.3GXi-G and OSi-G, the 5.7Gi300-J, OSi-J, GXi-J and OSXi-J, and the 5.7Gi-F, GXi-G and OSi-E. The freshwater cooled versions of the same engines take thermostat kit 3831426. It replaces 3863086 and 3862835, both of which were catalogued before as thermostat housings.

🚤 Compatibility

• Engine Family: V
• HP Range: 200-320 HP

Full model list at the end of this description.

⚙️ Key Features

• Raw water thermostat for the 4.3 and 5.7 petrol engines in the generations listed
• 0.034 kg
• 3831426 is the freshwater thermostat kit for the same engines
• Supersedes 3863086 and 3862835, both catalogued before as thermostat housings
• 234 V series applications
• Genuine Volvo Penta Part, designed and manufactured to ensure original fit, safety and performance
• Role: Thermostat
• Fits: 4.3GL-J/JF, GXi-J/JF, OSi-J/JF (raw); 4.3GXi-G/GF, OSi-G/GF (G); 5.7Gi300-J/JF, 5.7OSi-J/JF, 5.7GXi-J/JF, 5.7OSXi-J/JF (raw); 5.7Gi-F/FF, GXi-G/GF, OSi-E/EF (raw)

🔌 Function

Opens and closes with temperature to regulate coolant flow and hold the engine at its working temperature.

⚠️ Common Signs of Failure

• Engine running cold or slow to warm up
• Overheating, or temperature climbing under load
• Temperature gauge swinging up and down
• Thermostat stuck open or shut when checked in hot water
• Scale or corrosion built up around the seat

🛠️ Service Notes

• Confirm the cooling arrangement first, since the fresh and raw thermostats are listed side by side against the same engines
• The numbers it replaces were listed as thermostat housings, so check whether the job needs the housing as well as the thermostat
• Renew gasket 3852111 at the housing joint and refit with the vent hole uppermost if one is fitted
• Always refer to the operator's manual for the recommended maintenance and service intervals for your engine and drive
• Listed against more than one engine or drive family - check the qualifier that applies to your own engine or drive

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3587597 → Supersedes 3863086 → Supersedes 3862834 → Supersedes 3861676

OEM / Related Numbers

• 3862835 earlier number superseded by this part
• 3863086 earlier number superseded by this part
• 3862834 earlier number superseded by this part
• 3861676 earlier number superseded by this part

Aftermarket / Verified Equivalents

• Recmar: REC3587597
• Crom: 115289
• Sierra: 18-3615

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 5.7GXi-320-R, 5.7GXiE-320-R, 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-J, 5.7GXiC-JF, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GXi-D, 5.7GXi-DF, 5.7GXi-E, 5.7GXi-EF, 5.7GXi-J, 5.7GXi-JF, 5.7GXiE-JF, 5.7GXiE-J, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-MF, 5.7GXiE-P, 5.7GXi-P, 5.7GXi-F, 5.7GXi-FF, 5.7OSXi-D, 5.7OSXi-DF, 5.7GXi-G, 5.7GXi-GF, 5.7GXi-H, 5.7GXi-HF, 5.7GXiI-D, 5.7GXiI-E, 5.7GXiI-F, 5.7GXiI-G, 5.7GXiI-H, 5.7OSi-300-J, 5.7OSi-300-JF, 5.7OSiE-300-JF, 5.7OSiE-300-J, 5.7OSi-B, 5.7OSi-BF, 5.7OSi-C, 5.7OSi-CF, 5.7OSi-E, 5.7OSi-EF, 5.7OSi-G, 5.7OSi-GF, 5.7OSXi-B, 5.7OSXi-BF, 5.7OSXi-C, 5.7OSXi-CF, 5.7OSXi-E, 5.7OSXi-EF, 5.7OSXi-J, 5.7OSXi-JF, 5.7OSXiE-JF, 5.7OSXiE-J, 5.7OSXi-G, 5.7OSXi-GF, 5.0OSi-DF, 5.0OSi-E, 5.0OSi-EF, 5.0OSi-J, 5.0OSi-JF, 5.0OSiE-J, 5.0OSiE-JF, 5.0OSi-F, 5.0OSi-FF, 5.0OSi-G, 5.0OSi-GF, 5.7Gi-300-J, 5.7Gi-300-JF, 5.7GiE-300-JF, 5.7GiE-300-J, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiCE-300-MF, 5.7GiE-300-P, 5.7Gi-300-P, 5.7Gi-300-R, 5.7GiE-300-R, 5.7Gi-C, 5.7Gi-CF, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GiC-300-JF, 5.7GiC-300-P, 5.7Gi-D, 5.7Gi-DF, 5.7Gi-E, 5.7Gi-EF, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 5.7OSi-D, 5.7OSi-DF, 5.7Gi-F, 5.7Gi-FF, 5.7Gi-G, 5.7Gi-GF, 5.7GiI-C, 5.7GiI-D, 5.7GiI-E, 5.7GiI-F, 5.7GiI-G, 5.7GL-C, 5.7GL-D, 5.7GL-E, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 4.3OSi-GF, 4.3OSi-J, 4.3OSi-JF, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GiC-J, 5.0GL-C, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiC-JF, 5.0GXiCE-M, 5.0GXiCE-MF, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXi-D, 5.0GXi-DF, 5.0GXi-E, 5.0GXi-EF, 5.0GXi-J, 5.0GXi-JF, 5.0GXiE-JF, 5.0GXiE-J, 5.0GXiE-K, 5.0OSi-C, 5.0OSi-CF, 5.0OSi-D, 5.0GL-D, 5.0GL-E, 5.0GL-F, 5.0GL-FF, 5.0GL-HF, 5.0GL-J, 5.0GL-JF, 5.0GXi-270-R, 5.0GXiE-270-R, 5.0GXi-C, 5.0GXi-CF, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiC-J, 5.0GL-H, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-MF, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-P, 5.0GXi-F, 5.0GXi-FF, 5.0GXi-G, 5.0GXi-GF, 4.3Gi-200-R, 4.3GL-B, 4.3GL-C, 4.3GL-D, 4.3GL-E, 4.3GL-EF, 4.3GL-G, 4.3GL-GF, 4.3GL-J, 4.3GL-JF, 4.3GL-P, 4.3GXi-225-R, 4.3GXiE-225-R, 4.3GXi-C, 4.3GXi-CF, 4.3GXi-D, 4.3GXi-DF, 4.3GXi-E, 4.3GXi-EF, 4.3GXiE-M, 4.3GXi-P, 4.3GXiE-P, 4.3GXi-Q, 4.3GXiE-Q, 4.3GXi-F, 4.3GXi-FF, 4.3GXi-G, 4.3GXi-GF, 4.3GXi-J, 4.3GXi-JF, 4.3OSi-F, 4.3OSi-FF, 4.3OSi-G
• Volvo Penta V8-270-C-B, V8-270-CE-B, V8-300-A, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-A, V8-320-E-A, V8-320-B, V8-320-E-B, V8-320-C-A, V8-320-CE-A, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-A, V8-270-E-A, V8-270-B, V8-270-E-B, V8-270-C-A, V8-270-CE-A
• Volvo Penta V6-200-A, V6-225-A, V6-225-E-A
