3588024 Volvo Penta Delivery Pipe Kit (Injector Lines) | Genuine Used Part

🔧 Product Description

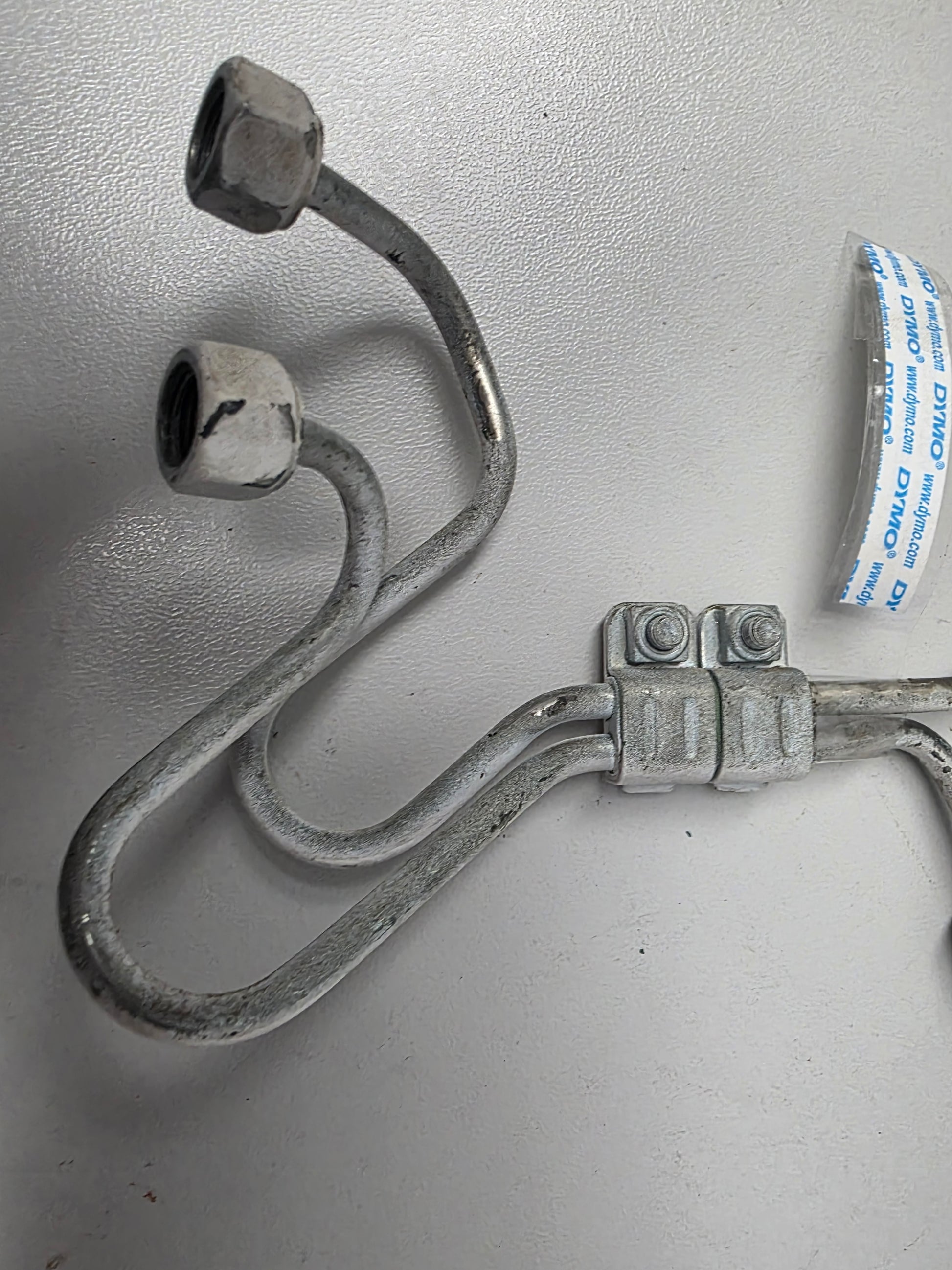

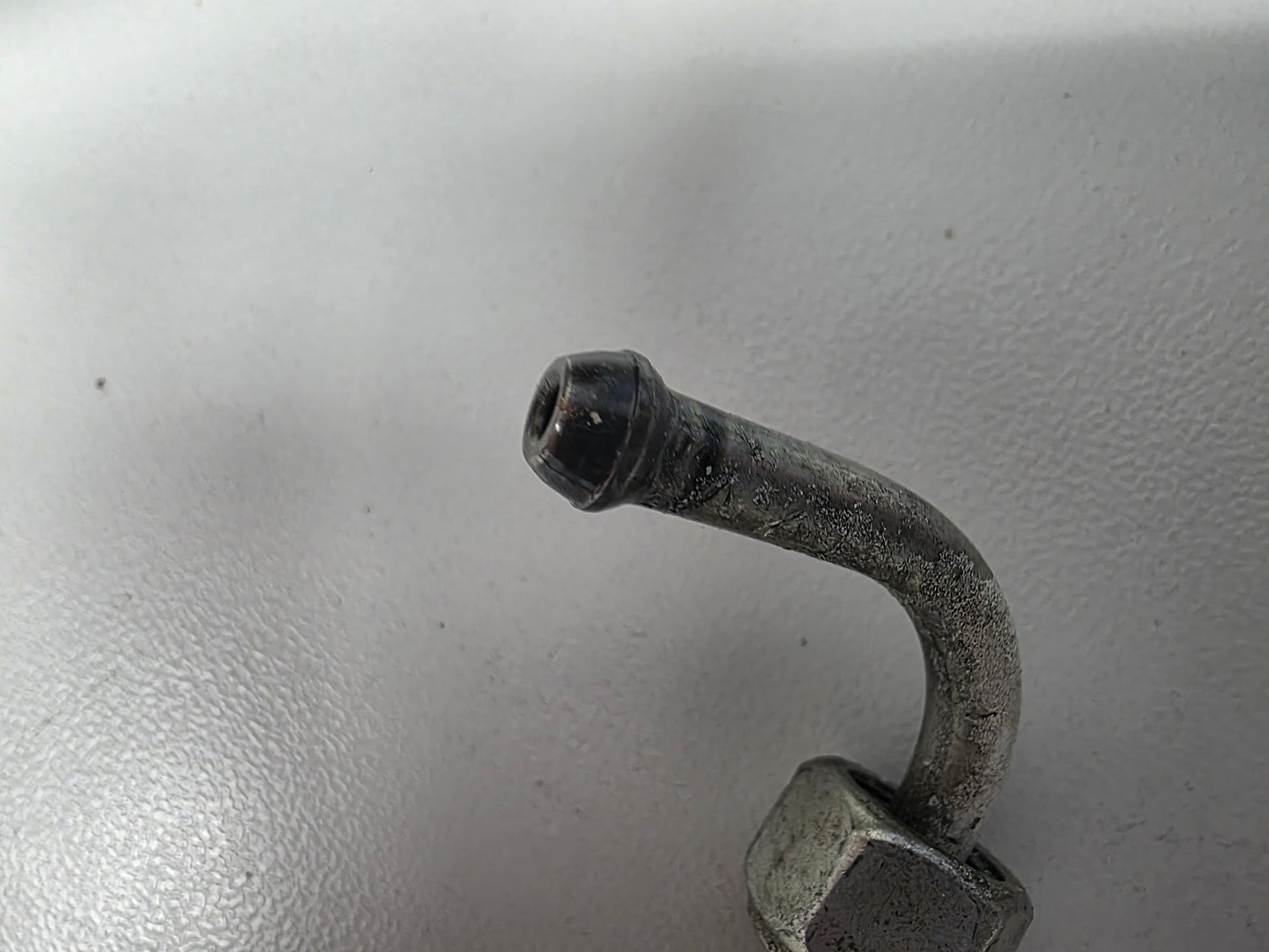

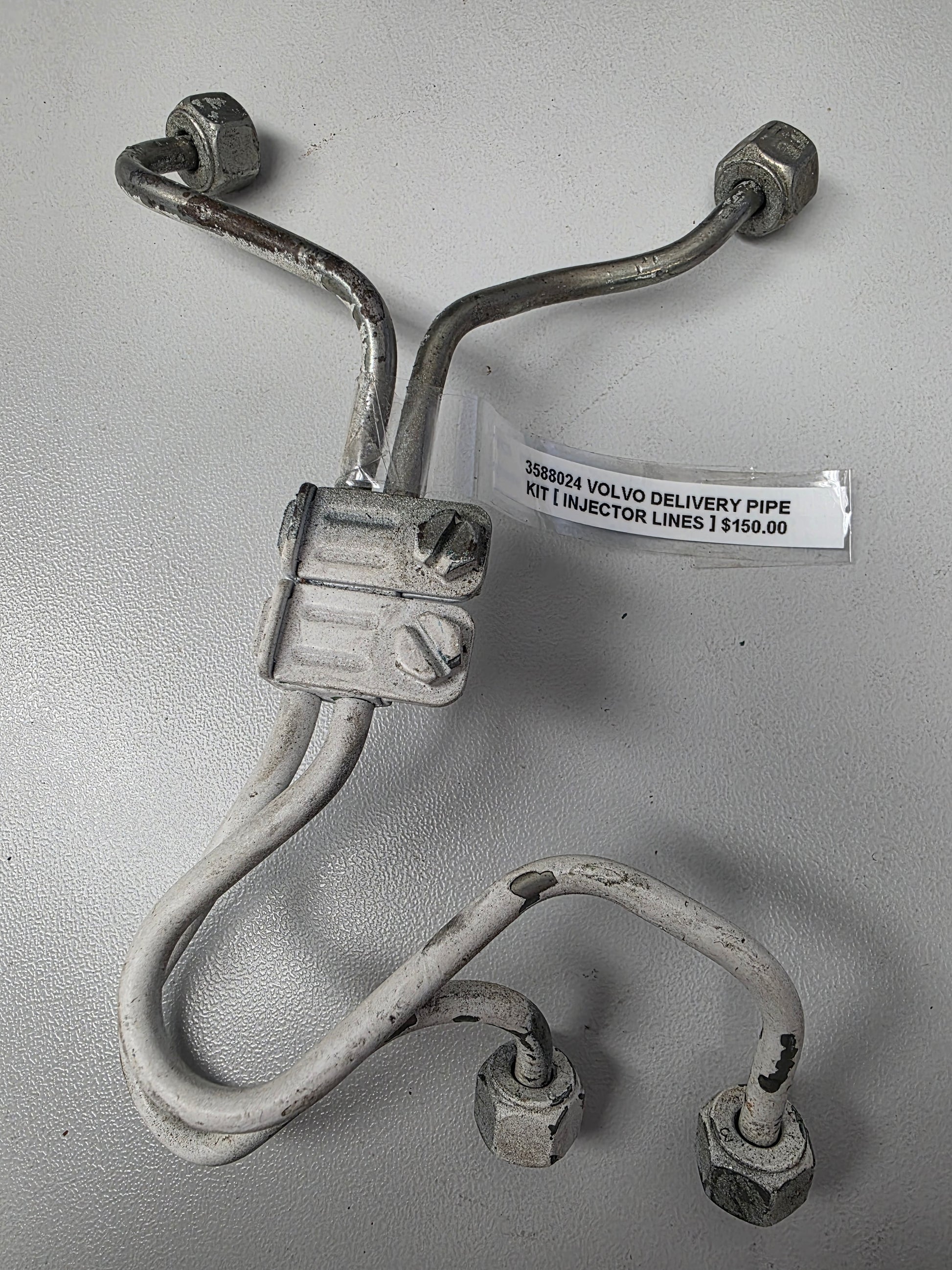

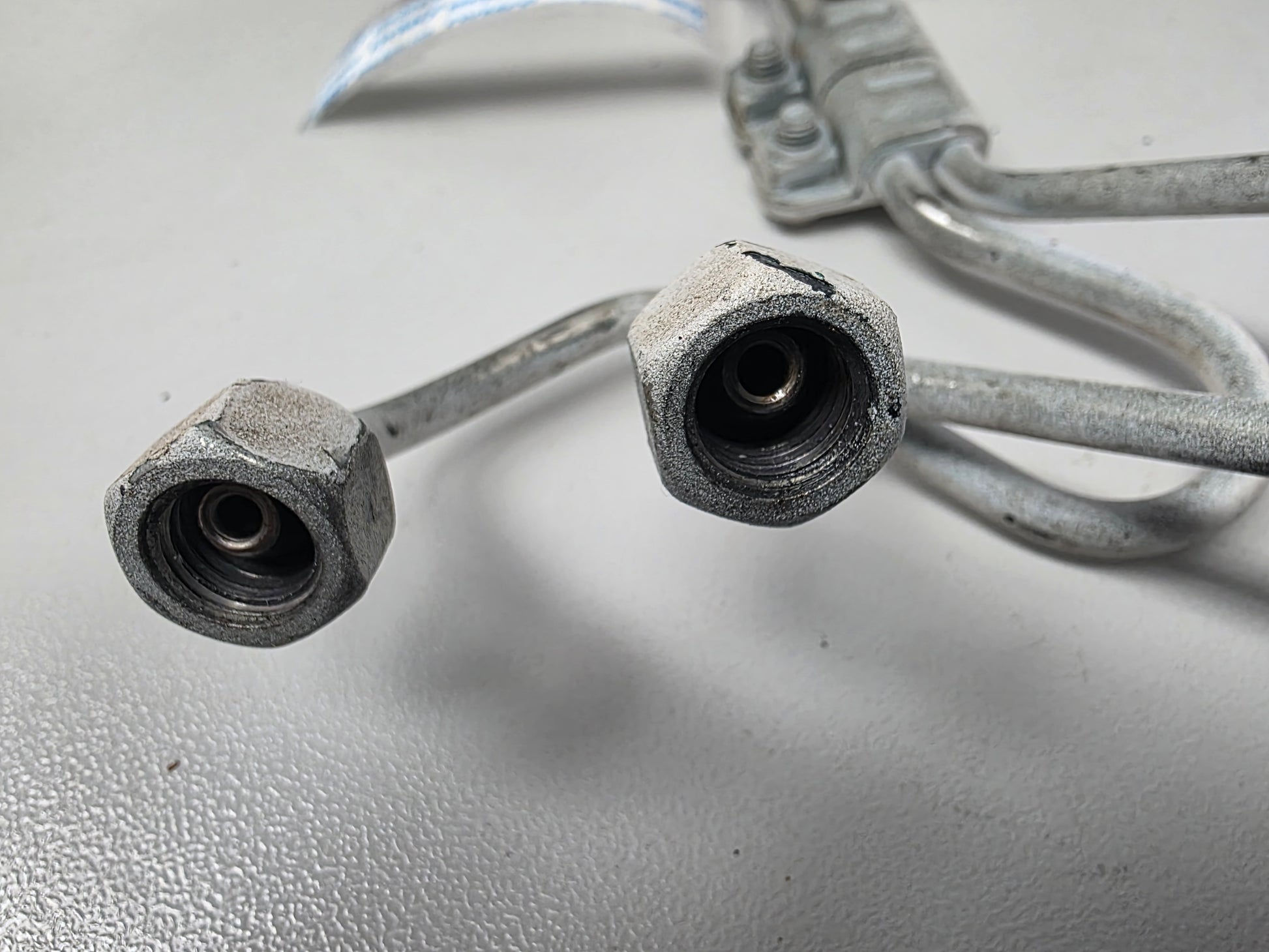

Genuine Volvo Penta D4 Common-Rail Injector Pipe Kit - Part Number: 3588024

A genuine used high-pressure delivery-pipe kit connecting the common rail to selected injectors on early Volvo Penta D4 marine diesel engines.

Part number 3588024 is shown as delivery-pipe kit position 28 in the D4 fuel system, immediately alongside companion pipe kit 3588025 at position 29. The pipes must retain their original shape and must not be rebent during installation.

⚙️ Key Features

• Genuine Volvo Penta high-pressure injector-line kit

• Correct Volvo reference 3588024

• Factory-formed for the D4 common-rail system

• Used with companion pipe kit 3588025

• Suitable for selected early D4-180 through D4-300 engines

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 3588024 original D4 delivery-pipe kit reference

• Later D4 engine generations use different pipe-kit numbers

OEM / Related Numbers:

• 3588024

• Companion pipe kit: 3588025

• Additional delivery pipe: 3582796

• Common rail: 3584370

• Common rail: 3588739

• Common rail: 3886062

• Injector: 3583618

• Reman injector: 3803634

• Injector: 3587680

• Reman injector: 3803908

• Injector O-ring: 3887602

• Pipe clamp: 3582669

• Pipe support: 3583442

Aftermarket / Verified Equivalents:

• Golden Arrow: GAM0014209

• No additional verified aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Volvo Penta D4 common-rail fuel systems

• High-pressure pipes between the rail and injectors

• Early Aquamatic and inboard D4 engines

Typically suits:

• Engine models:

• Volvo Penta D4-180I-B

• Volvo Penta D4-180I-C

• Volvo Penta D4-180I-D

• Volvo Penta D4-180I-F where production number specifies 3588024

• Volvo Penta D4-210A-A and B

• Volvo Penta D4-210I-A and B

• Volvo Penta D4-225A-B, C and D

• Volvo Penta D4-225I-B

• Volvo Penta D4-260 variants using the early rail system

• Volvo Penta D4-300 variants using the early rail system

• HP Range: 180HP - 300HP

• Engine Type: 3.7L inline four-cylinder common-rail turbo-diesel

• Year Range: Approximately 2003 through the early D4 production generations

🔌 Function

The delivery pipes carry extremely high-pressure diesel from the common rail to the injectors without pressure loss or injection-timing distortion.

Common signs of failure:

• Diesel mist or leakage from a pipe

• Rail pressure drops under load

• Engine enters reduced-power mode

• Difficult starting or extended cranking

• One cylinder misfires

• Pipe has been bent, kinked or damaged

• Cracks form at a flare or union

• Fuel-system pressure fault codes are recorded

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
