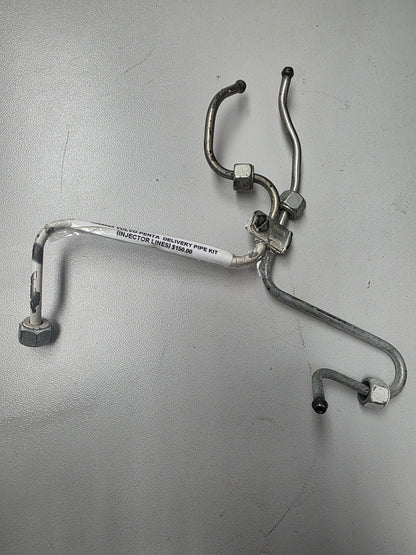

3588025 Volvo Penta Delivery Pipe Kit (Injector Lines) | Genuine Used Part

🔧 Product Description

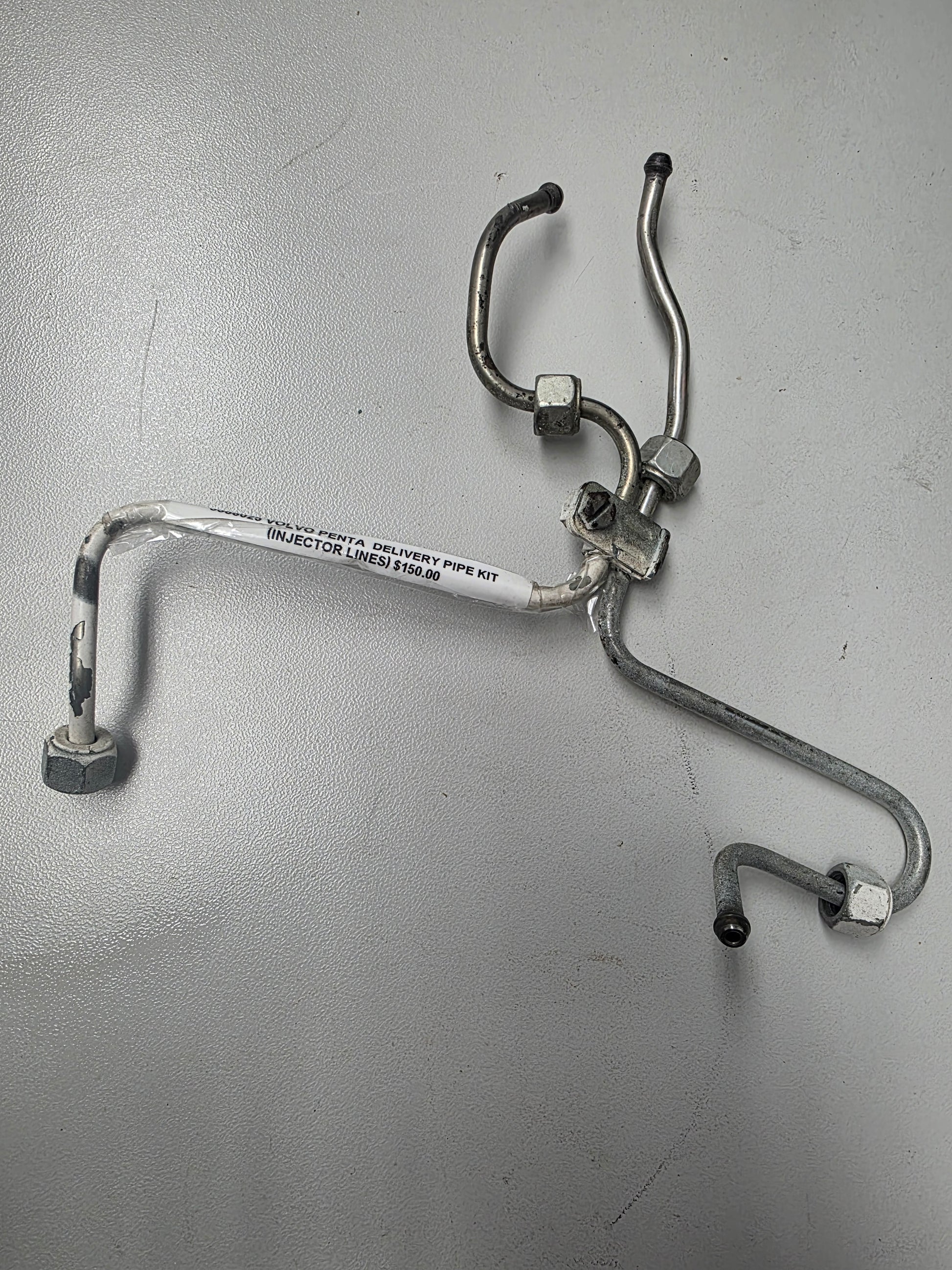

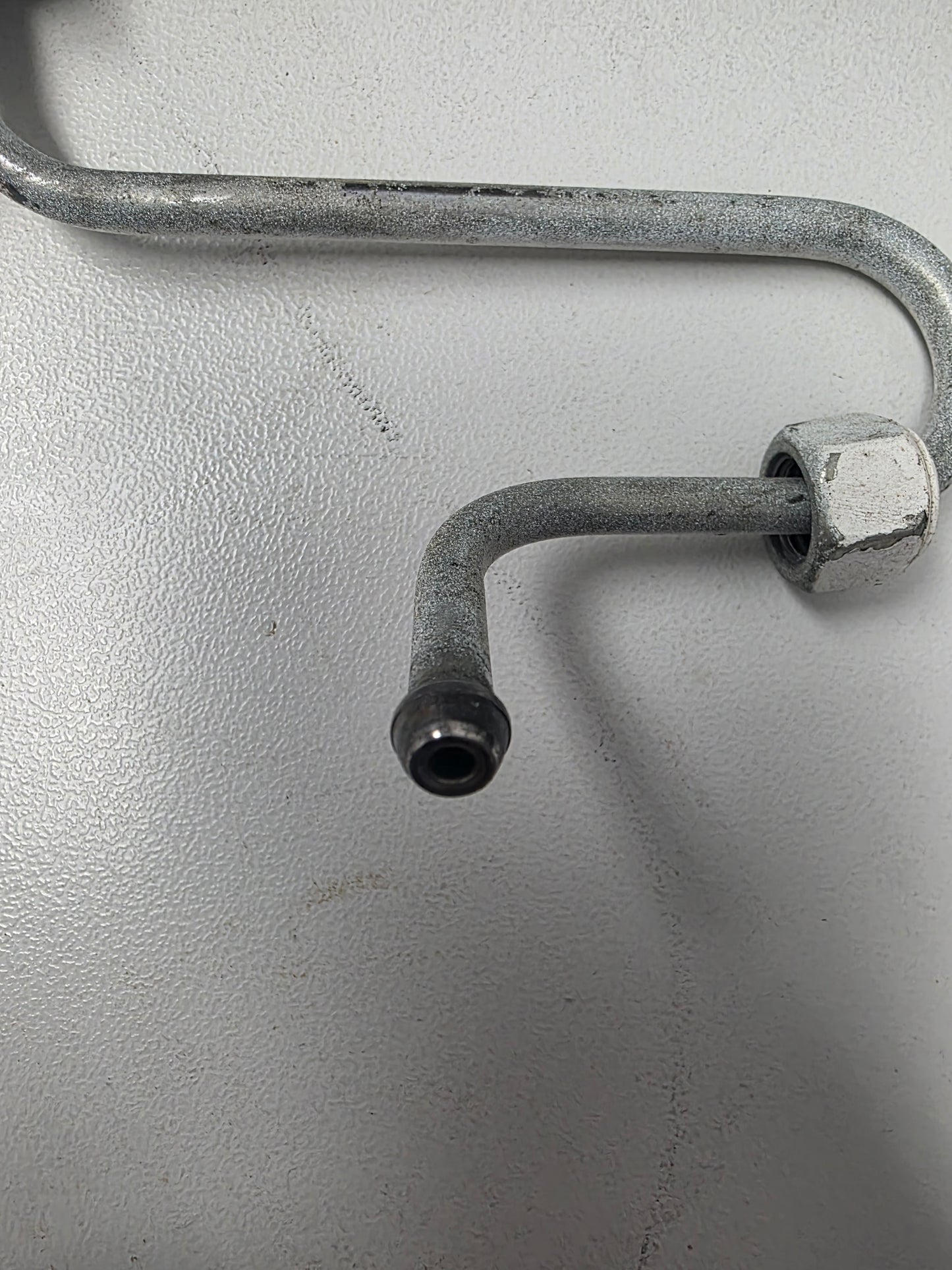

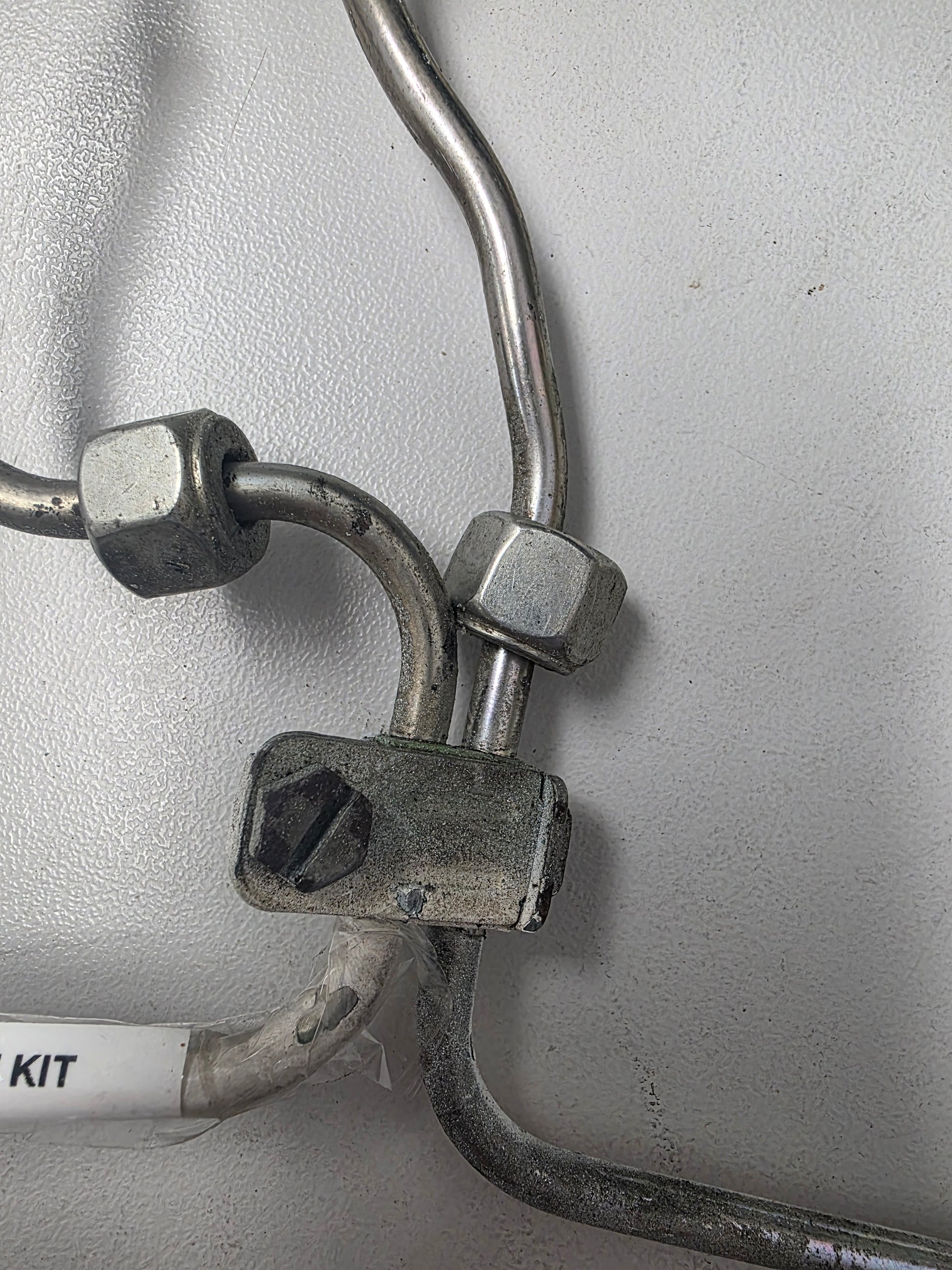

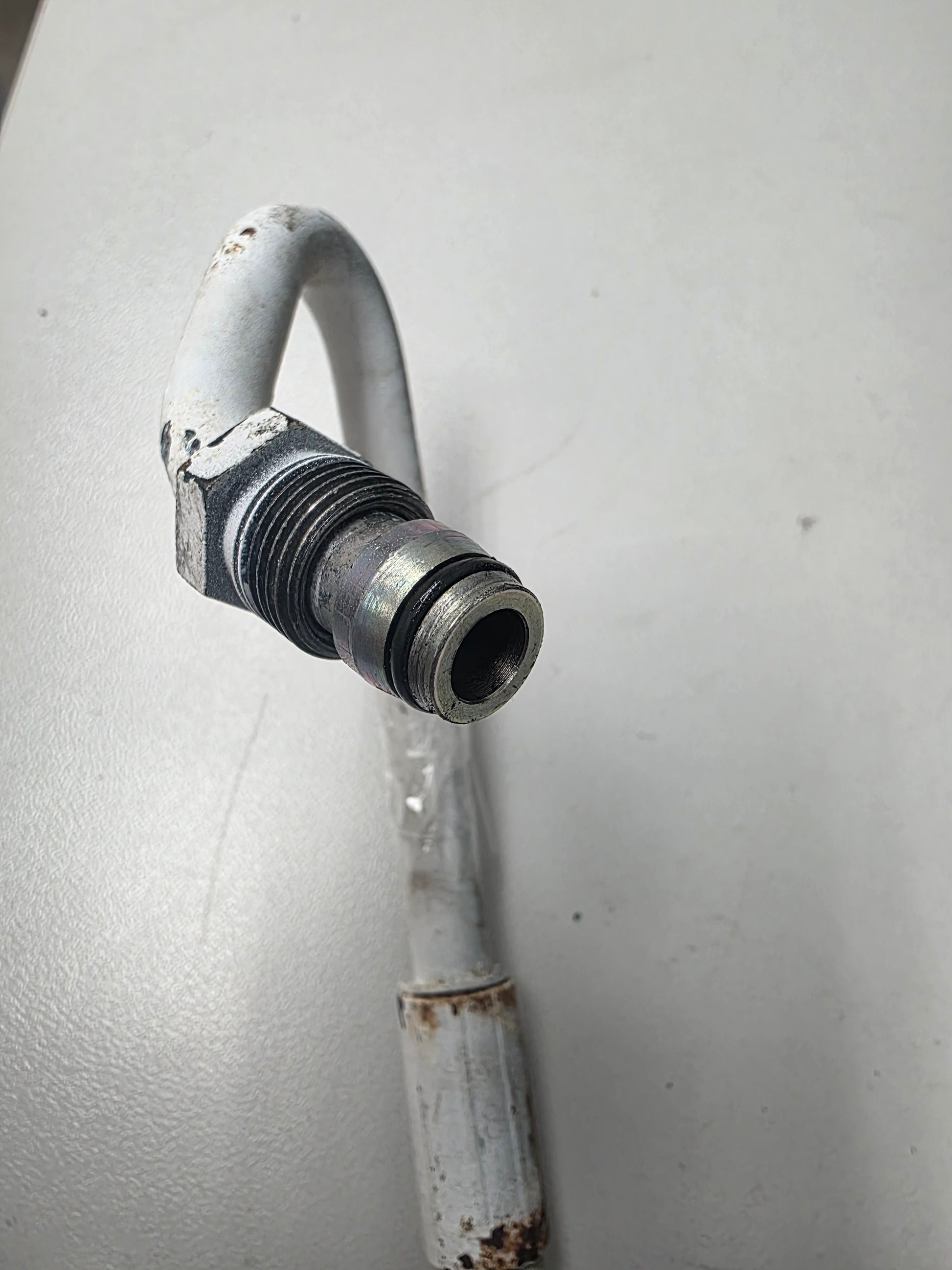

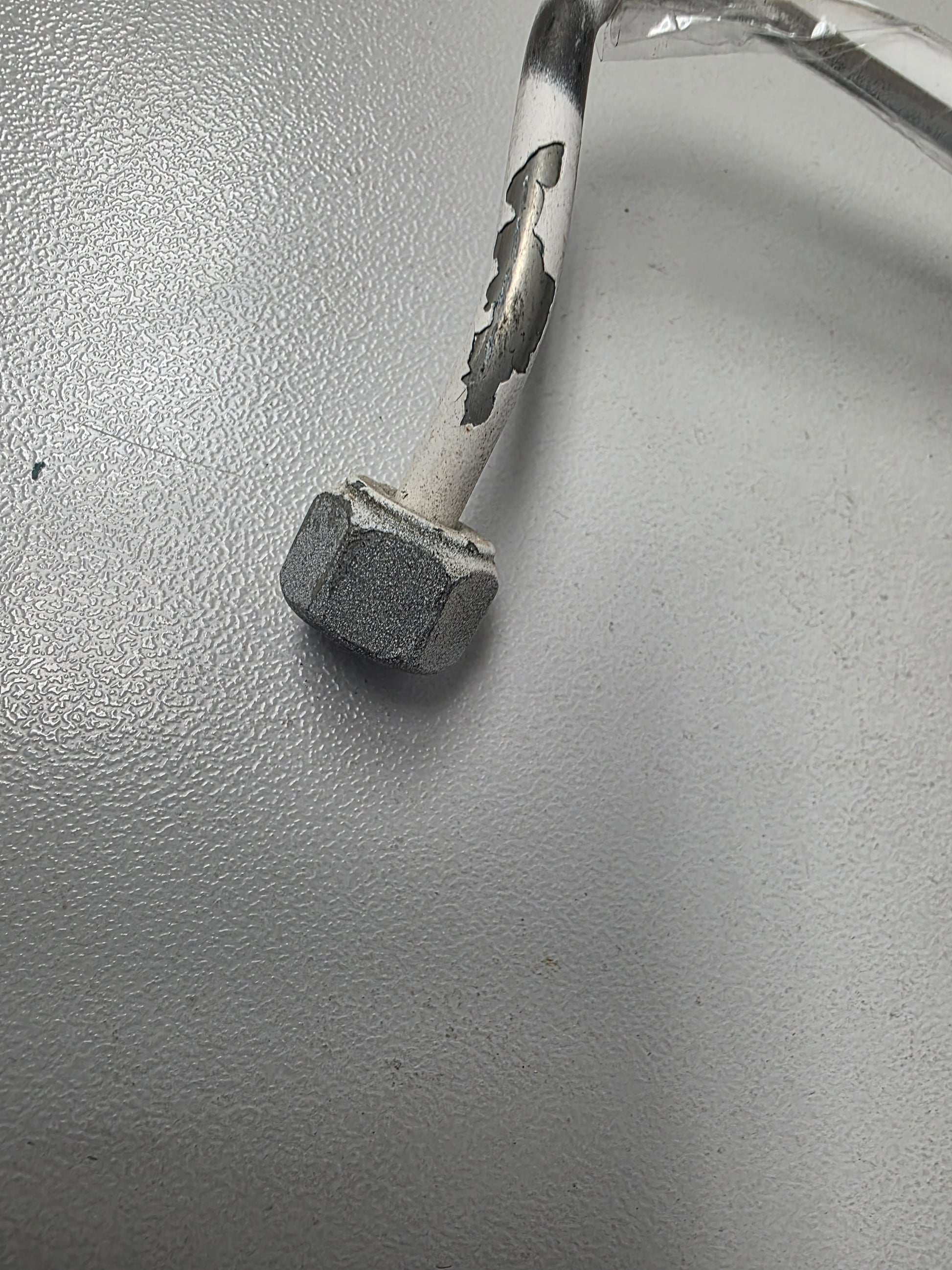

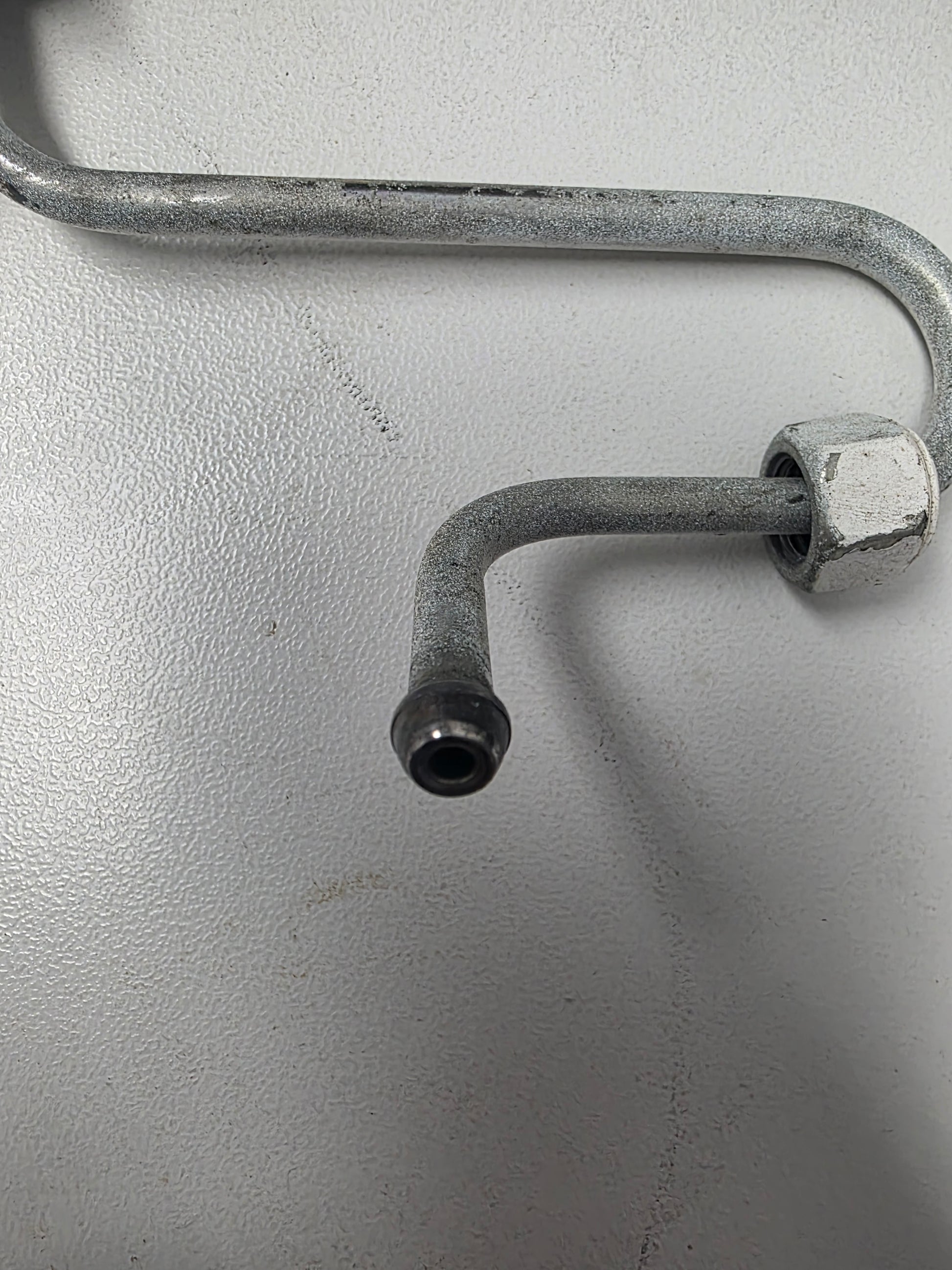

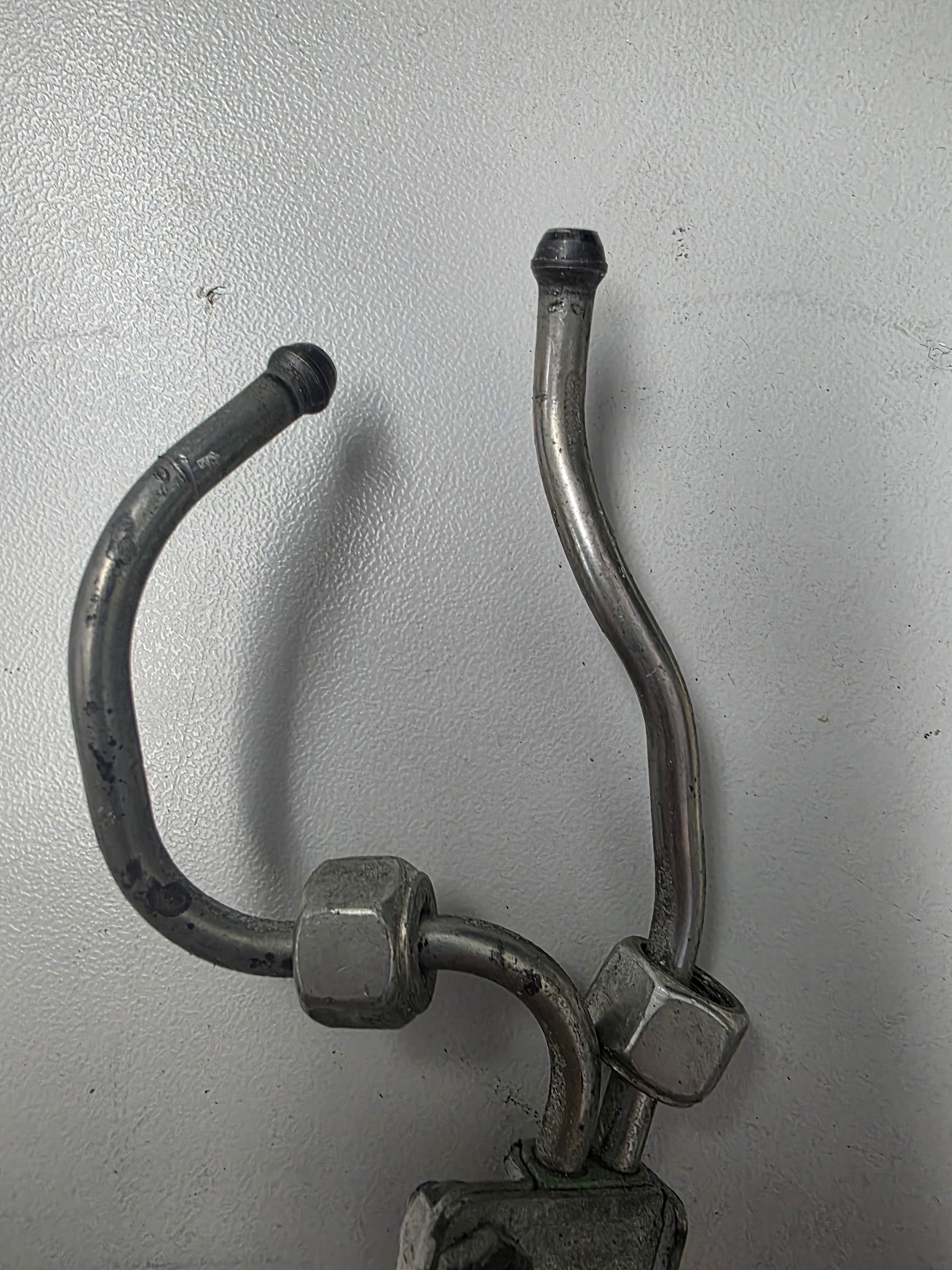

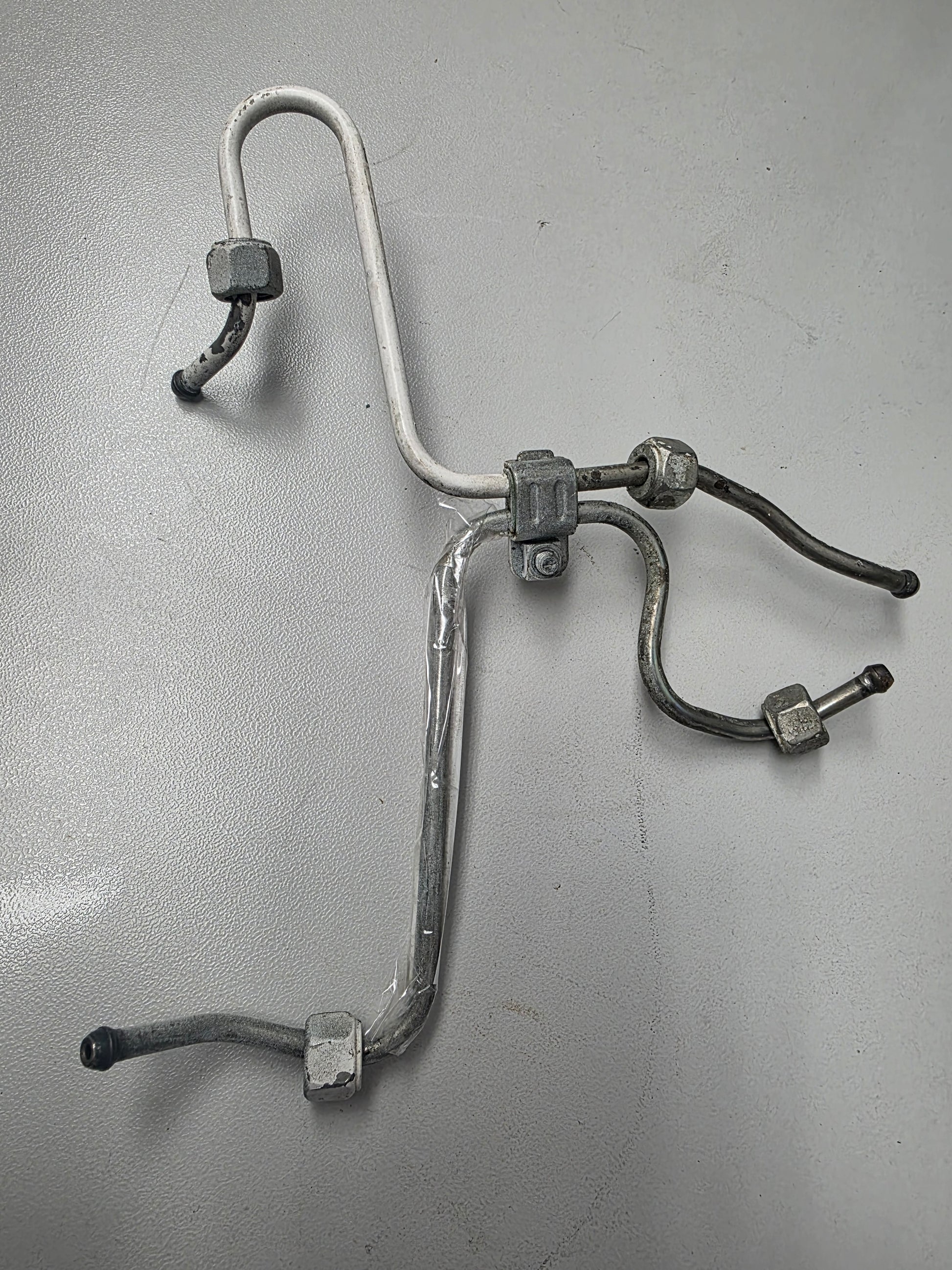

Genuine Volvo Penta D4 Common-Rail Injector Pipe Kit - Part Number: 3588025

A genuine used high-pressure injector-line kit for selected early Volvo Penta D4 marine diesel engines.

The kit is companion to 3588024 and is identified as delivery-pipe kit position 29 in the factory D4 fuel-system diagram. It connects the common rail to the applicable injectors using precisely formed rigid steel pipes.

⚙️ Key Features

• Genuine Volvo Penta injector delivery-pipe kit
• Correct Volvo reference 3588025
• Factory-formed high-pressure steel lines
• Works with companion pipe kit 3588024
• Suits early D4 common-rail engines

🚤 Compatibility

Commonly used on

• Volvo Penta D4 common-rail injection systems
• High-pressure common-rail-to-injector connections
• D4 Aquamatic and inboard propulsion engines

Typically suits

• Engine models:
• Volvo Penta D4-180I-B
• Volvo Penta D4-180I-C
• Volvo Penta D4-180I-D
• Volvo Penta D4-180I-F where specified
• Volvo Penta D4-210A-A and B
• Volvo Penta D4-210I-A and B
• Volvo Penta D4-225A-B, C and D
• Volvo Penta D4-225I-B
• Volvo Penta D4-260 early common-rail configurations
• Volvo Penta D4-300 early common-rail configurations
• HP Range: 180HP - 300HP
• Engine Type: 3.7L inline four-cylinder common-rail turbo-diesel
• Year Range: Approximately 2003 through early D4 production generations

🔌 Function

The pipe kit transfers rail pressure to its assigned injectors and must withstand repeated high-pressure pulses without flexing, leaking or changing internal volume.

⚠️ Common Signs of Failure

• Diesel leakage around a pipe nut
• Rail-pressure fault code
• Engine cranks but will not start
• Cylinder misfire or uneven running
• Pipe vibrates or contacts another component
• Flare seat is cracked or distorted
• Engine enters protection mode
• Fuel pressure falls during acceleration

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3588025 original D4 delivery-pipe kit reference
• Later D4 engines may use revised pipe sets according to production number

OEM / Related Numbers

• 3588025
• Companion pipe kit: 3588024
• Additional pipe: 3582796
• Common rail: 3584370
• Common rail: 3588739
• Common rail: 3886062
• Injector: 3583618
• Injector: 3587680
• Reman injector: 3803634
• Reman injector: 3803908
• Injector O-ring: 3887602
• Clamp: 3582669
• Support: 3583442

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
