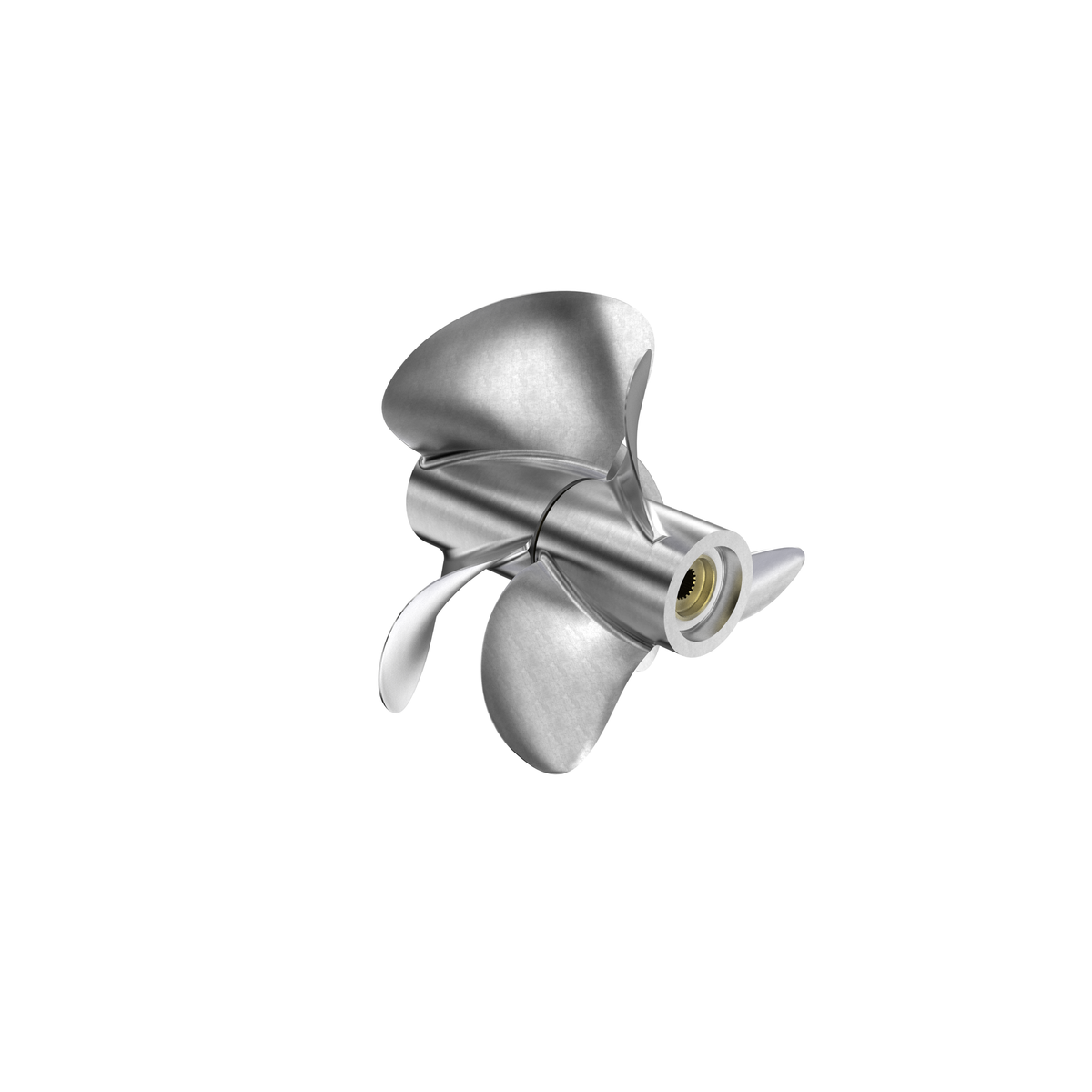

3588225 Propeller | Genuine Volvo Penta Part

🔧 Product Description

Type C is the stainless steel Duoprop range for the classic Volvo Penta 280, 290 and DP Aquamatic sterndrives, and is the upgrade Volvo Penta offers for enhanced performance, strength and durability. Greater strength allows thinner blades, which give better acceleration and a higher top speed than a comparable aluminium propeller, and the stainless steel makes the propellers durable and highly resistant to cavitation, damage and corrosion. A shock-absorbing rubber bushing and galvanic isolation are built into the hub. This number supplies the complete C5 pair, front propeller 3587867 and rear propeller 3587873. Every set of Duoprop propellers is designed, tested and manufactured together, so the front and rear propellers of a dimension belong to each other.

🚤 Compatibility

Typically suits:

• Volvo Penta AD41D
• Volvo Penta D41D
• Volvo Penta TMD31D
• Volvo Penta TMD41D
• Volvo Penta AD31D
• Volvo Penta AD31D-A
• Volvo Penta AD31XD
• Volvo Penta HS1A
• Volvo Penta TAMD41D
• Volvo Penta TAMD41P
• Volvo Penta TAMD31M
• Volvo Penta TAMD31D
• Volvo Penta TAMD42B
• Volvo Penta KAD42B
• Volvo Penta KAD42P-A
• Volvo Penta KAMD42B
• Volvo Penta KAMD42P-A

• Engine Family: AD, D, TMD, HS, TAMD, KAD, KAMD

⚙️ Key Features

• Dimension C5, complete front and rear set
• Stainless steel Type C for 280, 290 and DP drives
• Sold singly as front 3587867 and rear 3587873
• 15.218 kg
• Supersedes 3857496
• Fits Volvo Penta 280/290 DP drives
• Enhanced acceleration and top speed versus a comparable aluminium propeller.
• Excellent strength, durability and corrosion resistance.
• Shock-absorbing rubber bushing reduces vibrations and stress on the drivetrain.
• Galvanic isolation protects the drive from corrosion caused by the propellers.
• Three-blade front propeller and three-blade rear propeller.
• Material: stainless steel
• Fits: 280, 290, DP
• Type: C5
• Set contains: front 3587867, rear 3587873

🔌 Function

Converts engine torque into thrust through two contra-rotating propellers on the same shaft, so the rear blades work in straightened water.

⚠️ Common Signs of Failure

• Vibration that builds with engine speed
• Boat unable to reach its usual speed or engine revs
• Blade edges chipped or curled after a grounding
• Hub slipping so the engine revs without driving the boat
• Pitting and stripped surface from cavitation

🛠️ Service Notes

• The C5 and C6 sets are published at exactly the same 15.218 kg, so weight cannot separate this from 3588226 - order strictly by the dimension code
• Fit as a matched set with new locking hardware, and check the anodes and seals on the drive while you are there
• Type C stainless is what Volvo Penta specifies for six-cylinder diesel engines, engines over 240 hp and boats capable of more than 38 knots (45 mph)
• Volvo Penta specifies type C stainless steel propellers for 6-cylinder diesel engines, engines exceeding 240 hp, and boats capable of speeds above 38 knots (45 mph).
• Installation hardware, types A, B, C and J: propeller cone kit M16 872614 or M20 872549, propeller nut 3851334, thrust rings 3858458 and 3858457.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3588225 → Supersedes 3857496 → Supersedes 854855 → Supersedes 854389

OEM / Related Numbers

• 3857496 earlier number superseded by this part
• 854855 earlier number superseded by this part
• 854389 earlier number superseded by this part

Aftermarket / Verified Equivalents

• Solas: DPC5SET - Duoprop 280/290 Type C5 stainless set (8532-150-19 front / 8551-139-21 rear)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
