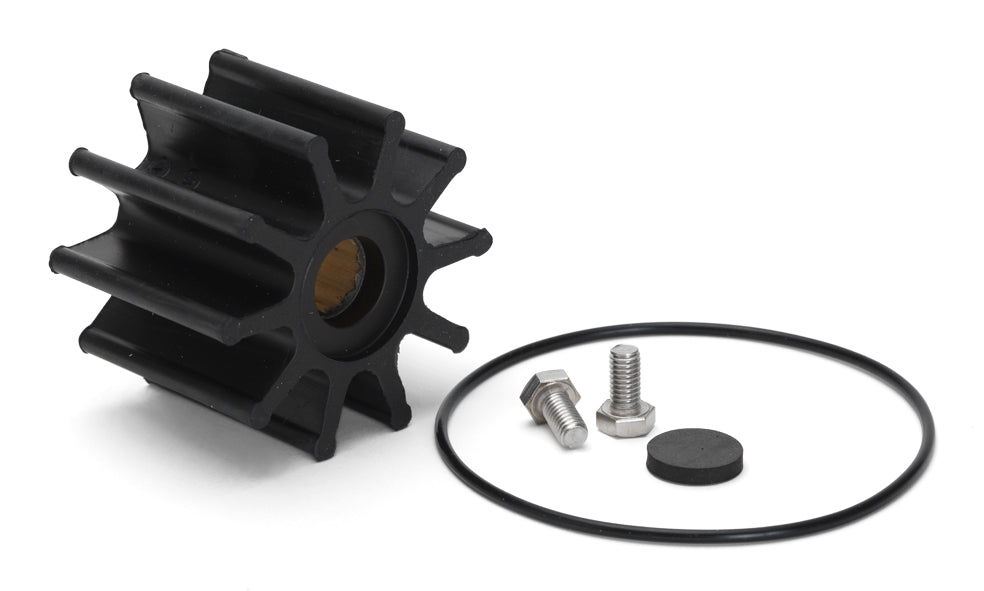

3588475 Impeller Kit | Genuine Volvo Penta Part

🔧 Product Description

Seawater pump impeller kit weighing 0.177 kg, listed for all D4 inboard engines and for D4 engines of generations A to D fitted with Aquamatic or IPS drives. D4 engines of models E and F on Aquamatic or IPS drives, from serial number 2004033317 onwards, take impeller kit 21951356 instead. The matching D6 kit is 3593573 at 0.340 kg. It is listed for 62 D-series applications.

🚤 Compatibility

• Engine Family: D
• HP Range: 145-320 HP

Full model list at the end of this description.

⚙️ Key Features

• For all D4 inboard engines and D4 generations A to D with Aquamatic or IPS drives
• 0.177 kg
• D4 models E and F on Aquamatic or IPS drives take kit 21951356
• 3593573 is the equivalent kit for the D6
• 62 D-series applications
• Impeller kit for D4 all inboard engines and D4 A-D with Aquamatic or IPS drives
• Genuine Volvo Penta Part, designed and manufactured to ensure original fit, safety and performance
• Role: Impeller kit for D4 all inboard engines and D4 A-D with Aquamatic or IPS drives
• Fits: D4, D6 A-F (up to model year 2019)

🔌 Function

Renews the flexible impeller that pumps raw water through the cooling system, together with the seals needed to close the pump up.

⚠️ Common Signs of Failure

• Weak or no water flow from the exhaust outlet
• Overheating alarm after a period at cruising speed
• Impeller vanes found torn, set or missing
• Rubber debris caught in the heat exchanger inlet
• Scoring on the pump housing or wear plate

🛠️ Service Notes

• The D4 impeller splits by drive type and generation, so have the engine designation and drive to hand before ordering
• Check the pump housing and wear plate for scoring while it is apart, and check the raw water strainer and hoses for the restriction that killed the old impeller
• If vanes are missing, find the pieces downstream before running the engine again, because they block the heat exchanger
• Always refer to the operator's manual for the recommended maintenance and service intervals for your engine and drive

🔄 Supersession & Cross Reference

Aftermarket / Verified Equivalents

• AMS: BW-00543
• JMP Marine: 7426-01
• Jabsco: 17937-0001

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G
