3588569 Drill jig | Genuine Volvo Penta Part

🔧 Product Description

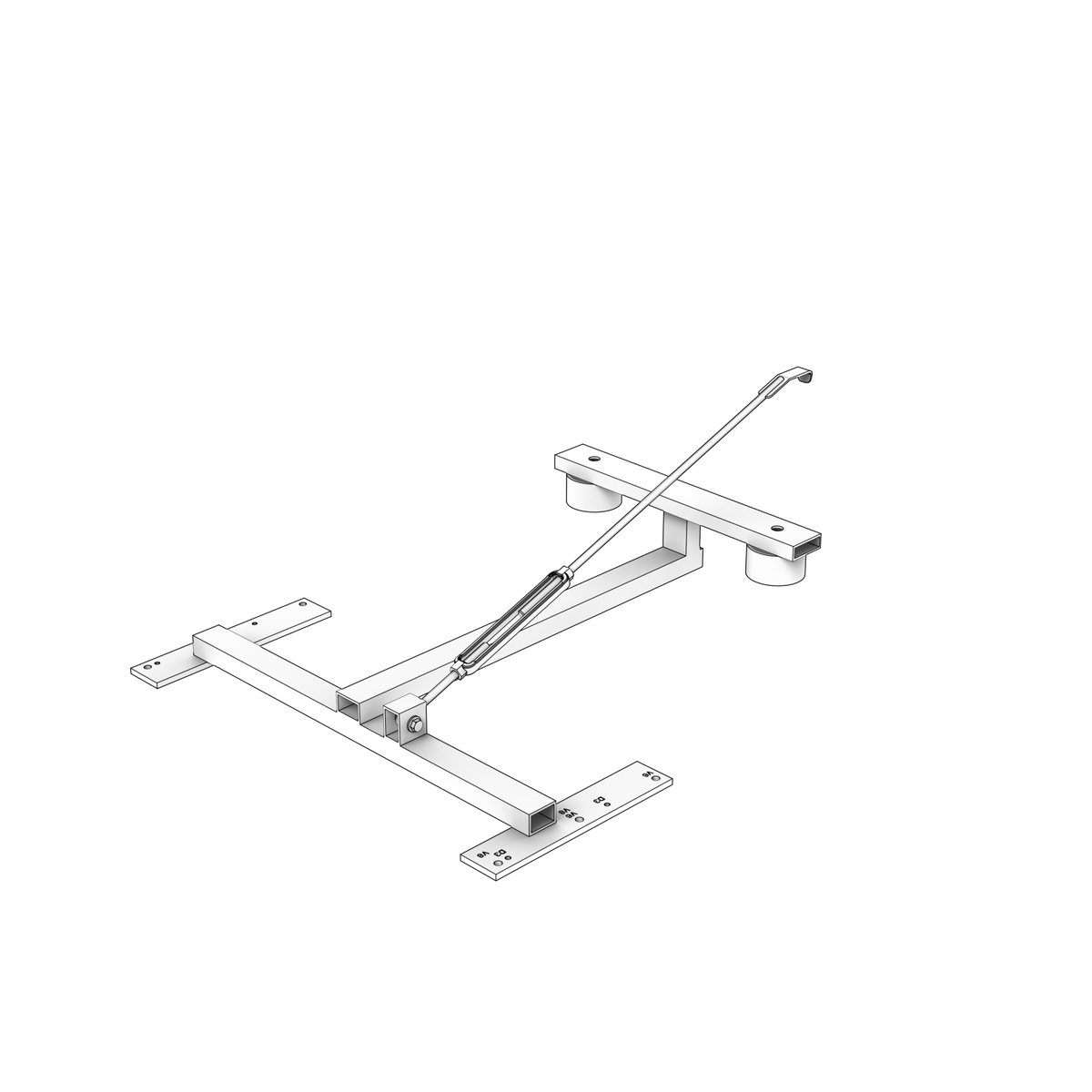

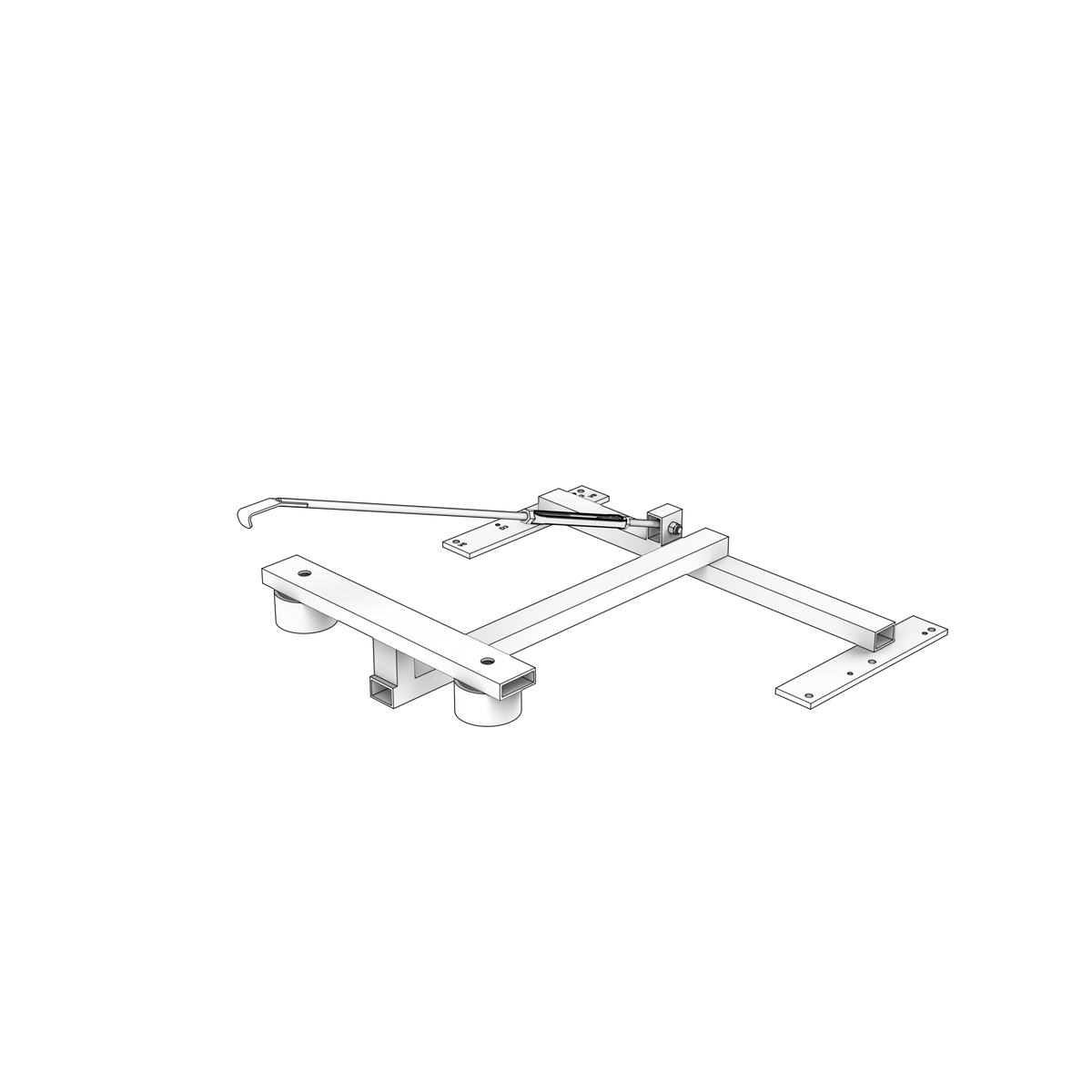

Genuine Volvo Penta drilling jig 3588569, weighing 9.026 kg. It supersedes part number 3588565. Volvo's special tools catalogue names it a drill jig and prints it immediately before wrench 22855268, with no product list of its own, so it is ordered by number against the repair instruction that specifies it. Drill jig 22386422 earlier in the same chapter is a separate tool at 9.979 kg.

⚙️ Key Features

• Named a drill jig in Volvo's special tools catalogue
• 9.026 kg
• Supersedes 3588565
• No product list printed against it, so order by part number
• Drill jig 22386422 is a separate tool at 9.979 kg

🔌 Function

Locates and guides the drill so the holes are put in the right place at the right angle.

⚠️ Common Signs of Failure

• Drill bushes worn oval so holes come out oversize or off line
• Jig no longer locating squarely on the workpiece
• Clamping screws stripped or seized
• Jig plate distorted from being used as a lever
• Corrosion on the locating faces

🛠️ Service Notes

• It supersedes 3588565, so this is the current number for the jig
• Check the bushes for wear before use, since a worn jig puts the holes out just as surely as freehand drilling

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3588569 → Supersedes 3588565

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
