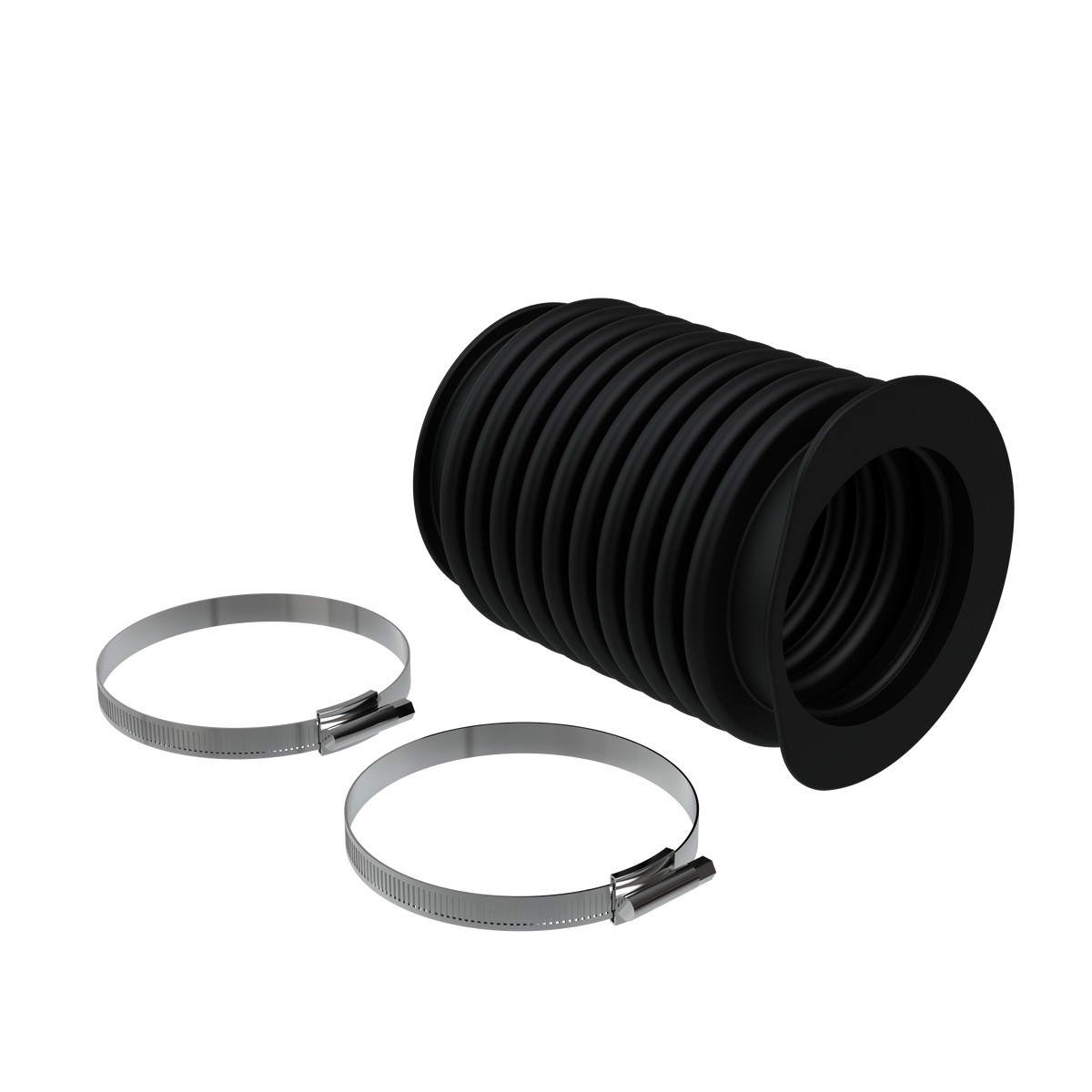

3588753 Exhaust Bellows | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta exhaust bellows kit weighing 0.801 kg and listed for 21 applications across the DPH, D and TSK series. The accessories catalogue prints it as the exhaust bellows kit for the DPH and DPR drives, and again for the DPI, where the drive joint bellows kit is 3594509 and the seawater intake hose kit is 3588767. Its application list runs across both D4 and D6 installations. It supersedes part numbers 3808536 and 3862168.

🚤 Compatibility

• Engine Family: DPH, D, TSK
• HP Range: 150-440 HP

Full model list at the end of this description.

⚙️ Key Features

• Exhaust bellows kit for the DPH, DPR and DPI drives
• The drive joint bellows kit is 3594509 and the seawater intake hose kit is 3588767
• 0.801 kg
• Supersedes 3808536 and 3862168
• 21 applications covering both D4 and D6 installations
• Genuine Volvo Penta Part, designed and manufactured to ensure original fit, safety and performance
• Role: Exhaust bellows kit
• Fits: DPH, DPR drives; DPI drive

🔌 Function

Carries exhaust gas across the joint between transom shield and drive while allowing the drive to steer and trim.

⚠️ Common Signs of Failure

• Exhaust fumes or noise in the engine bay
• Water in the bilge after the boat has been under way
• Convolutions cracked, split or perished, often on the inside of a fold
• Bellows collapsed, swollen or chafed at a clamp
• Rusty staining running down from the joint

🛠️ Service Notes

• Bellows are a scheduled replacement item; renew the clamps with them and order the drive joint bellows 3594509 at the same time
• Check the shift components and universal joint while the drive is off
• Fit with the correct sealant or lubricant and make sure the bellows is seated fully on both spigots before clamping
• Always refer to the operator's manual for the recommended maintenance and service intervals for your engine and drive
• Listed against more than one engine or drive family - check the qualifier that applies to your own engine or drive

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3588753 → Supersedes 3808536

OEM / Related Numbers

• 3862168 earlier number superseded by this part
• 3808536 earlier number superseded by this part

Aftermarket / Verified Equivalents

• CEF: 500538K
• SLP: BK-753

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330A-F, D6-370A-F, D6-300A-F, D6-300A-G, D6-340A-G, D6-380A-G, D6-400A-G, D6-440A-G, D6-400A-F
• Volvo Penta D4-260A-F, D4-300A-F, D4-225A-F, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G
• Volvo Penta DPH-D1, DPH-E
• Volvo Penta TSK DPH-E, TSK DPI-A
