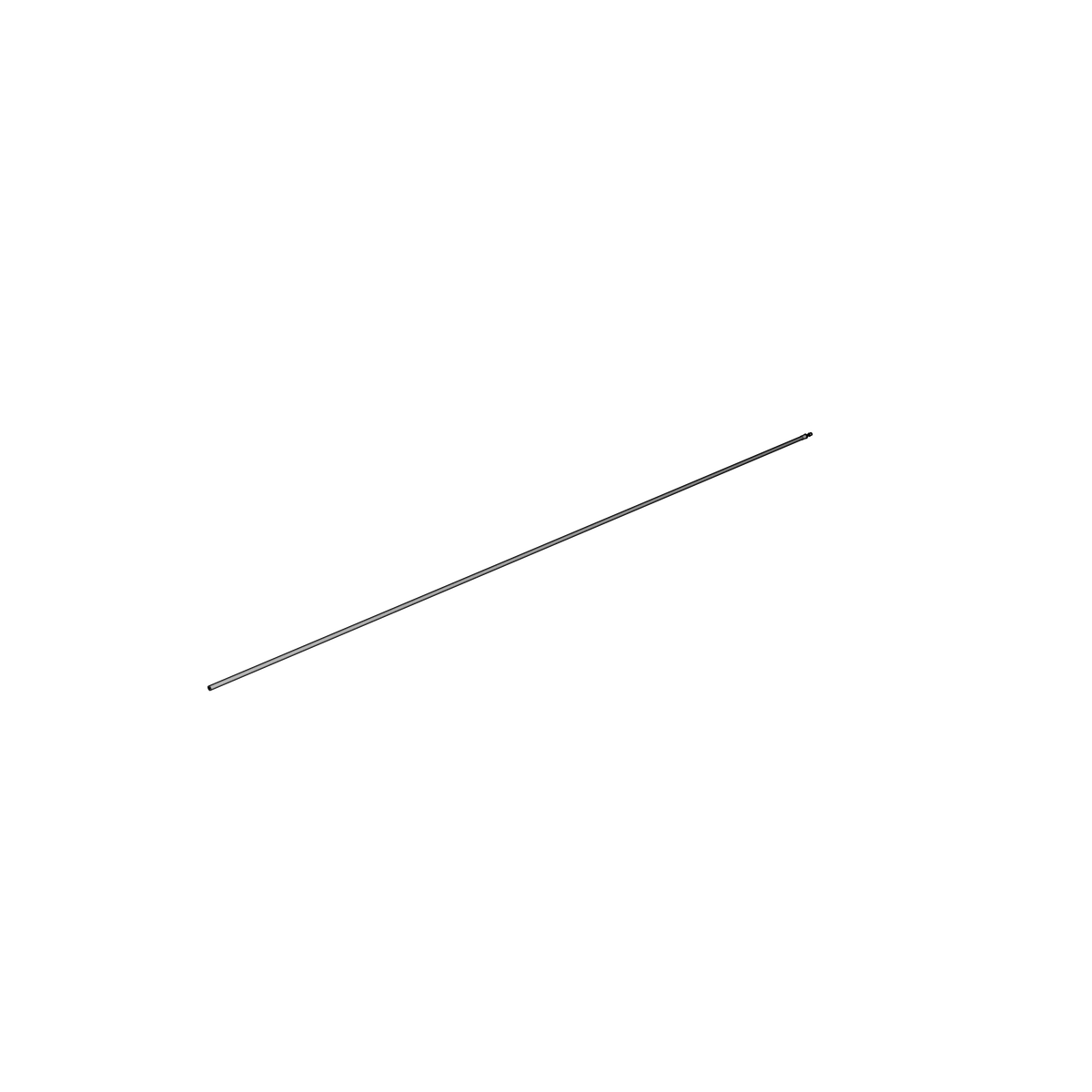

3589106 Hydraulic Hose | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta hydraulic hose for the return line, from the Steering group. It weighs 0.640 kg and is listed for 46 applications on D series engines.

🚤 Compatibility

• Engine Family: D
• HP Range: 180-435 HP

Full model list at the end of this description.

⚙️ Key Features

• Return line
• 0.640 kg
• 46 applications on D series engines
• Steering group

🔌 Function

Carries hydraulic fluid back from the steering unit to the reservoir at low pressure.

⚠️ Common Signs of Failure

• Fluid level dropping with an oily film along the hose
• Weeping or seeping at the crimped end fittings
• Outer cover cracked, crazed or the braid showing through
• Steering feeling spongy or sluggish as air is drawn in
• Hose swollen, soft or ballooning

🛠️ Service Notes

• The pressure hose for the same 46 applications is 3589107 at 1.406 kg - the pressure hose is more than twice the weight, so check which line you need
• Renew the sealing washers or o-rings at each union, then bleed the steering fully and check for free lock-to-lock movement

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-225A-E, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B
• Volvo Penta D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300I-F, D6-310I-C, D6-330I-F, D6-370I-F, D6-435I-F
