3589553 Thermostat Housing | Genuine Volvo Penta Part

🔧 Product Description

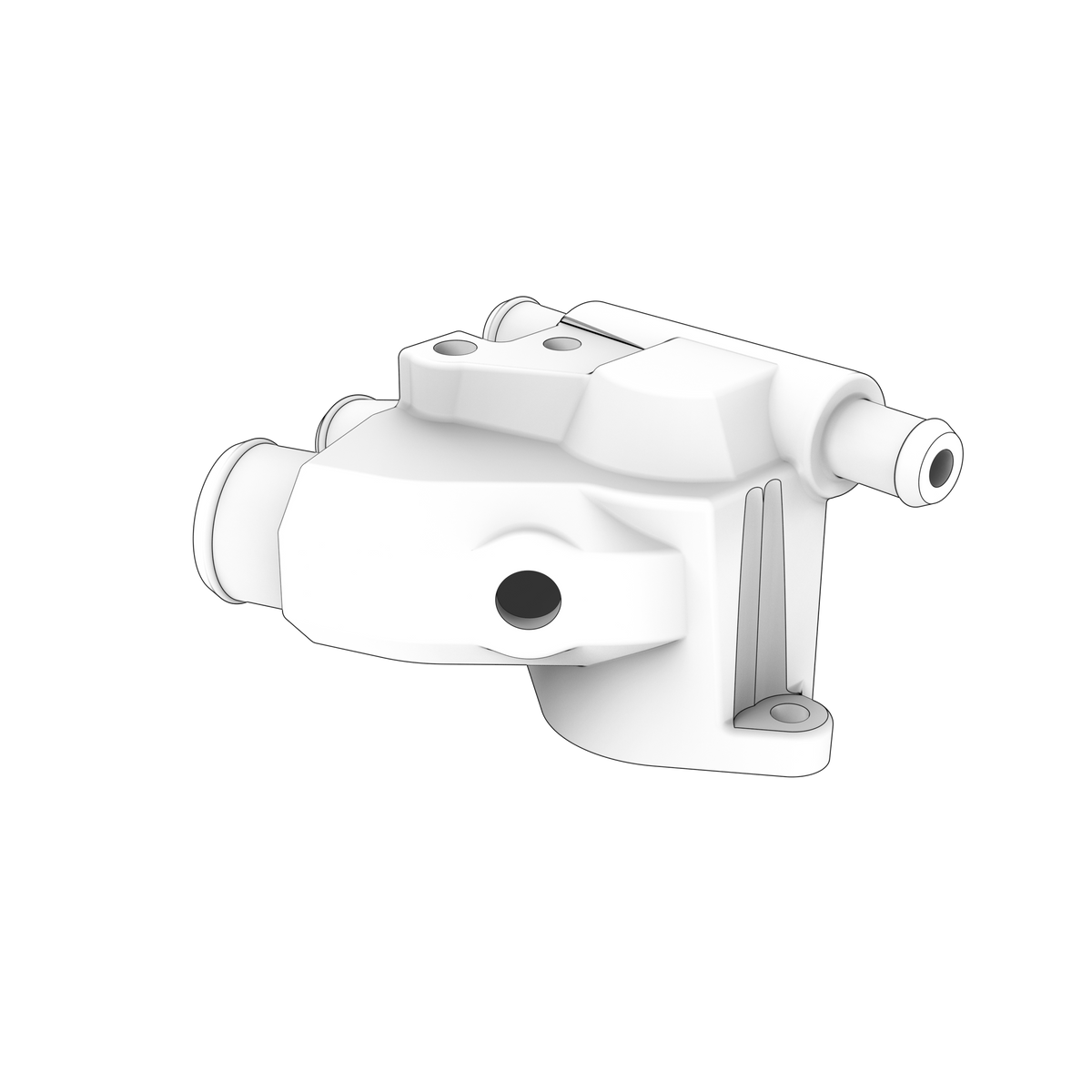

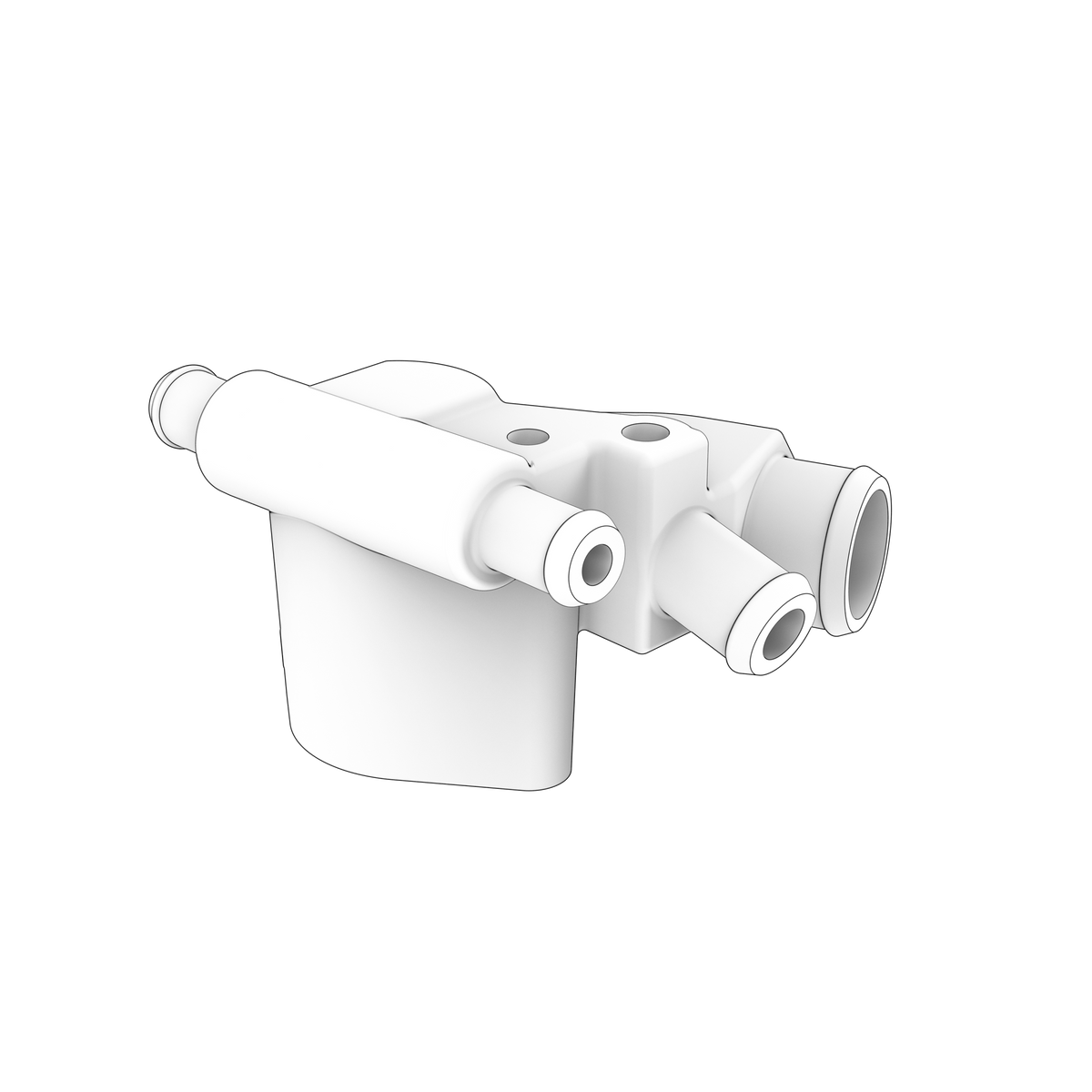

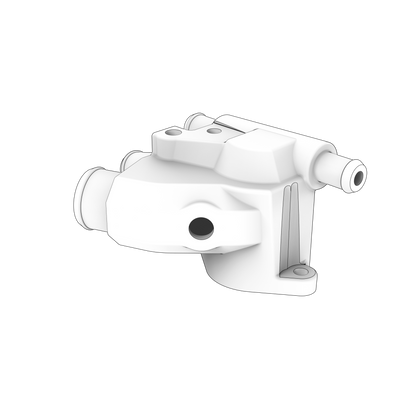

Genuine Volvo Penta thermostat housing from the Cooling System group, weighing 3.100 kg and listed for 128 applications on V series engines. It supersedes part number 3863086.

🚤 Compatibility

• Engine Family: V
• HP Range: 200-320 HP

Full model list at the end of this description.

⚙️ Key Features

• 3.100 kg
• Supersedes 3863086
• 128 applications on V series engines
• Cooling System group
• Also supersedes Volvo part numbers 3861676 and 3862834

🔌 Function

Houses the thermostat and directs coolant either back through the engine or on to the cooler as the thermostat opens.

⚠️ Common Signs of Failure

• Coolant weeping from the housing joint or the gasket line
• Engine slow to reach temperature, or overheating once warm
• Corrosion eating the sealing face or the thermostat seat
• Housing cracked, often at a bolt boss
• Bolts seized, or the threads pulled out of the housing

🛠️ Service Notes

• Do not confuse this with thermostat housing 3589047, the 0.694 kg housing for 9 applications on D series engines - this one is more than four times the weight and is for the V series
• Fit a new thermostat, gasket and seal at the same time and check the mating face on the manifold or head
• Refill, vent the circuit, and recheck the level after the first warm-up

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3589553 → Supersedes 3863086

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 5.7GXi-320-R, 5.7GXiE-320-R, 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-J, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GXi-J, 5.7GXiE-J, 5.7GXiE-K, 5.7GXiE-P, 5.7GXi-P, 5.7GXi-G, 5.7GXi-H, 5.7GXiI-G, 5.7GXiI-H, 5.7OSi-300-J, 5.7OSiE-300-J, 5.7OSi-E, 5.7OSi-G, 5.7OSXi-E, 5.7OSXi-J, 5.7OSXiE-J, 5.7OSXi-G, 5.0OSi-J, 5.0OSiE-J, 5.0OSi-F, 5.0OSi-G, 5.7Gi-300-J, 5.7GiE-300-J, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiE-300-P, 5.7Gi-300-P, 5.7Gi-300-R, 5.7GiE-300-R, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiC-300-P, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-K, 5.7Gi-F, 5.7Gi-G, 5.7GiI-F, 5.7GiI-G, 5.7GL-E, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 4.3OSi-J, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GiC-J, 5.0GXiCE-J, 5.0GXiCE-M, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXi-J, 5.0GXiE-J, 5.0GXiE-K, 5.0GL-E, 5.0GL-F, 5.0GL-J, 5.0GXi-270-R, 5.0GXiE-270-R, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiC-J, 5.0GL-H, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-P, 5.0GXi-F, 5.0GXi-G, 4.3Gi-200-R, 4.3GL-D, 4.3GL-E, 4.3GL-G, 4.3GL-J, 4.3GL-P, 4.3GXi-225-R, 4.3GXiE-225-R, 4.3GXiE-M, 4.3GXi-P, 4.3GXiE-P, 4.3GXi-Q, 4.3GXiE-Q, 4.3GXi-F, 4.3GXi-G, 4.3GXi-J, 4.3OSi-F, 4.3OSi-G
• Volvo Penta V8-270-C-B, V8-270-CE-B, V8-300-A, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-A, V8-320-E-A, V8-320-B, V8-320-E-B, V8-320-C-A, V8-320-CE-A, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-A, V8-270-E-A, V8-270-B, V8-270-E-B, V8-270-C-A, V8-270-CE-A
• Volvo Penta V6-200-A, V6-225-A, V6-225-E-A
