3595350 Hose Clamp | Genuine Volvo Penta Part

🔧 Product Description

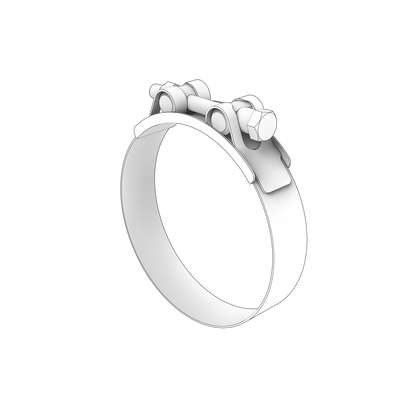

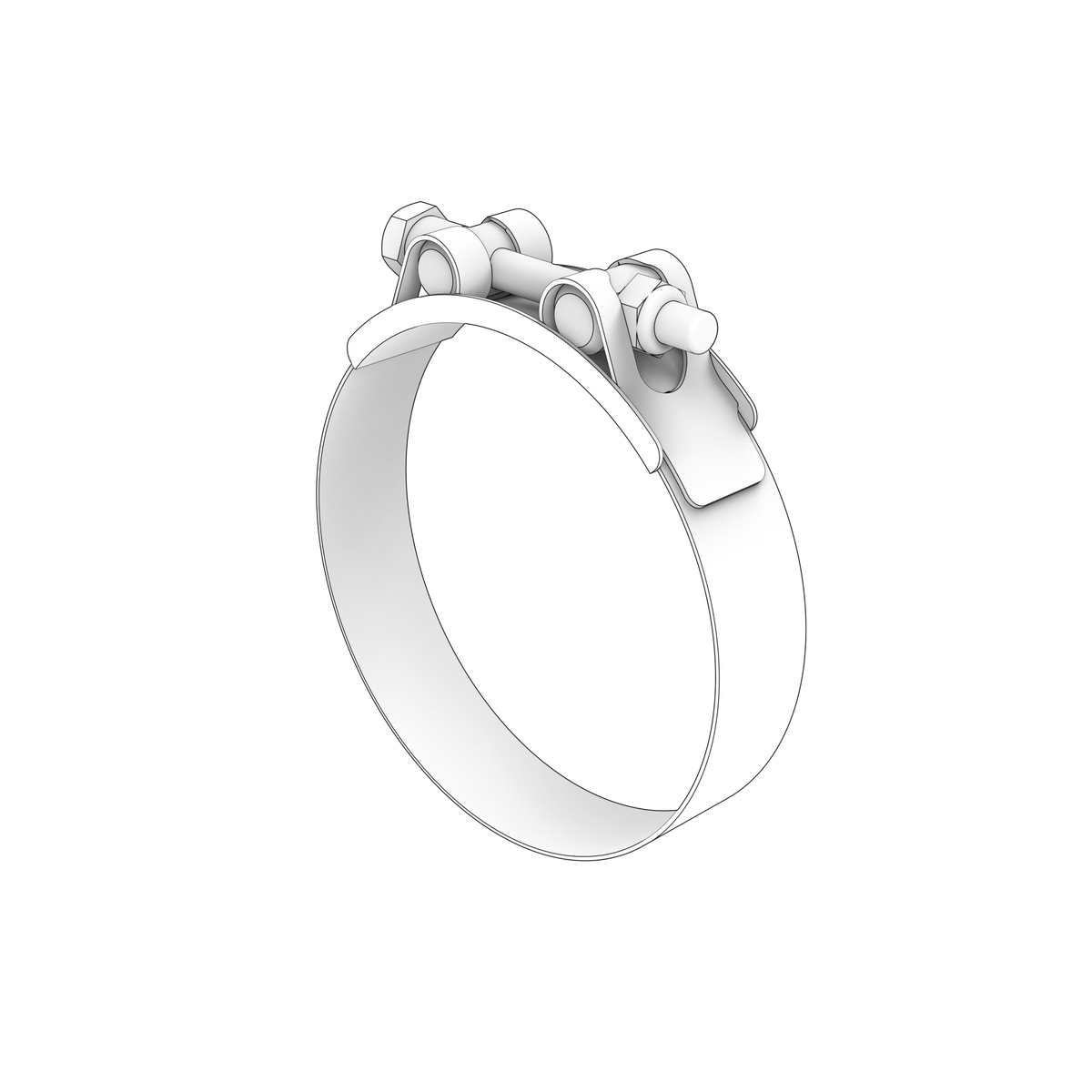

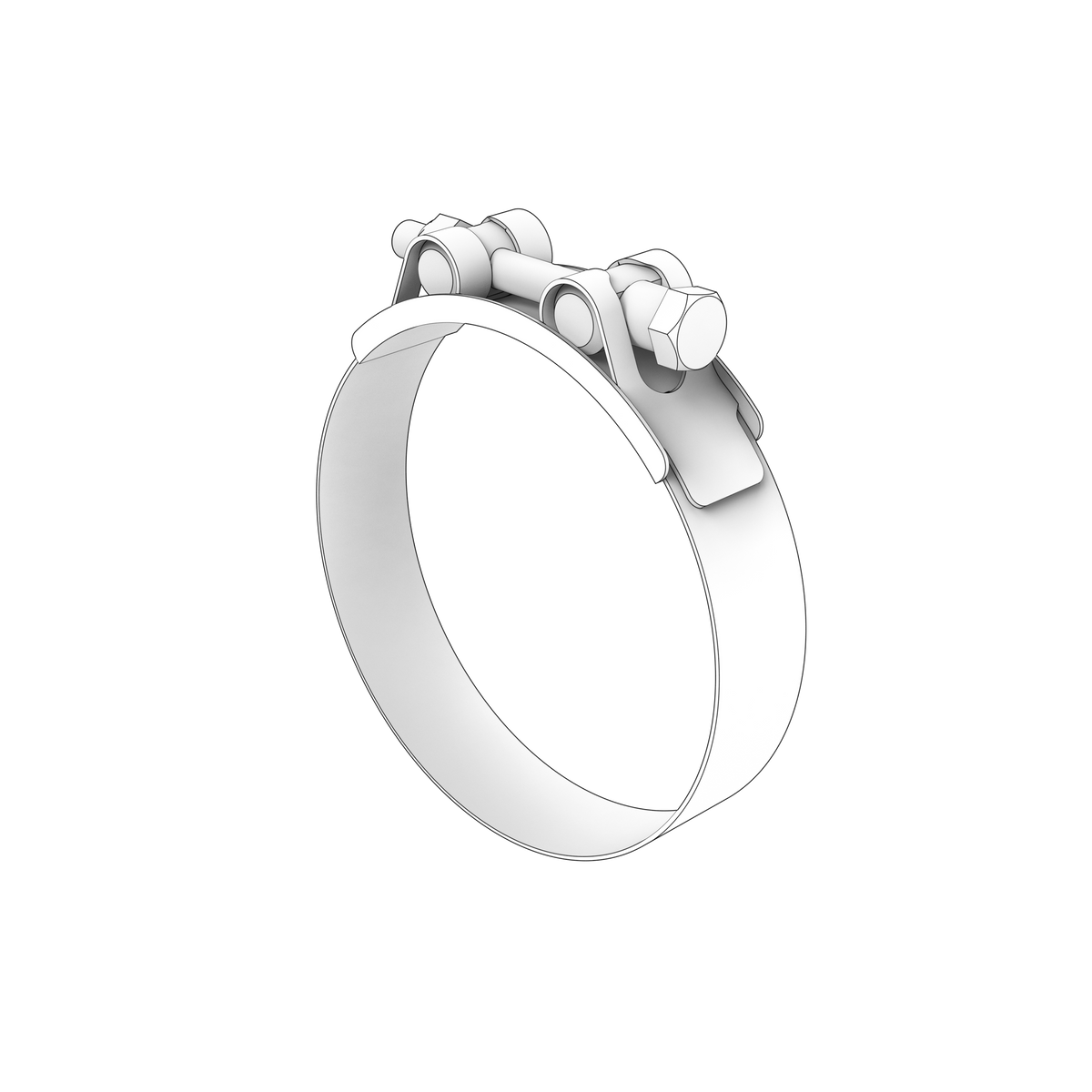

Genuine Volvo Penta stainless steel hose clip, listed as the recommended clip for rubber exhaust hose 1140672 - the 152 mm internal diameter, 165 mm external diameter size with a 950 mm minimum bend radius. It weighs 0.274 kg, is listed for 19 applications across the IPS and D ranges and supersedes 22759530. Note that this number sits under a rubber exhaust hose heading but what it supplies is the clip.

🚤 Compatibility

Typically suits:

• Volvo Penta IPS15-C
• Volvo Penta D11C2-A MP
• Volvo Penta D8A2-A MP
• Volvo Penta D11C4-A MP
• Volvo Penta D8A4-A MP
• Volvo Penta IPS15-B
• Volvo Penta D11B4-A MP
• Volvo Penta D11B2-A MP
• Volvo Penta D11A-C MP
• Volvo Penta D11A-D MP
• Volvo Penta D11A-E MP
• Volvo Penta IPS20-D
• Volvo Penta IPS2-C
• Volvo Penta IPS15-A
• Volvo Penta IPS2-A
• Volvo Penta IPS2-B
• Volvo Penta IPS20-E
• Volvo Penta D8A7-A MP
• Volvo Penta D8A8-A MP

• Engine Family: IPS, D

⚙️ Key Features

• Recommended stainless steel clip for exhaust hose 1140672
• Suits the 152 mm internal, 165 mm external diameter hose
• 0.274 kg
• Supersedes 22759530
• 19 applications across the IPS and D ranges
• Fits: Rubber exhaust hose 1140672 (152 mm internal diameter)

🔌 Function

Clamps the rubber exhaust hose onto its spigots so the joint stays gas-tight and water-tight.

⚠️ Common Signs of Failure

• Water or soot weeping at a hose end
• Clip band stretched, distorted or slack
• Screw thread or drive head corroded and seized
• Band cutting into the hose wall
• Rust streaks running down from the clip

🛠️ Service Notes

• Renew the clips whenever the exhaust hose is disturbed, as a reused clip rarely pulls back to the same clamping force
• The neighbouring sizes are 3817828 for the 127 mm hose and 21609813 for the 205 mm hose, so order against the hose number
• Set the clips clear of the hose bead and retighten after the first warm-up

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3595350 → Supersedes 22759530

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
