36452-ZW7-210AH Honda Marine Switch Panel Assembly | Genuine OEM Outboard Part

🔧 Product Description

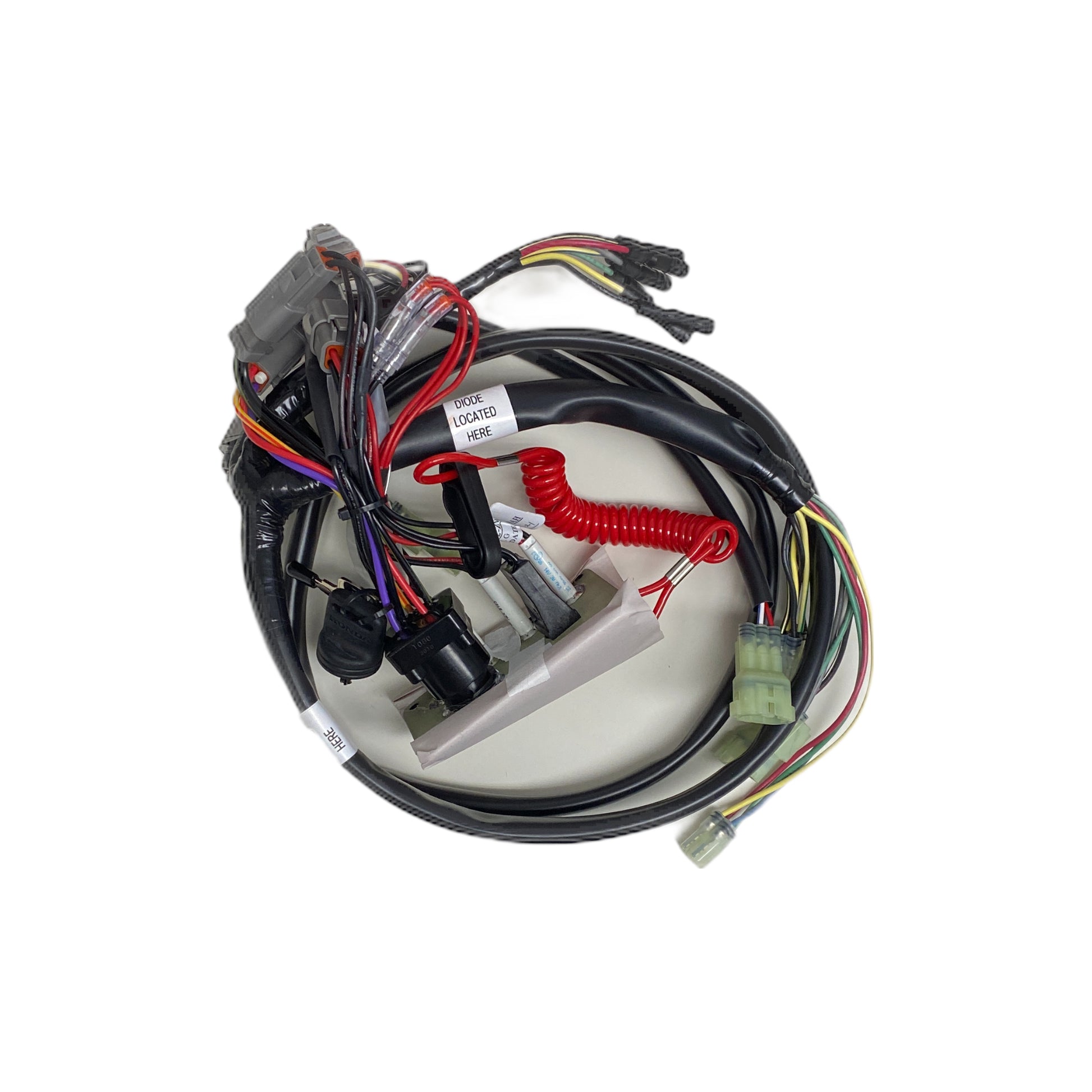

Genuine Honda Single-Engine PGM-FI Mechanical Key Switch Panel - Part Number: 36452-ZW7-210AH

A genuine Honda single-engine key-switch panel assembly for mechanically controlled PGM-FI outboards. It combines the ignition switch, emergency-stop circuit, warning lamps, audible warning and panel wiring in one helm-mounted control assembly.

⚙️ Key Features

• Genuine Honda single-engine mechanical-control switch panel
• Ignition key switch with start, run and stop positions
• Emergency-stop switch and safety-lanyard circuit
• PGM-FI, charging, oil-pressure and overheat warning functions
• Compatible with analogue or digital-gauge installations using the appropriate harness

📋 Kit / Assembly Contents

• 1 × complete key-switch panel assembly - 36452-ZW7-210AH
• 1 × integrated ignition/key switch
• 1 × integrated emergency-stop switch and lanyard circuit
• 1 × integrated warning-light and buzzer circuit
• 1 × attached panel wiring and connectors
• Internal service components are not all catalogued as separately included part numbers

🚤 Compatibility

Commonly used on

• Honda BF40D and BF50D mechanical-control PGM-FI outboards
• Honda BF60A/BFP60A
• Honda BF75D/BF90D/BF100A mechanical-control models
• Honda BF115D, BF135A and BF150A mechanical-control models
• Honda BF200A, BF225A and BF250A mechanical-control models
• Not for Honda iST electronic-control systems

Typically suits

• HP Range: 40-250 HP across verified mechanical-control PGM-FI applications
• Engine Type: Honda mechanically controlled PGM-FI four-stroke outboard
• Year Range: Application dependent; later service replacement is 36452-ZW7-410AH
• Serial / Identification Range: Confirm the engine control type, number of engines, panel connector and complete model/frame serial. Electronic iST installations use different switch panels.

🔌 Function

Provides helm control of the ignition and starter circuit, emergency engine stop and visual/audible warning indication for monitored engine faults.

⚠️ Common Signs of Failure

• No ignition or starter command from the helm
• Intermittent engine shutdown when the key or panel harness is moved
• Emergency-stop circuit will not reset
• Warning lamps or buzzer fail their key-on test
• Corroded terminals, damaged panel wiring or worn key-switch contacts

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 36452-ZW7-410AH → current later Honda single-engine PGM-FI mechanical panel
• 36452-ZW7-310AH → intermediate panel revision
• 36452-ZW7-210AH → earlier panel assembly

OEM / Related Numbers

• 36452-ZW7-210AH
• 36452-ZW7-310AH
• 36452-ZW7-410AH
• 37552-ZW7-2A - related replacement key-switch component
• 36170-ZW7-110AH - related panel wiring harness

Aftermarket / Verified Equivalents

• No verified direct aftermarket panel matching all Honda warning, key and connector functions

📦 Condition

• Genuine Honda Marine OEM part
• Brand new
• Supplied in genuine Honda or equivalent protective packaging
