36452-ZW7-410AH Suzuki Key Switch Assy | Genuine Used Part

🔧 Product Description

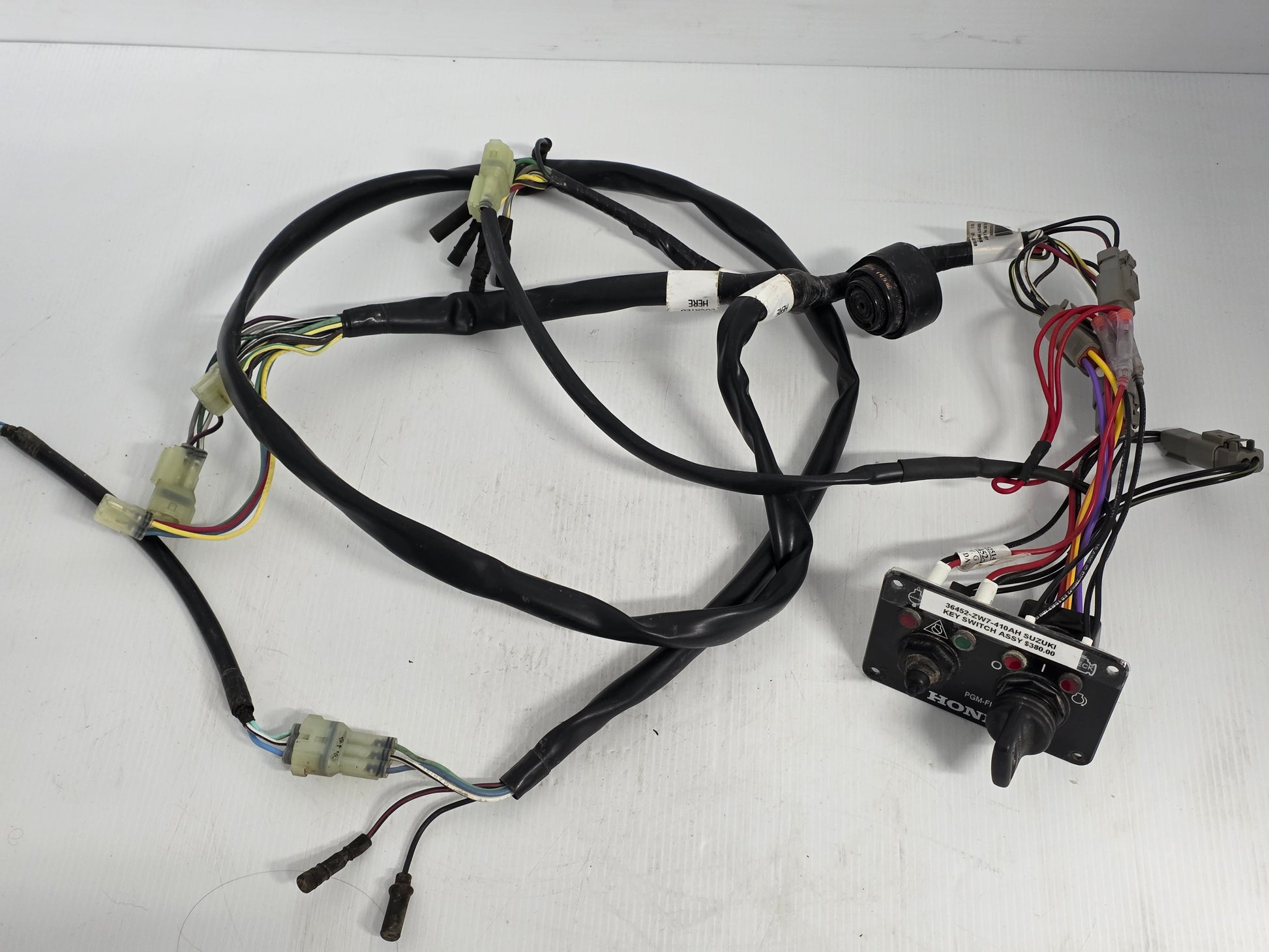

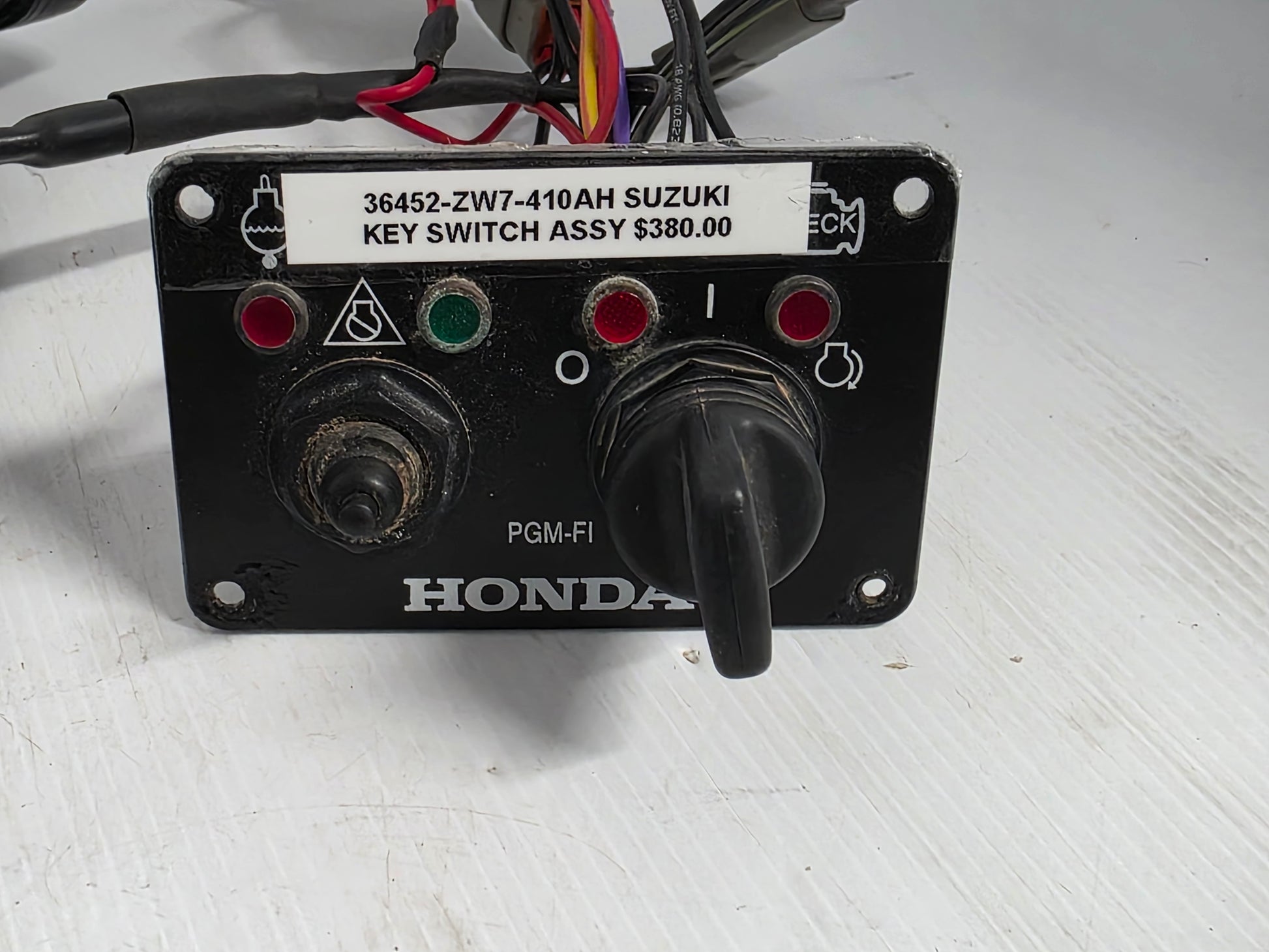

Genuine Honda Single-Engine PGM-FI Key Switch Panel - Part Number: 36452-ZW7-410AH

A genuine Honda single-engine ignition and emergency-stop panel for mechanically controlled PGM-FI outboards.

The panel combines the ignition key switch, safety-lanyard stop switch and engine-warning indicators in one helm-mounted assembly. It is designed for Honda's 20-wire mechanical-control rigging system and is not a Suzuki component.

⚙️ Key Features

• Genuine Honda OEM key-switch and stop panel

• Correct current part number 36452-ZW7-410AH

• Integrated PGM-FI warning indicator lights

• Includes emergency-stop lanyard switch

• Used with Honda mechanical-control outboards

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 36452-ZW7-410AH current Honda PGM-FI panel reference

• 36452-ZW7-210AH earlier superseded panel reference

OEM / Related Numbers:

• 36452-ZW7-410AH

• 36452ZW7410AH

• 36452-ZW7-210AH

• 36452-ZW7-310AH related earlier key-panel reference

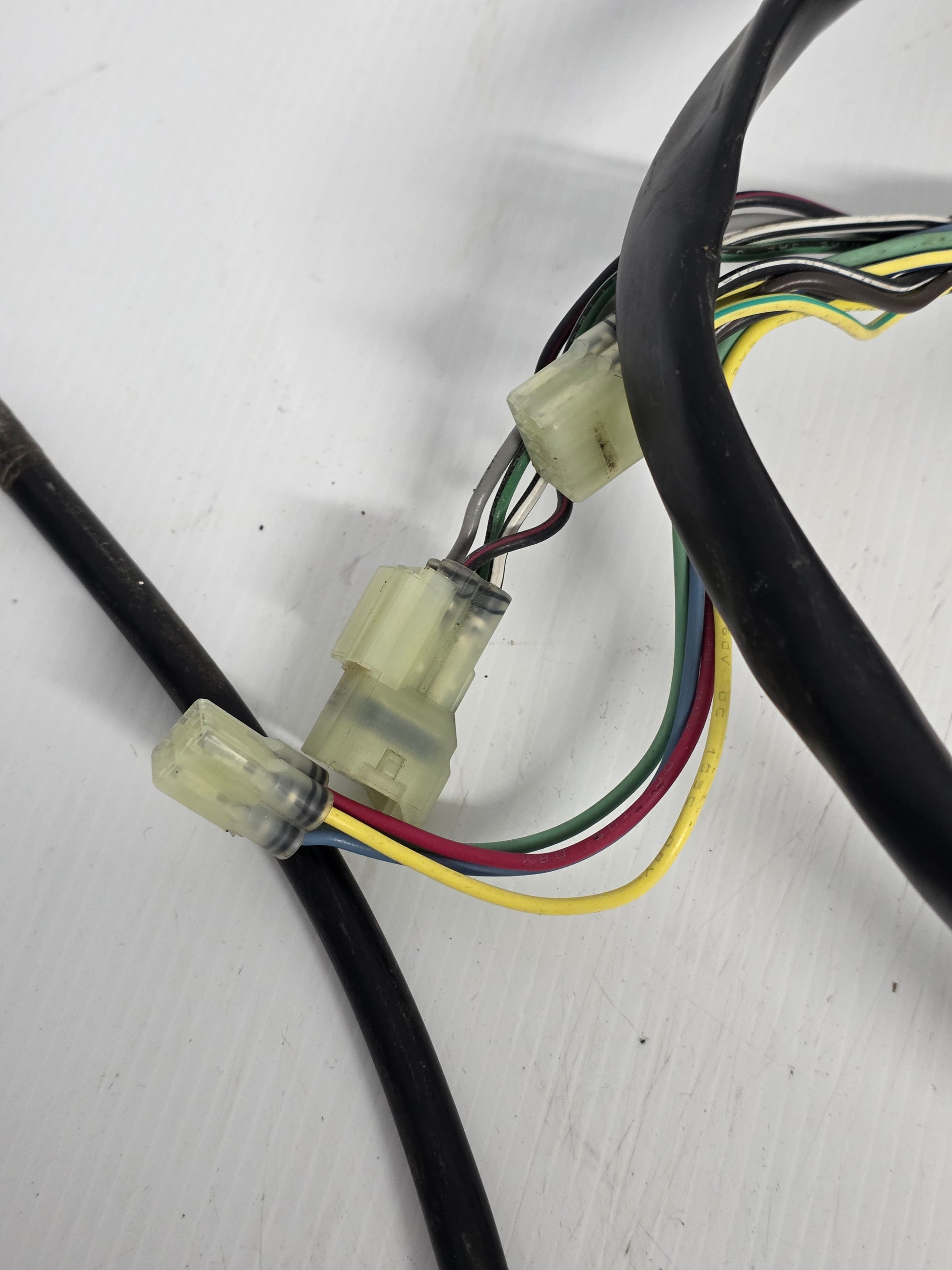

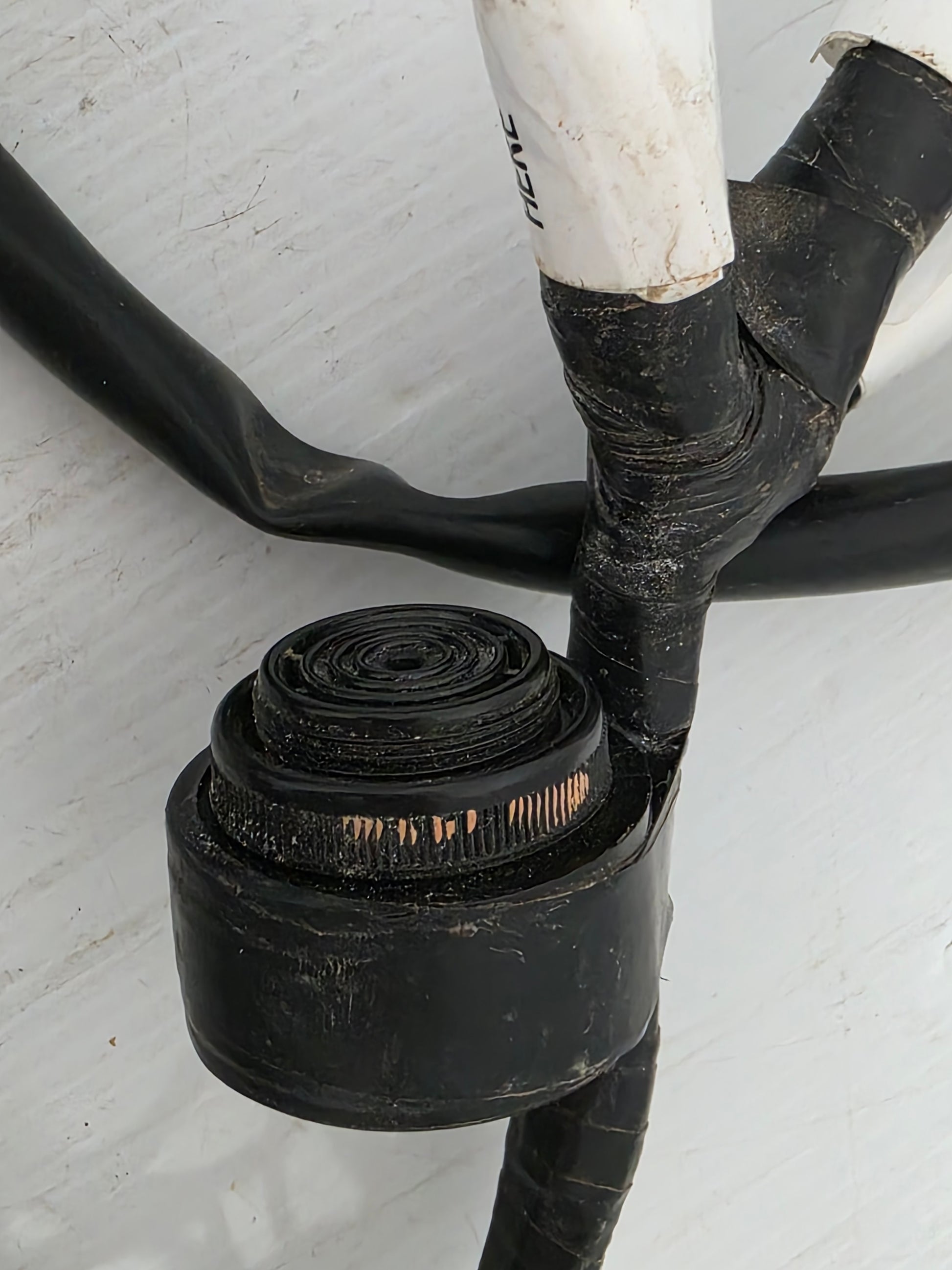

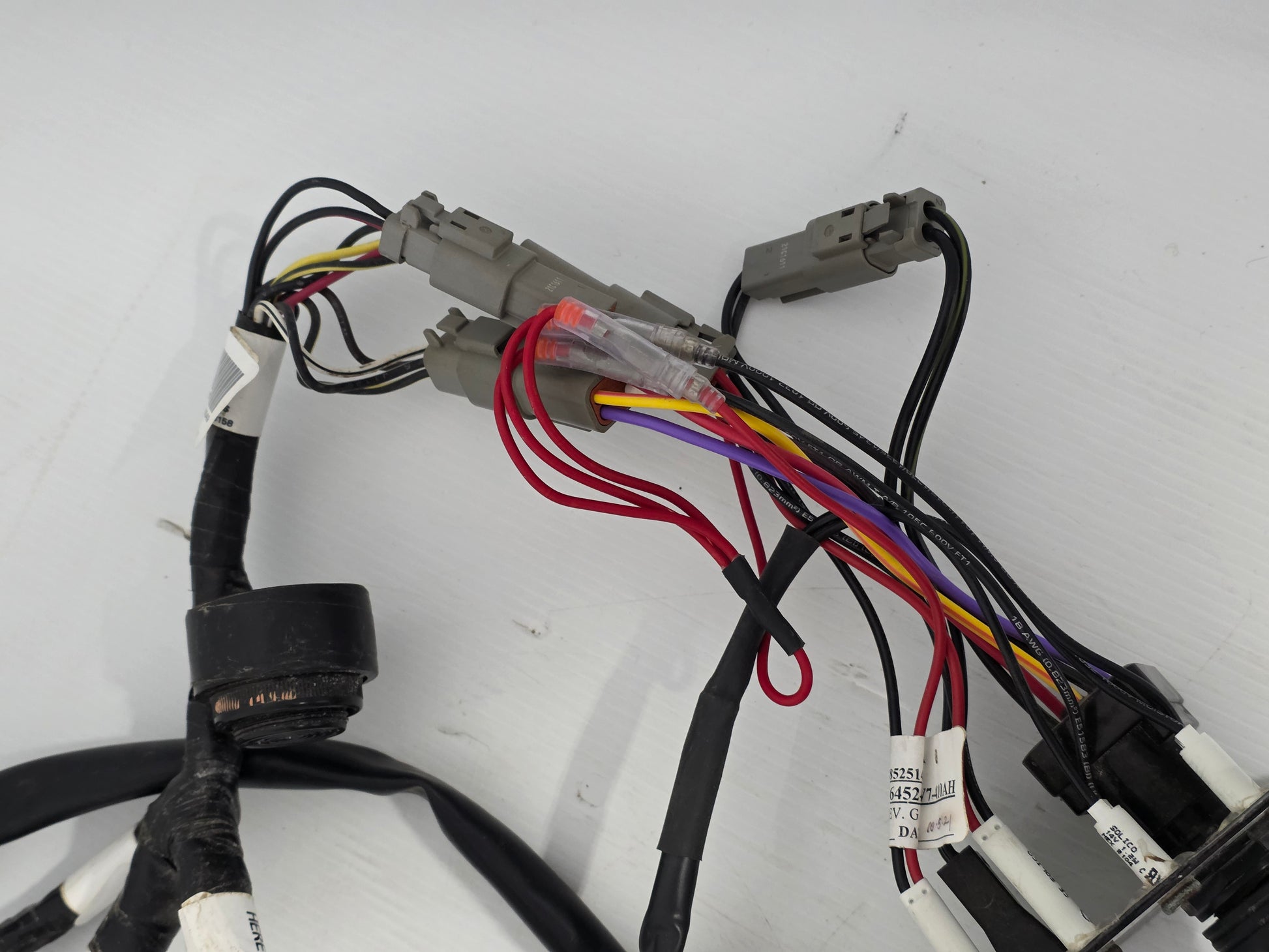

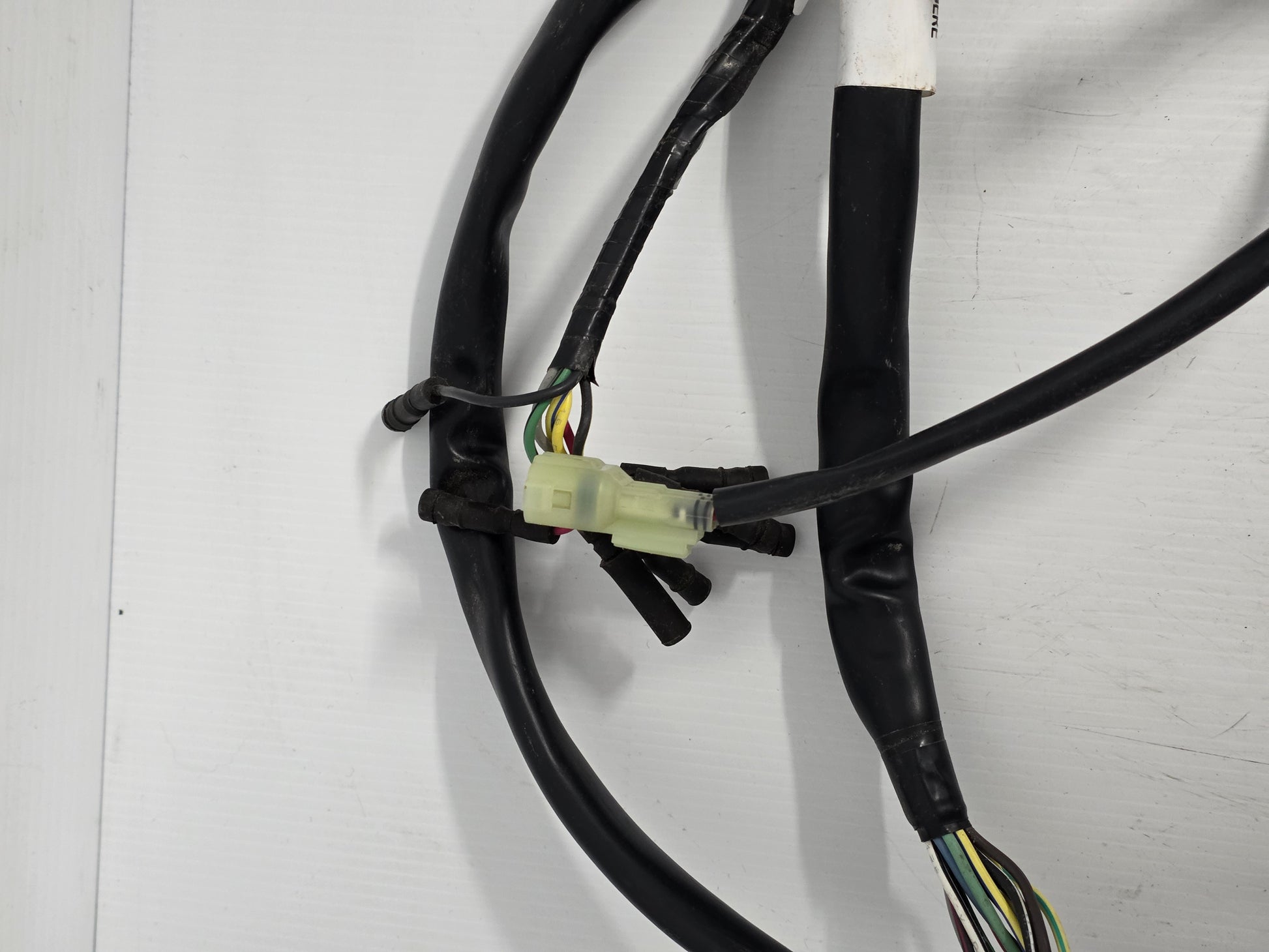

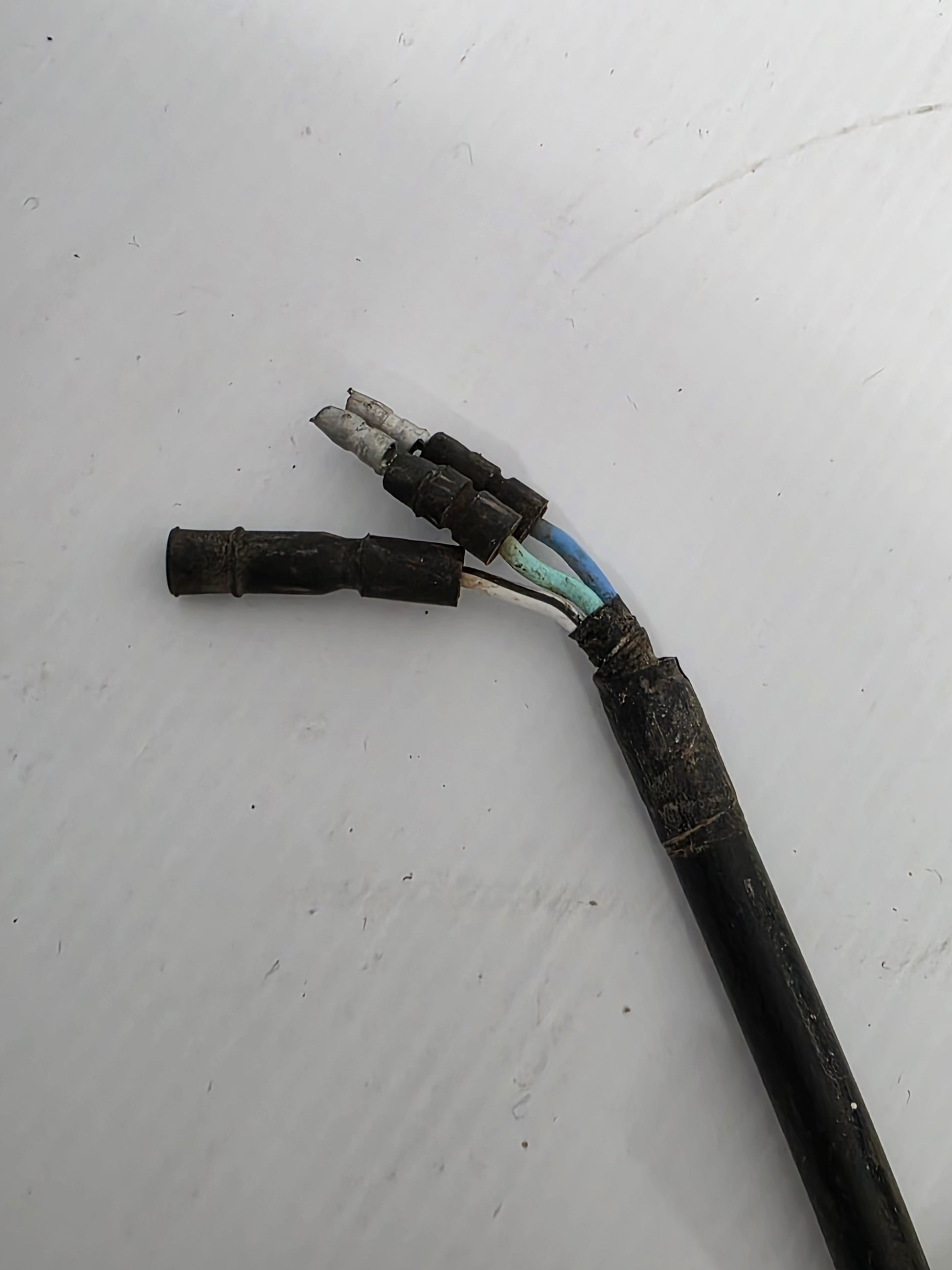

• Related Honda 20-wire main harness

• Related PGM-FI warning-light and safety-lanyard components

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Honda single-engine mechanical remote-control installations

• PGM-FI outboards using the Honda 20-wire rigging system

Typically suits:

• Engine models:

• Honda BF40D / BF40DK2

• Honda BF50D / BF50DK2

• Honda BF60A / BF60AK1 / BF60AK2

• Honda BF75D / BF75DK2

• Honda BF90D / BF90DK2

• Honda BF115D / BF115DK1

• Honda BF135A / BF135AK2

• Honda BF150A / BF150AK2

• Honda BF200A mechanical-control models

• Honda BF225A mechanical-control models

• Honda BF250A mechanical-control models

• Honda BF200D mechanical-control models

• Honda BF225D mechanical-control models

• Honda BF250D mechanical-control models

• HP Range: 40HP - 250HP

• Engine Type: Honda PGM-FI four-stroke outboard with mechanical remote controls

• Year Range: Dependent on the compatible 20-wire rigging system

🔌 Function

The assembly switches ignition power, energises the starter circuit, stops the engine through the safety-lanyard system and displays PGM-FI, charging, oil-pressure and overheat warnings.

Common signs of failure:

• Key will not energise the ignition or starter

• Engine cuts out because of an intermittent stop circuit

• Warning lamps do not illuminate during the system check

• Safety-lanyard switch fails to stop the engine

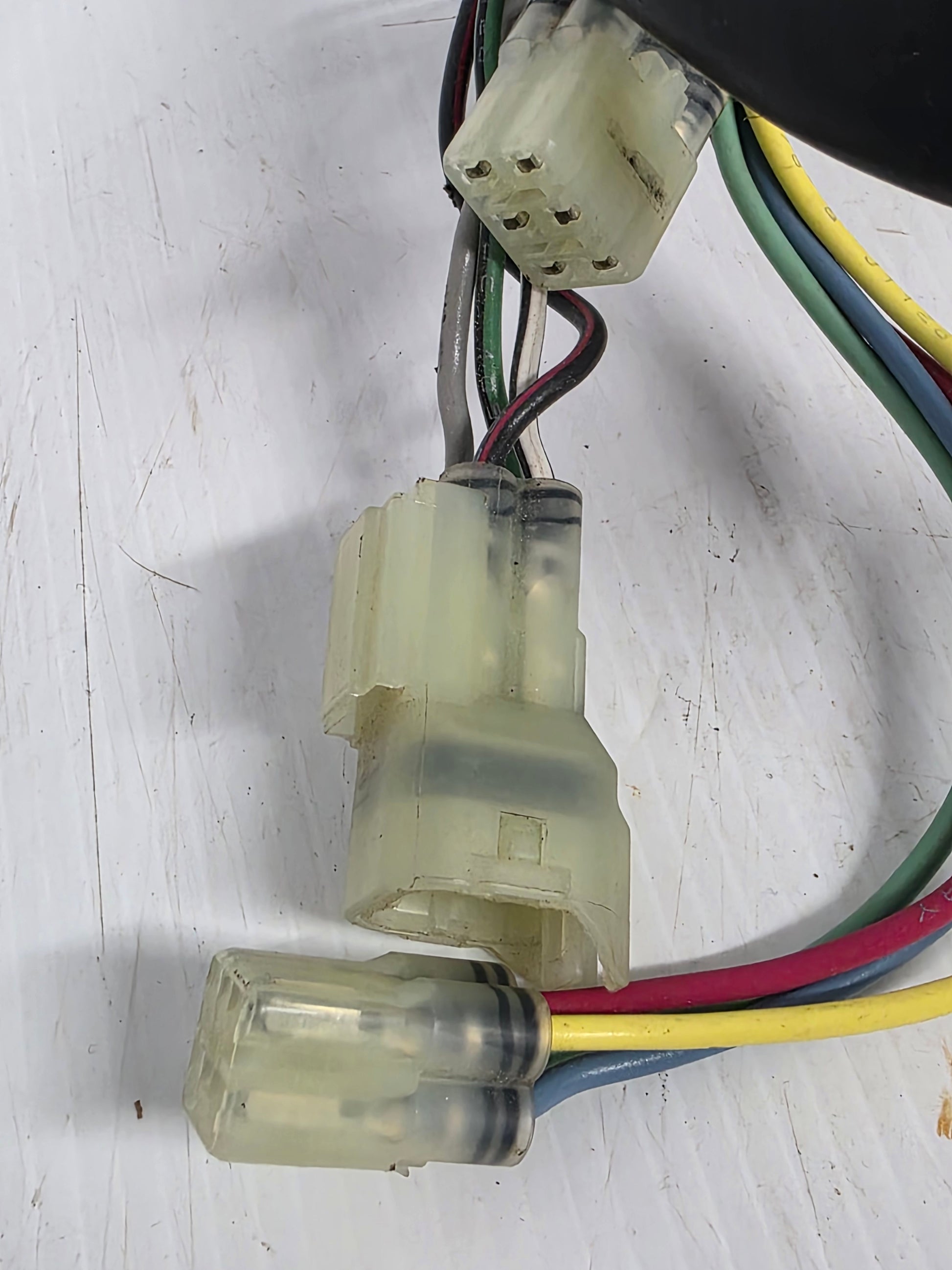

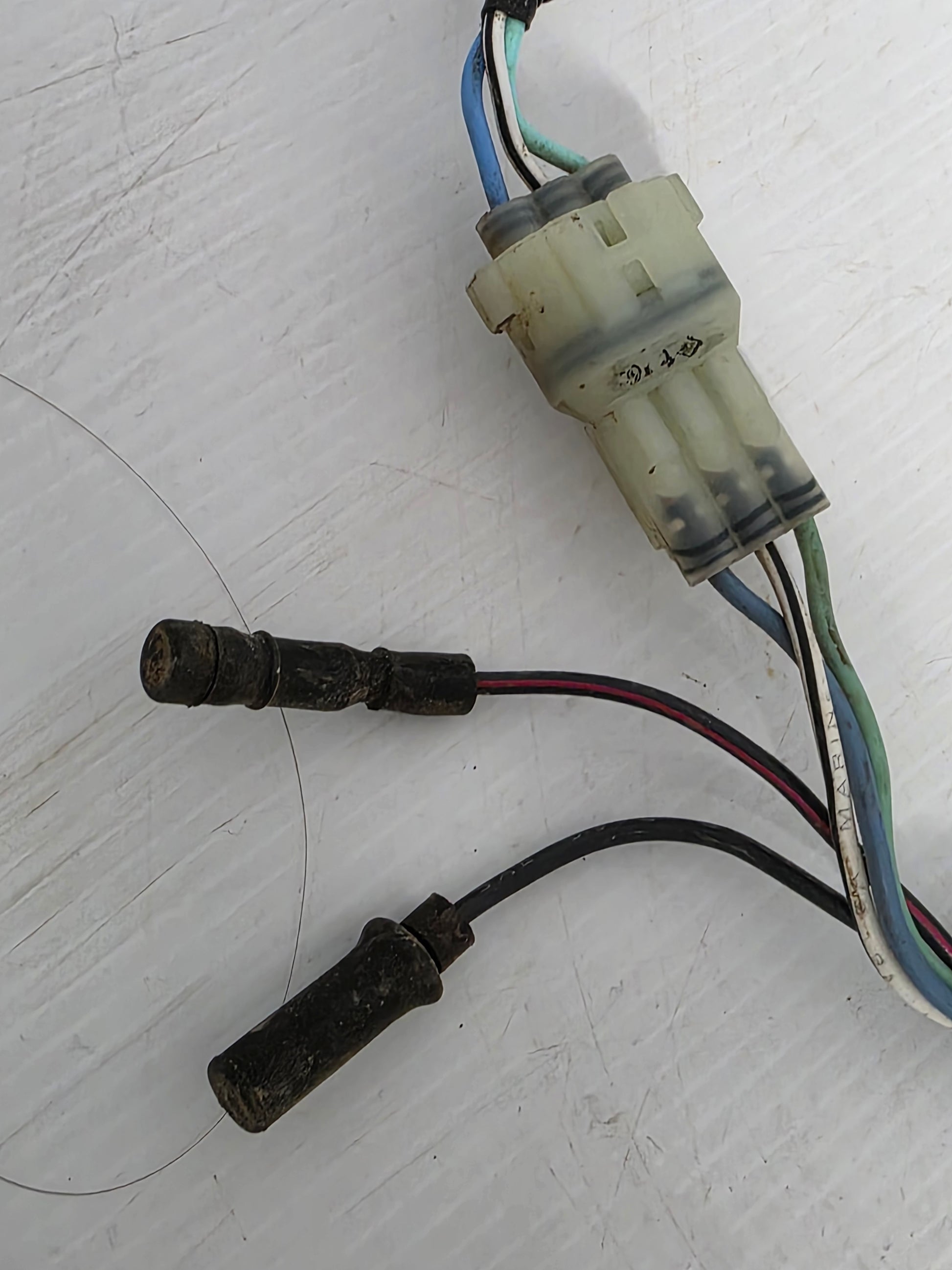

• Connector terminals show corrosion or heat damage

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
