37260-ZV5-822 Honda Trim Gauge | Genuine Used Part

37260-ZV5-822 Honda Trim Gauge | Genuine Used Part

🔥 50% off all Used Parts - Limited Time 🔥

$25.00 AUD
$50.00 AUD $25.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 5 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

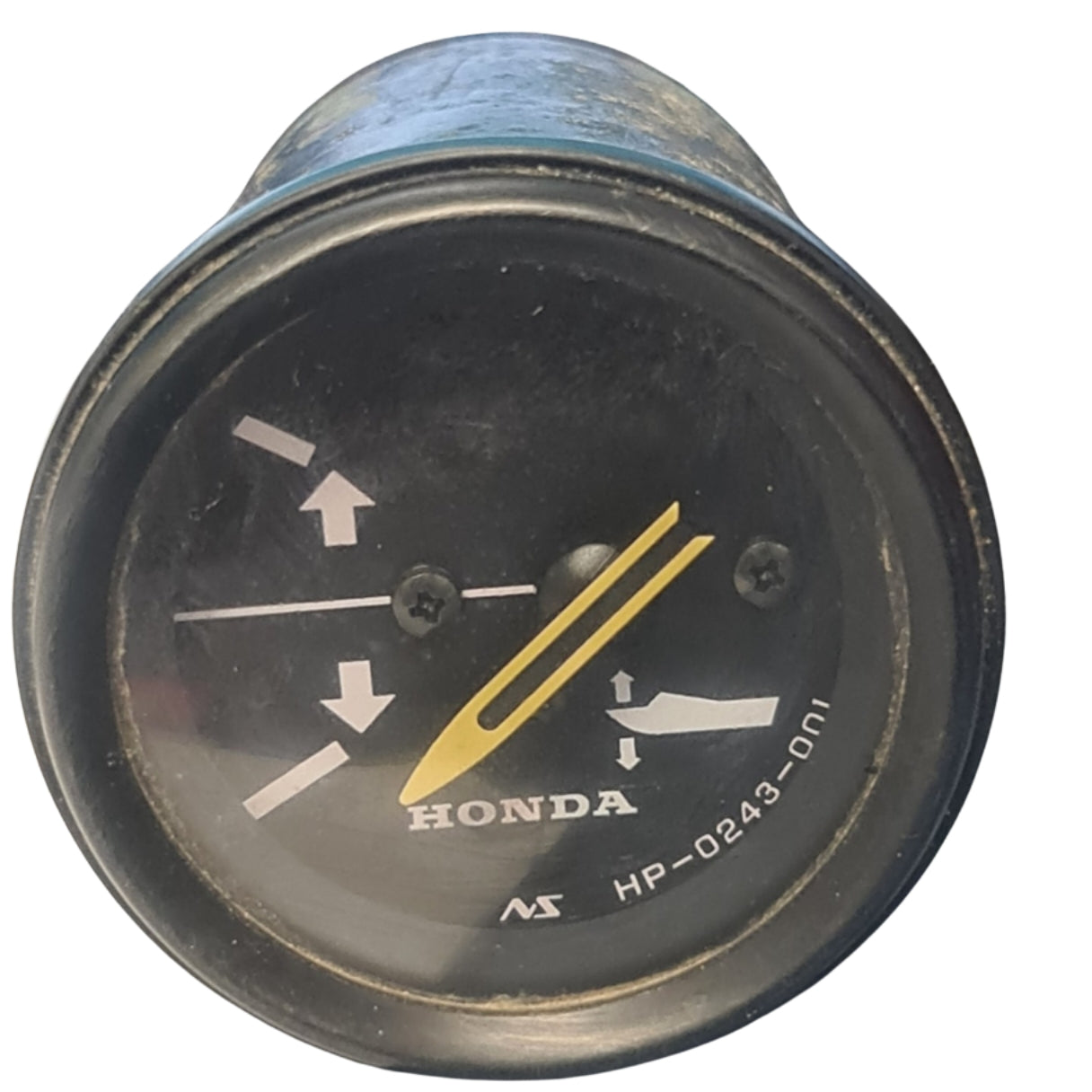

Genuine Honda Analogue Trim Gauge - Part Number: 37260-ZV5-822

A genuine used Honda Marine trim-position gauge for selected outboard motors equipped with the corresponding Honda trim sender and optional-meter harness.

The black-face gauge displays the engine's relative angle through the operating trim and tilt range.

⚙️ Key Features

  • Genuine used Honda Marine trim gauge
  • Correct OEM part number 37260-ZV5-822
  • Black analogue instrument face
  • Designed for a Honda resistance-type trim sender
  • Approximately two-inch-class dashboard gauge

🚤 Compatibility

Commonly used on

  • Honda analogue optional-meter panels
  • Outboards equipped with a Honda trim-position sender

Typically suits

  • Selected Honda BF20 through BF250 outboards
  • Confirmed BF40, BF50, BF75, BF90, BF115 and BF130 optional-meter systems
  • 12-volt marine electrical systems
  • Fitment controlled by engine model, frame serial and sender type

🔌 Function

The gauge converts the variable resistance from the engine-mounted trim sender into an up-and-down needle position.

⚠️ Common Signs of Failure

  • Needle remains fully up or fully down
  • Gauge does not respond to trim movement
  • Reading is reversed
  • Needle moves erratically
  • Gauge and sender are not calibrated to each other
  • Backlighting has failed
  • Harness terminals are corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 37260-ZV5-821 earlier trim-gauge reference
  • 37260-ZV5-822 intermediate service reference
  • 37260-ZV5-823 later gauge on selected model and serial groups
  • Fitment is controlled by the engine and meter-system diagram

OEM / Related Numbers

  • 37260-ZV5-822
  • 37260ZV5822
  • 37260-ZV5-821
  • 37260-ZV5-823
  • 37268-ZV5-821 related bulb socket
  • 32540-ZV5-911 meter harness A
  • 32550-ZW5-U00 meter harness B
  • 35660-series engine trim sender according to model

Aftermarket / Verified Equivalents

  • Faria / Veethree: 63526 - Honda trim gauge
  • Faria / Veethree: 63526F - Honda trim gauge
  • Sierra Honda-calibrated two-inch trim gauge
  • Replacement must match the Honda sender resistance range

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
