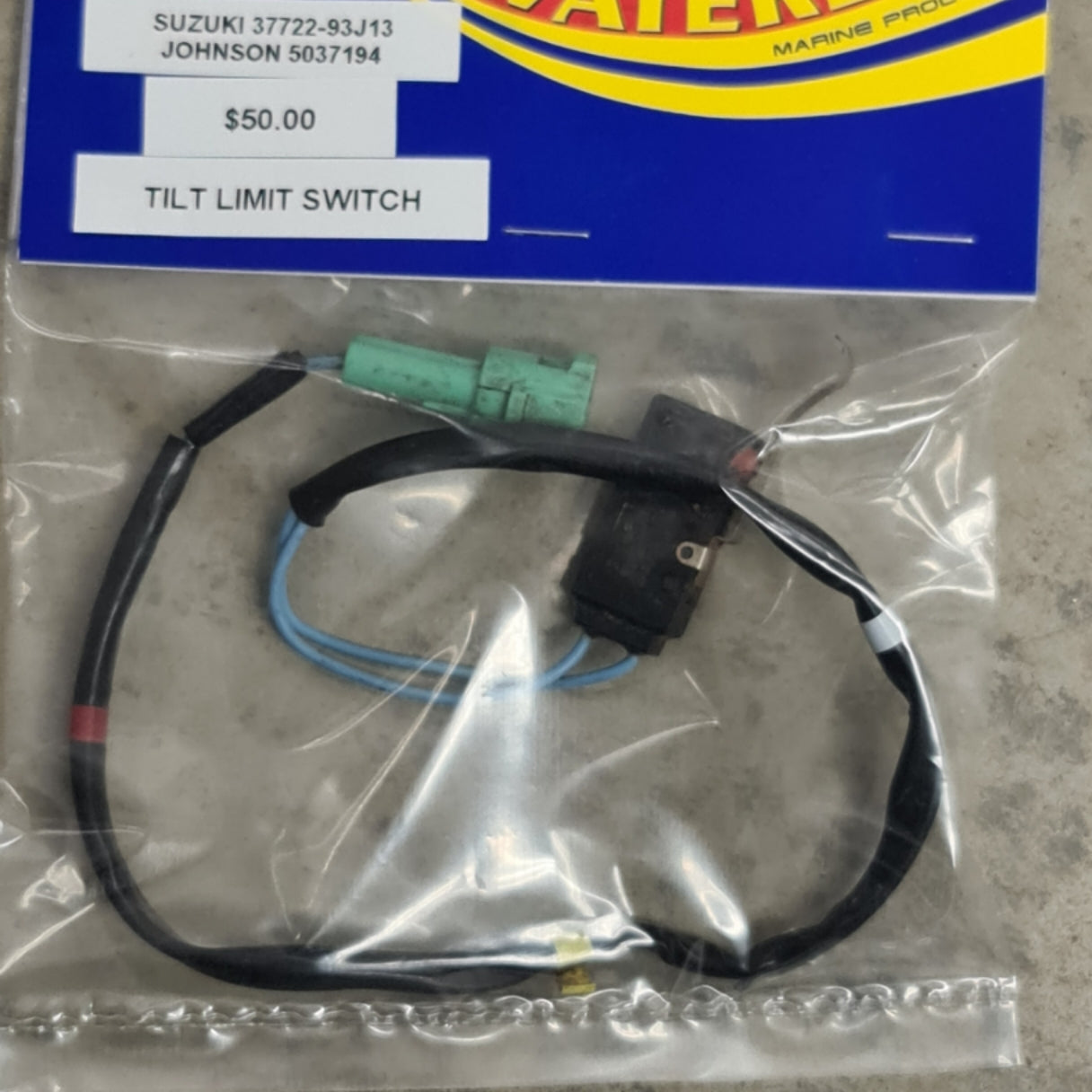

37722-93J13 Suzuki 5037194 Johnson Tilt Limit Switch | Genuine Used Part

🔧 Product Description

Genuine Suzuki Johnson Power Tilt Limit Switch - Part Number: 37722-93J13

A genuine used Suzuki tilt-limit switch for selected Suzuki four-stroke outboards and corresponding Suzuki-built Johnson models.

The adjustable switch limits the maximum upward tilt angle, helping prevent the engine cowling, steering components or rigging from contacting the boat's transom, splashwell or surrounding structure.

⚙️ Key Features

• Genuine used Suzuki / Johnson tilt-limit switch
• Suzuki part number 37722-93J13
• Johnson cross-reference 5037194
• Adjustable maximum-tilt control
• Mounted to the stern-bracket and tilt assembly

🚤 Compatibility

Commonly used on

• Suzuki power-trim and tilt stern brackets
• Suzuki-built Johnson four-stroke outboards

Typically suits

• Engine models:
• Suzuki DF90
• Suzuki DF100
• Suzuki DF115
• Suzuki DF140
• Suzuki DF200
• Suzuki DF225
• Suzuki DF250
• Selected Suzuki DF300 production groups
• Johnson 90HP four-stroke
• Johnson 115HP four-stroke
• Johnson 140HP four-stroke
• Model and serial groups specifying 37722-93J13 or 5037194
• HP Range: Approximately 90HP - 300HP
• Engine Type: Suzuki EFI four-stroke outboard
• Year Range: Model and serial-number dependent

🔌 Function

The switch opens or closes the applicable tilt-control circuit when the engine reaches the preset maximum angle.

⚠️ Common Signs of Failure

• Engine stops tilting before reaching the set angle
• Engine tilts beyond the safe limit
• Tilt operation becomes intermittent near the upper range
• Switch cam is incorrectly adjusted
• Wiring is damaged by steering or tilt movement
• Switch body or mounting bracket is cracked
• Connector terminals are corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 37722-93J14 later related service revision
• 37722-93J13 current listed reference for selected model groups
• 37722-93J12 earlier switch revision
• 37722-93J11 earlier switch revision

OEM / Related Numbers

• 37722-93J13
• 3772293J13
• 37722-93J14
• 37722-93J12
• 37722-93J11
• 5037194
• 05037194
• Related tilt-limit cam, bracket and mounting screw

Aftermarket / Verified Equivalents

• Aftermarket direct-replacement tilt-limit switches sold under 37722-93J13
• Aftermarket direct-replacement tilt-limit switches sold under 5037194

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
