37850-99E05 Suzuki PTT Switch | Genuine Used Part

37850-99E05 Suzuki PTT Switch | Genuine Used Part

$65.00 AUD
$65.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

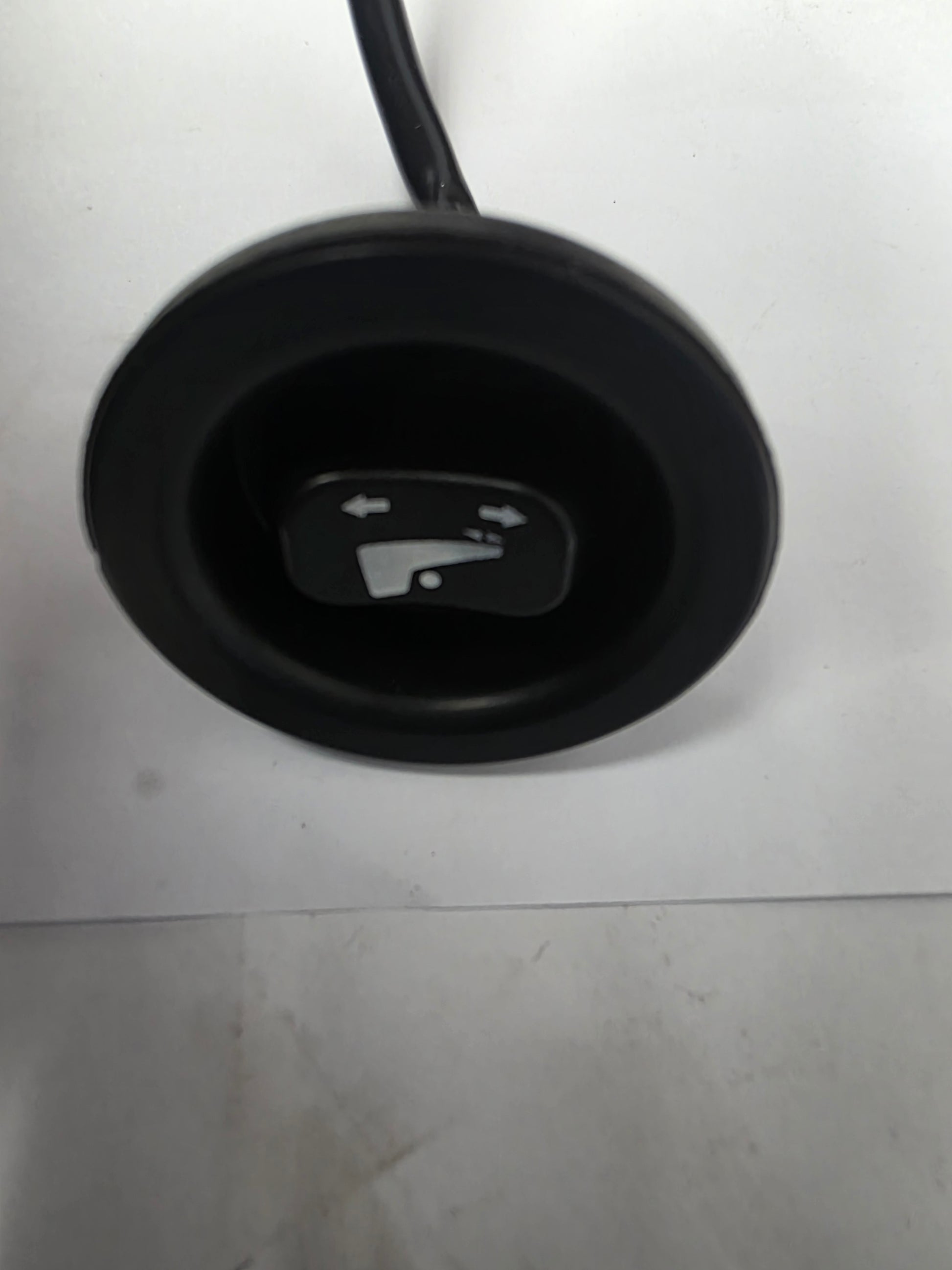

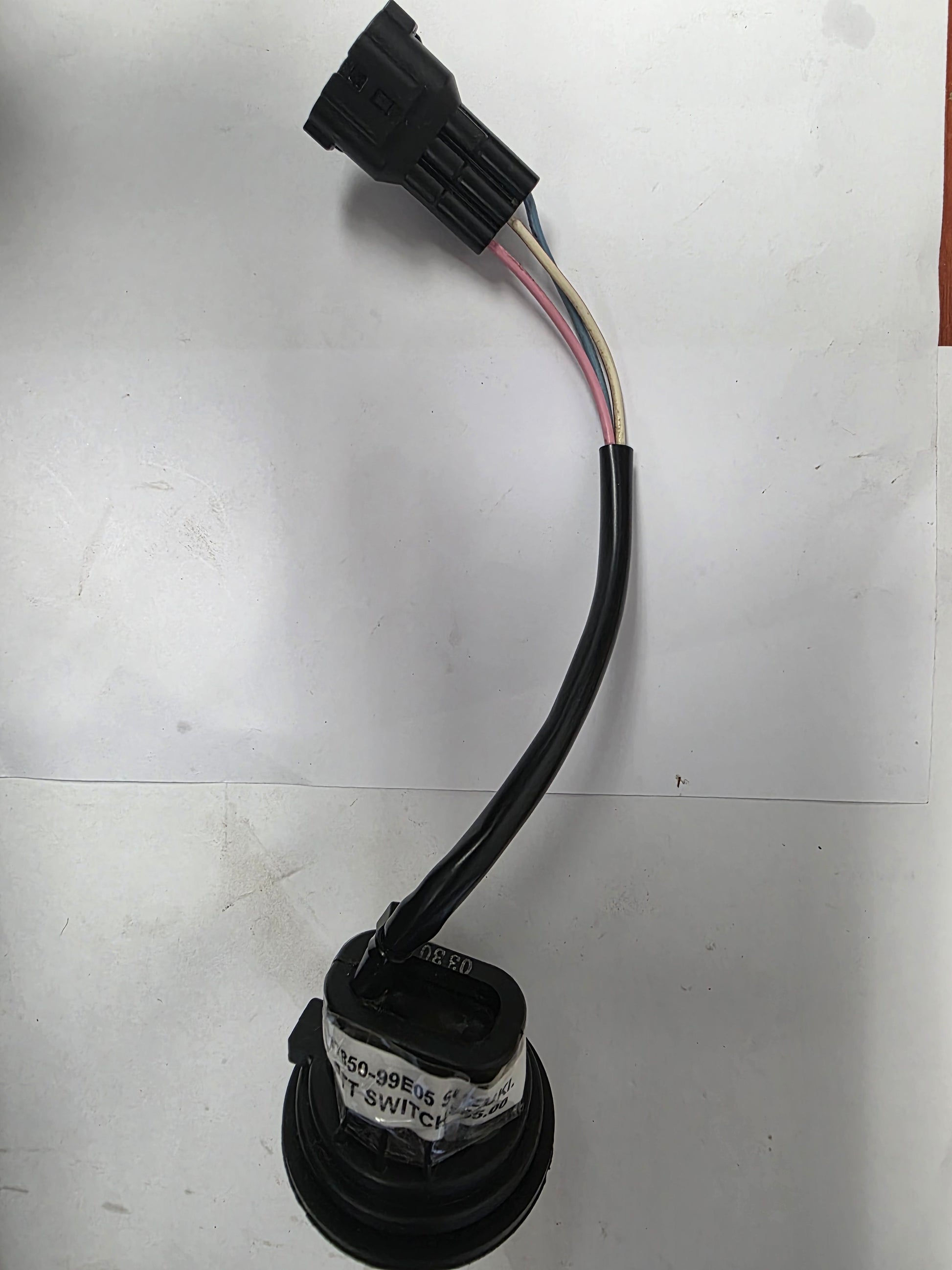

Genuine Suzuki Power Trim & Tilt Switch Assembly - Part Number: 37850-99E05

A genuine Suzuki power trim and tilt switch assembly used on selected Suzuki outboards. This engine-side PTT switch controls trim and tilt operation from the outboard cowling area and replaces earlier Suzuki 37850-99E01 / 37850-99E02 references where superseded to 37850-99E05.

⚙️ Key Features

  • Genuine Suzuki PTT switch assembly
  • Correct OEM part number 37850-99E05
  • Engine-side power trim and tilt switch
  • Used across selected Suzuki DF outboard applications
  • Match by model, VIN / serial, switch plug and engine-side mounting location

🚤 Compatibility

Commonly used on

  • Suzuki engine-side power trim and tilt switch systems

Typically suits

  • Engine models:
  • Suzuki DF9.9BT applications where the PTT switch diagram specifies 37850-99E05
  • Suzuki DF20AT applications where the PTT switch diagram specifies 37850-99E05
  • Suzuki DF9.9BTS - 2023 diagram example, beginning VIN 00995F-340001 to 00995F-34XXXX
  • Suzuki DF9.9BL - 2025 diagram example, beginning VIN 00995F-540001 to 00995F-54XXXX
  • Suzuki DF20AS / DF20AT - 2020 diagram-controlled PTT switch applications
  • Suzuki DF20AL - 2026 diagram example, beginning VIN 02002F-640001 to 02002F-64XXXX
  • Suzuki DF40 applications using 37850-99E05
  • Suzuki DF50 applications using 37850-99E05
  • Suzuki DF60 applications using 37850-99E05
  • Suzuki DF70 applications using 37850-99E05
  • Suzuki DF80 applications using 37850-99E05
  • Suzuki DF90 applications using 37850-99E05
  • Suzuki DF100 applications using 37850-99E05
  • Suzuki DF115 applications using 37850-99E05
  • Suzuki DF140 / DF140T / DF140Z applications using 37850-99E05
  • Suzuki DF150 applications using 37850-99E05
  • Suzuki DF175 applications using 37850-99E05
  • Suzuki DF200 applications using 37850-99E05
  • Suzuki DF225 applications using 37850-99E05
  • Suzuki DF250 applications using 37850-99E05
  • Suzuki DF300 applications using 37850-99E05
  • HP Range: confirmed small-engine PTT applications from 9.9HP-20HP; broad Suzuki DF engine-side switch usage commonly listed from DF40-DF300
  • Engine Type: Suzuki outboard power trim and tilt electrical switch system
  • Year Range: approximately 1998 onward for DF40-DF300 listings; smaller DF9.9BT / DF20AT applications are model and VIN controlled
  • Serial / VIN Note: Match by exact Suzuki model code, VIN / serial, engine-side PTT switch mounting, plug shape and original switch number before installation.

🔌 Function

The PTT switch sends trim-up and trim-down commands to the power trim and tilt relay circuit so the outboard can be raised, lowered or trimmed from the engine-side switch location.

⚠️ Common Signs of Failure

  • Trim does not respond from engine-side switch
  • Trim works from control box but not from engine switch
  • Switch sticks or feels loose
  • Intermittent trim up or trim down operation
  • Water intrusion or corrosion in switch body
  • Broken switch wires or damaged plug
  • Trim operation returns when a known-good PTT switch is fitted

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 37850-99E01 earlier Suzuki PTT switch reference
  • 37850-99E02 earlier Suzuki PTT switch reference
  • 37850-99E05 later Suzuki PTT switch assembly reference

OEM / Related Numbers

  • 37850-99E05
  • 3785099E05
  • 37850-99E05-000
  • 37850-99E05-0000
  • 37850-99E01
  • 37850-99E02
  • Switch assy, PTT
  • Power trim switch
  • Power trim and tilt switch
  • Engine-side trim switch
  • Suzuki PTT switch

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
