3802152 Aftermarket Volvo Penta D6 Turbocharger 280, 300, 310hp 3584138 | Sawley's Select Marine Parts

🔧 Product Description

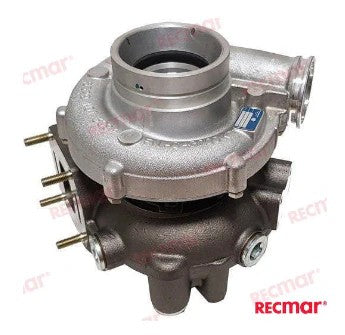

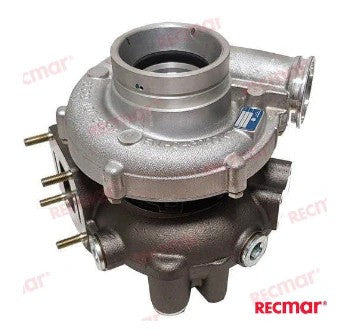

Sawley's Select Marine Parts Aftermarket Volvo Penta D6 K27.2 Turbocharger - Replacement for Part Numbers: 3802152 and 3584138

A new aftermarket turbocharger for selected Volvo Penta D6-280, D6-300 and D6-310 marine diesel engines.

This K27.2-style turbocharger is calibrated for lower-rated versions of the 5.5-litre Volvo Penta D6 common-rail engine. It supplies the compressed intake air required for clean fuel combustion, normal torque output and controlled exhaust temperature.

⚙️ Key Features

• New aftermarket D6 marine turbocharger

• Replaces Volvo Penta 3584138 and exchange reference 3802152

• BorgWarner K27.2-style configuration

• Suitable for D6-280, D6-300 and D6-310 engines

• Direct replacement for installations listing the specified OEM references

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Volvo Penta 3584138 - Original new turbocharger reference

• Volvo Penta 3802152 - Exchange / remanufactured service reference

OEM / Related Numbers:

• 3802152

• 3584138

• BorgWarner: 53279987501

• BorgWarner: 53279887501

• BorgWarner: 53279707501

• BorgWarner: 5327-998-7501

• BorgWarner: 5327-988-7501

• BorgWarner: 5327-970-7501

• Turbo Model: K27.2-3375XYAKB10.71GAAXB

• Related mounting gasket set: 3588435

Aftermarket / Verified Equivalents:

• Recmar: REC3802152

• SLP: TC-152

• Aftermarket BorgWarner-style 53279987501 replacement

• Aftermarket D6 turbocharger replacing 3584138 / 3802152

🚤 Compatibility

Commonly used on:

• Volvo Penta 5.5L six-cylinder D6 common-rail engines

• D6 inboard propulsion installations

• D6 Aquamatic and sterndrive installations

Typically suits:

• D6-280:

• D6-280A-A

• D6-280A-B

• D6-280A-C

• D6-280A-D

• D6-280A-E

• D6-280I-A

• D6-280I-B

• D6-280I-C

• D6-280I-D

• D6-280I-E

• D6-300:

• D6-300A-F

• D6-300D-F

• D6-300I-F

• D6-310:

• D6-310A-A

• D6-310A-B

• D6-310A-C

• D6-310A-D

• D6-310A-E

• D6-310D-B

• D6-310D-C

• D6-310D-D

• D6-310D-E

• D6-310I-A

• D6-310I-B

• D6-310I-C

• D6-310I-D

• D6-310I-E

• Rated Power Range: 280HP - 310HP

• Engine Displacement: Approximately 5.5 litres

• Engine Type: Six-cylinder common-rail turbocharged marine diesel

🔌 Function

The turbocharger increases intake-air pressure so the D6 engine can produce its specified torque and horsepower while controlling smoke and exhaust temperature.

Common signs of turbocharger failure:

• Reduced engine output

• Slow vessel acceleration

• Low boost pressure

• Excessive black smoke

• Blue exhaust smoke

• Increased engine-oil consumption

• Abnormal whine or scraping noise

• Turbo shaft movement outside specification

• Oil leaking into the intake or exhaust passages

Installation considerations:

• Match the turbocharger against the original data plate

• Replace engine oil and oil filter

• Inspect the turbo oil-feed and drain pipes

• Clean the charge-air cooler and intake system

• Inspect the exhaust elbow and downstream exhaust

• Check crankcase pressure and ventilation

• Prime the turbocharger with clean engine oil

• Renew all mounting gaskets and sealing washers

• Confirm loaded boost pressure after installation

📦 Condition

• Sawley's Select Marine Parts aftermarket replacement

• Brand new

• Supplied in protective packaging

• Mounting gasket set not included unless specifically listed
