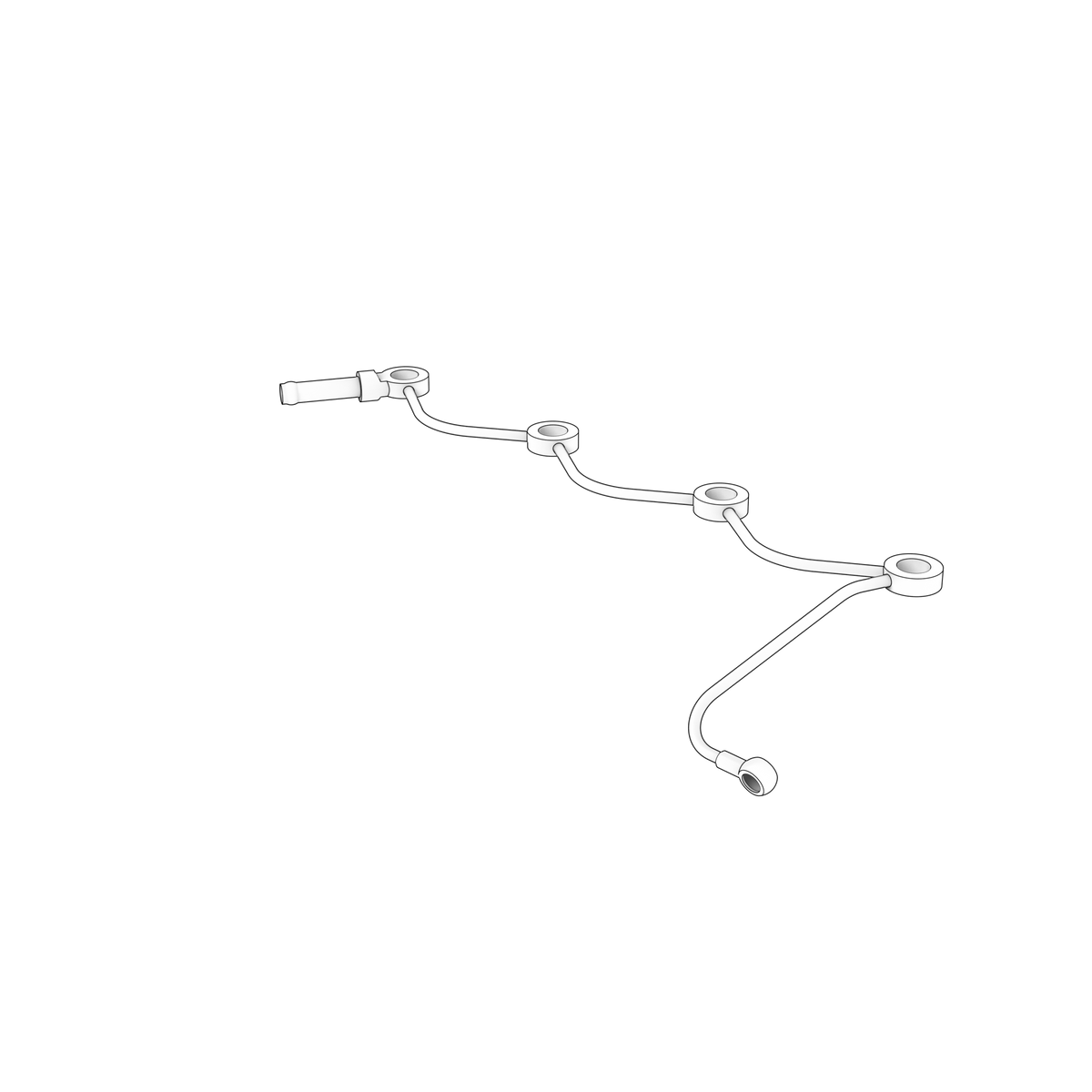

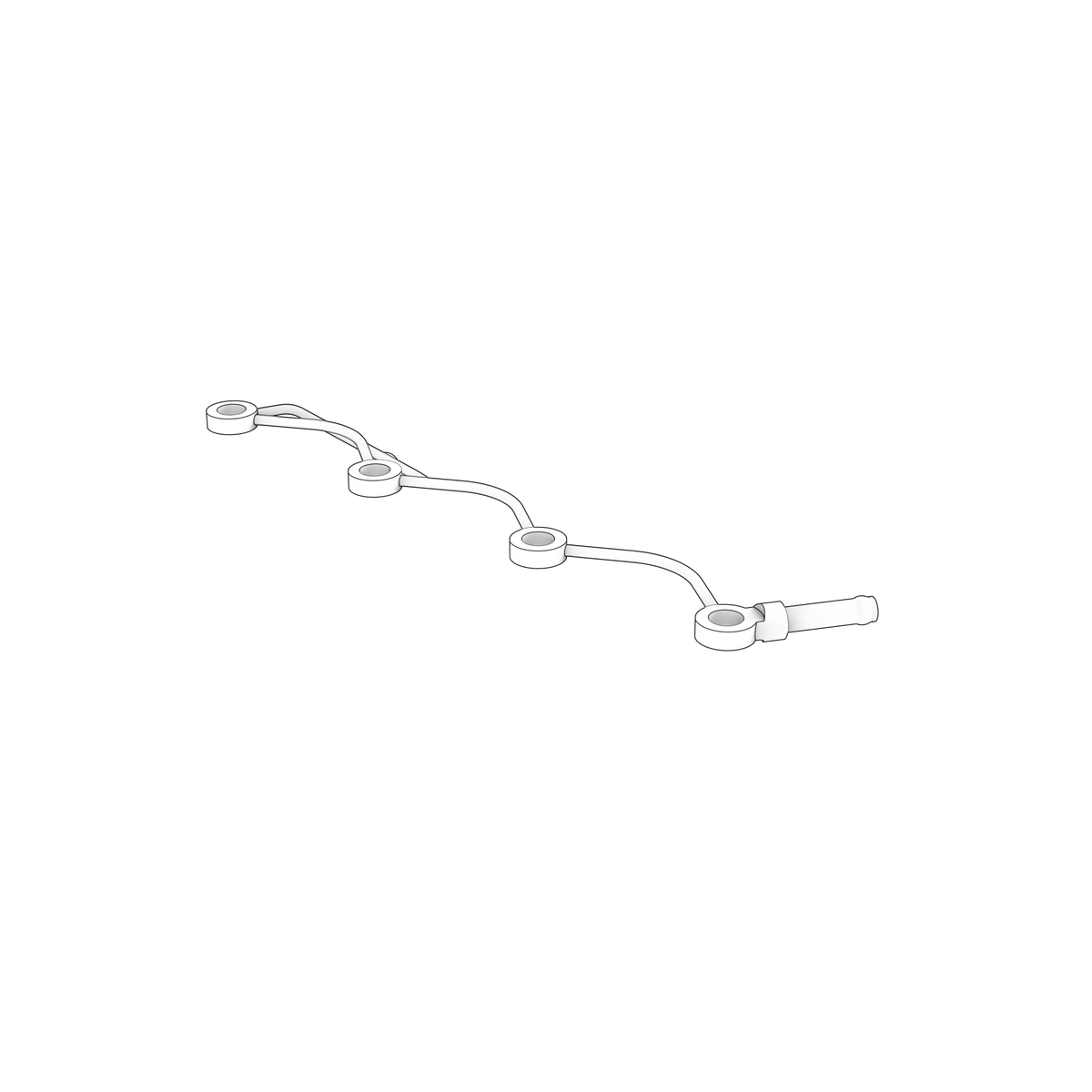

3809334 Leak-Off Pipe | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta leak-off pipe from the Fuel System group, weighing 0.141 kg and listed for 8 applications on D series engines. It consolidates two earlier numbers, 21194397, catalogued before as a leak-off line, and 3583559, catalogued as a return pipe.

🚤 Compatibility

Typically suits:

• Volvo Penta D2-55
• Volvo Penta D2-55B
• Volvo Penta D2-55C
• Volvo Penta D2-55D
• Volvo Penta D2-55E
• Volvo Penta D2-75
• Volvo Penta D2-75B
• Volvo Penta D2-75C

• Engine Family: D
• HP Range: 55-75 HP

⚙️ Key Features

• 0.141 kg
• 8 applications on D series engines
• Supersedes 21194397 and 3583559
• Replaces what were previously a leak-off line and a return pipe

🔌 Function

Collects the small spill flow from the injectors and returns it to the fuel circuit.

⚠️ Common Signs of Failure

• Diesel smell or wet film around the injector heads
• Fuel weeping from the small unions between injectors
• Air in the fuel circuit and hard starting
• Perished or split sealing washers at the pipe joints
• Pipe body cracked at a bend or a brazed joint

🛠️ Service Notes

• The sealing washers at each injector union are single-use — fit new ones with the pipe
• Because this number now covers what were two earlier pipes, compare the new pipe against the old routing before disturbing the injectors

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3809334 → Supersedes 21194397

OEM / Related Numbers

• 3583559 earlier number superseded by this part
• 21194397 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
