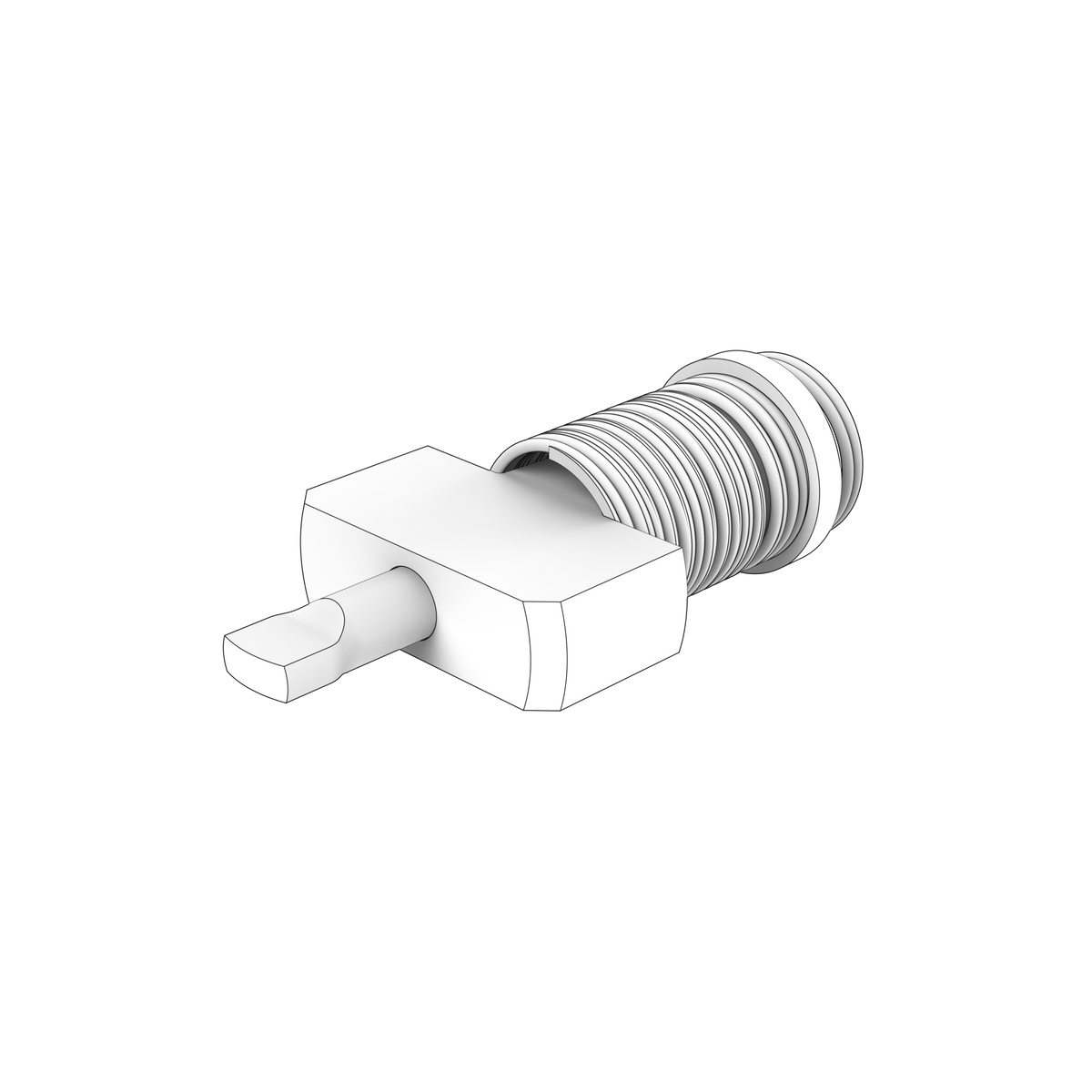

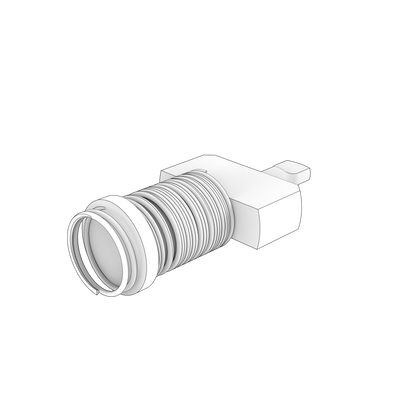

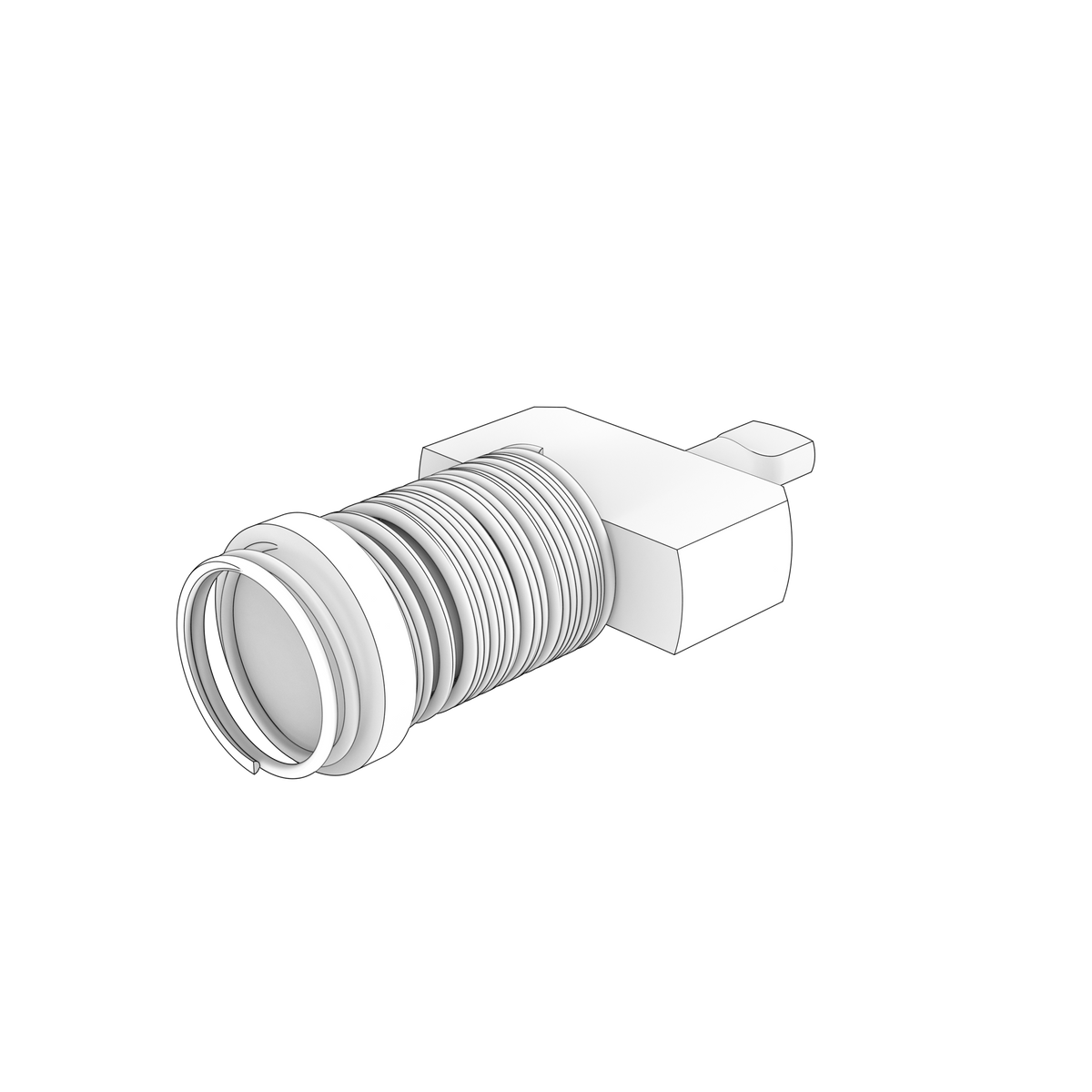

3809467 By-Pass Valve | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta cooling system by-pass valve weighing 2.3 g and listed for 24 applications on D series engines. It supersedes part number 3826604.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• 24 applications on D series engines
• Supersedes 3826604
• 2.3 g

🔌 Function

Routes coolant past the main circuit until the engine is warm, then closes off that path so full flow goes through the cooler.

⚠️ Common Signs of Failure

• Engine slow to reach normal running temperature
• Temperature running high or swinging under load
• Uneven warming of the circuit hoses
• Valve found stuck, distorted or clogged with scale on strip-down

🛠️ Service Notes

• The number this part supersedes, 3826604, also appears behind thermostat housing 3809577 and cap 3809621, so that older number covered an assembly now supplied as separate pieces — check which of the three you actually need
• Renew the gaskets and O-rings in the housing while it is open, and refill and bleed the circuit fully

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3809467 → Supersedes 3826604

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MP, D12D-B MP, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MP, D12D-F MP, D12D-G MP, D12D-H MP
