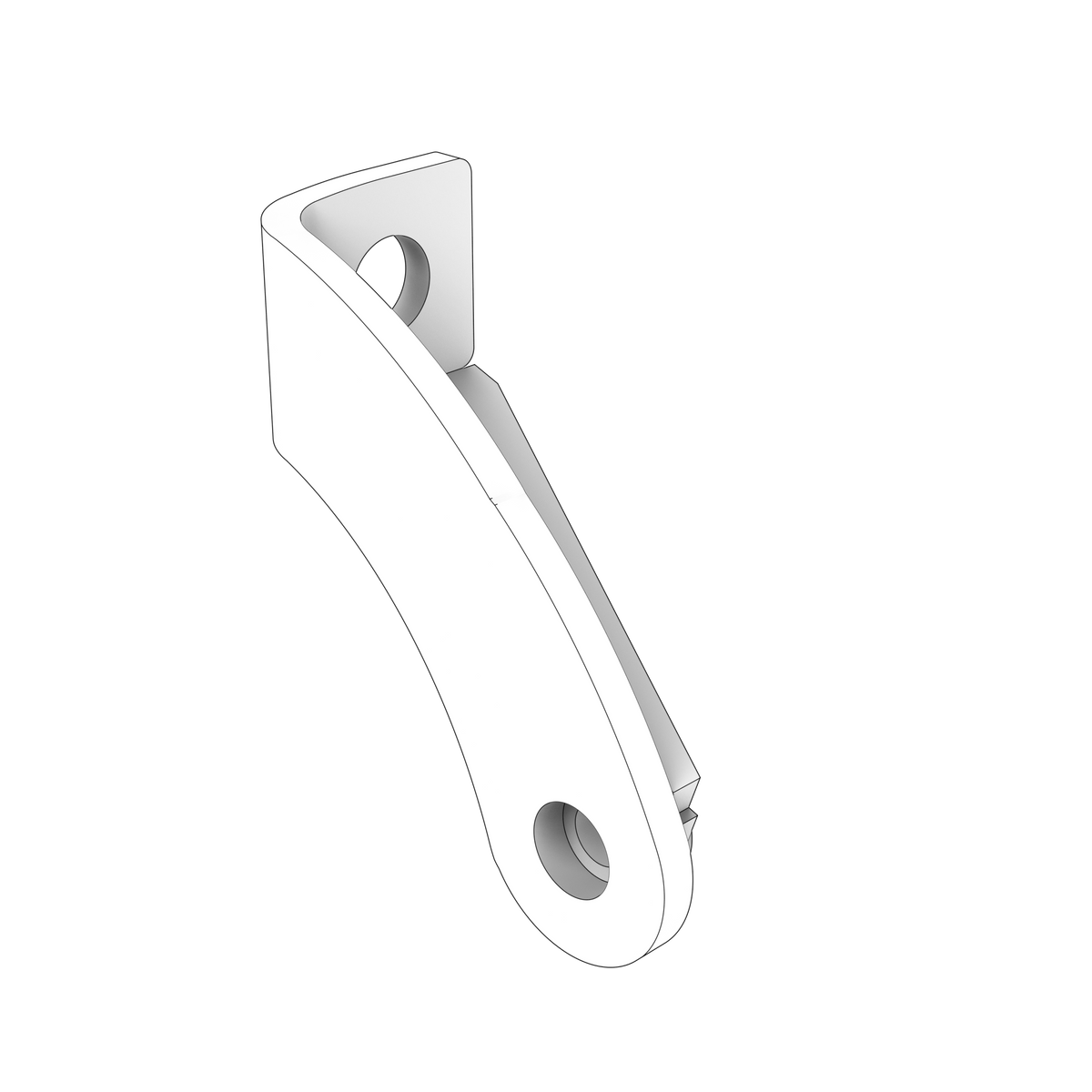

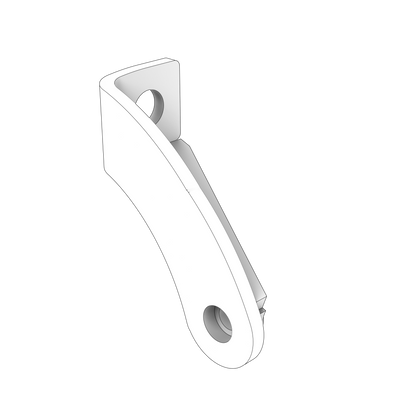

3809682 Bracket | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta bracket from the Alternator, Charging, Electric Motor, Electric Drives group, weighing 0.100 kg and listed for 124 applications on D series engines. It supersedes part number 3583005.

🚤 Compatibility

• Engine Family: D
• HP Range: 180-435 HP

Full model list at the end of this description.

⚙️ Key Features

• 124 applications on D series engines
• Supersedes 3583005
• 0.100 kg

🔌 Function

Holds the charging or electrical unit in position and locates it against the engine.

⚠️ Common Signs of Failure

• Belt tension slipping because the bracket has moved
• Cracks around the fixing holes or at a bend
• Holes worn oval so the unit will not stay aligned
• Bracket bent, or the mounted unit sitting out of line
• Fasteners repeatedly working loose

🛠️ Service Notes

• A very widely used bracket at 124 applications, so compare the new one against the old before fitting
• Check the pivot and adjustment holes for wear, and renew stretched fasteners

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3809682 → Supersedes 3583005

OEM / Related Numbers

• 3583005 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-310I-C, D6-280A-A, D6-280A-B, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B
