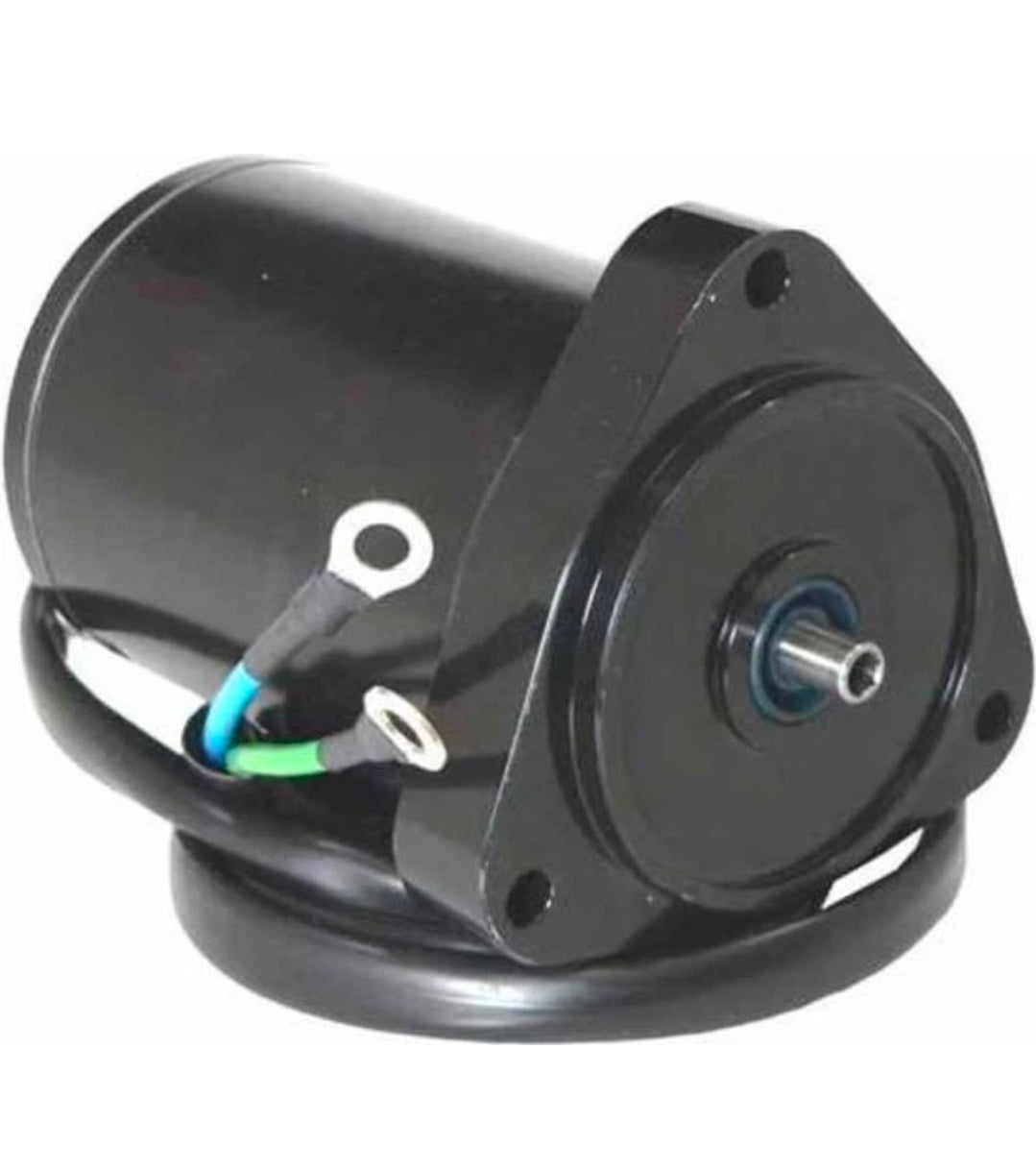

38100-87D10-0ED Aftermarket Suzuki Trim Motor | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement Suzuki DT90-DT225 Two-Stroke Trim Motor - Replaces Part Number: 38100-87D10-0ED

New aftermarket reversible trim motor replacing Suzuki 38100-87D10-0ED. It is supplied as the motor-only replacement for the matching power trim and tilt unit.

⚙️ Key Features

• 12-volt reversible motor

• Marine two-wire construction

• Direct replacement mounting flange and drive tang

• Motor-only replacement

• Cross-brand OMC/Mercury references included where verified

🧰 Kit / Assembly Contents

• 1 × Complete trim/tilt motor - P/N 38100-87D10-0ED

• 1 × Integrated electrical leads

• Motor mounting O-ring - supplied according to manufacturer package

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 38100-87D10-0ED (Suzuki OEM reference)

OEM / Related Numbers:

• 38100-87D10-01T

• 38100-87D10-35J

• 38100-87E10-0ED

• 38100-87E20-0ED

• 38100-92E00-0ED

Aftermarket / Verified Equivalents:

• Sierra 18-6785 / 18-6786

• Mercury 8M6007548

• Protorque PH200-T024

🚤 Compatibility

Commonly used on:

• Suzuki and documented cross-brand outboard power trim systems

Typically suits:

• Engine / Drive models:

• DT90 1991-1997

• DT100 1991-2000

• DT150 1991-2003

• DT175 1991-1992

• DT200 and DT225 1991-2003

• HP / Drive Range: 90HP - 225HP

• System Type: Outboard electric-hydraulic power trim motor

• Year Range: 1991 - 2003

• Serial / Component Identification: The supplied Bombardier/MerCruiser wording was corrected to the verified Suzuki/OMC/Mercury cross-reference family.

🔌 Function

The reversible 12-volt trim motor drives the hydraulic pump in both directions so the outboard or sterndrive can be raised, lowered and trimmed under load.

Common signs of failure / service requirement:

• Trim does not operate in either direction

• Motor clicks or turns slowly

• Operation becomes intermittent as the motor heats

• Excessive current draw or blown fuse

• Water intrusion, corrosion or worn brushes

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
