3817473 Propeller | Genuine Volvo Penta Part

🔧 Product Description

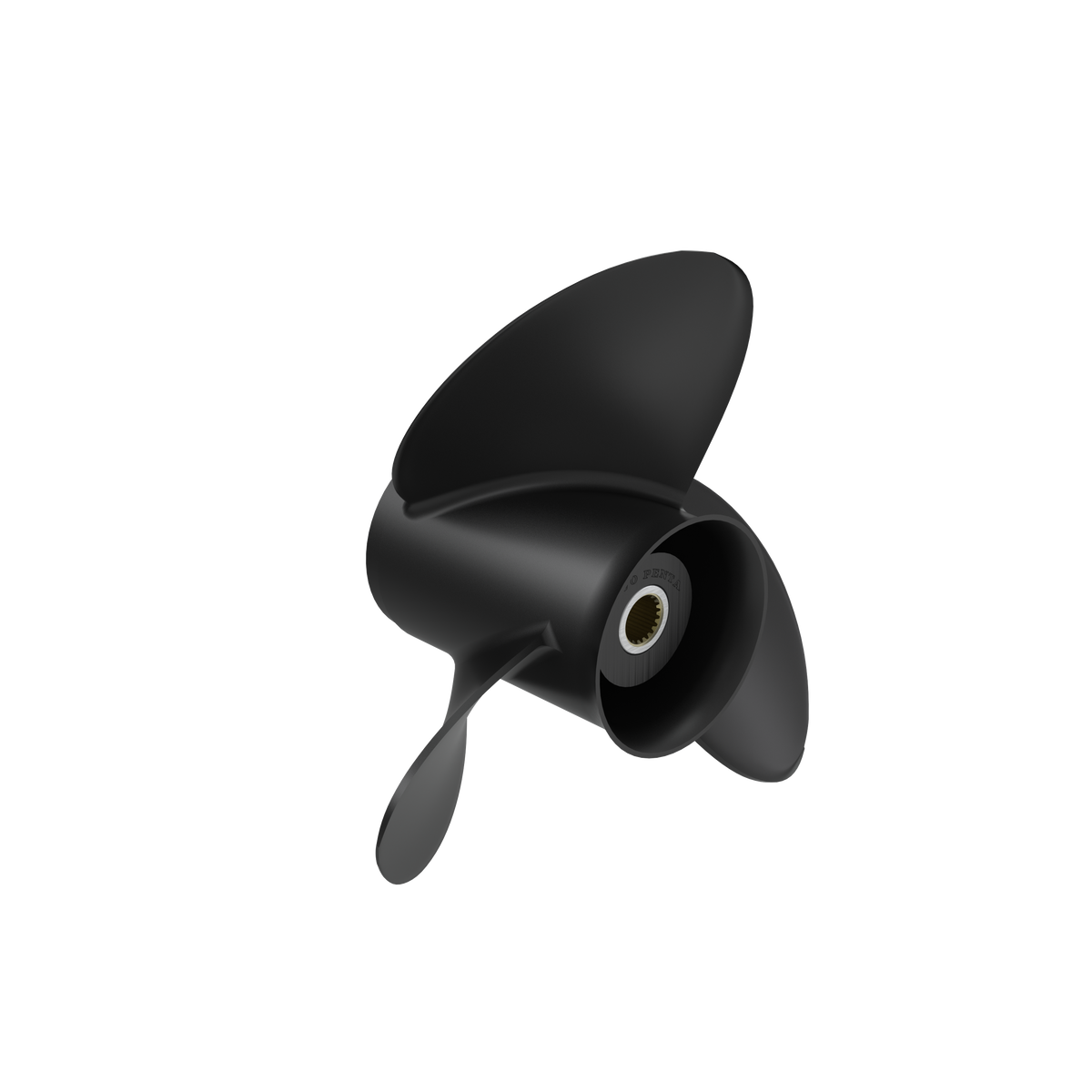

Genuine Volvo Penta three-blade aluminium single propeller for SX Aquamatic sterndrives. With its wide and efficient blade design this propeller offers excellent acceleration and top speed. The state-of-the-art squeeze casting process together with a special high strength aluminium alloy makes it stronger and more durable than traditional die-cast propellers, and four layers of paint ensure excellent anti-corrosion performance. This propeller is the 14.5 x 19 size, left hand rotation.

🚤 Compatibility

• Engine Family: D, V, SX
• HP Range: 130-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Left hand rotation, front position
• 14.5 inch diameter by 19 inch pitch
• Three-blade squeeze-cast aluminium with four layers of paint
• Shock-absorbing rubber bushing in the hub
• 4.695 kg
• Fits Volvo Penta SX drives
• Left-hand rotation.
• Strong and durable high-performance 3-blade aluminium propeller.
• Wide and efficient blade design providing excellent acceleration and top speed.
• Four layers of paint ensure excellent anti-corrosion performance.
• Material: aluminium
• Dimensions: 14.5 in diameter x 19 in pitch (folder prints '14.5 x 19')
• Fits: SX Aquamatic sterndrives

🔌 Function

Converts engine torque into thrust, with diameter and pitch setting the load the engine sees at full throttle.

⚠️ Common Signs of Failure

• Vibration or a thumping felt through the hull at speed
• Blade edges chipped, curled or bent
• Engine over-revving or falling short of its rated revs
• Hub slipping, so revs rise without the boat gaining speed
• Corrosion pitting and lost paint on the blade faces

🛠️ Service Notes

• The right hand propeller at this same 14.5 by 19 size is 3817468, but it is published 748 grams heavier for identical blade dimensions, so the weights in this group cannot be trusted to identify a propeller
• This is the highest pitch offered left hand in this group; 21 and 23 inch pitch appear right hand only
• Renew the propeller nut hardware and check the shaft splines and thrust washer while the propeller is off
• Installation hardware for the 3 and 4-blade propellers for the SX drive: split pin 3852056, propeller nut 3850984, spacer 3852350 and thrust washer 3852020.
• Precise balancing gives minimal vibrations, quiet and comfortable operation, and is essential for efficiency and for minimizing wear on the drivetrain.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3817473 → Supersedes 3855481

OEM / Related Numbers

• 3855481 earlier number superseded by this part

Aftermarket / Verified Equivalents

• Solas: 8612-145-19

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 5.7GXi-320-R, 5.7GXiE-320-R, 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-J, 5.7GXiC-JF, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GXi-J, 5.7GXi-JF, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-P, 5.7GXi-P, 5.7OSi-300-J, 5.7OSi-300-JF, 5.7OSXi-J, 5.7OSXi-JF, 5.7Gi-300-J, 5.7Gi-300-JF, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiE-300-P, 5.7Gi-300-P, 5.7Gi-300-R, 5.7GiE-300-R, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GiC-300-JF, 5.7GiC-300-P, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 4.3OSi-J, 4.3OSi-JF, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GiC-J, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiC-JF, 5.0GXiCE-M, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXi-J, 5.0GXi-JF, 5.0GXiE-K, 5.0GL-J, 5.0GL-JF, 5.0GXi-270-R, 5.0GXiE-270-R, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiC-J, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-P, 4.3Gi-200-R, 4.3GI-Q, 4.3GL-J, 4.3GL-JF, 4.3GL-P, 4.3GXi-225-R, 4.3GXiE-225-R, 4.3GXiE-M, 4.3GXi-P, 4.3GXiE-P, 4.3GXi-Q, 4.3GXiE-Q, 4.3GXi-J, 4.3GXi-JF, 3.0GLP-J, 3.0GLP-N, 3.0GXiC-J, 3.0GXi-J, 4.3Gi-200-S, 4.3GXi-225-S, 4.3GXiE-225-S
• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-300-C-N, V8-300-CE-N, V8-270-C-B, V8-270-CE-B, V8-300-A, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-A, V8-320-E-A, V8-320-B, V8-320-E-B, V8-320-C-A, V8-320-CE-A, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-300-C-K, V8-300-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-A, V8-270-E-A, V8-270-B, V8-270-E-B, V8-270-C-A, V8-270-CE-A, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-200-A, V6-225-A, V6-225-E-A, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta D3-130I-C, D3-130A-C, D3-160A-C, D3-140A-G, D3-170A-G, D3-140I-G, D3-190A-C, D3-170I-G, D3-160I-C, D3-190I-C, D3-140A-H, D3-170A-H, D3-140I-H
• Volvo Penta SX-D, SX-A, SX-M, SX-M1, SX-MTD, SX-MTD3
