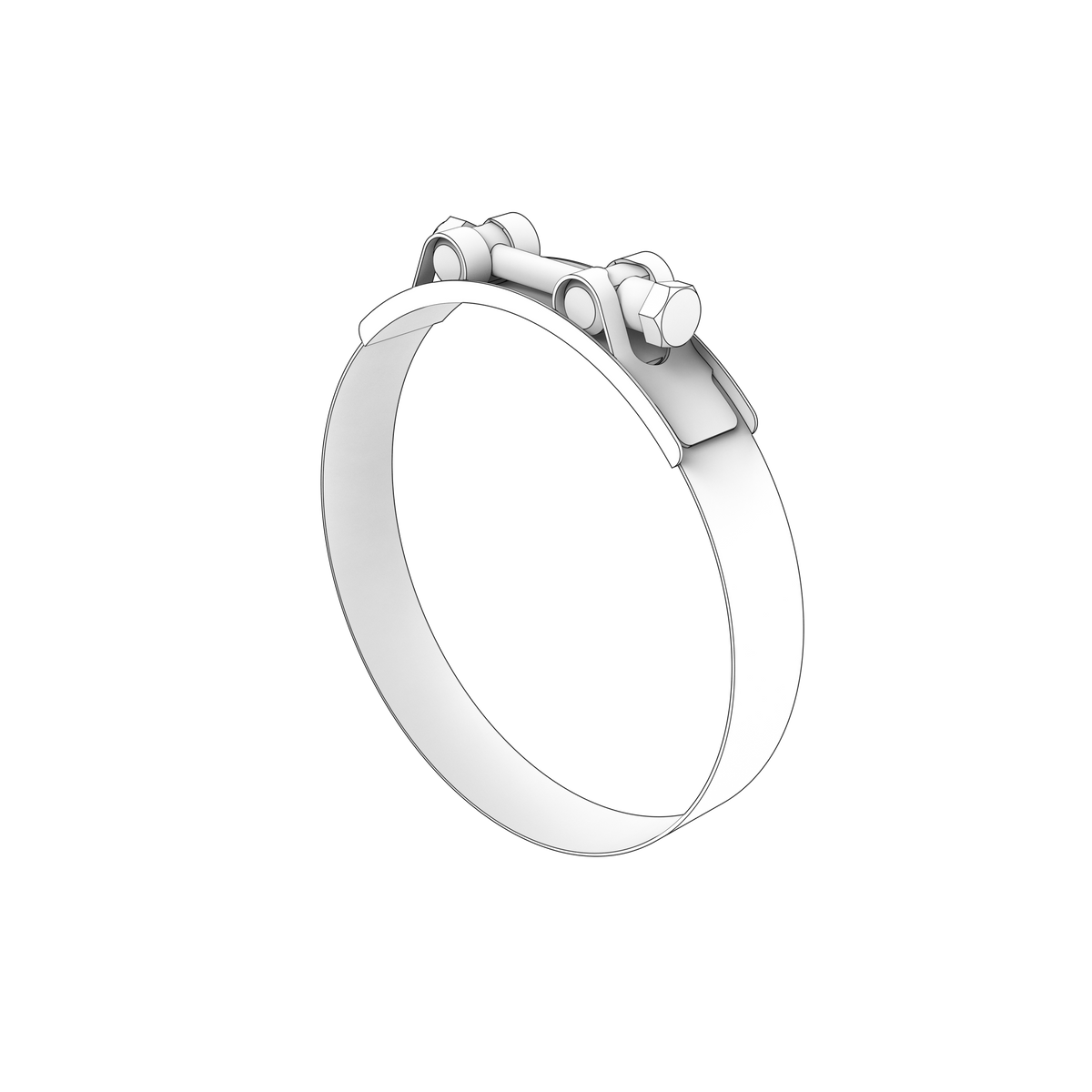

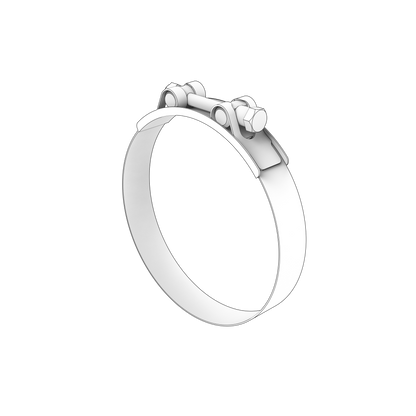

3817828 Hose Clamp | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta stainless steel hose clip, listed in the exhaust section as the recommended clip for rubber exhaust hose 1140669 - the 127 mm internal diameter, 140 mm external diameter size with a 760 mm minimum bend radius. It weighs 0.240 kg, covers 33 applications across the D and IPS ranges and supersedes 3842223. The exhaust pages file this number under the rubber exhaust hose heading, but what it supplies is the clip, not the hose.

🚤 Compatibility

• Engine Family: D, IPS
• HP Range: 260-435 HP

Full model list at the end of this description.

⚙️ Key Features

• Recommended stainless steel clip for exhaust hose 1140669
• Suits the 127 mm internal, 140 mm external diameter hose
• 0.240 kg
• Supersedes 3842223
• 33 applications across the D and IPS ranges
• Fits: Rubber exhaust hose 1140669 (127 mm internal diameter)

🔌 Function

Clamps the wet exhaust hose down onto its spigot so the joint stays gas-tight and water-tight against the pressure and heat of the exhaust run.

⚠️ Common Signs of Failure

• Water or soot weeping at a hose end
• Clip band stretched, distorted or slack
• Screw thread or drive head corroded and seized
• Band cutting into the hose wall
• Rust streaks running down from the clip

🛠️ Service Notes

• Order by the hose the clip is listed against - 3595350 is the clip for the 152 mm hose 1140672 and 21609813 the clip for the 205 mm hose 1140673
• Renew the clips whenever the exhaust hose is disturbed, as a reused clip rarely pulls back to the same clamping force
• Set the clips clear of the hose bead and retighten after the first warm-up

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3817828 → Supersedes 3842223

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330D-E, D6-370D-E, D6-330D-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370D-F, D6-300D-F, D6-310D-D, D6-310D-C, D6-310D-E, D6-435D-D, D6-435D-E, D6-435D-F, D6-435D-C
• Volvo Penta D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F
• Volvo Penta IPS-A, IPS-B, IPS-C, IPS-D, IPS-E, IPS-F
• Volvo Penta 8.1IPSCE-MF, 8.1IPSCE-P, 8.1IPSCE-Q
