3819218 Volvo Bracket 3850266 Volvo Anchor | Genuine Used Part

🔧 Product Description

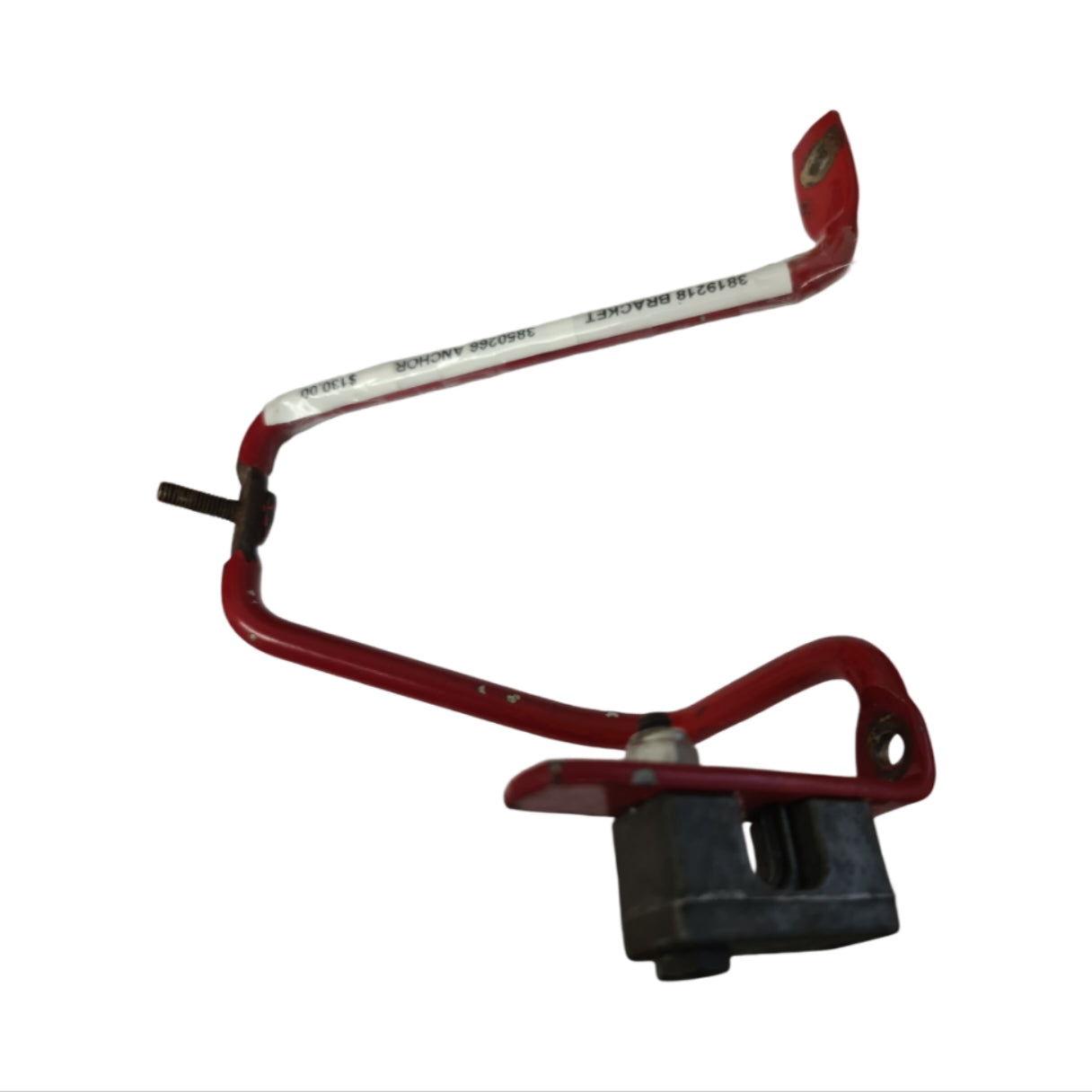

Genuine Volvo Penta Throttle-Body and Throttle-Cable Bracket with Anchor - Part Numbers: 3819218 and 3850266

A genuine used Volvo Penta throttle-body linkage bracket supplied with throttle-cable anchor 3850266 for selected GM-based fuel-injected petrol engines.

Bracket 3819218 mounts to the throttle-body assembly and supports the throttle linkage and cable connection. Anchor 3850266 secures the outer throttle-cable casing so movement of the control cable is transferred accurately to the throttle lever. Volvo Penta diagrams show both parts within the same throttle-body and cable-connection assembly.

⚙️ Key Features

• Genuine Volvo Penta throttle-body bracket
• Includes or is associated with throttle-cable anchor 3850266
• Maintains correct cable and throttle-lever geometry
• Used on selected EFI petrol marine engines
• Exact bracket and anchor configuration should be matched to the original assembly

🚤 Compatibility

Commonly used on

• Volvo Penta electronic-fuel-injection throttle bodies
• Mechanical throttle-cable connections
• GM-based V8 petrol sterndrive and inboard engines

Documented applications include selected

• Volvo Penta 5.7Gi series
• Volvo Penta 5.7GXi series
• Volvo Penta 5.7OSi series
• Volvo Penta 5.7OSXi series
• Volvo Penta 8.1GXi throttle-cable assemblies using anchor 3850266
• Engines whose throttle-body diagram specifies bracket 3819218
• Engine Type: GM-based V8 petrol marine engine
• Displacement Range: Primarily 5.7L, with related anchor use on selected 8.1L engines
• Year Range: Model and serial-number controlled

🔌 Function

The bracket and anchor hold the throttle cable at a fixed position relative to the throttle body. This converts cable movement into controlled throttle-blade movement without excessive flex or lost travel.

⚠️ Common Signs of Failure

• Throttle cable moves but the throttle lever does not travel fully
• Bracket is bent or cracked
• Cable anchor is loose or missing
• Engine cannot reach full throttle
• Idle speed changes when the cable is moved
• Excessive free play is present at the control lever
• Cable alignment causes binding
• Mounting threads or cable-retaining hardware are damaged

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3819218 current documented throttle-body bracket reference
• 3850266 earlier Volvo Penta / OMC throttle-cable anchor reference
• Volvo Penta states that 3850266 has replacement parts, which must be selected by application

OEM / Related Numbers

• 3819218 - throttle-body linkage bracket
• 3850266 - throttle-cable anchor
• 3858973 - bracket bolt
• 3852193 - washer
• 981124 - flange nut
• 3852118 - nut
• 3852019 - cable retainer
• 3850941 - cable adapter
• 3852052 - split pin
• 3861759 - flame shield on applicable engines

Aftermarket / Verified Equivalents

• OMC / Evinrude Johnson: 3850266 throttle-cable anchor
• Used Volvo Penta / OMC throttle-linkage assemblies incorporating 3850266
• No verified aftermarket replacement for bracket 3819218

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
