3827444 Aftermarket Volvo Penta Starter Motor | Sawley's Select Marine Parts

🔧 Product Description

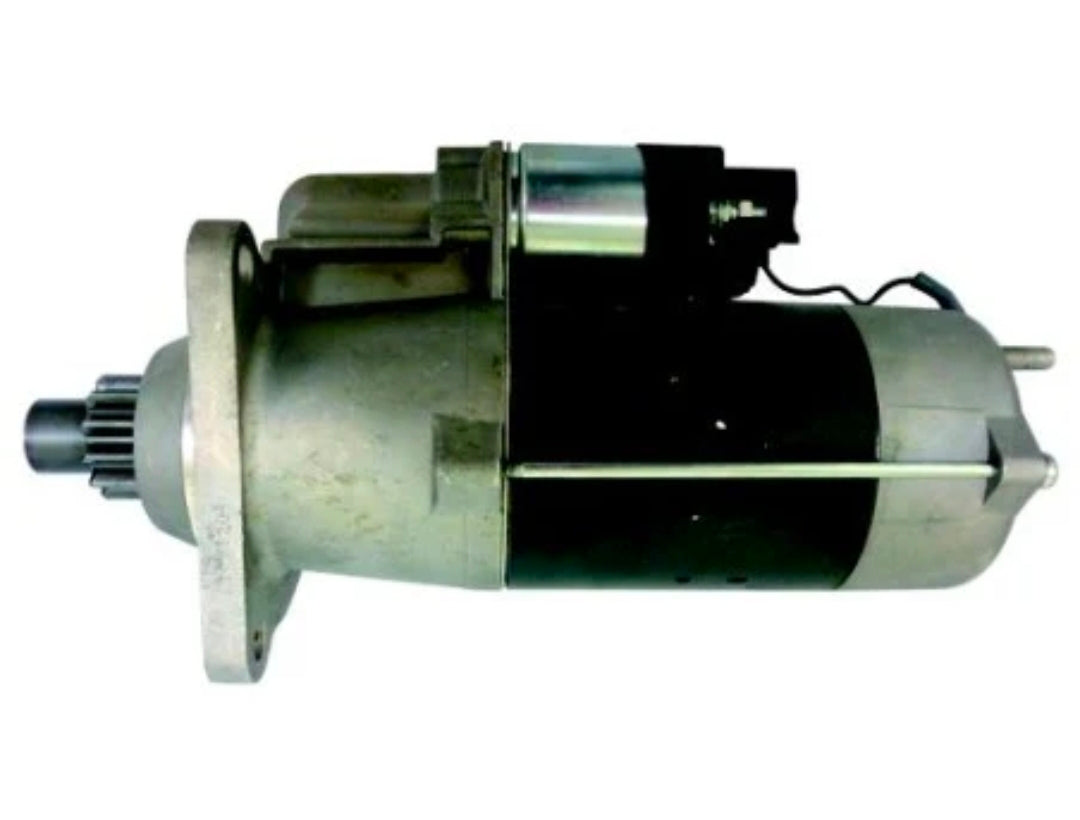

Aftermarket replacement Volvo Penta D12 Heavy-Duty Starter Motor - Replaces Part Number: 3827444

New aftermarket heavy-duty starter replacing Volvo Penta 3827444 for D12-series marine diesels. The 24-volt planetary gear-reduction assembly is rated at approximately 6.0kW and uses a 12-tooth clockwise pinion.

⚙️ Key Features

• 24-volt electrical system

• Approximately 6.0kW rated output

• Clockwise rotation viewed from the drive end

• 12-tooth pinion

• Heavy-duty planetary gear-reduction construction

• Complete new starter motor with integrated solenoid

• Marine or engine-grade corrosion-resistant construction

• Direct replacement only after voltage, rotation, tooth count and mounting pattern are confirmed

🧰 Kit / Assembly Contents

• 1 × Complete starter motor assembly - P/N 3827444

• 1 × Integrated starter solenoid and shift mechanism

• 1 × Installed pinion gear and overrunning clutch/Bendix assembly

• 1 × Installed armature, field-magnet/winding, brush holder and drive housing

• Mounting bolts, electrical cables and external relays are transferred or renewed separately unless supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 874385 → Supersedes 3827444, 3803583 and 874350

OEM / Related Numbers:

• 3827444

• 3803583

• 874350

• 874385

• 3586798

• 3595446

• 21103718

• Bosch 0001330004

• Mitsubishi M009T82179

• M009T82179ZC

Aftermarket / Verified Equivalents:

• Recmar: REC3827444

• Aftermarket 24V 6kW Volvo D12 starter

🚤 Compatibility

Commonly used on:

• Volvo Penta D12 marine diesel starting systems

Typically suits:

• Engine / Generator models:

• D12C-A MP

• D12D-A MG

• D12D-A MH

• D12-650, D12-675, D12-715 and D12-800 applications using this starter family

• HP / Output Range: Approximately 650HP - 800HP on documented marine ratings

• Year Range: Engine-serial dependent

• Starter Identification: Confirm 24V, 12 teeth and the heavy-duty D12 mounting nose.

🔌 Function

The starter motor converts battery electrical energy into high-torque mechanical rotation to crank the engine. When the start circuit energises the solenoid, the pinion moves into the flywheel ring gear and the motor turns the crankshaft until the engine starts. The overrunning clutch then protects the starter as engine speed rises.

Common signs of failure / incorrect starter fitment:

• No-crank condition even though the battery and start-control circuit test correctly

• Solenoid clicks but the starter motor does not rotate

• Starter turns slowly, draws excessive current or overheats the battery cables

• Pinion spins without engaging the flywheel ring gear

• Grinding, clashing or repeated pinion kick-out during cranking

• Intermittent cranking caused by worn brushes, solenoid contacts or heat soak

• Corrosion, water intrusion, burnt windings or excessive shaft/bearing play

📦 Condition

• New aftermarket replacement starter motor

• Brand new

• Supplied in original or equivalent packaging
