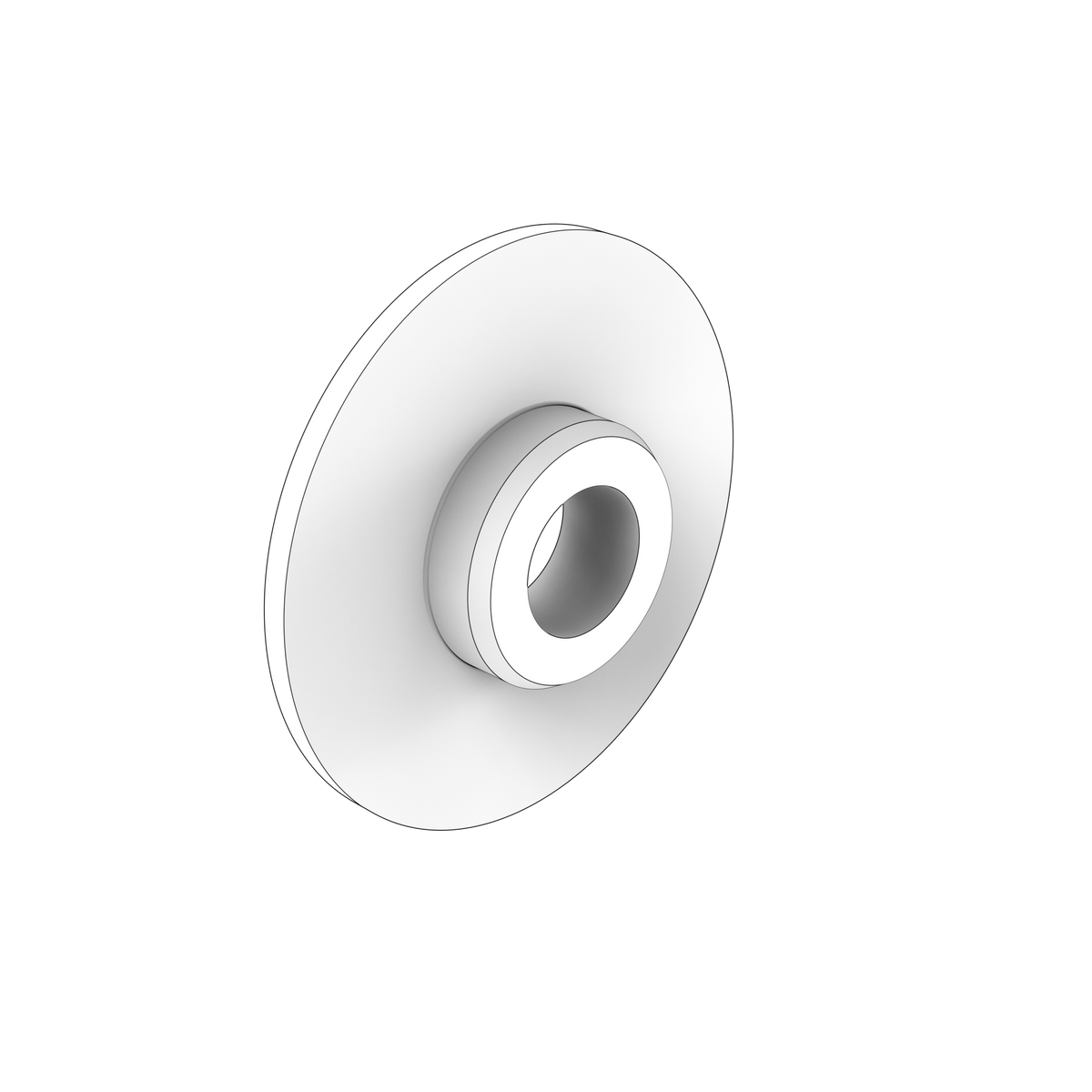

3829680 Bushing | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta bushing from the Engine Controls group, weighing 0.023 kg and listed for 35 applications across D and V series engines. It supersedes part number 3825618.

🚤 Compatibility

• Engine Family: D, V
• HP Range: 175-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Supersedes 3825618
• 0.023 kg
• 35 applications across D and V series engines

🔌 Function

Forms a low-friction pivot in a control linkage, holding the lever accurately located so throttle or shift movement translates without lost motion.

⚠️ Common Signs of Failure

• Slack or lost motion at the control lever before anything moves
• Stiff, notchy or sticking control travel
• Bore worn oval, or the flange cracked and split
• Squeaking or knocking from the linkage as the control is worked
• Matching wear step on the pivot pin

🛠️ Service Notes

• Washer 3829681 is listed for the same 35 applications and sits in the same joint — renew the pair together
• Check the pivot pin for a wear step before condemning the bushing on its own, as a stepped pin will chew a new bushing quickly

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3829680 → Supersedes 3825618

OEM / Related Numbers

• 3825618 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G
• Volvo Penta D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G
• Volvo Penta V6-200-CE-P, V6-250-CE-P, V6-280-CE-P, V6-250-CE-R, V6-280-CE-R
• Volvo Penta V8-300-CE-P, V8-350-CE-P, V8-380-CE-P, V8-430-CE-P
