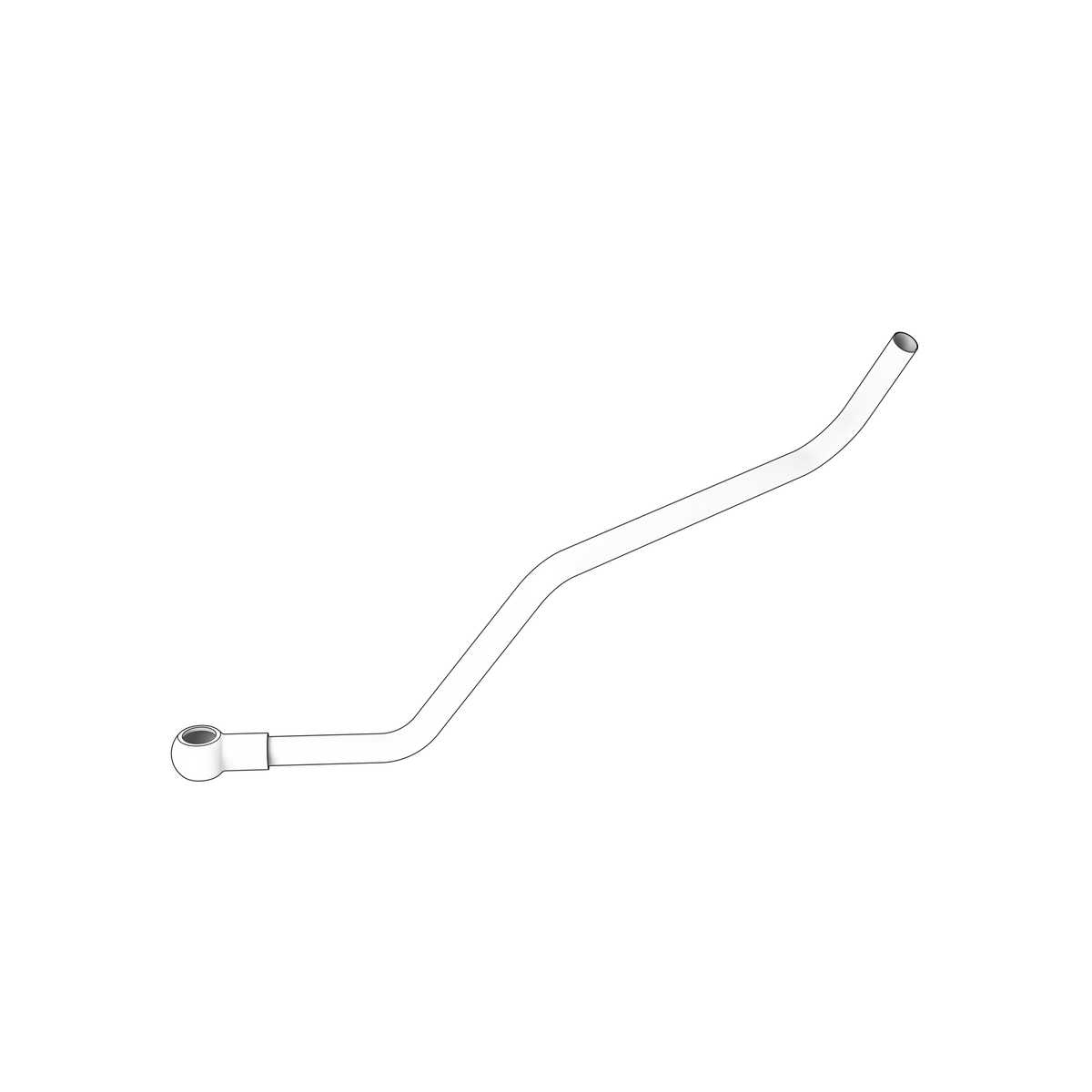

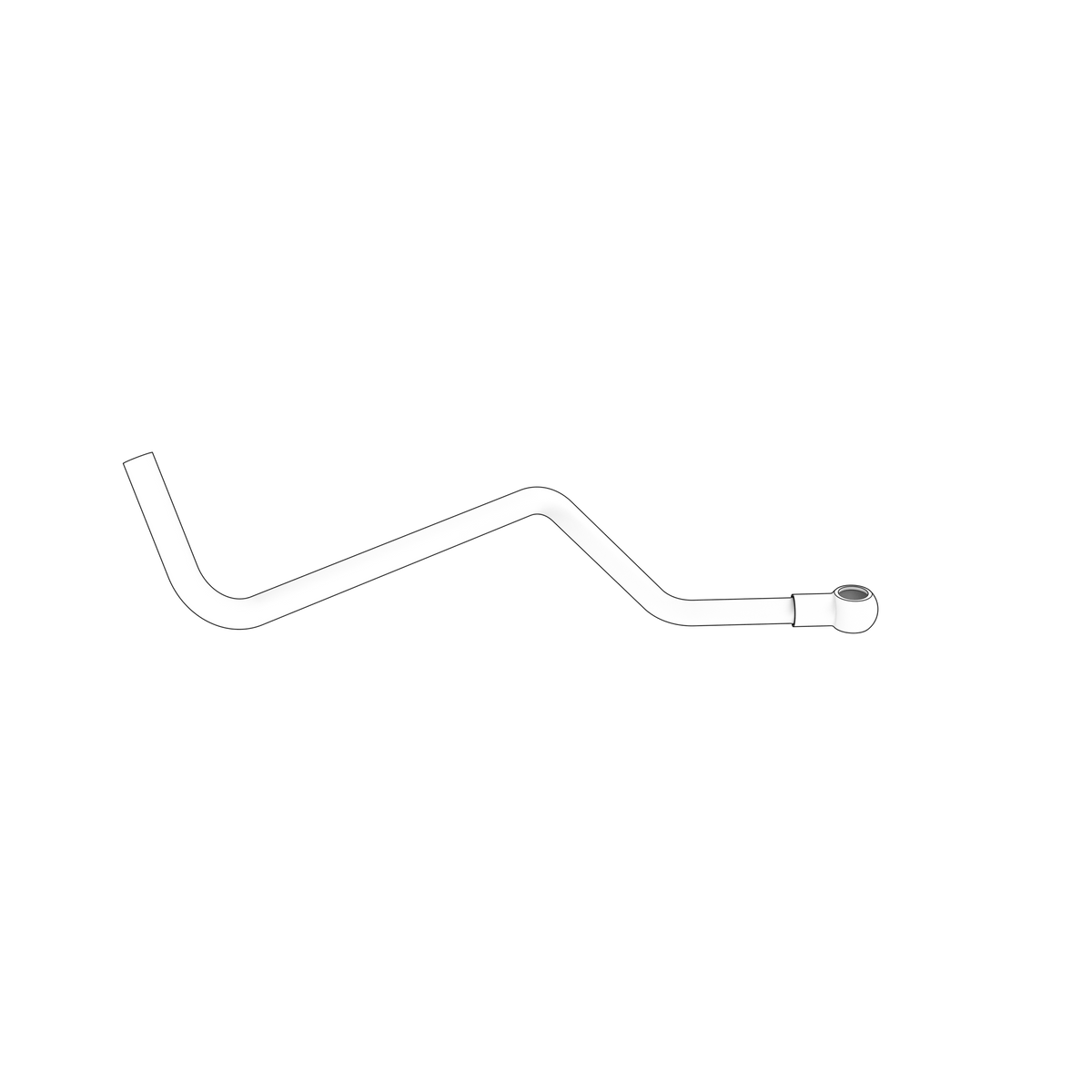

3829687 Tube | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta tube for the hydraulic starter installation, from the Lubricating and Oil System group, weighing 5.897 kg and listed for a single TAMD series application. It is fitted with 1 pc tube 3830358, 2 pcs spacer sleeve 820916, 1 pc screw 965187 and 1 pc flange screw 969313.

🚤 Compatibility

Typically suits:

• Volvo Penta TAMD74A

• Engine Family: TAMD

⚙️ Key Features

• For the hydraulic starter
• Fitted with 1 pc tube 3830358, 2 pcs spacer sleeve 820916, 1 pc screw 965187 and 1 pc flange screw 969313
• 5.897 kg
• Single TAMD series application

🔌 Function

Carries oil under pressure between the hydraulic starter and the engine's oil system along a fixed, pre-formed route that clears the surrounding hardware.

⚠️ Common Signs of Failure

• Oil weeping or spraying from a joint face or a chafed run
• Tube rubbed thin where it passes a bracket or another component
• Cracking at the ends or at a tight bend
• Oil loss or a pressure drop after the starter is operated
• Loose fixings or distorted flange faces at either end

🛠️ Service Notes

• Order the companion items listed with it — tube 3830358, two spacer sleeves 820916, screw 965187 and flange screw 969313
• Locate the tube on all its supports before final tightening; a tube pulled into position will crack at a bend later
• Flush the circuit through if the old tube split, since debris will have travelled downstream

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
