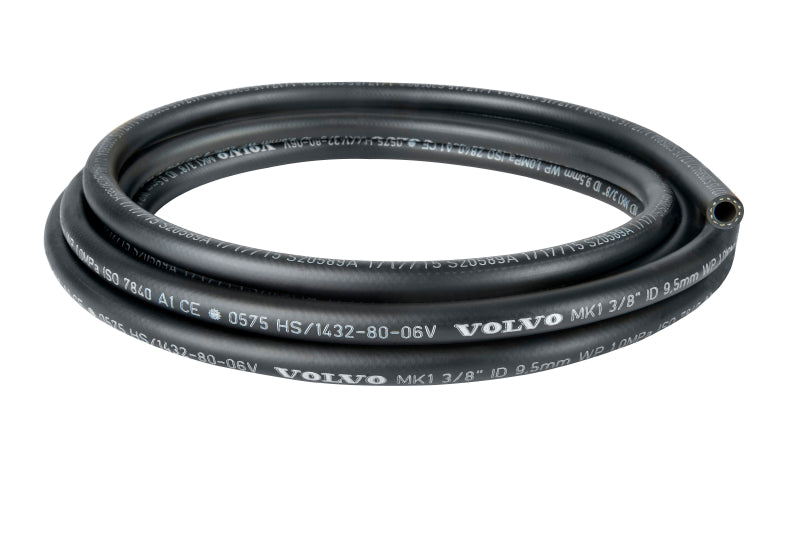

3830315 Hose | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta fuel hose, with a 9.5 mm internal diameter and a 16.5 mm external diameter, weighing 0.272 kg and listed for 58 applications across D, TAD and TWD series engines. This is Volvo Penta's high-specification fuel hose, built with an inner tube of FPM, a middle tube of ECO and a CSM cover, a construction that suits commonly available fuels including diesel, biodiesel, gasoline and ethanol-based fuels, gives very low permeability and withstands temperatures from minus 40 to plus 120 degrees Celsius. It is fire resistant to ISO 7840 and ISO 15540 and 15541, type approved by DNV and MED certified as wheelmarked. Volvo Penta lists the hose sold by the metre; this row is the 980 mm length.

🚤 Compatibility

• Engine Family: D, TAD, TWD
• HP Range: 145-480 HP

Full model list at the end of this description.

⚙️ Key Features

• 9.5 mm internal diameter, 16.5 mm external diameter
• Inner tube of FPM, middle tube of ECO, CSM cover
• Suits diesel, biodiesel, gasoline and ethanol-based fuels, with very low permeability
• Rated from minus 40 to plus 120 degrees Celsius
• Fire resistant to ISO 7840 and ISO 15540 and 15541
• Type approved by DNV and MED certified as wheelmarked
• 0.272 kg
• 58 applications across D, TAD and TWD engines
• 110mm / 300mm / L=820mm / L=980mm (Volvo assembly listing)
• Temperature range -40 degrees C to +120 degrees C
• Type approved by D.N.V. and M.E.D certified (wheelmarked)
• External diameter: 16.5 mm
• Internal diameter: 9.5 mm
• Supply: per metre
• Temperature range: -40 degrees C to +120 degrees C

🔌 Function

Carries fuel along a flexible run, its multi-layer wall handling fuel permeation, heat and the working pressure of the system.

⚠️ Common Signs of Failure

• Diesel smell and staining along the run
• Weeping at either end fitting
• Cover cracked, glazed or swollen
• Chafe wear at supports along the long run
• Air drawn into the system, giving a hunting idle or hard starting

🛠️ Service Notes

• Match all three figures - 980 mm long, 9.5 mm bore and 16.5 mm outside diameter - as the other fuel hose here, 861057, is a different specification at 450 mm
• This is the multi-layer hose rated for ethanol-blended and biodiesel fuels, so do not substitute a plain rubber hose where it is specified
• A long run needs every clip and support refitted, or it will rub through

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-480A-G
• Volvo Penta D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G, D4-175 VG
• Volvo Penta D13C1-B MH, D13C4-B MP, D13C5-B MP, D13C8-B MP
• Volvo Penta D8A2-A MP, D8A1-A MP, D8A3-A MP, D8A4-A MP
• Volvo Penta TAD1640-42GE-B, TAD1640VE-B, TAD1640-42VE-C
• Volvo Penta TAD1650VE-B/51VE, TAD1650GE
• Volvo Penta TWD1683GE-B, TWD1683VE
• Volvo Penta TAD1641VE-B
• Volvo Penta TAD1642VE-B
• Volvo Penta TAD1643VE-B
• Volvo Penta TAD1651GE
• Volvo Penta TAD1660-62VE
• Volvo Penta TAD1662VE EU5
• Volvo Penta TAD1670-72VE
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1652GE
• Volvo Penta TWD1653GE
• Volvo Penta TWD1672-1673GE
• Volvo Penta TWD1682-83GE
• Volvo Penta TWD1744GE
