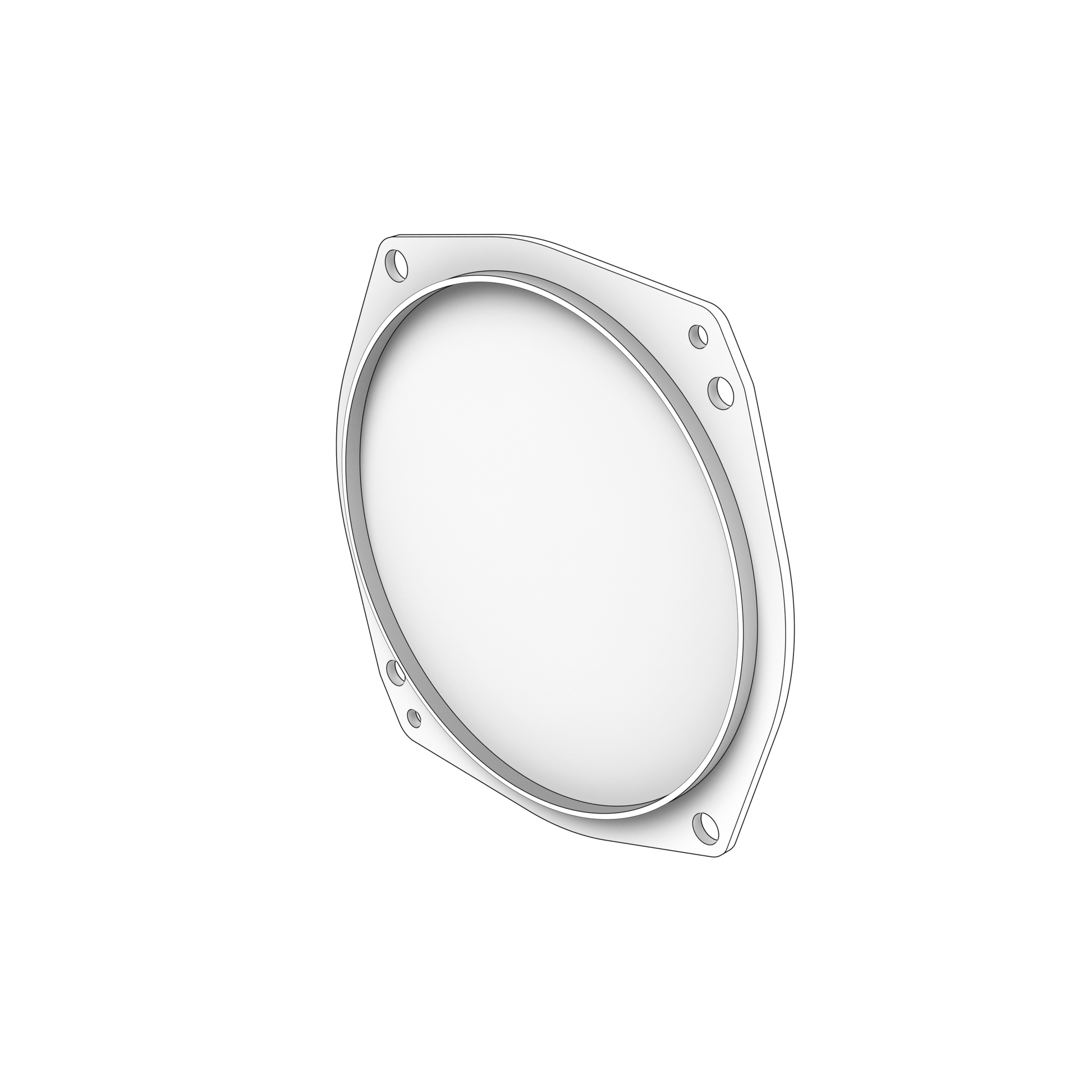

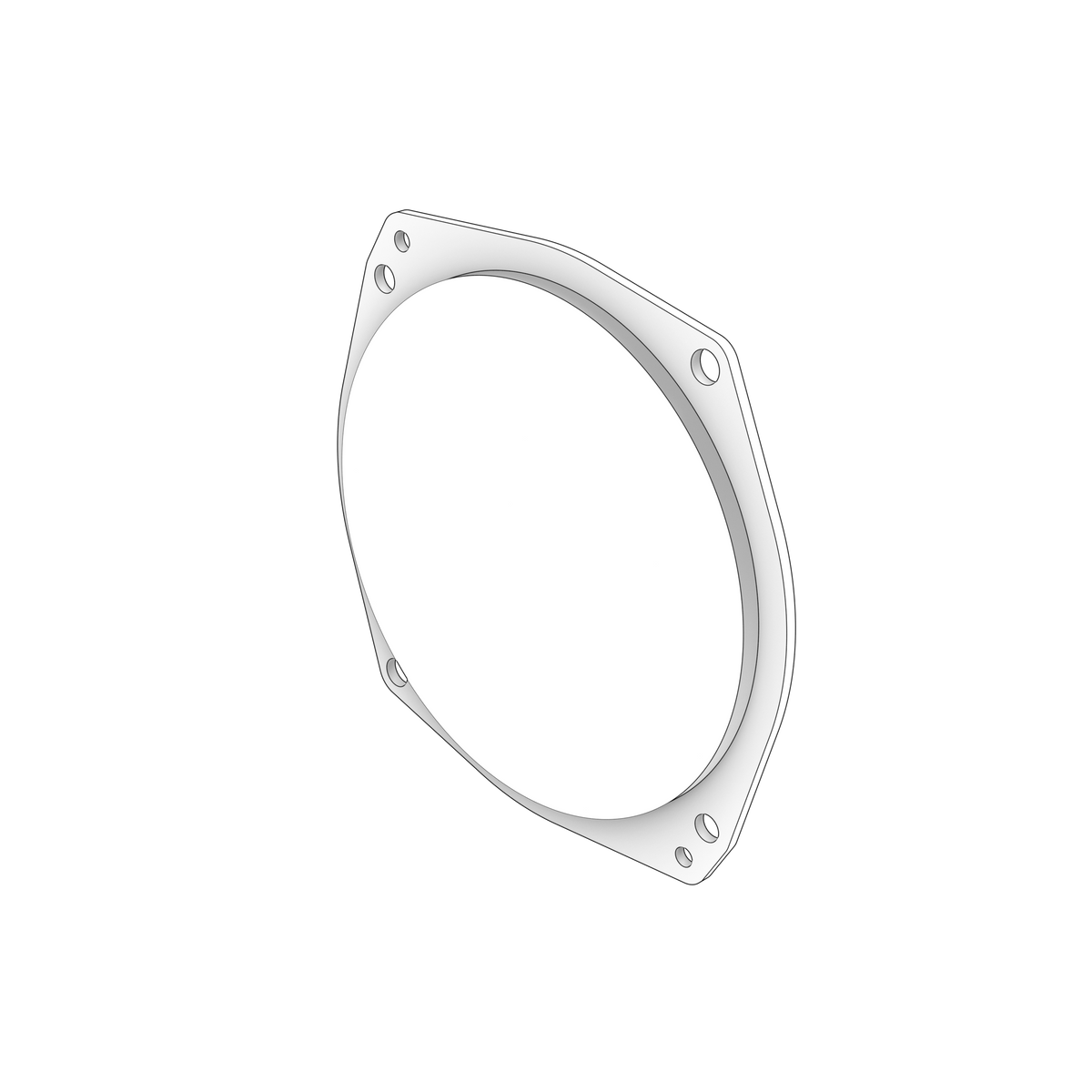

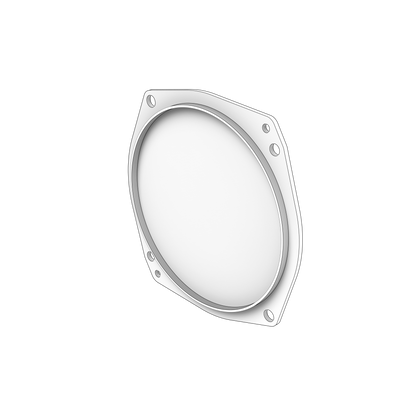

3830696 Insert | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta insert from the Cooling System group, weighing 28.486 kg and listed for 21 applications on D series engines. It is a substantial cooling assembly component, and shares its fitment set with spacer 3830694 and end plate 3830697.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• 28.486 kg
• Cooling System group
• 21 applications on D series engines
• Shares its fitment set with 3830694 and 3830697

🔌 Function

Forms the internal core of the cooling assembly, carrying the flow through the passages where heat is exchanged.

⚠️ Common Signs of Failure

• Cooling performance falling off with temperatures creeping up
• Passages furred, silted or blocked with scale
• Internal leakage showing as oil in coolant or coolant loss
• Corrosion pitting or erosion at the flow entry
• Weeping at the joints between the insert and its housing

🛠️ Service Notes

• At 28.486 kg this needs two people or lifting help to handle safely - support it before releasing the last fixings
• Renew all seals, O-rings and gaskets between the insert, end plate 3830697 and the housing
• Flush the circuit before fitting, or debris from the old core will find the new one

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C-D MH
