38410-93J12 38410-93J11 Suzuki DF60A Power Trim Relay | Genuine Used Part

38410-93J12 38410-93J11 Suzuki DF60A Power Trim Relay | Genuine Used Part

$120.00 AUD
$120.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

🔧 Product Description

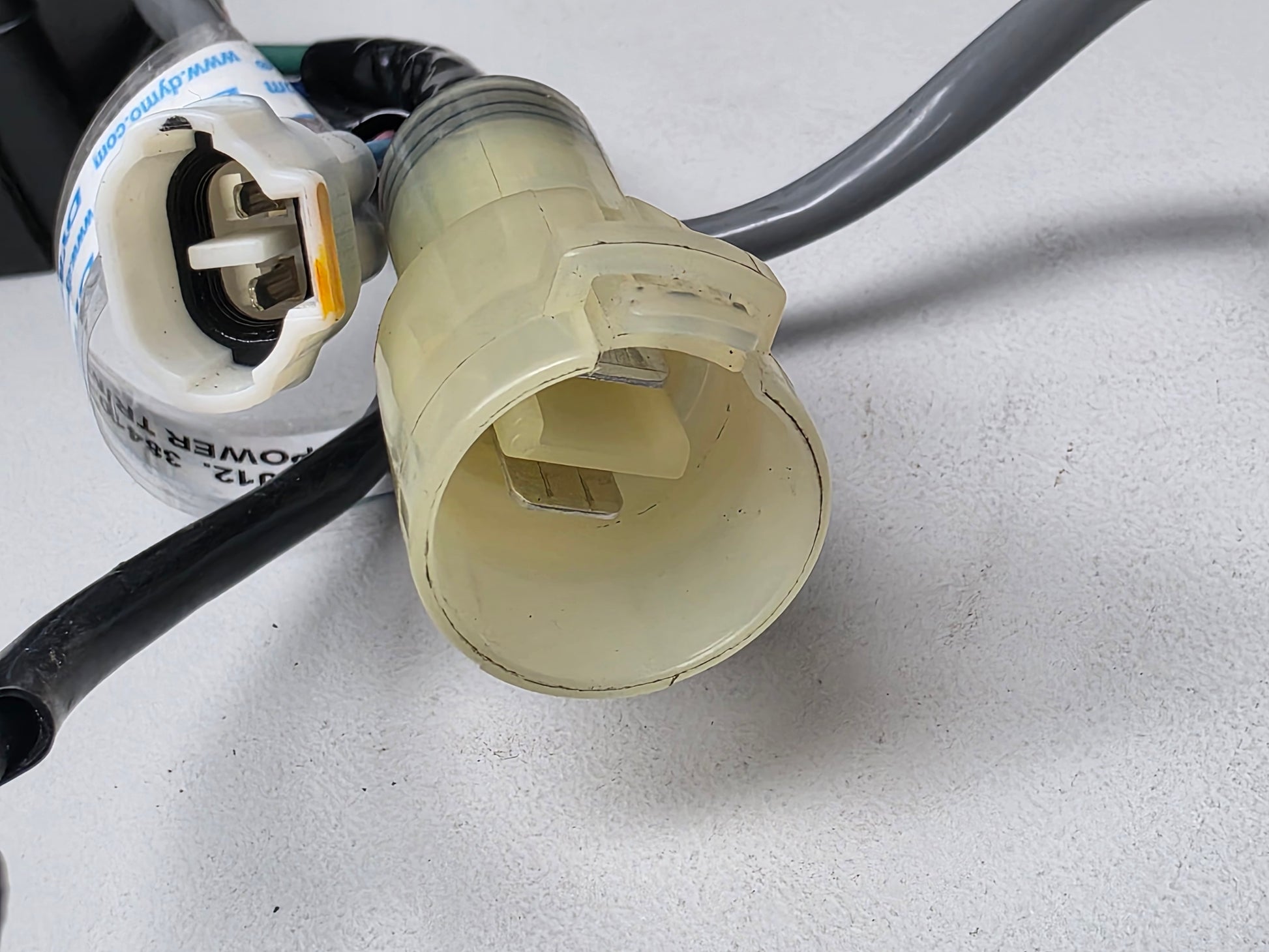

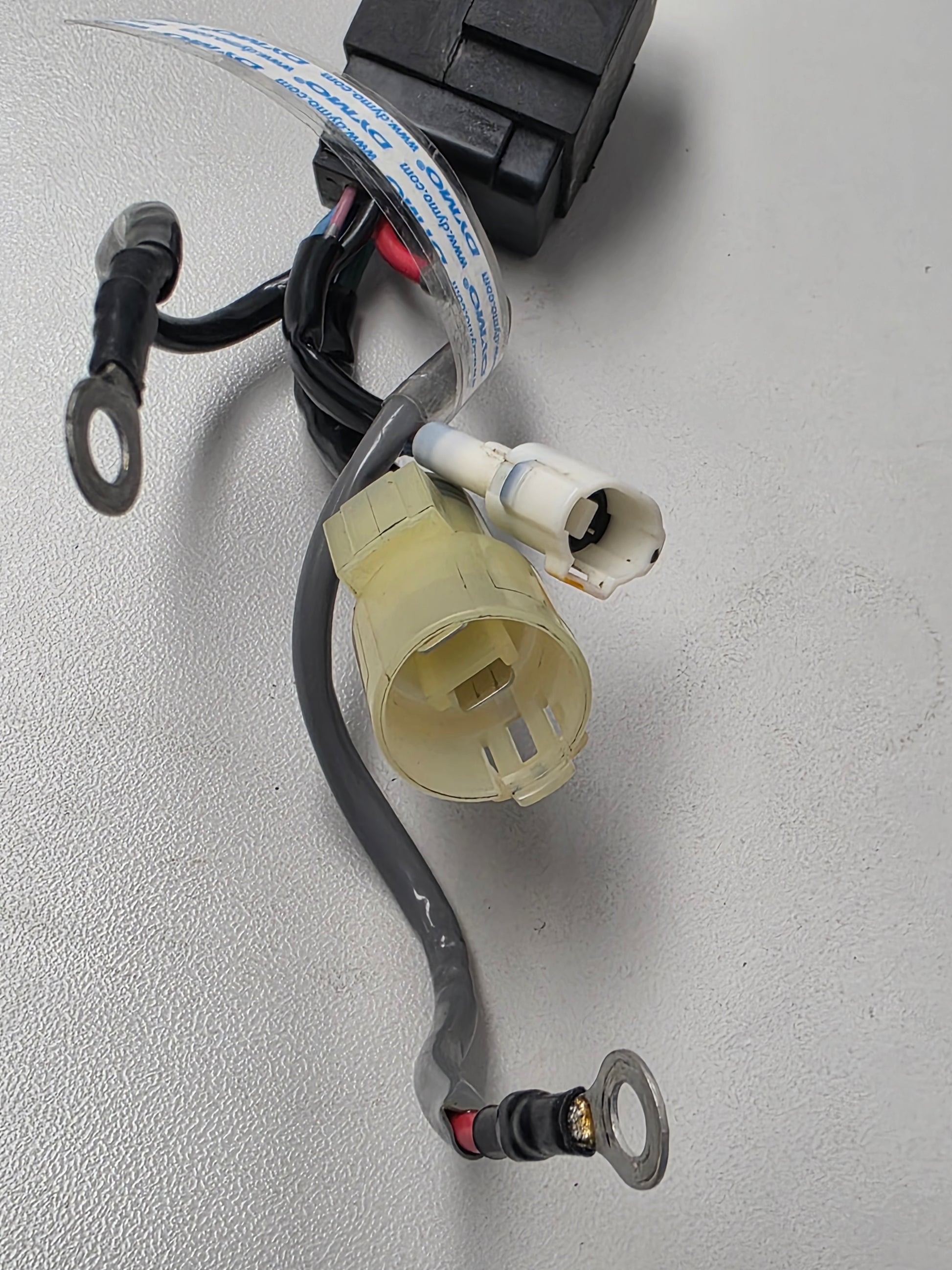

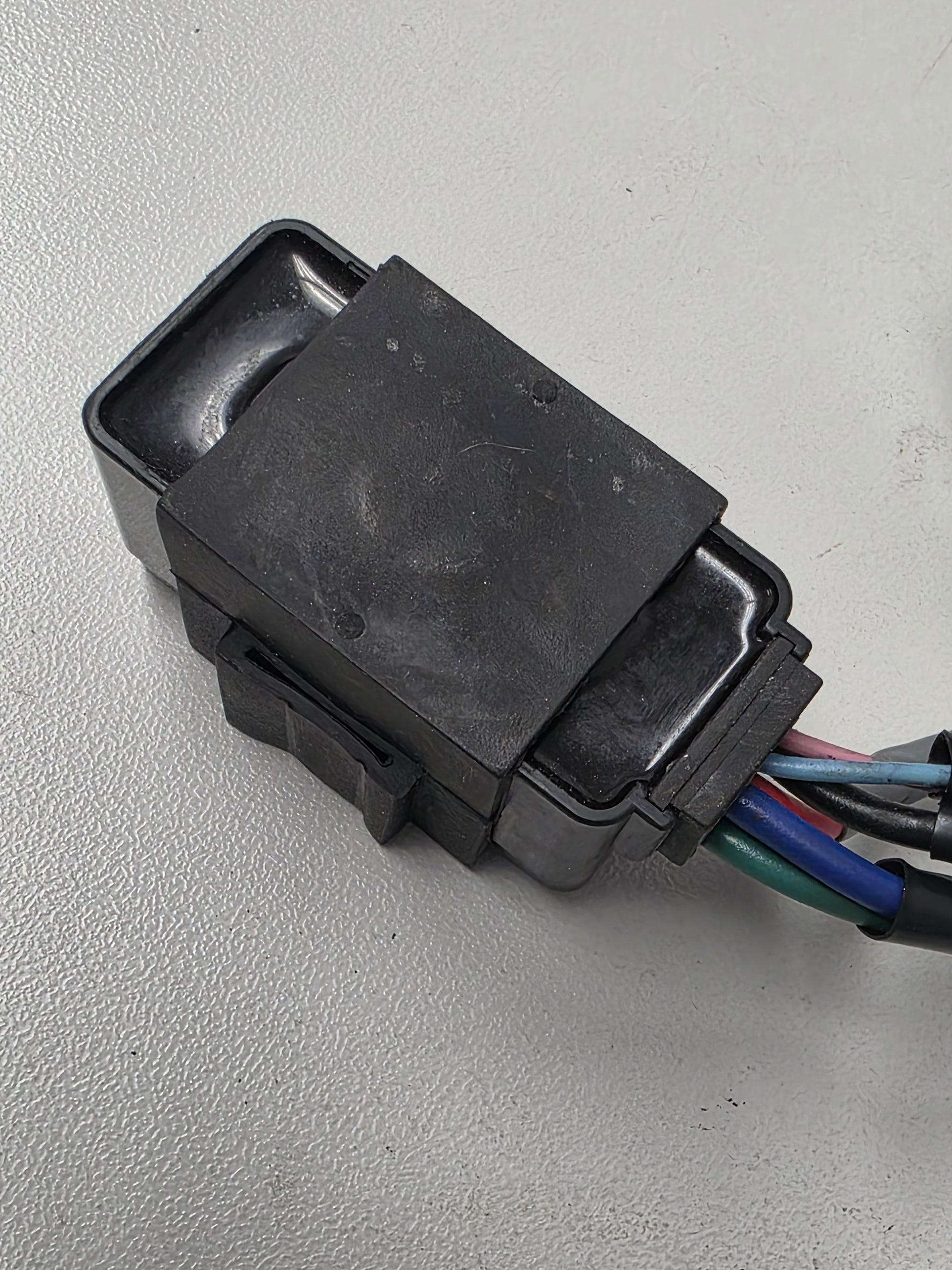

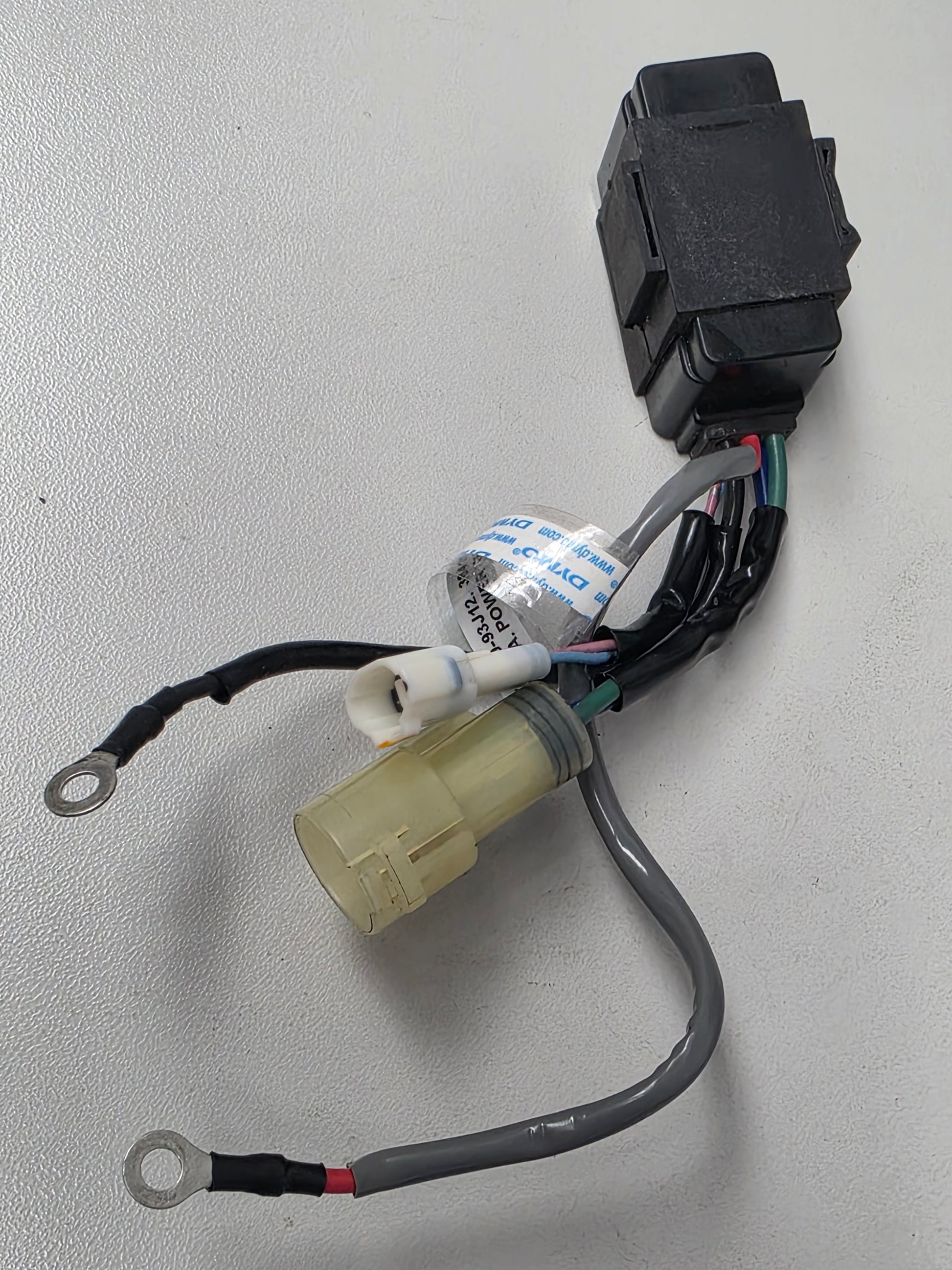

Genuine Suzuki DF40-DF300 Power Trim Relay Assembly - Current Part Number: 38410-93J12

A genuine Suzuki power-trim relay assembly used across a broad range of four-stroke outboards, including the DF40A, DF50A and DF60A. Current number 38410-93J12 replaces 38410-93J11 and earlier 93J relay revisions. The assembly switches high current and reverses polarity to the two-wire trim motor.

⚙️ Key Features

  • Genuine Suzuki OEM trim relay
  • Current part number 38410-93J12
  • Supersedes 38410-93J11
  • Broad DF40-DF300 application family
  • Sealed high-current marine relay assembly

🚤 Compatibility

  • Suzuki DF40 / DF50 and DF40A / DF50A four-strokes
  • Suzuki DF50AV / DF60A / DF60AV families
  • Suzuki DF70A, DF80A, DF90A, DF100, DF115 and DF140 families
  • Suzuki DF150, DF175, DF200, DF225, DF250 and DF300 families where the 93J relay is listed
  • Approximate application era: 2004 onward
  • Exact connector, bracket and wiring diagram must match

🔌 Function

The relay receives low-current trim-switch commands and switches battery current to the trim motor in the correct polarity for up or down movement.

⚠️ Common Signs of Failure

  • Trim works in only one direction
  • Relay clicks without motor operation
  • Relay contacts overheat
  • Connector terminals corrode
  • Trim operates intermittently
  • Relay housing shows heat damage

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 38410-93J12 → Supersedes 38410-93J11
  • Earlier related revisions include 38410-93J10 and 38410-93J00
  • Connector and bracket arrangement should be checked on early engines

OEM / Related Numbers

  • 38410-93J12
  • 38410-93J11
  • 38410-93J10
  • 38410-93J00
  • Related trim motor, fuse, battery cable and engine harness

Aftermarket / Verified Equivalents

  • Recmar REC38410-93J12
  • EMP / Engine Room M9580
  • JLM aftermarket Suzuki trim relay
  • Trexflow and other marine replacements cross-referenced to the 38410-93J family

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
