38410-93J12 Aftermarket Suzuki Power Trim Relay Assembly for 40-300HP Engines | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement Power Trim & Tilt Relay Assembly - Replaces Part Number: 38410-93J12

New aftermarket relay assembly replacing Suzuki 38410-93J12. The module switches power to the trim motor in both directions and supersedes earlier 93J relay revisions.

⚙️ Key Features

• Combined trim UP/DOWN relay module

• Direct replacement for 38410-93J12

• Supersedes 38410-93J10, 38410-93J11 and 38410-93J00

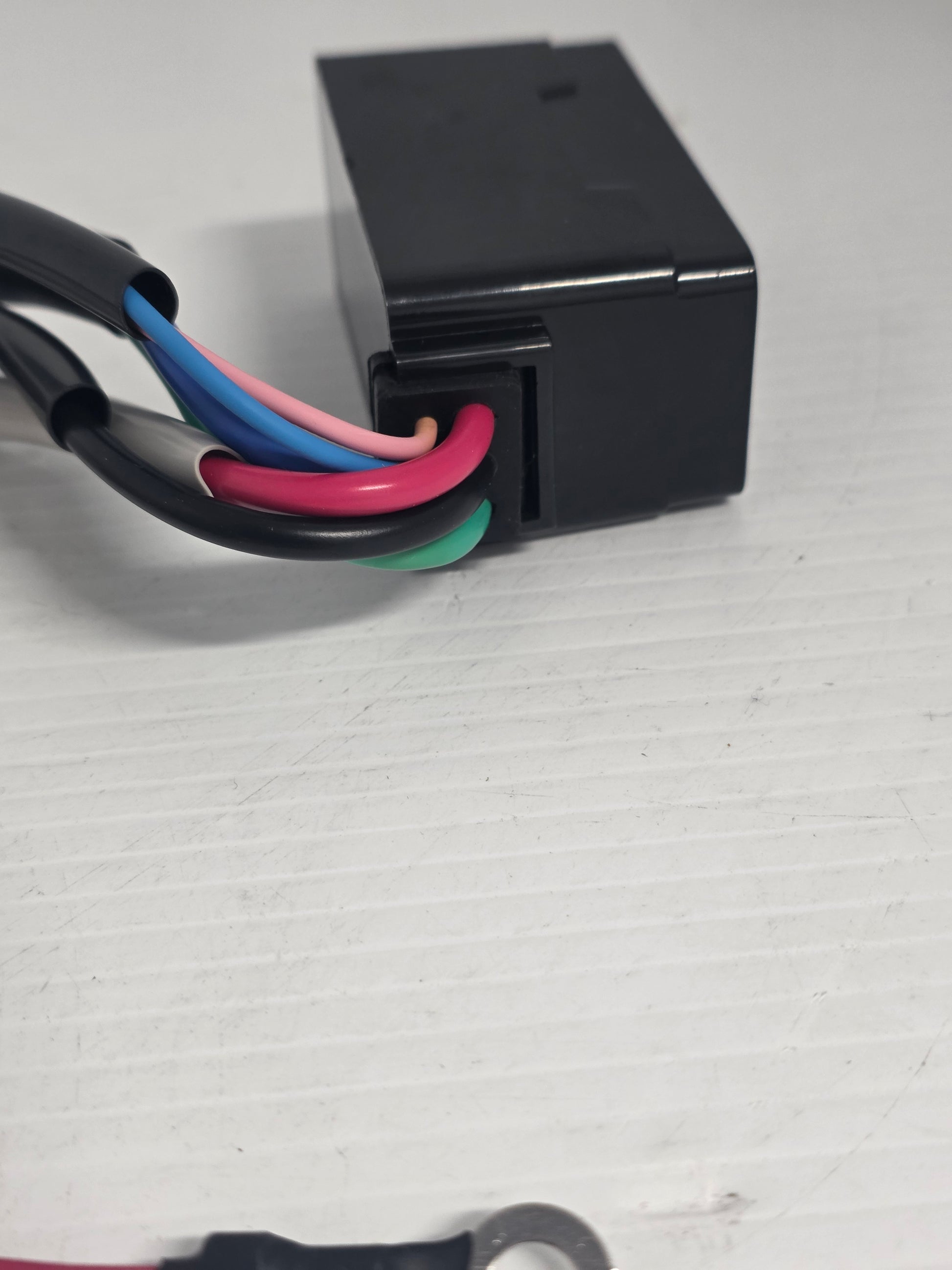

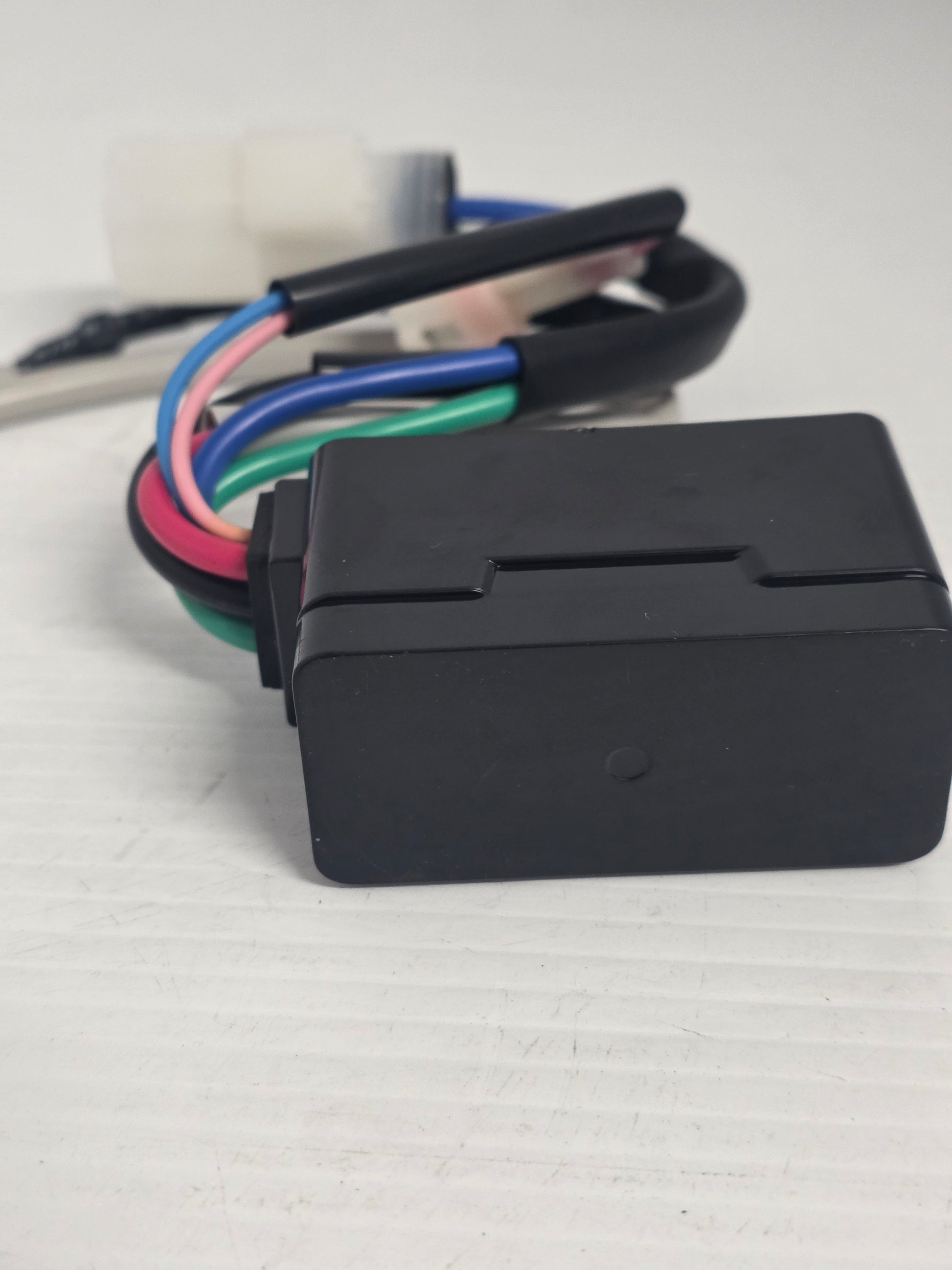

• Sealed marine relay housing and connector

• Supports three-, four- and six-cylinder Suzuki outboards

🧰 Kit / Assembly Contents

• 1 × Complete power trim relay assembly - P/N 38410-93J12

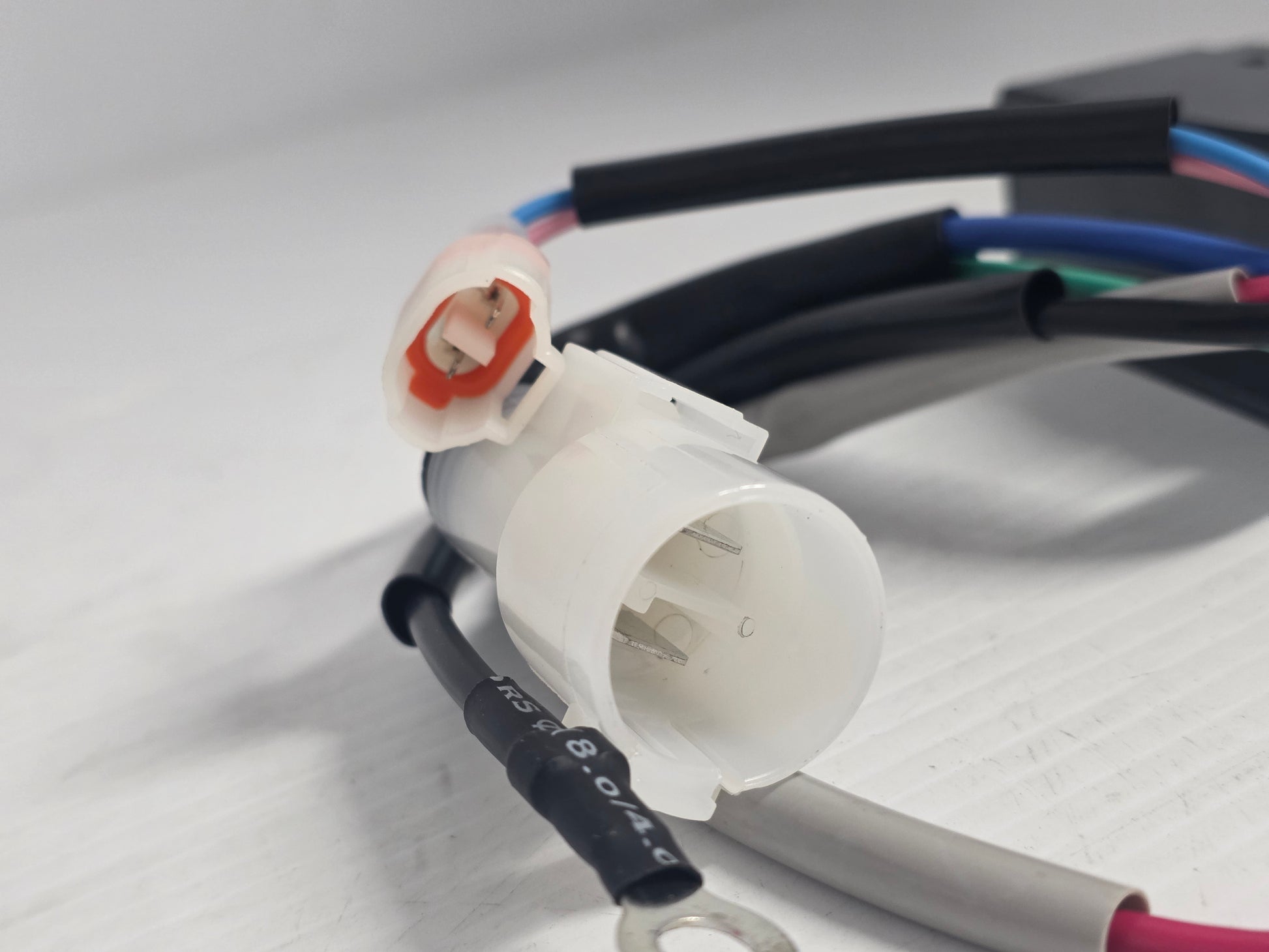

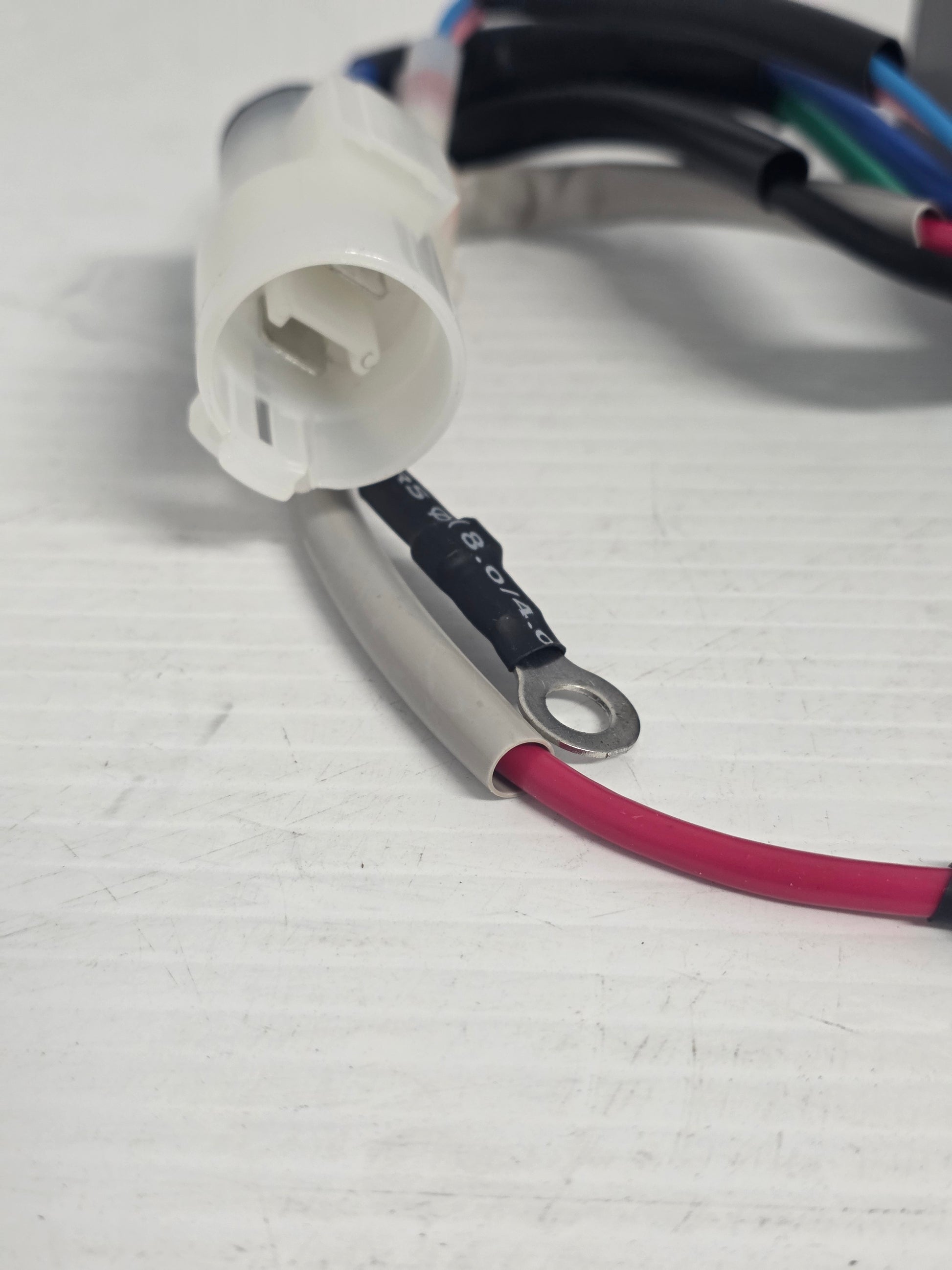

• 1 × Integrated sealed connector and motor leads

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 38410-93J12 → Supersedes 38410-93J11, 38410-93J10 and 38410-93J00

OEM / Related Numbers:

• 38410-93J00

• 38410-93J10

• 38410-93J11

Aftermarket / Verified Equivalents:

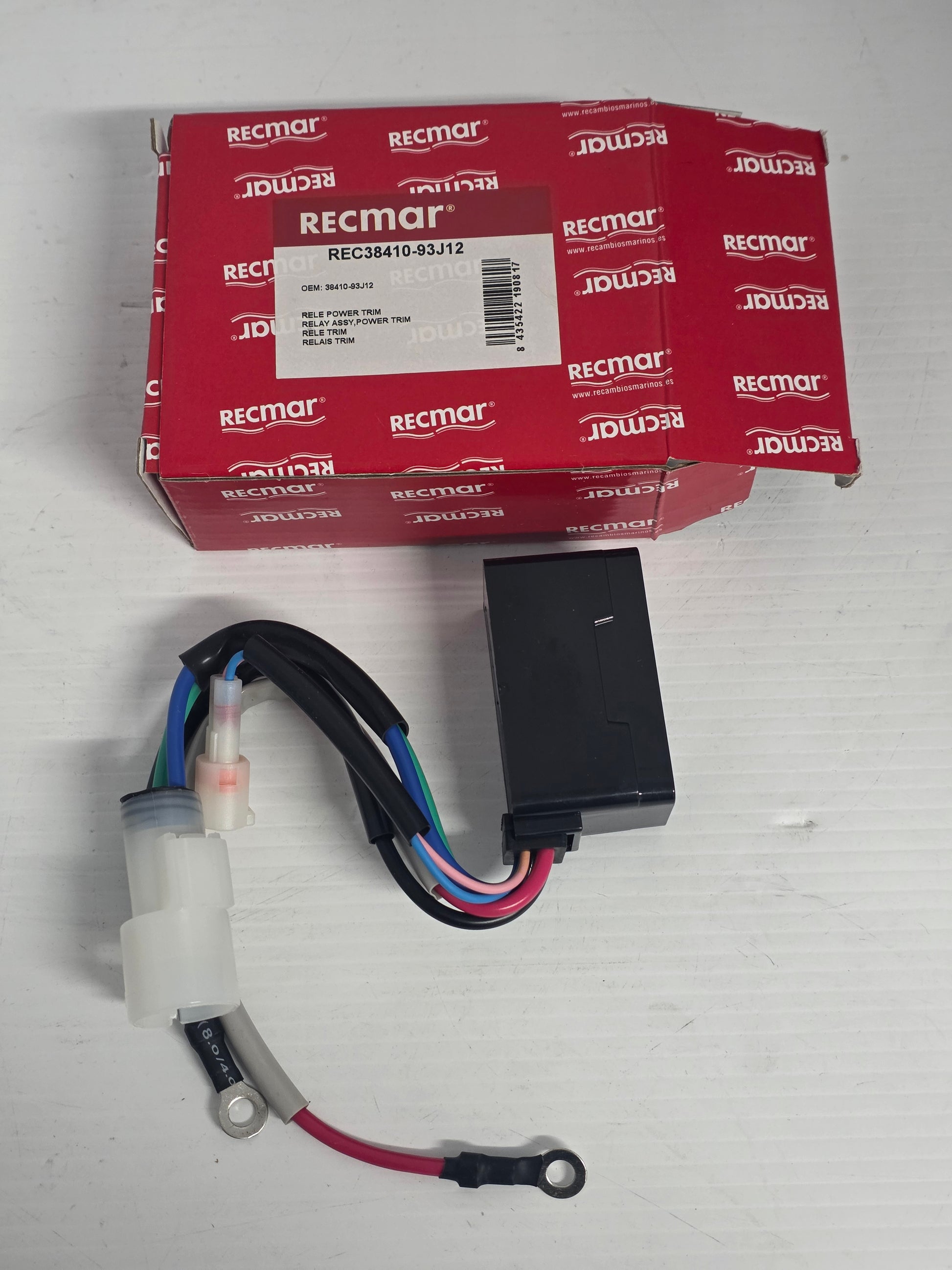

• Recmar: REC38410-93J12

• M9580 Suzuki relay

• Aftermarket 93J trim-relay module

🚤 Compatibility

Commonly used on:

• Suzuki electric power trim and tilt systems

Typically suits:

• Engine / Drive models:

• DF40A, DF50A, DF50AV, DF60A, DF70A, DF80A and DF90A

• DF100, DF115 and DF140

• DF150, DF175, DF200, DF225, DF250 and DF300 applications using the 93J relay

• HP / Drive Range: 40HP - 300HP

• System Type: Outboard power trim relay system

• Year Range: Approximately 2004 onward; model-dependent

• Serial / Component Identification: Confirm the 93J connector and mounting bracket.

🔌 Function

The relay assembly switches high battery current to the power trim motor in the UP or DOWN direction when commanded by the trim switch.

Common signs of failure / service requirement:

• Trim operates in only one direction

• Relay clicks but the motor does not run

• Intermittent trim operation

• Heat-damaged connector or burnt contacts

• No voltage reaches the motor under load

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
