🔧 Product Description

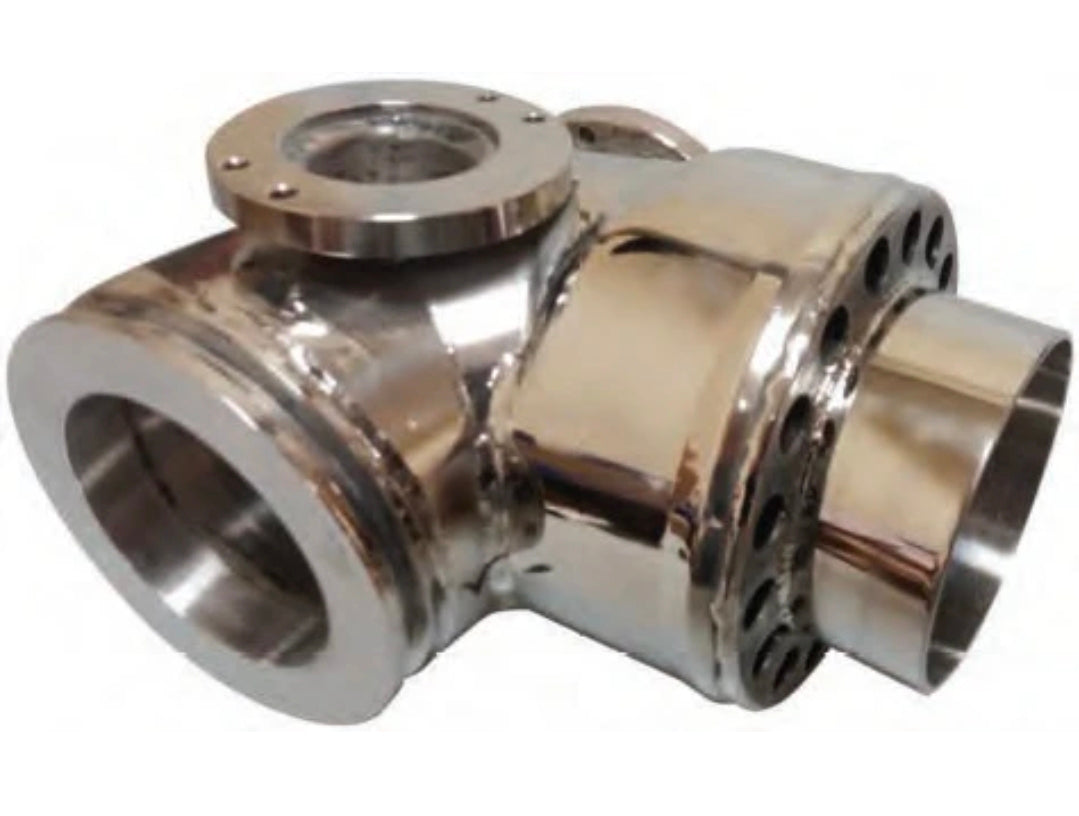

Aftermarket Volvo Penta D6 AISI 316 Stainless Steel Exhaust Elbow SED3091600 - Part Number: 3841510

An AISI 316 stainless-steel exhaust elbow for Volvo Penta D6 marine diesel engines. The Recmar SED3091600 replacement corresponds to Volvo Penta 3841510 and later 21684825, 22671213 and 22948844 numbers. Volvo Penta 3584168 is the associated exhaust bellows, not an equivalent elbow.

⚙️ Key Features

• Corrected application: Volvo Penta D6 exhaust elbow

• AISI 316 stainless-steel construction

• Replaces 3841510 and later D6 elbow numbers

• Uses associated bellows 3584168

• For a detailed D6 A-F suffix model range

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 22948844 / 22671213 / 21684825 → Later references replacing 3841510

• 3841510 → Earlier Volvo Penta elbow reference

OEM / Related Numbers:

• 3841510

• 21684825

• 22671213

• 22948844

• 3587159

• SED3091600

• 3584168 exhaust bellows

• 969415 O-ring

Aftermarket / Verified Equivalents:

• Recmar: SED3091600

🚤 Compatibility

Commonly used on:

• Volvo Penta D6 wet-exhaust systems

Typically suits:

• Engine models:

• D6-280A-A / AB / AC / AD / AE

• D6-300A-F / D6-300D-F

• D6-310A-A / AB / AC / AD / AE / DB / DC / DD / DE

• D6-330A-B / AC / AD / AE / AF / DB / DC / DD / DE / DF

• D6-350A-A / AB

• D6-370A-B / AC / AD / AE / AF / DA / DB / DC / DD / DE / DF

• D6-400A-F

• D6-435D-F

• Material: AISI 316 stainless steel

• Associated Exhaust Bellows: 3584168

• Associated Seal: 969415

🔌 Function

The elbow carries exhaust from the D6 turbocharger/manifold outlet and injects seawater before connection to the exhaust bellows.

Common signs of failure:

• External corrosion, cracking or pin-hole leakage

• Internal carbon, rust or salt restriction

• Cooling water entering the manifold, turbocharger or cylinders

• Steam, reduced cooling-water discharge or an abnormally hot exhaust hose

• Loss of power caused by excessive exhaust back-pressure

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
