3841706 Kit | Genuine Volvo Penta Part

🔧 Product Description

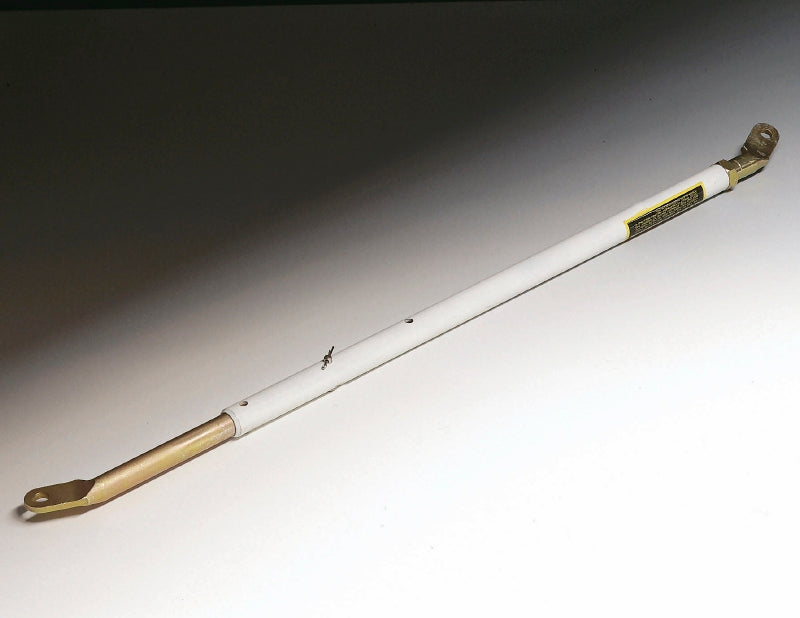

Genuine Volvo Penta connecting kit, the tie bar that links the drives of a twin engine installation, adjustable from 26 to 41 inches (0.66 to 1.04 m) to suit 660 to 1040 mm between engine centres, and listed for SX and DP-S drives. It is the shortest of the three tie bars offered: 3841707 covers 840 to 1220 mm on the same drives, and 3594639 covers 1000 to 1240 mm on DPH and DPR. It weighs 3.198 kg, covers 378 applications across D, V and TSK series installations, and supersedes part number 3850885, catalogued earlier as a link rod kit.

🚤 Compatibility

• Engine Family: D, V, TSK
• HP Range: 130-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Adjustable 26 to 41 inches (0.66 to 1.04 m)
• For 660 to 1040 mm between engine centres
• Fits SX and DP-S drives
• The shortest of the three tie bars listed
• 3.198 kg, 378 applications across D, V and TSK installations
• Supersedes 3850885, catalogued earlier as a link rod kit
• 660-1040 mm between engine centres
• Fits SX/DP-S drives
• Cc between engines: 660-1040 mm
• Fits drive: SX/DP-S
• Fits: SX/DP-S drives, twin engine installations

🔌 Function

Links the two drives of a twin installation so they steer together, keeping them parallel and sharing the steering load.

⚠️ Common Signs of Failure

• The two drives no longer pointing the same way, so the boat pulls to one side
• Play or clonking felt at the helm before the drives respond
• Ball joints or rod ends worn, stiff or with torn boots
• Tie bar bent, corroded or with a seized adjuster
• Locknuts or retainers loose, letting the length drift

🛠️ Service Notes

• Steering tie bars are a safety-critical link, so check the rod ends and their fasteners at every service and renew them on condition
• Measure the centre-to-centre distance between the engines first: 660 to 1040 mm takes this bar, 840 to 1220 mm takes 3841707, and DPH or DPR installations take 3594639
• Set the length so both drives are parallel, then lock the adjusters and check full lock-to-lock travel with no fouling
• Three tie bars are listed and the centre distance and drive type are what separate them: 3841707 covers 840-1220 mm on SX/DP-S; 3594639 covers 1000-1240 mm on DPH/DPR
• Measure the actual centre distance between the engines before ordering

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3841706 → Supersedes 3850885

OEM / Related Numbers

• 3850885 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 8.1GiC-J, 8.1GiC-JF, 8.1GiCE-JF, 8.1GiCE-J, 8.1GiCE-M, 8.1GiCE-P, 8.1GiC-Q, 8.1GiCE-Q, 8.1GiE-KF, 8.1GiE-K, 8.1GiE-M, 8.1GiE-P, 8.1Gi-J, 8.1Gi-JF, 8.1GXiE-K, 8.1GXiE-KF, 8.1GXiE-M, 8.1GXiE-P, 8.1GXi-J, 8.1GXi-JF, 8.1IPSCE-MF, 8.1OSi-J, 8.1OSi-JF, 5.7GXi-320-R, 5.7GXiE-320-R, 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-J, 5.7GXiC-JF, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GXi-J, 5.7GXi-JF, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-P, 5.7GXi-P, 5.7OSi-300-J, 5.7OSi-300-JF, 5.7OSXi-J, 5.7OSXi-JF, 5.7Gi-300-J, 5.7Gi-300-JF, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiE-300-P, 5.7Gi-300-P, 5.7Gi-300-R, 5.7GiE-300-R, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GiC-300-JF, 5.7GiC-300-P, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 4.3OSi-J, 4.3OSi-JF, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GiC-J, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiC-JF, 5.0GXiCE-M, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXi-J, 5.0GXi-JF, 5.0GXiE-K, 5.0GL-J, 5.0GL-JF, 5.0GXi-270-R, 5.0GXiE-270-R, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiC-J, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-P, 4.3Gi-200-R, 4.3GI-Q, 4.3GL-J, 4.3GL-JF, 4.3GL-P, 4.3GXi-225-R, 4.3GXiE-225-R, 4.3GXiE-M, 4.3GXi-P, 4.3GXiE-P, 4.3GXi-Q, 4.3GXiE-Q, 4.3GXi-J, 4.3GXi-JF, 3.0GLP-J, 3.0GLP-N, 3.0GXiC-J, 3.0GXi-J, 4.3Gi-200-S, 4.3GXi-225-S, 4.3GXiE-225-S
• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-270-C-B, V8-270-CE-B, V8-300-A, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-A, V8-320-E-A, V8-320-B, V8-320-E-B, V8-320-C-A, V8-320-CE-A, V8-380-CE-A, V8-380-C-B, V8-380-CE-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-C-A, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-A, V8-270-E-A, V8-270-B, V8-270-E-B, V8-270-C-A, V8-270-CE-A, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta TSK XXP-A, TSK XXP-ALT, TSK XXP-D3, TSK-A-AC-52-NPT, TSK-B-AC-42-NPT, TSK-B-AC-52-NPT, TSK B-42, TSK B-42-NPT, TSK B-52, TSK B-52-NPT, TSK B-AC-32, TSK B-AC-42, TSK B-AC-52, TSK B-OX-32, TSK B-OX-52, TSK SX-A, TSK SX-AAC, TSK SX-AACLT32, TSK SX-AACLT42, TSK SX-ALT32, TSK SX-ALT42, TSK SX-M, TSK SX-MAC, TSK SX-MACLT, TSK SX-MBAC, TSK SX-MDA, TSK SX-MDB, TSK SX-MDC, TSK SX-MHP, TSK SX-MLT, TSK SX-OXI-AACL, TSK SX-OXI-ACC, TSK SX-OXI-ACCL, TSK X-B, TSK X-BLT, TSK XHP-B, TSK XHP-BLT, TSK A-32, TSK A-32-NPT, TSK A-42, TSK A-52-NPT, TSK A-AC-32, TSK A-AC-42, TSK A-AC-52, TSK A-OX-32, TSK A-OX-42, TSK A-OX-52, TSK B-32, TSK-C-AC-42, TSK-C-OX-42, TSK-C-AC-42-NPT, TSK-C-42-NPT, TSK-C-AC-32, TSK-C-OX-32, TSK-C-32, TSK-C-AC-32-NPT, TSK-C-32-NPT, TSK-C-52-NPT, TSK-C-AC-52-NPT, TSK-C-AC-52, TSK-C-52, TSK-C-OX-52, TSK-A-42-NPT, TSK-A-AC-32-NPT, TSK-A-AC-42-NPT, TSK-C-TCC-32, TSK-C-TCC-42, TSK-E-AC-32, TSK-E-32, TSK-E-42, TSK-E-52, TSK-E-AC-42, TSK-E-AC-52, TSK-E-TCC-32, TSK-E-TCC-42, TSK-E-TCC-52, TSK-F-AC-32, TSK-F-AC-42, TSK-F-AC-52, TSK-F-TCC-32, TSK-F-TCC-42, TSK-F-TCC-52, TSK-F-32, TSK-F-42, TSK-F-52
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-200-A, V6-225-A, V6-225-E-A, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta D3-130I-C, D3-220I-G, D3-130A-C, D3-160A-C, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-C, D3-170I-G, D3-200I-G, D3-160I-C, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
