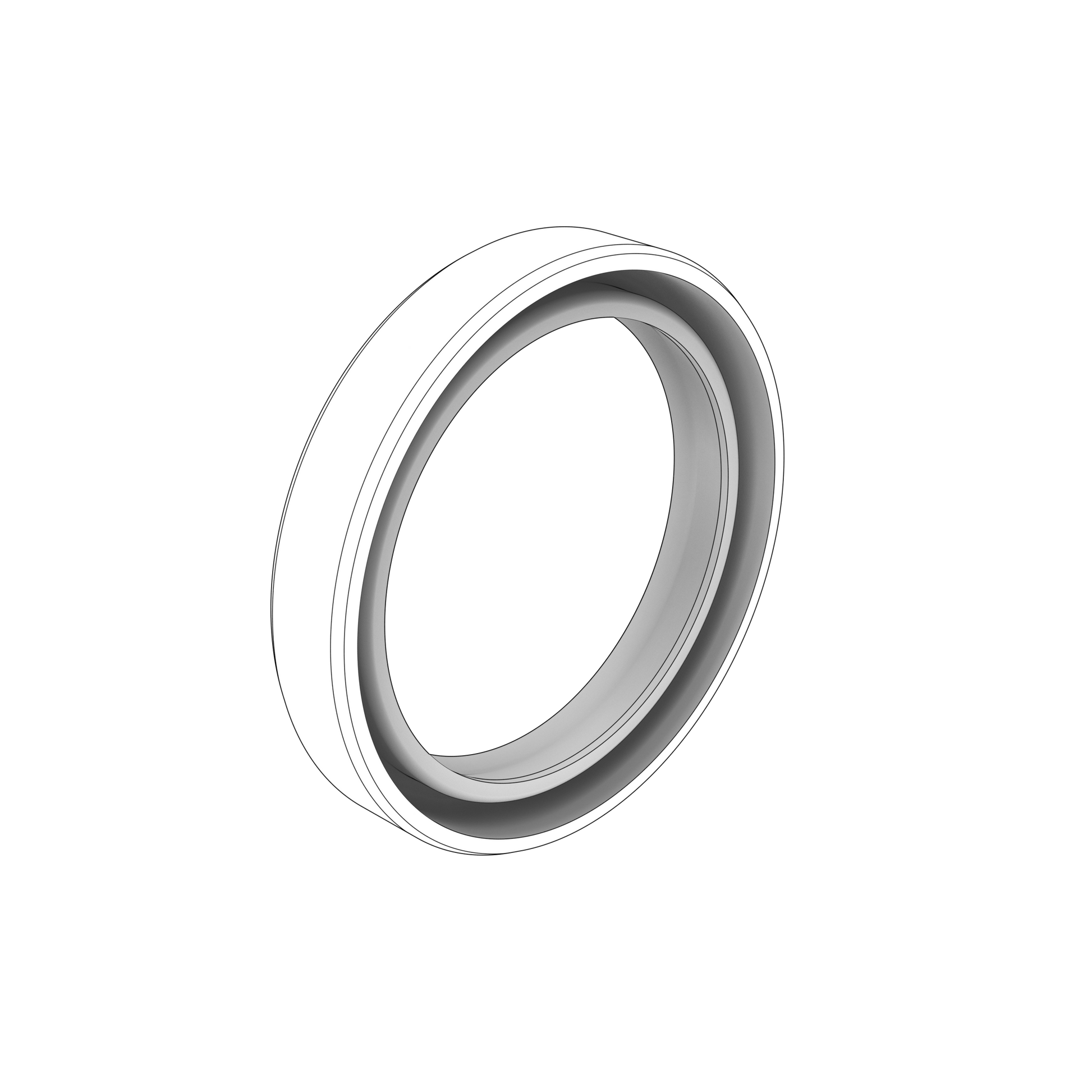

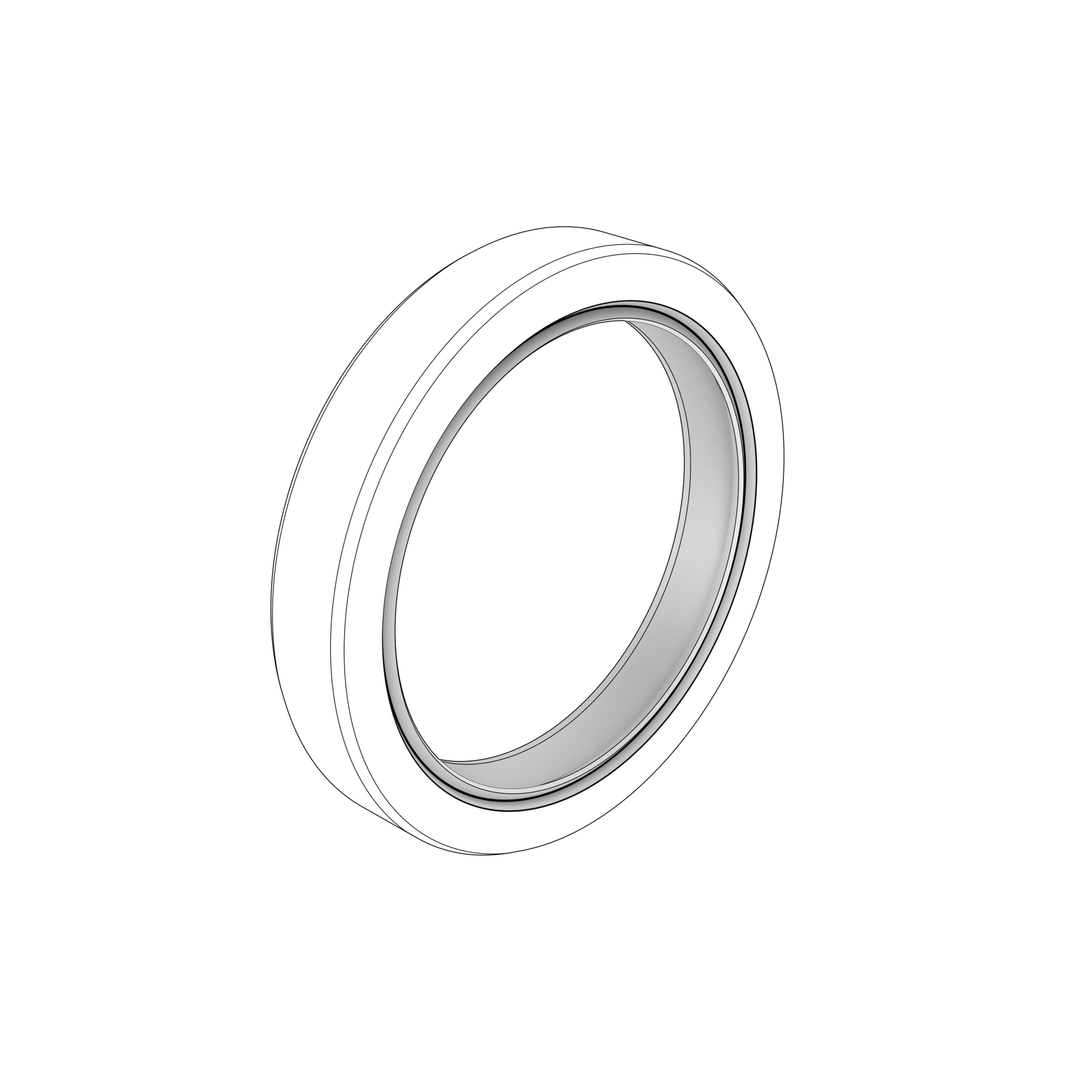

3842286 Sealing Ring | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta sealing ring from the Marine Propulsion group, weighing 11.3 grams and listed for 40 applications across D and IPS series installations. It supersedes part number 3819239, which was previously catalogued as a seal.

🚤 Compatibility

• Engine Family: D, IPS
• HP Range: 260-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Marine Propulsion group
• 11.3 grams
• 40 applications across D and IPS series
• Supersedes 3819239

🔌 Function

Seals the joint between two components, holding oil or coolant in and water out.

⚠️ Common Signs of Failure

• Oil weeping or dripping from the joint
• Water or emulsion found in the oil
• Ring flattened, hardened or nibbled on removal
• Groove or ring face scored
• Level dropping between services with no other explanation

🛠️ Service Notes

• Sealing ring 3842288, the blue one, also lists 3819239 as its predecessor at a much lower weight of 2.3 grams, so the old number leads to two current parts and you should confirm which one your joint takes
• Sealing ring kit 3842290 covers the same 40 applications if you want the rings as a set
• Lubricate the ring lightly on assembly and never stretch it over sharp edges

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3842286 → Supersedes 3819239 → Supersedes 3861206

OEM / Related Numbers

• 3819239 earlier number superseded by this part
• 3861206 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330D-E, D6-370D-E, D6-330D-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370D-F, D6-300D-F, D6-310D-D, D6-310D-C, D6-310D-E, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-435D-D, D6-435D-E, D6-435D-F, D6-435D-C
• Volvo Penta D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F
• Volvo Penta IPS-A, IPS-B, IPS-F, IPS-C, IPS-D, IPS-E
• Volvo Penta 8.1IPSCE-MF, 8.1IPSCE-P, 8.1IPSCE-Q
• Volvo Penta IPS10-A, IPS10-B
