3842288 Sealing Ring | Genuine Volvo Penta Part

🔧 Product Description

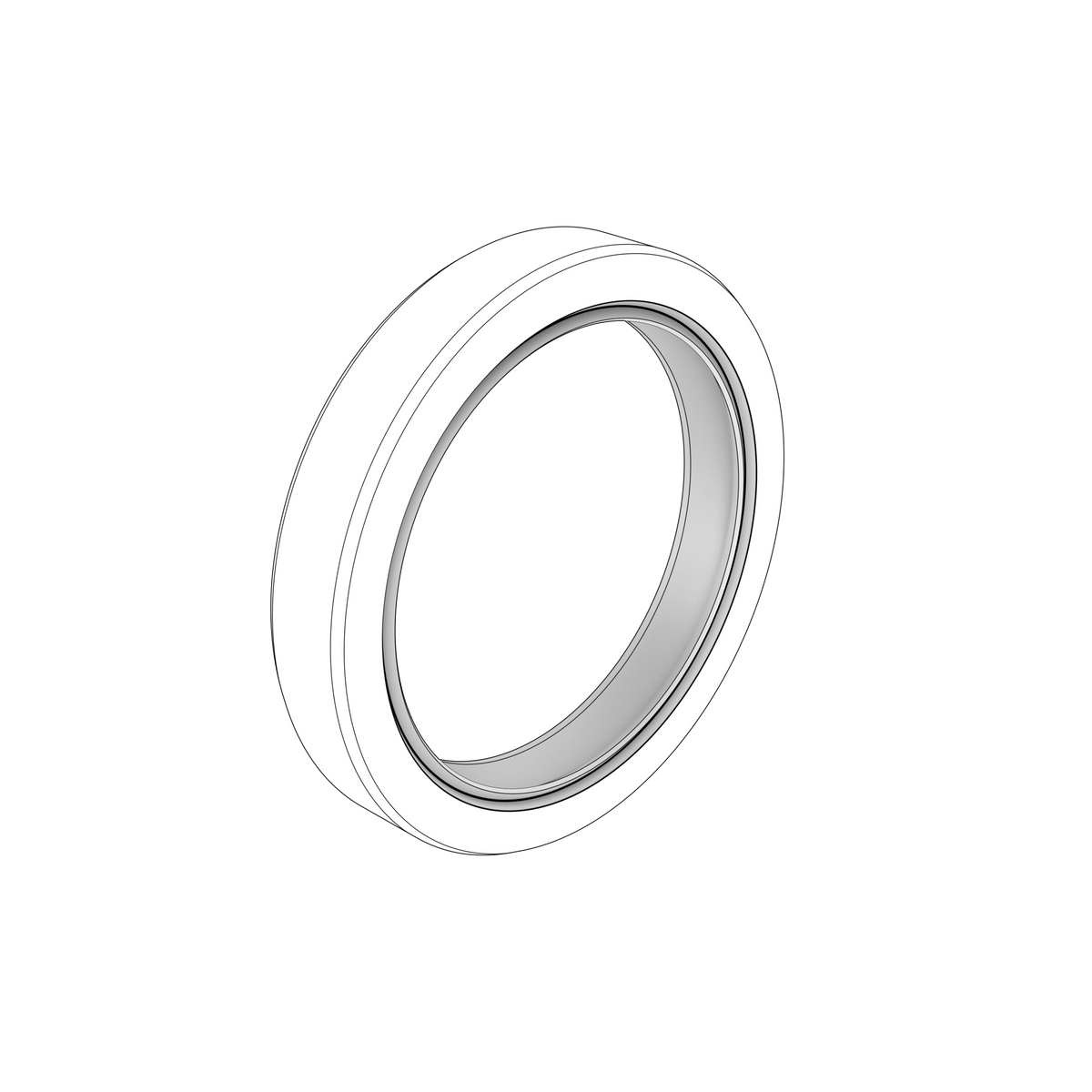

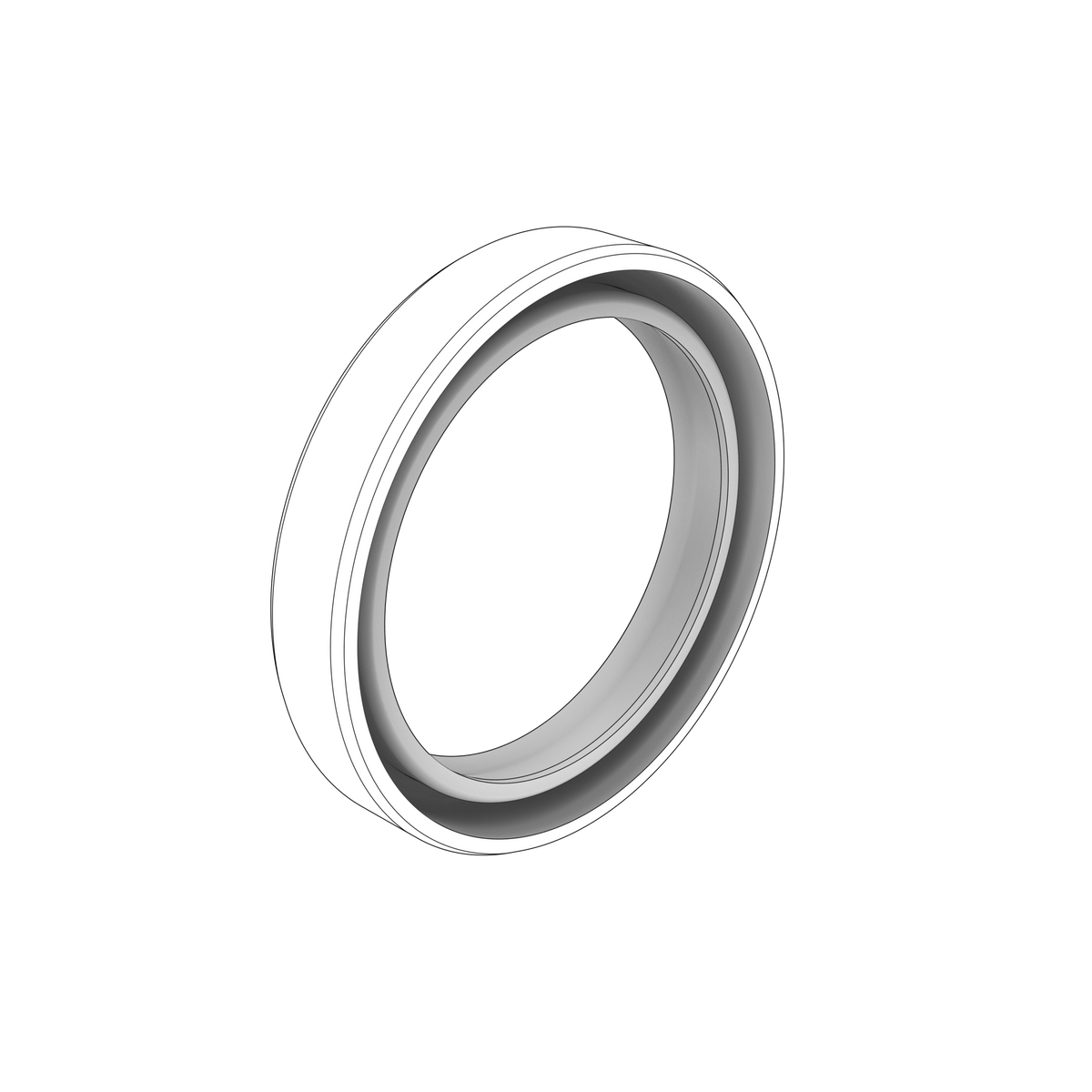

Genuine Volvo Penta blue sealing ring from the Marine Propulsion group, weighing 2.3 grams and listed for 40 applications across D and IPS series installations. It supersedes part number 3819239. The colour is the identifying feature, and the heavier 11.3 gram ring 3842286 lists the same predecessor.

🚤 Compatibility

• Engine Family: D, IPS
• HP Range: 260-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Blue
• Marine Propulsion group
• 2.3 grams
• 40 applications across D and IPS series
• Supersedes 3819239
• Also supersedes Volvo part number 3861206

🔌 Function

Seals the joint between two components, holding oil or coolant in and water out.

⚠️ Common Signs of Failure

• Weeping or seepage at the sealed joint
• Oil level falling slowly with no visible pool
• Ring squashed flat, hardened or split
• Nicks or a spiral cut where the ring was dragged over an edge
• Water contamination in the lubricant

🛠️ Service Notes

• Old number 3819239 is claimed by both this ring and 3842286, so use the blue colour and the weight difference to identify which one you need
• Sealing ring kit 3842290 supplies rings as a set for the same applications
• Fit dry or lightly lubricated as the procedure specifies and do not stretch the ring

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3842288 → Supersedes 3819239

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330D-E, D6-370D-E, D6-330D-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370D-F, D6-300D-F, D6-310D-D, D6-310D-C, D6-310D-E, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-435D-D, D6-435D-E, D6-435D-F, D6-435D-C
• Volvo Penta D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F
• Volvo Penta IPS-A, IPS-B, IPS-F, IPS-C, IPS-D, IPS-E
• Volvo Penta 8.1IPSCE-MF, 8.1IPSCE-P, 8.1IPSCE-Q
• Volvo Penta IPS10-A, IPS10-B
