3847876 Instrument | Genuine Volvo Penta Part

🔧 Product Description

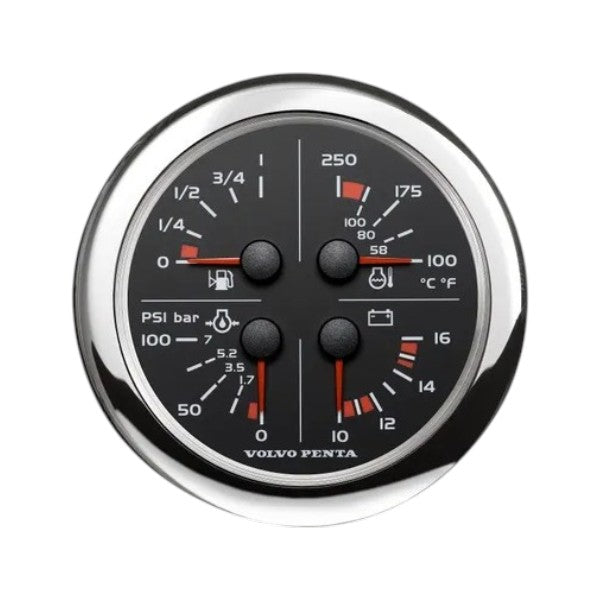

Genuine Volvo Penta 4-in-1 gauge, 110 mm, in black, showing coolant temperature, battery voltage, engine oil pressure and fuel level on one dial. It weighs 0.295 kg and is listed for 220 applications across V and D series engines. The oil pressure version of this gauge is not for D1, D2 or D3 A-C engines up to model year 2009. Volvo Penta's instruments carry an anti-fogging membrane and full backlighting, and connect by serial link.

🚤 Compatibility

• Engine Family: V, D
• HP Range: 175-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Four in one: coolant temperature, voltage, oil pressure and fuel level
• Black dial
• 110 mm diameter
• 0.295 kg
• Not for D1, D2 or D3 A-C engines up to model year 2009
• 220 applications across V and D series engines
• Anti-fogging membrane and full backlighting
• 110mm (Volvo assembly listing)
• 110 mm instrument diameter
• Not for D1/D2 or D3 A-C engines up to model year 2009
• Four readings on one dial: coolant temperature, voltage, oil pressure and fuel level
• Plug-and-play serial connection - adding instruments is easy
• Diameter: 110 mm
• Dial colour: Black
• Functions: coolant temperature, voltage, oil pressure and fuel level
• Fits: not for D1/D2 or D3 A-C (up to model year 2009)

🔌 Function

Shows four engine readings on one dial face - coolant temperature, battery voltage, oil pressure and fuel level - so a single 110 mm aperture covers all four.

⚠️ Common Signs of Failure

• One of the four readings dead while the others still work
• Needles sticking, drifting or reading full scale
• Backlighting dim, patchy or out
• Condensation or a water tide mark inside the glass
• Corroded terminals or a poor earth at the back of the gauge

🛠️ Service Notes

• The companion gauge 3847879 is the same black 110 mm four in one but shows drive trim position in place of oil pressure, and 3885214 is this same gauge with a white dial - order by the four readings you need
• Prove each sender and the gauge earth before condemning the instrument, since a single dead reading is usually a sender or a wire
• The front ring is ordered separately in chrome or black - mounting kit 3847888 supplies the black 110 mm ring for panel thicknesses from 0 to 15 mm
• Front ring and mounting items are not supplied with the instrument and are ordered separately: 52 mm black 874709 or chrome 874733, 85 mm black 874708 or chrome 874732, 110 mm black 3847888 or chrome 3885216 for panels up to 12 mm (15 mm at 110 mm); 881611/881613 in 52 mm and 881612/881614 in 85 mm for panels 12-25 mm; X-rings 874843 in 52 mm and 874844 in 85 mm for flush mounting

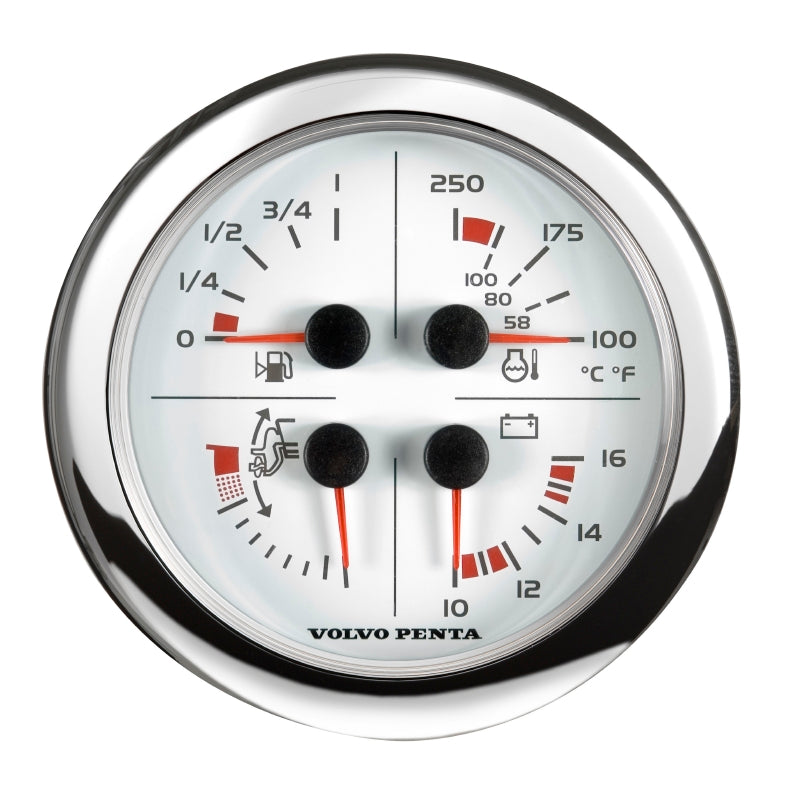

• Four versions are listed and dial colour and the fourth reading are what separate them: 3885214 is white and reads coolant temperature, voltage, oil pressure and fuel level; 3847879 is black and reads coolant temperature, voltage, trim and fuel level; 3885215 is white and reads coolant temperature, voltage, trim and fuel level
• Not listed for D1/D2 or D3 A-C engines up to model year 2009

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 8.1GiCE-JF, 8.1GiCE-J, 8.1GiCE-M, 8.1GiCE-P, 8.1GiCE-Q, 8.1GiE-JF, 8.1GiE-J, 8.1GiE-KF, 8.1GiE-K, 8.1GiE-M, 8.1GiE-MF, 8.1GiE-P, 8.1Gi-H, 8.1Gi-HF, 8.1Gi-J, 8.1Gi-JF, 8.1GXiE-JF, 8.1GXiE-J, 8.1GXiE-K, 8.1GXiE-KF, 8.1GXiE-M, 8.1GXiE-P, 8.1GXi-G, 8.1GXi-GF, 8.1GXi-J, 8.1GXi-JF, 8.1IPSCE-JF, 8.1IPSCE-MF, 8.1IPSCE-P, 8.1IPSCE-Q, 8.1IPSE-JF, 8.1OSi-D, 8.1OSi-DF, 8.1OSi-J, 8.1OSi-JF, 8.1OSiE-JF, 8.1OSiE-J, 5.7GXiE-320-R, 5.7GXiCE-320-R, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiCE-P, 5.7GXi-J, 5.7GXi-JF, 5.7GXiE-JF, 5.7GXiE-J, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-MF, 5.7GXiE-P, 5.7GXi-H, 5.7GXi-HF, 5.7OSi-300-J, 5.7OSi-300-JF, 5.7OSiE-300-JF, 5.7OSiE-300-J, 5.7OSi-G, 5.7OSi-GF, 5.7OSXi-J, 5.7OSXi-JF, 5.7OSXiE-JF, 5.7OSXiE-J, 5.7OSXi-G, 5.7OSXi-GF, 5.0OSi-J, 5.0OSi-JF, 5.0OSiE-J, 5.0OSiE-JF, 5.0OSi-G, 5.0OSi-GF, 5.7Gi-300-J, 5.7Gi-300-JF, 5.7GiE-300-JF, 5.7GiE-300-J, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiCE-300-MF, 5.7GiE-300-P, 5.7GiE-300-R, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 5.7Gi-G, 5.7Gi-GF, 5.7GiCE-300-P, 5.7GiCE-300-R, 4.3OSi-GF, 4.3OSi-J, 4.3OSi-JF, 5.0GiCE-225-S, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiCE-M, 5.0GXiCE-MF, 5.0GXiCE-P, 5.0GXi-J, 5.0GXi-JF, 5.0GXiE-JF, 5.0GXiE-J, 5.0GXiE-K, 5.0GXiE-270-R, 5.0GXiCE-270-R, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-MF, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-G, 5.0GXi-GF, 4.3GXiE-225-R, 4.3GXiE-M, 4.3GXiE-P, 4.3GXiE-Q, 4.3GXi-G, 4.3GXi-GF, 4.3GXi-J, 4.3GXi-JF, 4.3OSi-G
• Volvo Penta V8-350-CE-R, V8-380-CE-R, V8-300-CE-M, V8-350-CE-M, V8-300-CE-N, V8-350-CE-N, V8-380-CE-M, V8-270-CE-B, V8-300-E-A, V8-300-E-B, V8-300-CE-A, V8-320-CE-B, V8-300-CE-B, V8-320-E-A, V8-320-E-B, V8-320-CE-A, V8-380-CE-A, V8-380-CE-B, V8-380-CE-D, V8-430-CE-D, V8-350-CE-D, V8-380-CE-J, V8-430-CE-J, V8-350-CE-H, V8-350-CE-J, V8-300-CE-R, V8-430-CE-R, V8-430-CE-M, V8-300-CE-K, V8-350-CE-K, V8-380-CE-K, V8-430-CE-K, V8-300-CE-P, V8-350-CE-P, V8-380-CE-P, V8-300-CE-G, V8-300-CE-H, V8-300-CE-J, V8-350-CE-G, V8-225-CE-A, V8-225-CE-B, V8-270-E-A, V8-270-E-B, V8-270-CE-A, V8-380-CE-N, V8-430-CE-N, V8-430-CE-P, V8-300-CE-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-CE-N, V6-240-CE-M, V6-280-CE-M, V6-280-CE-J, V6-280-CE-G, V6-240-CE-N, V6-240-CE-K, V6-280-CE-K, V6-200-CE-P, V6-250-CE-P, V6-280-CE-P, V6-225-E-A, V6-280-CE-N, V6-250-CE-O, V6-240-CE-G, V6-240-CE-J, V6-250-CE-R, V6-280-CE-R
• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G
• Volvo Penta D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G
