3848965 Aftermarket Volvo Penta D3 Starter Motor | Sawley's Select Marine Parts

🔧 Product Description

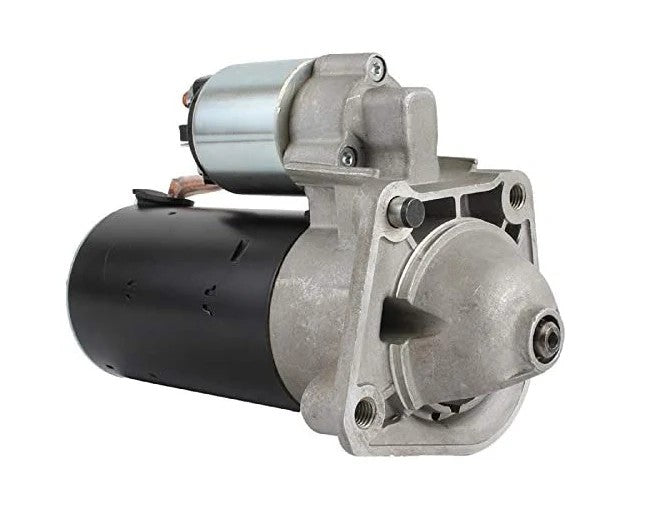

Aftermarket replacement Volvo Penta Early D3 Starter Motor - Replaces Part Number: 3848965

New aftermarket Bosch-pattern permanent-magnet gear-reduction starter replacing Volvo Penta 3848965 for first-generation D3 marine diesels.

⚙️ Key Features

• 12-volt electrical system

• 2.2kW rated output

• Clockwise rotation viewed from the drive end

• 9-tooth pinion

• Two-bolt permanent-magnet gear-reduction construction

• Complete new starter motor with integrated solenoid

• Marine or engine-grade corrosion-resistant construction

• Direct replacement only after voltage, rotation, tooth count and mounting pattern are confirmed

🧰 Kit / Assembly Contents

• 1 × Complete starter motor assembly - P/N 3848965

• 1 × Integrated starter solenoid and shift mechanism

• 1 × Installed pinion gear and overrunning clutch/Bendix assembly

• 1 × Installed armature, field-magnet/winding, brush holder and drive housing

• Mounting bolts, electrical cables and external relays are transferred or renewed separately unless supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 30782228 → Later/current service reference associated with 3848965 and 3801204

OEM / Related Numbers:

• 3848965

• 3801204

• 30782228

• Bosch 0-001-109-252

Aftermarket / Verified Equivalents:

• Recmar: REC3848965

• Aftermarket Bosch 0-001-109-252 starter

🚤 Compatibility

Commonly used on:

• Volvo Penta first-generation D3 marine diesel starting systems

Typically suits:

• Engine / Generator models:

• D3-110

• D3-130

• D3-160

• D3-190 early applications

• HP / Output Range: 110HP - 190HP

• Year Range: Principally 2003 - 2007

• Starter Identification: Confirm 12V, 9 teeth and the early D3 two-bolt starter.

🔌 Function

The starter motor converts battery electrical energy into high-torque mechanical rotation to crank the engine. When the start circuit energises the solenoid, the pinion moves into the flywheel ring gear and the motor turns the crankshaft until the engine starts. The overrunning clutch then protects the starter as engine speed rises.

Common signs of failure / incorrect starter fitment:

• No-crank condition even though the battery and start-control circuit test correctly

• Solenoid clicks but the starter motor does not rotate

• Starter turns slowly, draws excessive current or overheats the battery cables

• Pinion spins without engaging the flywheel ring gear

• Grinding, clashing or repeated pinion kick-out during cranking

• Intermittent cranking caused by worn brushes, solenoid contacts or heat soak

• Corrosion, water intrusion, burnt windings or excessive shaft/bearing play

📦 Condition

• New aftermarket replacement starter motor

• Brand new

• Supplied in original or equivalent packaging
